CONTROL ASSIGN

By default, the expression pedal and Hot Hand inputs control modula-
tion. This can easily be changed to control any of the adjustable knob
parameters. To assign control to a knob parameter, follow the instruc-
tions below:
1. Select the desired external control option: EXP for expression
pedal, HH for Hot Hand.

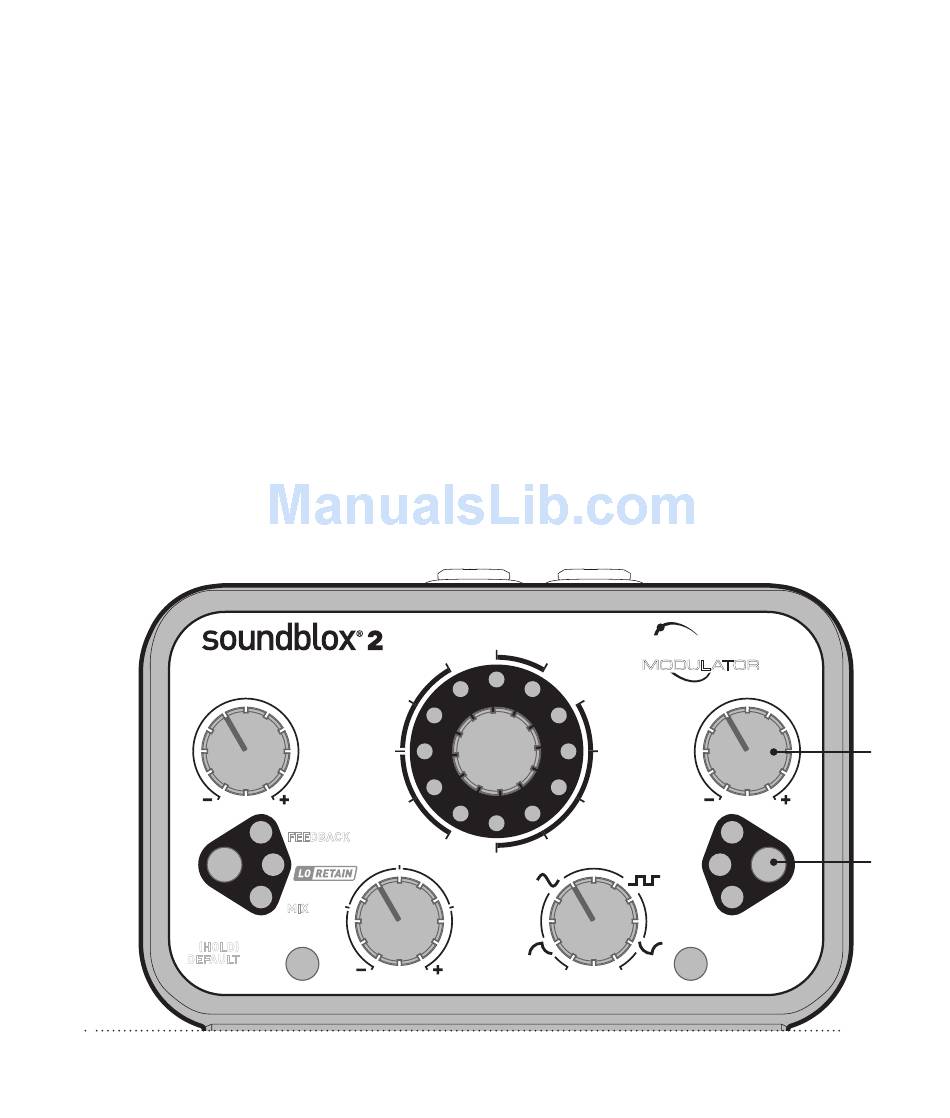

2. Press and hold the CONTROL INPUT button (A) until the LED
begins to blink slowly.
3. Set the low position of the desired knob, for example SPEED (B),
to the lowest setting you would like to use.
4. Press the CONTROL INPUT button again, the LED will now blink
more rapidly.
DEPTH
OPTION
SELECT
(HOLD)
DEFAULT
22 | External Control
SHADOW
THRU
ZERO
FLANGER
CLASSIC
CHORUS
QUAD
DELAY/FREQ
FEEDBACK
DUAL
VOLUME
TREMOLO
MIX
1
OPTION
RESONATOR
ORBITAL
RES 1
RES 2
MODULA TOR
VIBE
PHASER
4 STAGE
6 STAGE
8 STAGE
12 STAGE
ENV+ ENV-
MOD SOURCE
SPEED
HH
MIDI
EXP
CONTROL
INPUT
2
B
A
