LAUNCH
1.3.3 X-431 PRO Protection Sleeve
Dismantling X-431 PRO protection sleeve
To remove protection sleeve from X-431 PRO main unit, follow the steps
described as below to proceed:
1. Pull the red sleeve outwards from the right margin of X-431 PRO, and then
remove it completely.
2. Reverse the upper enclosure and then use the screwdriver to loosen all
screws.
3. Take out the lower enclosure from the upper enclosure.
4. Finally remove X-431 PRO tablet computer from the upper enclosure.
Note: Reverse the above-mentioned steps to install X-431 PRO protection
sleeve. While mounting it, please pay more attention to the installation direction.
1.3.4 DBScar Diagnostic Connector
①
OBD-16
connector
②
Power indicator
X-431 PRO User's Manual — Knowledge of X-431 PRO

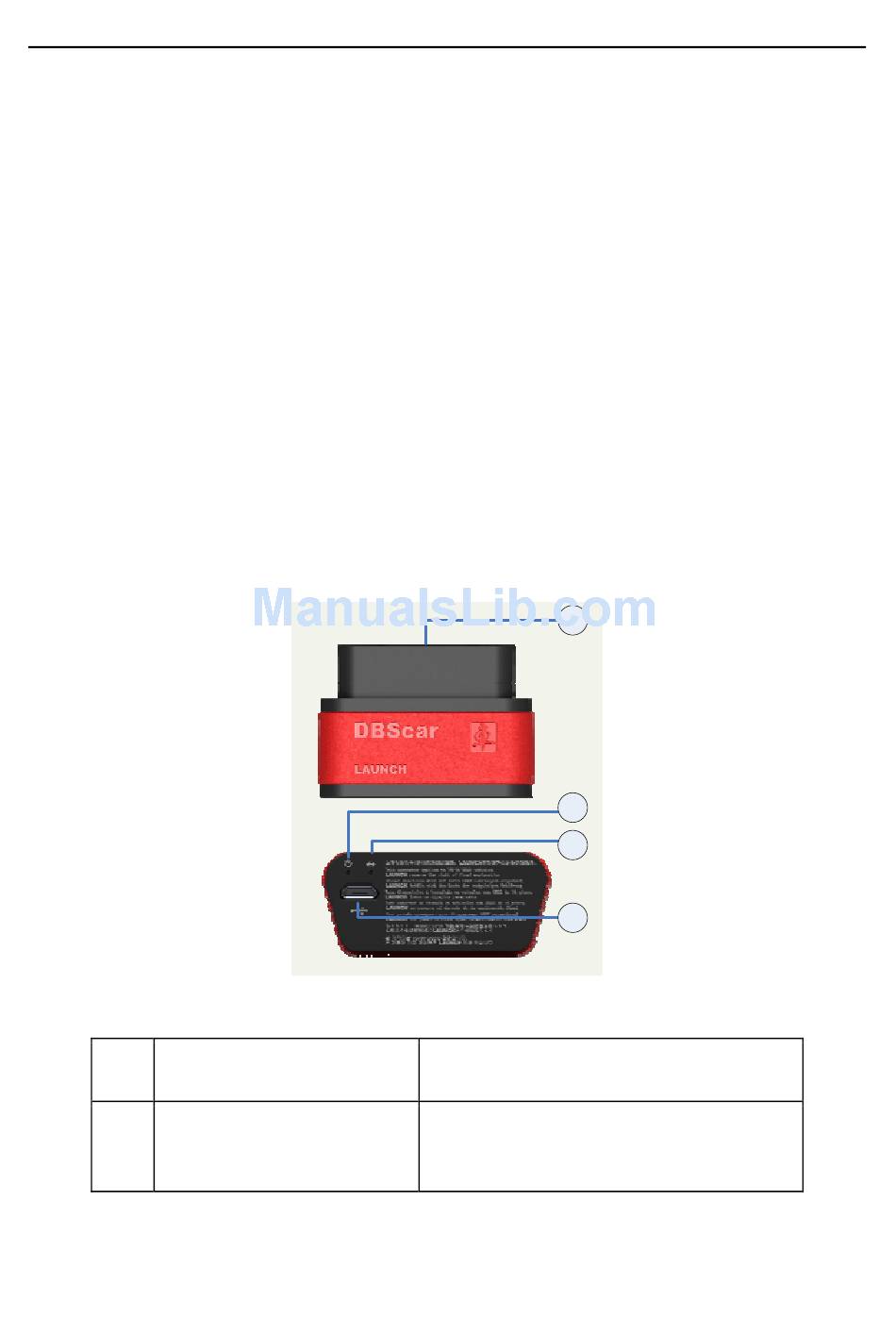

Fig. 1-3 DBScar diagnostic connector
diagnostic
1
2
3
4
To connect to vehicle's OBD2
DLC.
It lights up while plugging the
DBScar
connector
vehicle's DLC.
4
into
the
