Launch X-431 PAD IV Quick Start Manual

X-431 PAD IV
Quick Start Guide

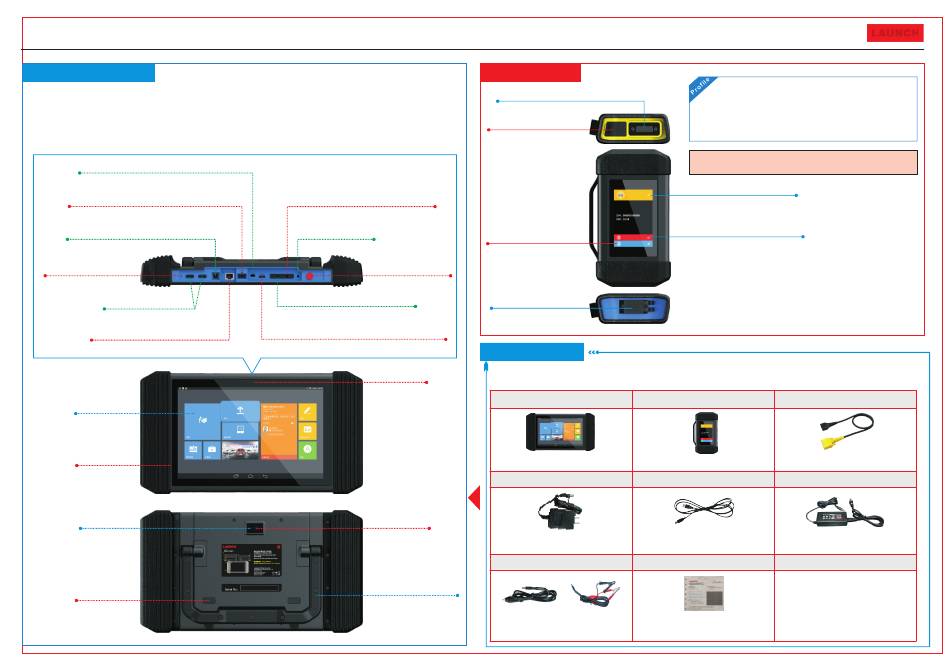

Knowledge of X-431 PAD IV

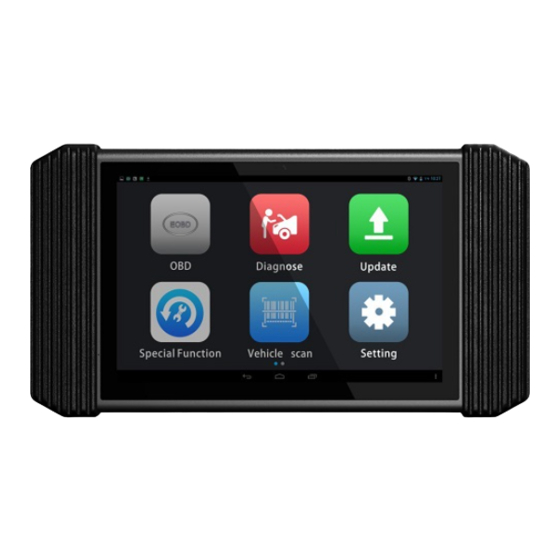

X-431 PAD IV is a new sophisticated Android-based diagnostic tool developed by LAUNCH. Utilizing higher hardware
configuration and user-friendly interface, it inherits LAUNCH's advanced diagnosing technology by covering a wide range of
vehicles, featuring powerful functions, and providing precise test result.
In addition to traditional diagnosis, X-431 PAD IV also supports the quick vehicle VIN(Vehicle Identification Number) scanning
technology, remote diagnosis(making remote request established easier and getting repair job fixed faster), diagnostics forum(a
platform for technicians to share repair skills and technical exchange), repair data(abundant repair information for quick retrieval
and reference), one-click update and add-on modules, such as oscilloscope, ignition, sensor and battery test etc.
USB1 port
(For connecting it to VCI module to perform diagnosis)
USB2 port
(To connect USB devices or add-on modules)
DC-IN jack
(To connect the included power adaptor)
Reset hole
(To reset the X-431 PAD IV)
Volume +/- keys
( To adjust the volume )
Ethernet port
(To connect Ethernet cable for wired network)
Touch Screen
Microphone
Camera Flash
Audio speaker
Reserved jack (spare)
(spare)
Headphone jack
Power/Screen lock key
TF card slot
(To insert a TF card for memory extension.)
HDMI port
(To connect an external projector or monitor with HDMI interface)
Front camera
Rear camera
Adjustable kickstand
(Flip out it to any angle and
work comfortable at your desk,
or hang it on automotive parts)
ÓÉ Foxit PDF Editor ±à¼- ÓÉ Foxit PDF Editor ±à¼- ÓÉ Foxit PDF Editor ±à¼- ÓÉ Foxit PDF Editor ±à¼-
°æȨËùÓÐ (c) by Foxit Software Company, 2004 °æȨËùÓÐ (c) by Foxit Software Company, 2004 °æȨËùÓÐ (c) by Foxit Software Company, 2004 °æȨËùÓÐ (c) by Foxit Software Company, 2004
½öÓÃÓÚÆÀ¹À¡£ ½öÓÃÓÚÆÀ¹À¡£ ½öÓÃÓÚÆÀ¹À¡£ ½öÓÃÓÚÆÀ¹À¡£
HD IV Module
Diagnostic socket
(For connecting the diagnostic cable.)
DC-IN power jack
(For connecting the power
adaptor or cigarette lighter/battery
clamps cable to obtain power.
For details on connection, please
refer to Section "Preparation &
Connection" in this Quick Start
Guide.)
Status of USB connection
(When the module is connected
to the tablet via USB cable,
" " appears.)
USB port
(For connecting it to the
tablet to perform diagnosis.)
Accessory Checklist
Common accessories for each X-431 PAD IV are same, but for different destinations, the accessories of X-431 PAD IV may vary.
Please consult from the local agency or check the packing list supplied with X-431 PAD IV together.
X-431 PAD IV tablet
(A device for accessing vehicle data.)
(A tablet for showing test results.)
Power adaptor
(Optional)
Optional
Optional Optional
(To supply power to the X-431 PAD IV tablet.)
X-431 PAD IV to perform vehicle diagnosis.)
Cigarette lighter&Battery clamps cable
(Optional)
(To supply power to the VCI module through
(A piece of paper bearing S/N and Activation
connection to cigarette lighter receptacle/
Code, which is needed for your registration.)
vehicle's battery.)
The HD IV module works as a vehicle communication
interface device, which is designed to read the vehicle data
and then send it to X-431 PAD IV tablet via Bluetooth
communication and USB connection. The module comes
loaded with a 4" display screen, enabling you to easily identify
the working status of the module and X-431 PAD IV tablet.
Note: Remember to remove the diagnostic cable or adaptor cable from the
DLC if it keeps idle or unused.
Status of vehicle connection
Technical parameters:
(If the module is disconnected from
Working voltage:9-36V
–
the vehicle's DLC, it will display " ".)
Working temp.:-10℃-55℃
–
Communication via:
–
Status of Bluetooth communication
1) Bluetooth or 2) USB cable
(Once the module is in USB mode,
it will display " ".)
How to supply power to the VCI module?
1). Via power adaptor: Plug one end of the included power adaptor to
the DC-IN jack of the module, and the other end to the AC outlet.
2). Via cigarette lighter cable/battery clamps cable: Plug one end of
the cigarette lighter/battery clamps cable to the DC-IN jack of the
module, and the other end to the cigarette receptacle / vehicle's
battery.
HD IV module Diagnostic cable
(To connect the VCI module to the vehicle's
USB cable Power adaptor for VCI module
(To connect the HD IV module and
(To supply power to the VCI module
through AC outlet.)
Password envelope Diagnostic connector kit
(For connecting the diagnostic cable and
non-16pin vehicle DLC.)
LAUNCH
DLC.)
(Optional)
