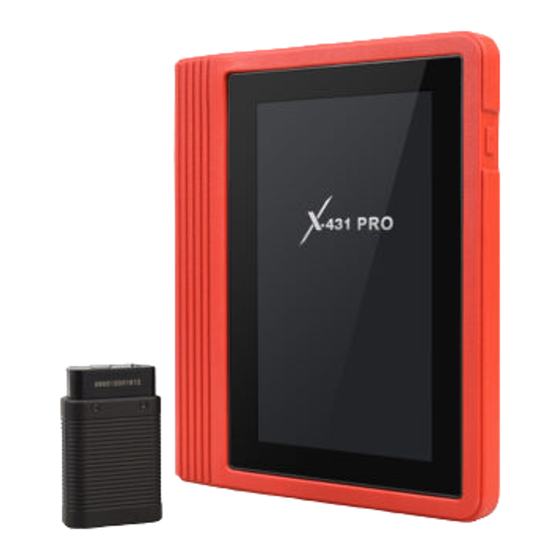

X-431 EuroPro4
VCI (Vehicle Communication Interface)
Note: Remember to remove the VCI
connector from the vehicle's DLC if it
keeps unused.
DLC Location
Power indicator
(It lights up while the VCI connector
is plugged into the vehicle's DLC.)
Bluetooth communication indicator
(By default, it is in Bluetooth mode when the
connector is powered up and illuminates blue.)
Install the VCI connector
1. Locate vehicle's DLC socket:
The DLC(Data Link Connector) is typically a 16-pin connector where
diagnostic code readers interface with the vehicle's on-board computer.
driver's side, about 12 inches away from the center of dashboard. See Figure DLC Location. In
case no DLC is found, please refer to Automobile Repair Manual.
2. Plug the VCI connector into the vehicle's DLC(It is suggested to use the OBD II extension cable to
connect the DLC and the VCI). Normally the power indicator of the VCI will light up.
1. Charging & Turning On
1. Plug one end of the included power adaptor into the USB port of the handset, and then other end
into the AC outlet.
2. Once the battery is fully charged, disconnect the power adaptor from the AC outlet.
handset
3. Press the [POWER] button on the
screen.
2. Wi-Fi Setup
1.
Tap [Settings] on the desktop and then [WLAN] to configure Wi-Fi setting.
2. Select the desired Wi-Fi connection from the list. (Password may be required for secured networks).
3. When "Connected" appears, it indicates that it is properly connected to the network.
Quick Start Guide
OBD-16 connector
(To connect on vehicle's OBD II DLC.)
The VCI connector is used to
access the vehicle data and
then send it to the handset via
Bluetooth, which only works
with the vehicle with 12V
battery voltage.
ECU communication indicator
(It flashes when the VCI connector is
communicating with the vehicle.)
Mini USB port
(Reserved for subsequent function extension.)
It is usually located on
, the system starts initializing and then enters the home
(c) Diagtools, Launch. Pernavas 43A, Riga, Latvia, LV1009, www.diagtools.lv, tel. +371 29416069, +371 67704152
3. Register and Download Software
1. Launch App: On the home screen, tap the application icon
to launch it, a dialog box similar to Fig. A will pop up on the
screen.
A. If you are a new user, tap on "New Customer" in Fig. A to
start your sign-up.
B.If you have registered to be a member, tap on "Existing
Customer" and then tap on "Login" to login the system
directly.
2. Create an App Account: Tap on "New Registration" in Figure A, input the information (items with *
must be filled) and then tap on "Register". Refer to Figure B.
1
Create an Account
Username
*
Password
*
Confirm Password
*
Email
*
Select Country
*
*
CAPTCHA
3. Activate VCI Connector: Input the Product S/N and Activation Code (can be obtained from the
password envelope), and then tap on "Activate". Refer to Figure C.
1
Create an Account
Serial Number
*
Activation Code
*
LAUNCH
Register/Login
Has this unit been registered?
New Customer
Register
2
3
Activate VCI
Finish Registration
CAPTCHA
Register
B
Register
2
3
Activate VCI
Finish Registration
Product S/N
Where is my activation code?
Activation code
Activate
>> Skip
C
Existing Customer
A
EN
