Summary of Contents for minrray UV830
-

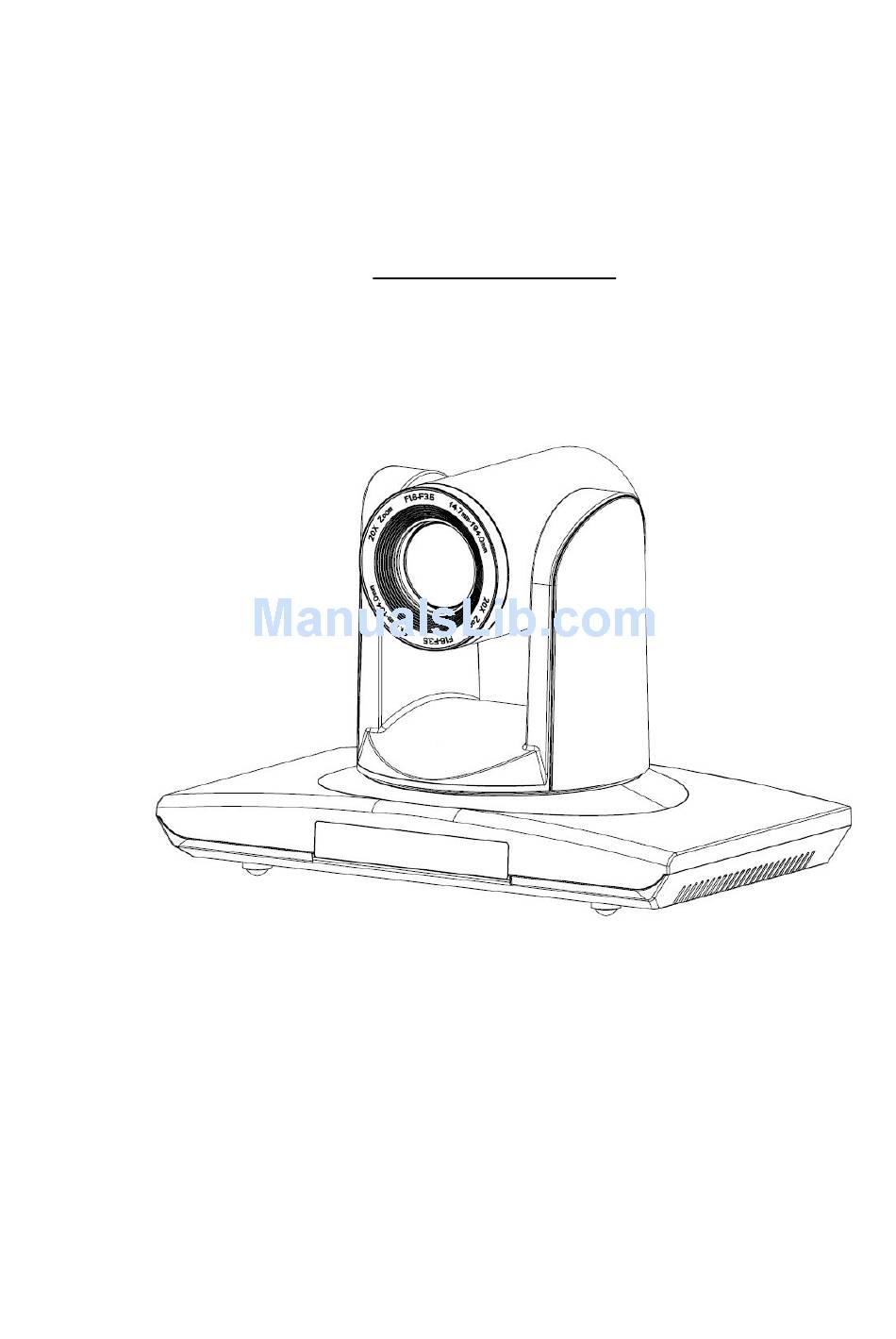

Page 1: User Manual
USB3.0 HD Color Video Camera User Manual 1.0 version （English）... -
Page 2: Table Of Contents
Preface: Thanks for using our HD color video conference camera. This manual introduces the function installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Warning This product can be only used in specified range in order to avoid any damage or danger;... -
Page 3: Notes
Notes Electric Safety Installation and operation must accord with electric safety standards. Caution to transport Avoid stress, vibration and soakage in transport, storage and installation. Polarity of power supply The power supply of the product is ±12V; the max electrical current is 2A. Polarity of the power supply as the following drawing Install Carefully Never move the camera by seizing the camera head. - Page 4 Recommended configuration cpu : core i3 3.4GHz; Display card：Nvidia GT630; Internal storage：6GB，better to use desktop； 3、Computer hardware device manager of universal serial bus (usb) controller are “USB3.0 Root Hub” and “USB3.0Extensible host controller” 1. Please check the connection before camera power on. 2.
- Page 5 Dial-up 1080P60 1080P50 1080P30 1080P25 720P60 720P50 720P30 720P25 -------- -------- -------- -------- -------- -------- -------- Display the video format set via OSD menu Note: need to restart the camera after switching video format. 4.When the power supply switch is “on”, the indicator light is open (red color) 5.
- Page 6 7.When testing the local video, software "e - CAMView” is available. 8.Test PC PTZ control with "AMCAP_PTZ" software to realize the dual function of video and control.Select “Preview” in the menu “Options” and click “PTZ Control” window through menu “PTZ”. Source code control protocol will be provided in the attachment.
-
Page 7: Camera Highlights
RESET ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ SYS. RESET CAM. RESET P T. RESET ALL. RESET BACK／ＭＥＮＵ Note: The language and installation way will not be reset after the ALL RESET operation, will save the option users chosen. Camera Highlights 1.Chinese / English menu,convenient to use. 2. -
Page 8: Camera Interface Explanation
Camera Interface Explanation 1.Camera lens 2.Camera base 3.Power light indicator 4.Working mode selection switch 5.Tripod screw hole 6.Installation hole 7.Video output format selection knob 8.RS232 control interface 9.USB3.0 B Male interface 10.DVI-I Video output 11.12VDC Input Power Supply Jack 12.power light indicator Dimension:... -
Page 9: Remote Controller Explanation
Remote Controller Explanation: Definition of IR controller 0、Standby key After pressing the standby key, the camera will step into standby mode,while the front indicator light is off and sparks every 20sec.Press again,the camera will do self-checking again and back to home position.If power on mode set,it will automatically run to the preset position. -
Page 10: Usage Of Ir Remote Controller
zoom ：lens far 11.Camera IR remote control address selection 【*】+【＃】+【F1】：Camera Address No.1 【*】+【＃】+【F2】：Camera Address No. 2 【*】+【＃】+【F3】：Camera Address No. 3 【*】+【＃】+【F4】：Camera Address No. 4 Usage of IR Remote Controller Finishing initialization, it can receive and execute the IR commands. Users can control the pan/tilt/zoom, setting and running preset positions via the IR remote controller. - Page 11 2. Zoom Control ZOOM OUT: press 【ZOOM 】 key ZOOM IN: press 【ZOOM 】 key Press and hold the key, the camera will keep zooming in or zooming out and stops as soon as the key is released. 3. Focus Control Focus (far)：...
- Page 12 1、 Preset setting : to set a preset position, the users should press the 【 SET PRESET】 key first and then press the number key 0-9 to set a relative position, 10 preset positions in total are available. 2、 Preset clearing : to clear a preset position, the user can press the 【 CLEAR PRESET】 key first and then press the number key 0-9 to clear the relative position;...
-
Page 13: Rs-232C Interface
RS-232C Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD1 3.TXD 4.GND 4.DTR 5.RXD1 5.GND 6.RS485-A 6.DSR 7.IR OUT 7.RTS 8.RS485-B 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR TXD1 3.TXD 3.TXD 4.GND 4.GND RXD1 5.RXD 5.RXD RS485-A 6.GND RS485-A IR OUT... -
Page 14: Com Control
COM Control In normal working mode, the camera is able to be controlled via RS-232C/RS485 command (VISCA IN) . The parameter of the RS232C/RS485 COM is as following : Baud Rate ：2400/4800/9600/115200 bit/s Start bit：1bit ; Data bit: 8bit ; Stop bit : 1bit;... - Page 15 Wide(Variable) 8x 01 04 07 3p FF Direct 8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position DirectSpeed 81 0A 04 47 0V 0p 0q 0r 0s FF V:Speed 0(low) - 7(high) pqrs: Zoom Position Stop 8x 01 04 08 00 FF Far(Standard) 8x 01 04 08 02 FF Near(Standard)
- Page 16 Direct 8x 01 04 0C 00 00 0p 0q FF pq: Gain Positon CAM_Bright Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright l Positon 8x 01 04 3E 02 FF Exposure Compensation ON/OFF 8x 01 04 3E 03 FF Reset 8x 01 04 0E 00 FF CAM_ExpComp...
- Page 17 8x 01 06 02 VV WW AbsolutePosition 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF 8x 01 06 03 VV WW RelativePosition 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF Home 8x 01 06 04 FF Reset 8x 01 06 05 FF 8x 01 06 07 00 0W W:1 UpRight 0:DownLeft 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF...
- Page 18 Part3 Inquiry Command 命令 命令包 返回包 注释 y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF Auto Focus CAM_FocusModeInq 8x 09 04 38 FF...
- Page 19 mn pq rs tu vw FF P: Video format 1:1080P60 2:1080P50 4:720P60 VideoSystemInq 8x 09 06 23 FF y0 50 0p FF 5:720P50 6:1080P30 7:1080P25 8:720P30 9:720P25 y0 50 02 FF IR_Receive 8x 09 06 08 FF y0 50 03 FF y0 07 7D 01 04 00 FF Power ON/OFF y0 07 7D 01 04 07 FF...
- Page 20 Query Pan Position 0xFF Address 0x00 0x51 0x00 0x00 Value High Value Low Query Pan Position Response 0xFF Address 0x00 0x59 Byte Byte Query Tilt Position 0xFF Address 0x00 0x53 0x00 0x00 Value High Value Low Query Tilt Position Response 0xFF Address 0x00...
-
Page 21: Menu Setting
Menu Setting 1. Main Menu In normal working mode, press 【MENU】key to display the menu, using scroll arrow to point at or highlight the selected items. MAIN ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Ｌａｎｇｕａｇｅ／ EN （SYSTEM OPTION） （CAMERA OPTION） （PT OPTION） （V. FORMAT） （RESET） （HELP） EXIT／ＭＥＮＵ... - Page 22 PROTOCOL: Reset Condition VISCA Protocol type:VISCA/Pelco-P/Pelco-D ADDR：Reset Condition: 01 VISCA=1~7 Pelco-P/Pelco-D = 1~63 B. RATE：Reset Condition:9600 2400/4800/9600/115200 RS485： Reset Condition:off It is ON when using RS485 communication ＡＲＭ VER./ＦＰＧＡ VER/CAM VER: version information,it will upgrade synchronously with the software Machine Model: Machine internal identified code UH-M 3.
- Page 23 EXPOSURE SETTING ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ EXP. MODE Auto SHUTTER IRIS GAIN BRIGHT EV. MODE LEVEL LEVEL BACK／ＭＥＮＵ EXP. MODE：Reset Condition: Auto Available mode: Auto，Manual，Shutter，Iris SHUTTER：Reset Condition: Default Available selections: 1/60、1/90、1/100、1/125、1/180、1/250、 1/350、 1/500、1/725、 1/1000、 1/1500、 1/2000、 1/3000、 1/4000、 1/6000、 1/10000（ only available in Manual Shutter mode）...
- Page 24 COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB.MODE R.GAIN B.GAIN GAMMA SATURATION APERTURE FLICK 50HZ NR LEVEL CONTRAST BACK／ＭＥＮＵ WB MODE：Reset Condition: ATW White balance mode setting: Auto、Indoor、Outdoor、OnePush、ATW、Manual R.GAIN：Reset Condition:Default Red gain setting：0~50（only available in Manual mode） B.GAIN：Reset Condition:Default Blue gain setting：0~50（only available in Manual mode） GAMMA: Reset Condition:0 GAMMA setting: 0~3 SATURATION: Reset Condition:3...
- Page 25 FOCUS：Auto，Manual，OnePush 4. PAN TILT SETTING Move the pointer to the (PT SET) in the Main Menu, click the【HOME】and enter the (PT SET) as follow, PT SET ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ POWER. ACT SPEEDBYZ MOUNT. MODE IR M.SPEED IR Z.SPEED MIN.SPEED SCAN. SPEED BACK／ＭＥＮＵ 返回／ＭＥＮＵ...
- Page 26 RESET ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ SYSTEM. RESET CAM.RESET PT. RESET ALL. RESET BACK／ＭＥＮＵ SYS. RESET：system reset:Protocol: VISCA; Address: 1; baud rate:9600; ＲS485:Off CAM. RESET：camera parameter reset PT. RESET：power action: Off; speed by zone: On; mount mode:Up; IR move speed:16; IR zoom speed: 7;MIN.SPEED 0;SCAN. SPEED 10 ALL RESET：reset above 3 items All of the parameters are reset to factory default except for mount mode and language.
-
Page 27: Troubleshooting
Notice：press【HOME】key to confirm; press【MENU】key to return to the main menu Troubleshooting Camera Maintains If camera is not used for long time, please turn off power adapter switch and AC plug. Use soft cloth or tissue to clean the camera cover. Use soft cloth to clean the lens;...
