  • Page 1: User Manual

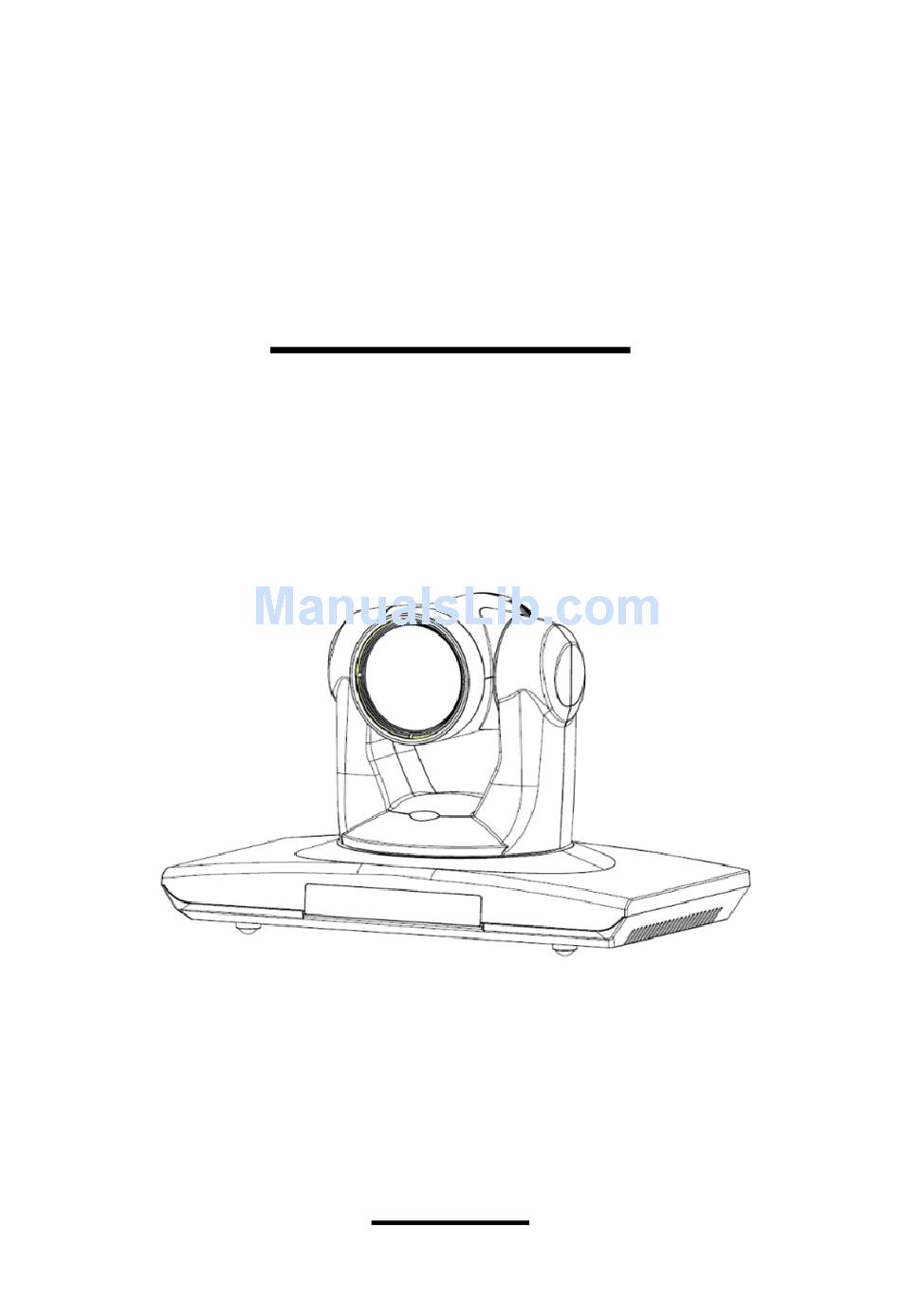

    Minrray UV820 HD Color Video Camera User Manual www.Minrray.com (800) 486-5276 English...
  • Page 2 Preface: Thanks for using our HD color video conference camera. This manual introduces the function installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Warning This product can be only used in specified range in order to avoid any damage or danger.
  • Page 3: Table Of Contents

    Contents NOTES .................................... 3 SUPPLIED ACCESSORIES ............................3 FAST INSTALLATION ..............................4 CAMERA HIGHLIGHTS ............................. 5 CAMERA SPECIFICATIONS: ............................ 5 CAMERA INTERFACE EXPLANATION ........................6 DIMENSION .................................. 6 REMOTE CONTROLLER ............................7 IR REMOTE CONTROL.............................. 8 RS-232C INTERFACE (PIN SPECS)......................... 10 COM CONTROL .................................
  • Page 4: Notes

    Notes Electric Safety Installation and operation must accord with electric safety standard Caution to transport Avoid stress, vibration and soakage in transport, storage and installation. Polarity of power supply The power supply of the product is +12V, the max electrical current is 2.5A .polarity of the power supply drawing.
  • Page 5: Fast Installation

    Fast Installation 1. Please check the connection before turn on. 2. Bottom Dial Switch Setting Two DIP switch set to be OFF, which is normal working mode SW2-2 SW2-1 Explanation Undefined Updating mode Debugging mode Working mode 3. The Rotary Switch Setting The video format setting selections Switch Setting 1080P60...
  • Page 6: Camera Highlights

    4. When Power supply switch is “on”, the indicator light is open (red color) 5. Camera initializes after powered on, the indicating lights on front panel will start flicker by the order of Red - Yellow- Green : Rotate Pan to the left limit, rotate tilt to the down limit; Then rotate to the middle of both pan and tilt, the motor stops.
  • Page 7: Camera Interface Explanation

    Camera Interface Explanation 1 - Camera lens 2 - Camera base 3 - Working status indicator light (red) 4 - Bottom dial Switch 5 - Tripod screw hole 6 - Installation Orientation Hole 7 - Rotary Switch: video format optional 8 - RS232 controller serial interface (input) 9 - RS232 controller serial interface (output) 10 - CVBS interface (optional)
  • Page 8: Remote Controller

    Remote Controller Definition of IR controller 0 Standby key After press the standby key, the camera will step into standby mode. Press again, the camera will open again. (Note: Standby mode power consumption is about half of the normal mode) 1 Number key Setting or Running presets 2 * key...
  • Page 9: Ir Remote Control

    IR Remote Control When the camera is working, users can control the pan/tilt/zoom, setting and taking preset positions via remote controller. Instruction: 1. In this instruction, “press the key” means a click other than a long-press, and a special note will be given if a long-press for more than one second is required.
  • Page 10 4 BLC Setting BLC ON / OFF: Not supported 5 Presets setting 1 Preset setting : To set a preset position, the users should press the “SET PRESET” key first and then press the number key 0-9 to set a relative preset, 10 preset positions in total are available. 2 Preset clearing : to clear a preset position, the user can press the “CLEAR PRESET”...
  • Page 11: Rs-232C Interface (Pin Specs)

    RS-232C Interface (Pin Specs) Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD1 3.TXD 4.GND 4.DTR 5.RXD1 5.GND 6.RS485-A 6.DSR 7.IR OUT 7.RTS 8.RS485-B 8.CTS 9.RI Camera Mini DIN 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.RS485-A 6.GND 7.IR OUT 7.NC 8.RS485-A...
  • Page 12: Com Control

    COM Control In default working mode, the camera is able to be control via RS232C/RS485 interface (VISCA IN). The parameters of the RS232C/RS485 COM as following: Baud Rate 2400/4800/9600/115200 Bit/S Start bit 1bit; Data bit: 8bit; Stop bit: 1bit; Code: None Connected to power, the camera runs to left down and back to middle position, with the farthest zoom rate, auto focus mode and auto iris mode.
  • Page 13 Command Function Command Packet Note Reset 8x 01 04 03 00 FF 8x 01 04 03 02 FF Manual Control of R Gain CAM_RGain Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain Reset 8x 01 04 04 00 FF...
  • Page 14 Command Function Command Packet Note 5:720P50 6:1080P30 7:1080P25 CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) SYS_Menu 8x 01 06 06 03 FF Turn off the menu 8x 01 06 08 02 FF IR(remote commander)receive IR_Receive 8x 01 06 08 03 FF...
  • Page 15 Command Command packet Return packet Note SYS_MenuModeInq 8x 09 06 06 FF y0 50 02 FF y0 50 03 FF CAM_LR_ReverseInq 8x 09 04 61 FF y0 50 02 FF y0 50 03 FF CAM_PictureFlipInq 8x 09 04 66 FF y0 50 02 FF y0 50 03 FF CAM_IDInq...
  • Page 16 Pelco-P Protocol Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0 Address...
  • Page 17: Menu Setting

    Menu Setting Main Menu In normal image condition, press “MENU” key to display the menu, using scroll arrow to point at or highlight the selected items. MAIN Language Setting SYSTEM OPTION CAMERA OPTION PT OPTION V. FORMAT RESET HELP VGA-OUT EXIT Language Setting: reset state: user Settings SYSTEM OPTION Setting: Enter to set the Submenu...
  • Page 18 CAMERA OPTION Setting On the Main Menu , move the scroll arrow to CAMERA OPTION, enter HOME key to the setting page. As shown below CAMERA SET EXPOSURE COLOR BACK EXPOSURE: Enter to set the Submenu COLOR: Enter to set the Submenu LEN: Enter to set the Submenu 3.1 EXPOSURE Move the scroll arrow to EXPOSURE, enter HOME...
  • Page 19 3.2 COLOR Move the scroll arrow to Color, enter HOME key to the setting page. As shown below COLOR WB.MODE R.GAIN B.GAIN GAMMA SATURATION APERTURE FLICK NR LEVEL CONTRAST BACK WB Mode: reset state: ATW Available Settings: Auto, Indoor, Outdoor, OnePush, ATW, Manual Red Gain: reset state: Default Available Settings:0 ~ 50 only available in the mode of Manual Blue Gain: reset state: Default...
  • Page 20 4. PT OPTION Move the scroll arrow to PT OPTION, enter HOME key to the setting page. As shown below PT SET POWER. ACT SPEEDBYZ MOUNT. MODE IR M.SPEED IR Z.SPEED MIN.SPEED SCAN. SPEED BACK Power on mode: reset state: Off 0/1 (After power on 12 seconds, if you don’t operate the camera, it will automatically go to the preset 0/1), Off SPEEDBYZ: the depth of field proportion: reset state: On...
  • Page 21 6. Help Move the scroll arrow to Help, enter HOME key to the setting page. As shown below HELP Selet Menu ChangeSetting Enter Return BACK Display menu operation method 7. EXIT Enter the MENU key once again, you will see this interface. EXIT SAVE Yes/No...
