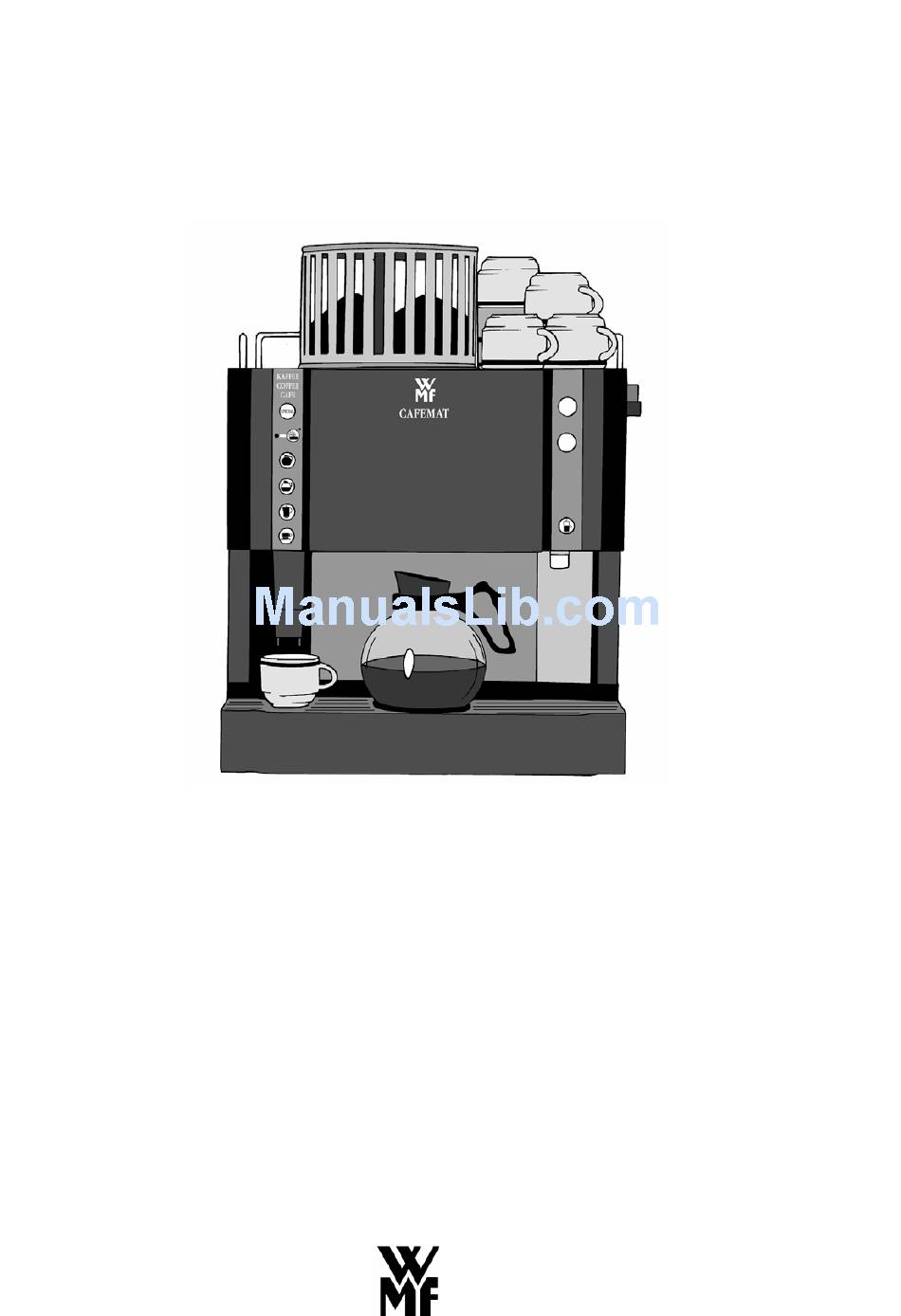

  • Page 1 WMF COFFEE MACHINES Operating Instructions WMF CAFEMAT Series 3100/3200 Edition 4 - Printed in 04.02...
  • Page 2 Are you a person who does not like reading operating instructions? -Please do so anyway! You will get more pleasure from your WMF COFFEE MACHINE and will find it was worth it after all! In your own interests, please follow all...
  • Page 3: Table Of Contents

    7.2.2 Brewing with multi-brew arm................... 46 7.3 Hot water dispensing ........................47 7.4 Hot plate ............................47 7.5 WMF CAFEMAT with personnel accounting/ vending unit ............48 7.5.1 One-price coin checker ..................... 49 7.5.2 Coin changer (4 prices) ..................... 49 8 Care of the machine ..........................
  • Page 5: Machine Feature And Components

    Lower machine door (access to grouts and water container) Swivelling coffee dispenser Pull-out multi-brew arm (on WMF CAFEMAT with vending unit mounted at left) “ON – OFF” switch (on WMF CAFEMAT with vending unit with key switch) “Hot plate” switch “Hot water” button...
  • Page 6: General Description

    2 General description The WMF CAFEMAT is an expert in filter coffee. In terms of flexibility, its novel system establishes new standards. Single cups, pots and multi-brews allow optimum adjustment for varying requirements. Each quantity is freshly brewed at the push of a button. A hot...
  • Page 7: Warnings

    3 Warnings Maximum machine safety is an integral WMF product characteristic to which we pay particular attention. In spite of all our safety precautions, however, every machine is potentially hazardous if not operated properly. This is why – for your own safety – we have summarised the warnings below and highlighted them in grey throughout the instruction manual.
  • Page 8: Safety Instructions

    4. The machine must never be hosed down with a jet of water or steam. The surface may be cleaned with a damp cloth or one of the products from the range of WMF care products. 5. The unit must stand safe at a ground level, on a horizontal and stable base.
  • Page 9: Technical Data

    ƒ If the local water has a carbonate hardness of more than 9° (German hardness), a WMF water filter must be installed in the supply line to the machine.
  • Page 10: Conditions For Installation And Operation

    The machine operator must arrange for the site preparatory work. This should be carried out by approved contractors in accordance with general and local regulations. WMF customer service technicians are only permitted to connect up the machine to the prepared connections. They are not...
  • Page 11: Operation

    The machine should only be connected and put into service by a WMF customer service engineer. Initial start-up The WMF customer service engineer will set the brewing and hot water quantities to the required volumes and instruct your staff accordingly.
  • Page 12 One or two cups, 1/2 pot or 1/1 pot may be placed underneath swivel coffee dispenser (see Fig. 1). Figure 1 Left coffee hopper (see Fig. 2) When pressing buttons for cup, for 2 cups, for 1/2 pot for 1/1 pot (selected button will light), the left coffee hopper will automatically be accessed and coffee will be dispensed through coffee dispenser 9.
  • Page 13 used within 2-3 days. Manual portioning: More types of coffee can be used by using the “Manual portioning” feature. 1. Press “SPECIAL” button – button will illuminate. 2. Open upper door 7. 3. Portion the amount of ground coffee which corresponds 1 cup ~ approx 7g to the desired brewed amount: (see Fig.
  • Page 14: Brewing With Multi-Brew Arm

    (1 litre) 5 litres (2 litre) (The value in brackets can be set by the WMF customer engineer.) When selecting “1/2 pot”, approx. 2.5 l (1l) of coffee will be brewed. Double that amount (approx. 5l / 2l) will be dispensed by pressing button “1/1 pot”.
  • Page 15: Hot Water Dispensing

    Hot water may be dispensed in order to prepare tea, chocolate, grog, etc. with a choice between portioned and unportioned servings. WMF customer service will adjust the portioned amounts when dispensing portioned servings. The set volume will be dispensed by pressing the push button 13.
  • Page 16: Wmf Cafemat With Personnel Accounting/ Vending Unit

    The WMF CAFEMAT can be fitted with a vending unit, e.g. a coin checker or coin changer, to enable the WMF CAFEMAT to be operated in self-service mode. If the WMF CAFEMAT is connected to a CMT, every cup/serving dispensed is recorded.
  • Page 17: One-Price Coin Checker

    7.5.1 One-price coin checker The WMF CAFEMAT can be fitted with a coin checker (Fig. 10) for self-service operation. The coin checker is switched on by a switch inside the coin box. Coins may be inserted when the “ON” lamp is lit.
  • Page 18: Care Of The Machine

    8 Care of the machine Emptying of grouts and water container The WMF CAFEMAT employs a ground coffee dry disposal device, i.e. coffee grouts will be collected after the brew cycle into grouts container inside the unit. At the same time, expansion water from the boiler will be collected in water container (see Fig.
  • Page 19: Automatic Cleaning

    Do not reach into the brewer 20. Risk of crushing! Do not touch the brewer 20, it is very hot. Risk of burns! 7. Now place the WMF special cleaning tablet (order no. 33.2036.6000) or 1 measured spoon (approx. 30 g) of cleaning powder (order no. 33.0680.9000) into the brewer (see fig.
  • Page 20 The “Hot plate” switch must be switched off without fail. When cleaning is necessary The WMF CAFEMAT records the operating time starting from the first brewing after cleaning. Once 26 hours have elapsed, there will be a Cleaning warning: Every time the “1 cup”...
  • Page 21: General Care

    Ÿ For units in continuous operation, cleaning must be carried out within the next 24 hours. Otherwise coffee brewing will be blocked. Ÿ For units that are switched off after a operating time of 26 hours, a cleaning cycle must be run upon switching on the machine.
  • Page 22: Breakdowns

    9 Breakdowns Maintenance and repair work may only be carried out by WMF customer service engineers using original WMF spare parts. The built-in safety mechanisms must never be modified in any way. Problems/Indication/Signals Cause/Repair Course grounds – use finer grounds Coffee is too weak Defective brew filter –...
  • Page 23: Special Unit: Wmf Cafemat Jet

    10 Special unit: WMF CAFEMAT JET Model 03.3234.0001 Note: Supplement to WMF Cafemat operator’s manual. The hazard and safety instructions given in that manual apply here too. Figure 16 Button allocation Short coffee spout 10.1 Technical data Type 3234 Model...
  • Page 24: Operation

    (for example, at conferences) which cannot be met with the standard WMF CAFEMAT. 10.3 Special features The WMF CAFEMAT JET is fitted with a large brewer to allow 1.6 litres to be brewed at a time. Cup and pot brewing are not possible.
  • Page 25: Wmf Customer Service

    WMF customer service engineers) 11 WMF Customer service WMF’s comprehensive service network allows every area to be reached in a short period of time. Our personnel are experienced experts and carry special tools and the original spare parts required at all times, so that malfunctions can be remedied on the spot.
  • Page 26: Warranty Claims

    Any products delivered or any services rendered showing a defect as to quality within the period of limitation shall be, at WMF’s reasonable discretion, repaired or rendered again, if the cause of the defect as to quality had already been present when the risk was passed.
  • Page 27: Wmf Ec Declaration Of Conformity For Coffee Machines

    D-73309 Geislingen/Steige hereby declare that the design and construction of the machines designated below, as marketed by WMF, conform to the relevant safety and health requirements of the EC Directives. This declaration shall not apply to machines modified without WMF approval.
