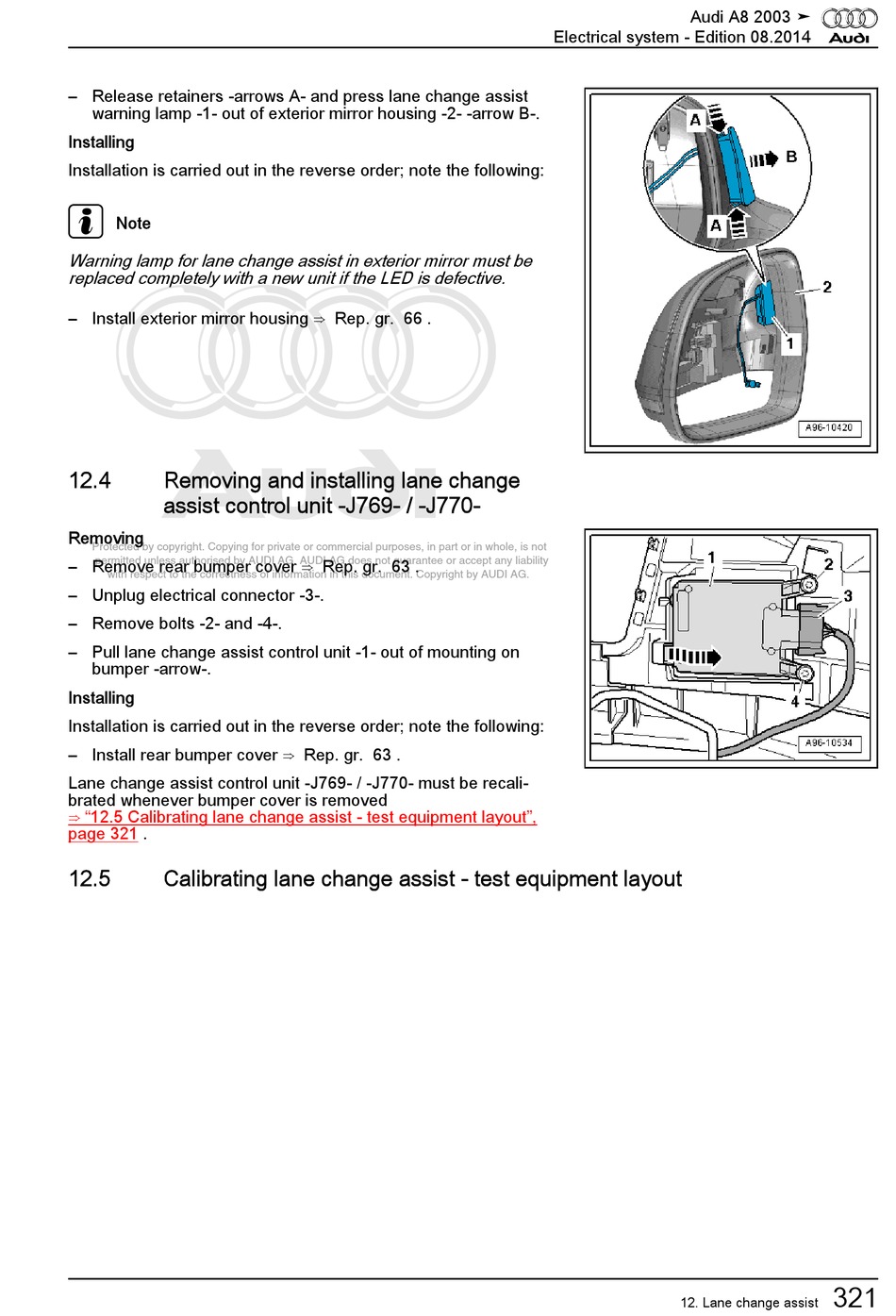

Removing And Installing Lane Change Assist Control Unit J769 / J770; Calibrating Lane Change Assist - Test Equipment Layout - Audi 2003 A8 Workshop Manual

– Release retainers -arrows A- and press lane change assist
warning lamp -1- out of exterior mirror housing -2- -arrow B-.
Installing
Installation is carried out in the reverse order; note the following:
Note
Warning lamp for lane change assist in exterior mirror must be
replaced completely with a new unit if the LED is defective.
– Install exterior mirror housing ⇒ Rep. gr. 66 .
12.4 Removing and installing lane change
assist control unit -J769- / -J770-
Removing
Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
– Remove rear bumper cover ⇒ Rep. gr. 63 .
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
– Unplug electrical connector -3-.
– Remove bolts -2- and -4-.
– Pull lane change assist control unit -1- out of mounting on
bumper -arrow-.
Installing
Installation is carried out in the reverse order; note the following:
– Install rear bumper cover ⇒ Rep. gr. 63 .
Lane change assist control unit -J769- / -J770- must be recali‐
brated whenever bumper cover is removed
⇒ "12.5 Calibrating lane change assist - test equipment layout",
page 321 .
12.5

Calibrating lane change assist - test equipment layout
