Prefabricated Chimneys

When connecting the Jøtul F 100 to a prefabricated
metal chimney always follow the pipe manufacturer's
instructions and be sure to use the components that are
required. This usually includes a "smoke pipe adapter"
that is secured to the bottom section of the metal
chimney and allows the chimney pipe to be secured to
it with two sheet metal screws. See figure 8.
Listed Cap
Storm Collar
Flashing
Combustible
Ceiling Joists
Chimney
Connector

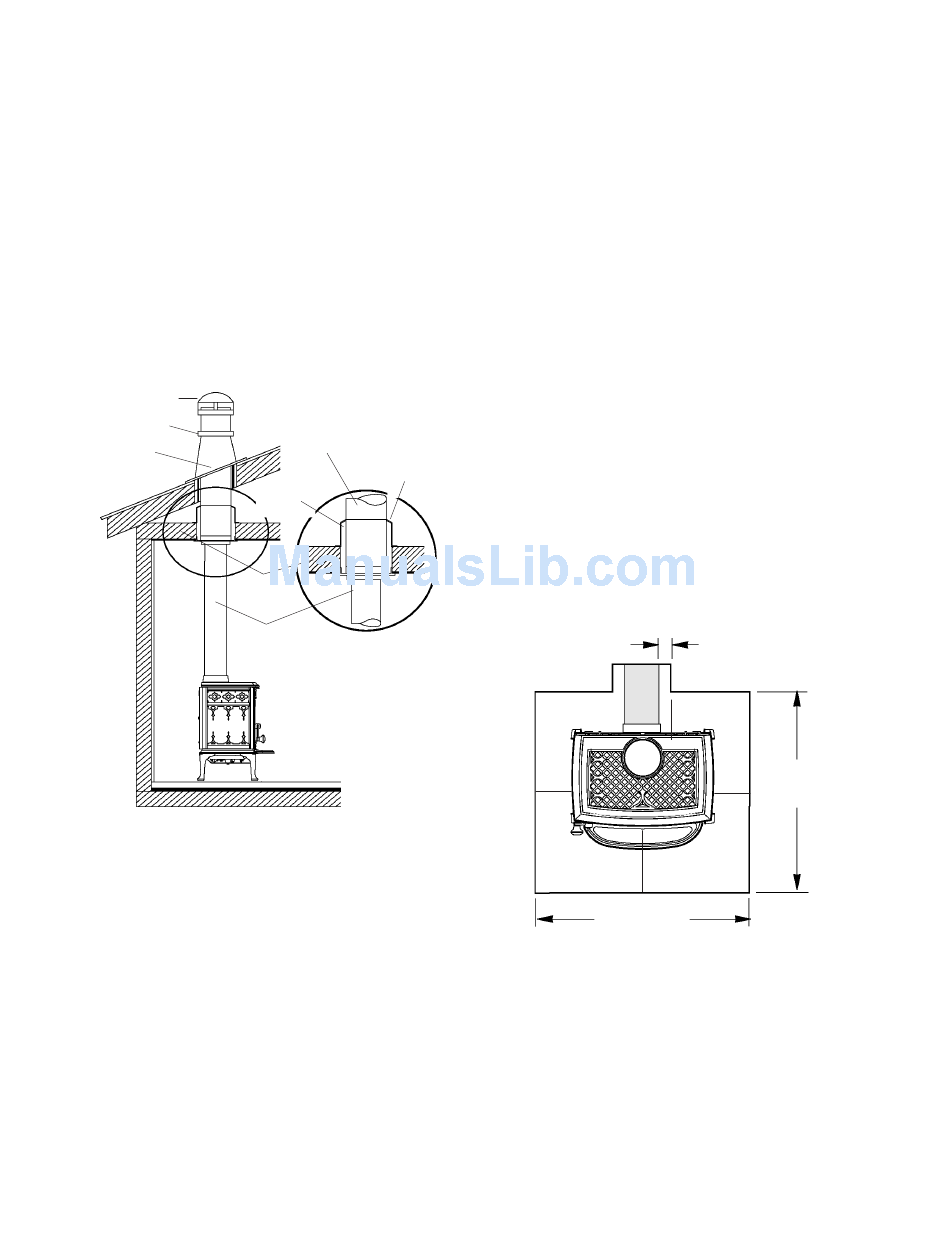

Figure 8. Prefabricated Listed Type HT Chimney.
Listed
Chimney
Attic
Insulation
Shield
Specified
clearance
Ceiling
to
Support
Stove
Floor
Protector
4.0 Clearance to Combustibles

Floor Protection

The Jøtul F 100 requires one of the following forms of
hearth protection:
1. Any UL, ULC or WH listed hearth board. (No bottom
heat shield required).
2. Any noncombustible material with use of the bottom
heat shield.
All forms of protection must include a noncombustible
surface extending forward from the glass panel at least
16" for the U.S., or 18" (46cm) for Canada. Protection must
extend 8" (21 cm) from the sides and rear for both: the U.S.
and Canada.
This will result in a minimum floor protection of 37"
W x 38" D for the U.S. or 37" W x 40" D for Canada. See
figure 9.
In a rear vent installation, the floor protection must also
extend under the stove pipe a minimum of 2" (5 cm)
beyond either side of the pipe. See figure 9.
2"(5 cm)
A
A
B
37"U.S & CAN
Figure 9. Hearth Protection.
A: 8" (21 cm)
B: 16" (US)
B: 46 cm (Can)
139678-R01 F 100 May, 2015
A 38" (97 cm) U.S
40"(102 cm) CAN
