TRC-1280 Installation Manual
TRC-1280 Installation Manual

Introduction

The TRC-1280 delivers two-way instant connect Wi-Fi technology to your Total Control System. It installs with
the MRX-10 Advanced Network System Controller and communicates using 2.4GHz technology. The TRC-1280
receives two-way system feedback such as album cover art from the PSX-2 and SNP-1. It can also receive two-
way feedback from all URC AVR status modules, internet information feeds, climate control devices, energy
management systems, URC cameras and URC lighting. The system is also scalable and can be built to control
multiple zones of source equipment as needed. The TRC-1280 features a programmable "ROOMS" LCD button
that facilitates room monitoring by compiling all of your programmed data for every room in the system, all
without any additional configuration! In a multi-zone Total Control system, sources can be linked together
from different zones using Universal Remote Control's groundbreaking room linking technology. Linked audio
sources are sent via streams over the network to and from DMS-1200 or DMS-100 amplifiers.
Whether you specify one TRC-1280 or multiple TRC-1280s depends on the total number of users per
installation, up to 32 TRC-1280s can reside in any one system.
Programming of the TRC-1280 is performed using one
simple application - URC Accelerator (see URC Accelerator
Programming Reference Guide).

Front and Rear Panel Descriptions

Front Panel
Rooms Button: The ROOMS button allows you to monitor
the status of components and also enables room linking
using the ROOMS module. Users can temporarily link
rooms to listen to the same source or control volume or
mute for multiple rooms simultaneously (when using DMS
series amps). You can check out what the kids are
watching in the bedroom, and even check the volume in
adjacent rooms and adjust as necessary. The ROOMS
module can be disabled if preferred. If disabled, pressing
the ROOMS button will indicate that the ROOMS Module
is currently off.

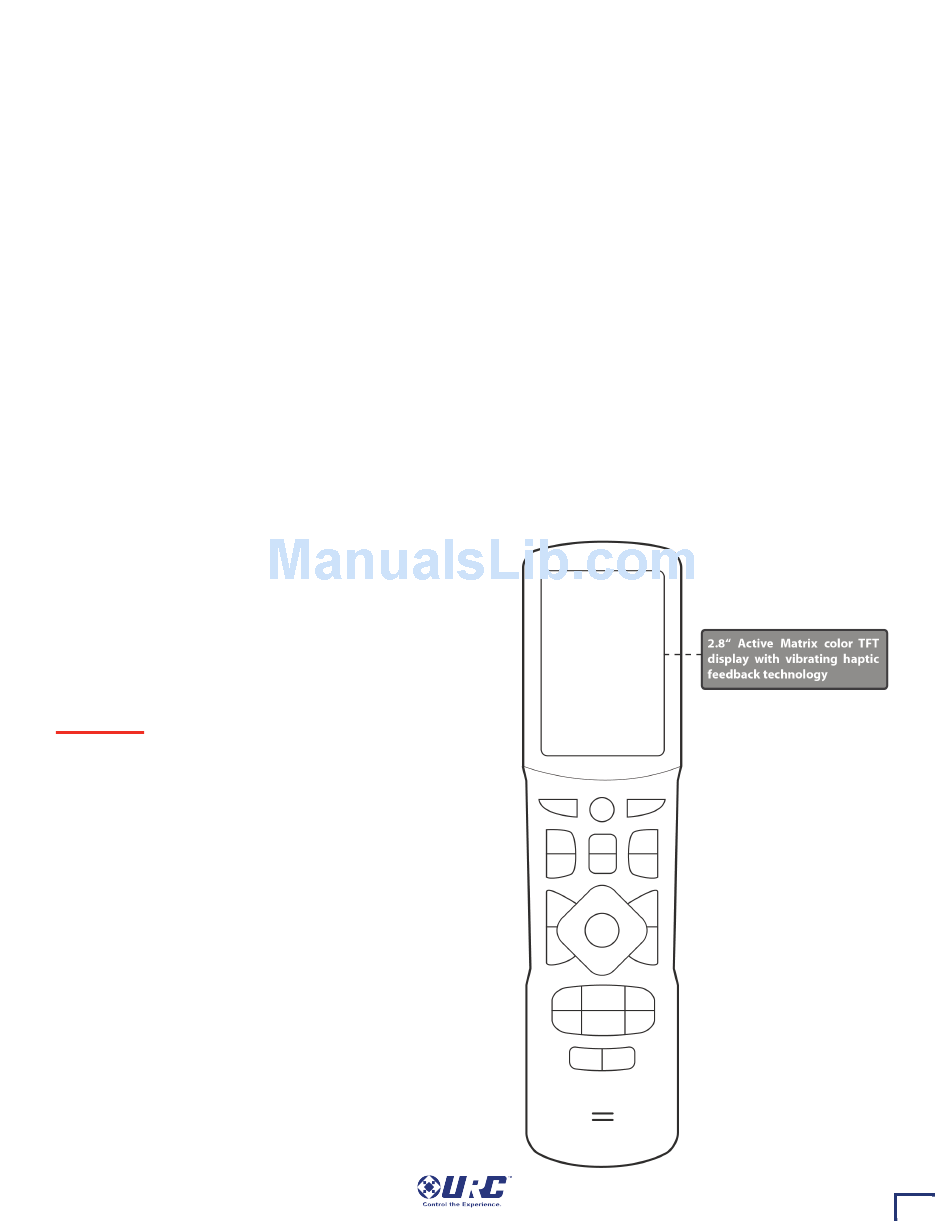

Haptic Feedback: The TRC-1280 features an Active Matrix
color TFT display with vibrating haptic feedback
technology. Upon the touch of an LCD button, the screen
will vibrate to confirm button presses.
132

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRC-1280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for URC TRC-1280

Summary of Contents for URC TRC-1280

  • Page 1 URC AVR status modules, internet information feeds, climate control devices, energy management systems, URC cameras and URC lighting. The system is also scalable and can be built to control multiple zones of source equipment as needed. The TRC-1280 features a programmable “ROOMS” LCD button that facilitates room monitoring by compiling all of your programmed data for every room in the system, all without any additional configuration! In a multi-zone Total Control system, sources can be linked together...
  • Page 2 The Status light should immediately light. Red indicates that it is charging. Blue shows that it is fully charged. There is no harm in leaving the TRC-1280 on its charging base whenever it is not in use.
  • Page 3 Since multiple TRC-1280s can be installed in a whole house system (up to 32) it may be necessary to provide extra range for communication in large estates. Remember, since the TRC-1280 is a Wi-Fi device, this is as simple as extending the range of the wireless network. Using Wi-Fi repeaters and range extenders are the most...
  • Page 4 Screen Settings and Configuration The TRC-1280 has a number of onboard screen settings, most which should be configured upon installation. Included are sleep, network, brightness, system, button light, power, calibration, date and time, sound, pickup and factory default (see below for explanation of each).
  • Page 5 Button Light You can adjust the brightness of the LEDs that backlight the buttons of the TRC-1280. Move the slider to the left to dim the backlighting and move it to the right to brighten the backlighting. Power Settings You can display the remaining charge by selecting Power.
  • Page 6 Pickup Settings You can set your TRC-1280 to only turn on when touched, or every time you move it. Simply select on or off. And you can adjust the pickup sensitivity with slide bar.

  • Page 7: Troubleshooting

    file stored on the remote. If this does not resolve the issue, go to the TRC-1280’s settings menu and choose the option to factory reset the remote control. You should have a saved version of the most recent programmed Accelerator file with the TRC-1280 programming available.
