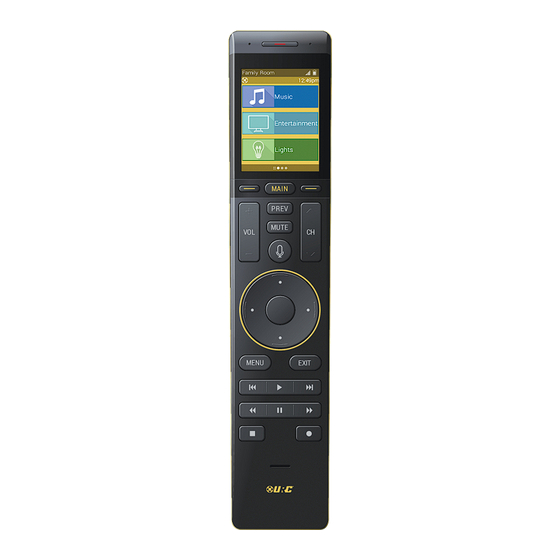

URC Total Control TRC-1120 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

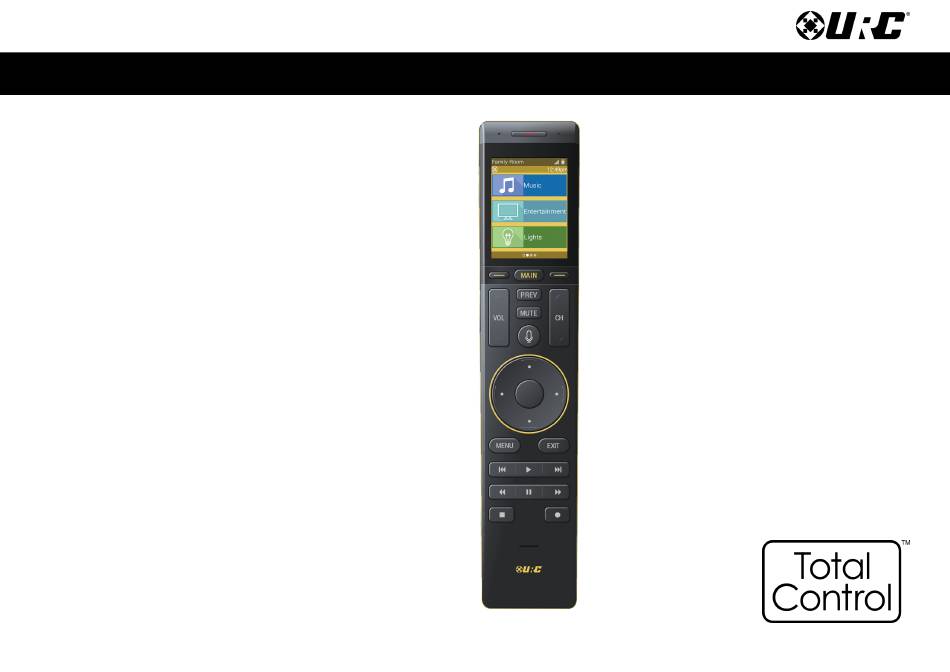

TRC-1120
Total Control
Owner's Manual
TRC-1120
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Total Control TRC-1120 and is the answer not in the manual?

Questions and answers

Related Manuals for URC Total Control TRC-1120

Summary of Contents for URC Total Control TRC-1120

  • Page 1 TRC-1120 Total Control Owner’s Manual TRC-1120 Owner’s Manual...
  • Page 2 ....................... 7 support contact information. Issuing Voice Commands ..................7 Contact Support Displaying the Setup Menu.................... 8 Total Control is a URC product sold direct only. For questions or assistance Sleep Timers ......................9 contact your Custom Installer/Programmer. Network ........................9 Voice Assistant .......................10...
  • Page 3 Two-way Metadata Feedback: Experience feedback directly on the TRC-1120’s 2.0” display when used with an ever expanding line of 3rd Party modules such as HEOS, Ecobee, Sonos, Roku and many more. Consult with your certified URC integrator to learn more about compatible party integration. •...
  • Page 4 TRC-1120 Total Control Owner’s Manual Requirements & Compatibility • Total Control: The TRC-1120 requires an MRX Advanced System Controller on the network and must be programmed by a certified Total Control integrator. When programmed, the TRC-1120 is capable of controlling devices around the home/business without being within “line-of-sight”...
  • Page 5 TRC-1120 Total Control Owner’s Manual Connecting the Battery Pack A battery is included in the box when shipped from the factory. Press the spring lock down to unlock and remove the cover. Place the battery into the battery compartment, making sure to align the contacts on the battery with the contacts within the TRC-1120’s battery compartment.
  • Page 6 TRC-1120 Total Control Owner’s Manual Using the TRC-1120 The Main Menu pages display activities and/or devices. Press the Main button to access the Main Menu. Larger systems may have more than one (1) page. Press either of the Page buttons to view additional Main Menu pages. Although the TRC-1120 is programmed with custom layouts and devices, there are persistent buttons that maintain a steady function: A.
  • Page 7 TRC-1120 Total Control Owner’s Manual I. Prev: Returns to the device’s previous channel or can be used to return the user to a previous menu. J. Mute: Toggles the mute status of the active audio device. K. Microphone: Select this button to interact with the native voice assistant service.
  • Page 8 TRC-1120 Total Control Owner’s Manual Q. Transport Buttons: These are the available buttons: ● Play ● Skip+ Pause Skip- ● ● Stop Rewind ● ● Record Fast Forward ● ● Table of Contents...

  • Page 9: Using Voice Control

    This means the Alexa Service is only listening when you want it too. Custom activities and devices can be controlled via Alexa; however, configuration is required. Speak with your certified URC integrator for more details. Issuing Voice Commands Voice Commands can be issued easily and intuitively with the push-to-talk button.

  • Page 10: Displaying The Setup Menu

    TRC-1120 Total Control Owner’s Manual Displaying the Setup Menu The Setup Menu allows users to configure or change certain behaviors of the TRC-1120. Enter the Setup Menu by pressing and holding the Main and SEL (see image at the right) buttons for greater than five (5) seconds. The Setup Menu times out after sixty (60) seconds and returns the TRC-1120 to the system’s...
  • Page 11 Network Settings: Allows the user to configure the remote’s network properties such as IP address, Gateway, DNS, and more. WARNING! Only use this option when instructed by URC’s Technical Support team or your custom install professional. Do not make changes on this screen.
  • Page 12 TRC-1120 Total Control Owner’s Manual Voice Assistant This Settings Menu option allows you to integrate your Total Control system with voice assistant services such as Amazon Alexa. Choose the supported voice assistant service (Amazon Alexa) and follow the on-screen directions. The Alexa setup menu provides a code that must be entered into the Amazon Alexa URL (displayed on the LCD screen of the TRC-1120).
  • Page 13 TRC-1120 Total Control Owner’s Manual Enabling Alexa Follow these instructions to enable the Alexa Voice Assistant Service: 1. From the Settings Menu, select Voice Assistant. 2. Select Amazon Alexa. 3. Select Get Started. Return to the Displaying the Menu Setup Page Table of Contents...
  • Page 14 TRC-1120 Total Control Owner’s Manual 4. Open a web browser and navigate to amazon.com/code. 5. Enter the code displayed on the TRC-1120. Return to the Displaying the Menu Setup Page Table of Contents...
  • Page 15 TRC-1120 Total Control Owner’s Manual Brightness Adjust the screen brightness by pressing the adjacent LCD buttons to increase or decrease the brightness level. Once the brightness has been adjusted, press the Save button. Pressing Cancel reverts the remote to the last saved setting. High brightness levels may reduce the TRC-1120’s battery life.
  • Page 16 TRC-1120 Total Control Owner’s Manual User Interface The Main Button setting allows you to choose what happens when pressing and holding the Main Button for 2 seconds will jump to. The available options will be the Shortcuts Screen or the Now Playing Screen. The Flick Navigation gives the option to Enable the swiping of the LCD screen or use hard buttons to navigate the interface or Disable the usage of only hand buttons for navigation of the user interface.
  • Page 17 If the advanced system controller is reset, it defaults to the program’s default location using the Internet. If Internet is not present, the date and time must be entered manually from a URC interface such as the TRC-1120. Once the date and time settings have been adjusted, press the Save button.
  • Page 18 TRC-1120 Total Control Owner’s Manual Button Beep Adjust the button “beep” of the remote. Press the adjacent LCD buttons to increase or decrease the volume level. Once the sound has been adjusted, press the Save button. Pressing Cancel reverts the remote to the last saved setting. Higher sound levels may reduce the TRC-1120’s battery life.
  • Page 19 Total Control Owner’s Manual Software Update URC’s system has the ability to be programmed by a certified URC programmer remotely (after initial installation). There may be situations where the device may need to have the software update applied manually. Select this option only when instructed by your certified URC integrator or URC’s Technical Support Team.

  • Page 20: Specifications

    TRC-1120 Total Control Owner’s Manual Specifications Limited Warranty Statement https://www.urc-automation.com/legal/warranty-statement/ These are the technical specifications for the TRC-1120: End User Agreement Microprocessor: ARM Cortex-A35 Core 1.5GHz x 4 The terms and conditions of the End User Agreement available at RAM: 8GB eMMC, DDR3 256MB RAM https://www.urc-automation.com/legal/end-user-agreement/...

  • Page 21: Regulatory Information To The User

    TRC-1120 Total Control Owner’s Manual Regulatory Information to the User • CE conformity Notice Products with “CE” marking comply EMC Directive 2014/30/EU issued by the commission of the European Community. 1. EMC Directive • Emission • Immunity • Power • Declaration of Conformity “Hereby, Universal Remote Control Inc.
