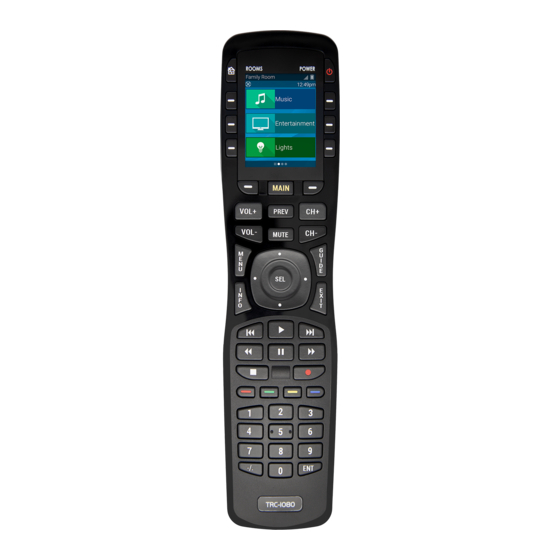

URC Total Control TRC-1080 Owner's Manual
Wi-fi remote control
Hide thumbs
Also See for Total Control TRC-1080:
- Owner's manual (28 pages) ,
- Owner's manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for URC Total Control TRC-1080
Summary of Contents for URC Total Control TRC-1080
- Page 1 Order Number : GETEC-C1-17-249 FCC Part 15 subpart C 1 / 1 Test Report Number : GETEC-E3-17-029 Page APPENDIX H : USER’S MANUAL EUT Type: RF Remote controller FCC ID.: OZ5URCTRC1080N...
- Page 2 Owner's Manual TRC-1080 Wi-Fi Remote Control...
- Page 3 TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior notice. URC - Control the Experience is a registered trademark of Universal Remote Control, Inc. Total Control is a registered trademark of Universal Remote Control, Inc.
-
Page 4: Table Of Contents
TRC-1080 T EMOTE Congratulations! Features and Benefits Before Getting Started Parts Guide Connecting the Battery Pack Using the Charging Base Two-Way via Wi-Fi Using the TRC-1080 Displaying the Settings Menu Sleep Settings Wireless Network Settings Brightness System Button Light Power Date and Time Sound Pickup... -
Page 5: Congratulations
● Two-way meta-data feedback Experience two-way feedback right on the remote's screen when used with compatible devices like URC's Music Streamer (SNP-1), iPod Dock (PSX-2), Thermostat (THZ-100) or selection of IP Cameras. Enjoy the same feedback when used in conjunction with an ever... -
Page 6: Before Getting Started
Controller, the TRC-1080 can control your system without being in line-of-sight of the equipment by sending the commands over your home network. ● Programmable only by a URC certified professional programmer onsite or offsite via the Internet To fully automate your audio/video system, the... -
Page 7: Connecting The Battery Pack
TRC-1080 T EMOTE Connecting the Battery Pack Press the spring lock down to unlock and remove the cover. The battery is included in the box when shipped from the factory. Place the battery into the battery compartment, making sure to align the contacts on the battery to the contacts on the TRC-1080. -
Page 8: Using The Trc-1080
TRC-1080 T EMOTE Using the TRC-1080 The TRC-1080’s Main Menu pages display the activities and devices in your system. Press the Main page button to view your activities and devices. Large systems may have more than one page. Press either of the Page buttons to view additional pages. -
Page 9: Displaying The Settings Menu
TRC-1080 T EMOTE Displaying the Settings Menu You can enter the Settings menu by pressing and holding the Main and Enter buttons for three seconds. When the Settings menu appears, any further action must be completed within 60 seconds, at which point the remote will revert back to the Main Menu screen. -
Page 10: Sleep Settings
TRC-1080 T EMOTE Sleep Settings You can adjust the amount of time the LCD remains ON when the remote is not in use. The time can be set independently based on whether the remote is using battery power or sitting on the cradle. Once the Sleep Timers are adjusted, press the Ok button. -
Page 11: System
TRC-1080 T EMOTE System The System Information screen displays data about your TRC-1080's Operating System, Memory etc. Press the More button to view further system information. Pressing the Cancel button will exit to the remote’s settings menu. Button Light You can adjust the brightness of the LEDs that backlight the buttons of the TRC-1080. -
Page 12: Sound
TRC-1080 T EMOTE Sound You can adjust the button beep of the TRC-1080. Press the adjacent hardbuttons to increase or decrease the volume level. Once the sound is adjusted, press the Ok button. Pressing the Cancel button will revert to the remotes last saved setting. -
Page 13: Specifications
TRC-1080 T EMOTE Specifications Microprocessor: ARM9 454MHz RAM: 64Mbyte Mobile DDR NAND: 128Mbyte LCD: 2 Inch Screen (240 by 320) LCD Backlighting by LED Sound: Mono 1 watt Devices: Supports up to 255 Devices with text, less with heavy graphics Usage Pages: Supports up to 255 Pages on each Device with text, less with heavy graphics usage Macro Capability: Up to 255 steps each, however nesting is allowed... -
Page 14: Limited Warranty Statement
(1) year from purchase when such is purchased from URC. This limited warranty is valid only in the United States of America. URC warrants that the software will substantially conform in any material respect to its functional specifications at the time of delivery. - Page 15 In the event of any warranty claim, URC will, at its sole option, repair the URC equipment using new or comparable rebuilt parts, or exchange the URC equipment for new or rebuilt equipment.
-
Page 16: End Uer Agreement
OF ANY KIND OR LOSS OF PROFITS OR BUSINESS OPPORTUNITY, EVEN IF URC IS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL URC BE LIABLE FOR LOSS OF OR DAMAGE TO DATA, COMPUTER SYSTEMS OR COMPUTER PROGRAMS. -
Page 17: Precautions And Information Concerning Rechargeable Lithium Polymer Batteries
TRC-1080 T EMOTE Precautions and Information Concerning Rechargeable Lithium Polymer Batteries u If you will not be using your remote control for an extended period of time, be sure to remove the battery u Do not attempt to disassemble, alter or apply heat to the battery. u Use care to avoid dropping the battery or subjecting it to severe impact that could damage the case. - Page 18 This Equipment complies with FCC radiation exposure Limits set forth for an uncontrolled environment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
- Page 19 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0073D Rev 01...
