Juniper mesa Owner's Manual

Juniper mesa Owner's Manual

Rugger notepad
Hide thumbs Also See for mesa:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
owner's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mesa and is the answer not in the manual?

Questions and answers

Related Manuals for Juniper mesa

Summary of Contents for Juniper mesa

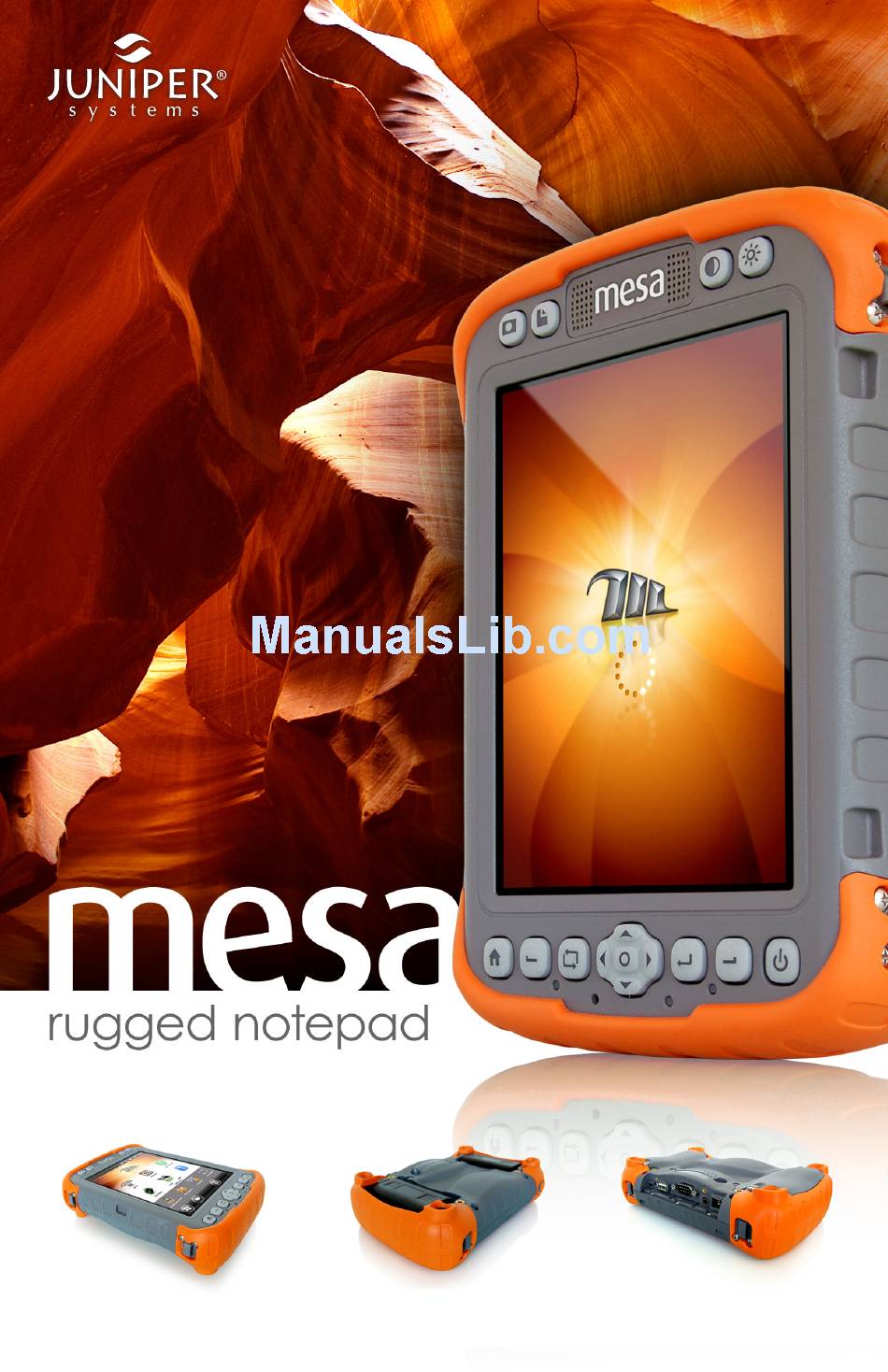

  • Page 1 owner’s manual...
  • Page 2 ® Bluetooth word mark is owned by the Bluetooth SIG, Inc. and any use of such marks by Juniper Systems, Inc. is under license. Acrobat and Reader are registered trademarks of Adobe Systems Incorporated in the United States and/or other countries.

  • Page 3: Table Of Contents

    LED Activity Indicators SD Cards Connector Module Audio Features Programs and Settings The Home Screen Suspend, Reset, Power Off, and Restore the Mesa Communicating with a Desktop Computer Getting Started Screen and Online Help Information for Software Developers Bluetooth® Wireless Communication Creating a Partnership...
  • Page 4 Set up a Data Account with a Wireless Provider Install the SIM Card Set up the Cell Modem Wireless Safety Maintenance of Your Modem Storage, Maintenance and Recycling Storing the Mesa and Battery Pack(s) Protecting the Touchscreen Cleaning the Mesa Recycling the Mesa and Batteries Warranty and Repair Information Limited Product Warranty...

  • Page 5: Getting Started

    Getting Started 6  The Anatomy of the Mesa 8  Performing Initial Tasks  ...

  • Page 6: The Anatomy Of The Mesa

    Mesa Rugged Notepad The Mesa Rugged Notepad™ from Juniper Systems is designed for collecting data in rugged environments. Features include: Windows Mobile 6.5. ®  Large daylight readable VGA display  Large on-screen buttons for touch-friendly operation  Rugged environmentally sealed design ...
  • Page 7 Mesa Back View: Battery Compartments, Card Slots 1 Camera lens (Geo model) 1 Camera lens (Geo model) 2 Battery door with quarter turn latches 2 Battery door with quarter turn latches 3 Battery compartment #2 (battery pack installed) 3 Battery compartment #2 (battery pack installed) 4 Mobile Dock connections 4 Mobile Dock connections 5 Connector protector 5 Connector protector 6 SIM card slot 6 SIM card slot 7 SD card slot 7 SD card slot 8 Battery compartment #1 8 Battery compartment #1 9 External accessory mount (4 on back) 9 External accessory mount (4 on back) Ch 1  Getting Started ...

  • Page 8: Performing Initial Tasks

    3 Audio jack 4 Cable restraint mount 4 Cable restraint mount 5 RS-232C 9-pin D-sub connector 5 RS-232C 9-pin D-sub connector 6 USB host, full size A 6 USB host, full size A 7 USB client, mini B 7 USB client, mini B 8 Hand strap tether (one on each corner) 8 Hand strap tether (one on each corner) Performing Initial Tasks When you receive your Mesa, perform the tasks outlined in this section before first use.   Mesa Rugged Notepad Owner’s Manual...
  • Page 9 Apply a Screen Protector Before using the Mesa, apply a screen protector to the surface of the touchscreen to protect it and make it scratch-proof. Screen protectors are included with the Mesa. Refer to the installation instructions in the package for specific details.
  • Page 10 Charge the Battery Pack(s) Install and charge the Li-Ion battery pack(s). The Mesa is designed to use 1 or 2 battery packs. Using two battery packs extends the operating time of the unit. Geo 3G models should always use two battery packs. Complete the following steps: 1.
  • Page 11 CAUTION: The Mesa is not totally sealed against water and dust when battery doors are not installed and properly latched. 4. Plug the AC wall power charger that came with the Mesa into a wall socket. Plug the other end into the DC power jack on the Mesa.
  • Page 12 Perform Set Up 1. The Mesa powers on and begins the startup process. A progress indicator is shown on the screen. 2. Follow the on-screen instructions. 3. The Clock and Alarms control panel is shown. Adjust the time zone, date and time if necessary and tap OK.
  • Page 13 Adjust the Hand Strap A hand strap is included with the Mesa. It is attached to the left side of the Mesa along with a stylus, leaving your right hand free to operate the Mesa. Put your hand between the strap and the Mesa from the front and adjust the hand strap to fit securely against the back of your hand.
  • Page 14 Review the Manual Once you have attached a screen protector, charged the battery pack(s), and adjusted the hand strap the Mesa is ready to use. Review the rest of this manual to learn about the functionality of the Mesa.   Mesa Rugged Notepad Owner’s Manual...

  • Page 15: Hardware Components

    Hardware Components 16  Navigating Around Your Mesa 17  Home Screen and Windows Start Menu 18  Display and Touchscreen 20  Keypad Features 24  Power Management 26  LED Activity Indicators 26  SD Cards 27  Connector Module 28  Audio Features  ...

  • Page 16: Navigating Around Your Mesa

    Mobile operating system enhances the Mesa’s ® ability to recognize touch gestures, making it easy to use a finger to navigate. The Mesa buttons can also be used. Navigation options vary depending on the screen you are on. Here is a partial list of options: Vertical and Horizontal Movement 1. ...

  • Page 17: Home Screen And Windows Start Menu

    Home screen button. The Windows Start menu gives you access to all of the applications on the Mesa. You can get to it from any screen by pressing and holding the Home screen button or tapping the Windows soft key (tile) on the display.

  • Page 18: Display And Touchscreen

    Display and Touchscreen The Mesa has a bright color display and touchscreen with a diagonal viewing area of 5.7 inches (145 mm). It is easy to view outdoors and sealed against water and dust. Adjusting Display Settings To adjust the default display settings including the text size, alignment and orientation, go to the Screen control panel, Start >...
  • Page 19 You can also make brightness adjustments through the Backlight control panel, Start > Settings> System > Backlight. The display has a minimum brightness setting that it dims to when the Mesa is not in use. Power is conserved, yet the Ch 2  Hardware Components ...

  • Page 20: Keypad Features

    Adjust the dim time interval and setting as needed. To use the Mesa, tap on the display to bring the display backlight back up to the brightness setting. Keypad Features The Mesa has fifteen buttons with symbols indicating their functions as shown below.
  • Page 21 Buttons and their functions: Button Press and Release Press and Hold Camera (Geo models) or Task Manager Pictures and Videos (Std) Notes Record Audio Note (press and hold to record, press to stop) Screen Brightness Down <Repeat Key> Screen Brightness Up <Repeat Key>...
  • Page 22 2. Scroll to the bottom of the screen. Select the shortcut to Settings > Personal > Buttons. 3. A list of reassignable buttons is shown in 1. Select a button. Select the button you want to reassign.   Mesa Rugged Notepad Owner’s Manual...
  • Page 23 5. Select the down arrow button shown in 2. Assign a program. 6. A list of programs is shown. Select the program you want to reassign to the selected button. Tap OK. Ch 2  Hardware Components ...

  • Page 24: Power Management

    We recommend that you keep the Mesa battery pack(s) charging when they are not in use for up to two weeks. When you plug the Mesa into the wall charger that comes with the Mesa or the optional Travel Charger, the batteries are prevented from being overcharged.
  • Page 25 Go to the Advanced set up screen to select how long the Mesa should stay on when it is not in use. As mentioned under “Adjusting the Backlight,” dimming the display backlight saves battery power. Radios can also use a lot of power. You can conserve power by disabling them when not in use from the Home screen or Start >...

  • Page 26: Led Activity Indicators

    The Mesa has a slot for an SD card located in battery compartment 1. To insert or remove a card follow these steps: 1.  Suspend or power off the Mesa if the only power source is from a battery pack in battery compartment 1.

  • Page 27: Connector Module

    5.  Replace the battery pack and attach the battery door. 6.  Resume the Mesa if it was suspended in step 1. Connector Module The Mesa has the following jacks and connectors: Power input jack, 12 VDC for power input and battery ...

  • Page 28: Audio Features

    Audio Features The Mesa has a speaker, microphone, and audio jack. To adjust audio settings, select the top title bar, then the speaker icon from the horizontal-scrolling list that appears. You can also go to Start > Settings > System > Audio. The Audio control panel appears.

  • Page 29: Programs And Settings

    Programs and Settings 30  The Home Screen 35  Suspend, Reset, Power Off, Restore the Mesa 37  Communicating with a Desktop Computer  38  Getting Started Screen and Online Help 40  Information for Software Developers...

  • Page 30: The Home Screen

    This chapter discusses the Mesa Rugged Notepad programs and settings. The Home Screen    The Home screen is your main control center for the Mesa. View vital system information and quickly access functions and applications that are frequently used. The default home screen for a basic unit is shown below. If you have a Geo model or a cellular modem, different functions are shown.
  • Page 31 larger, touchable icons in a horizontal-scrolling bar. Select a function to view the settings and adjust them as desired. Title Bar Title Bar Pop Up Status Icon Bar Pop Up Status Icon Bar Dashboard The dashboard consists of a background image and up to six dashboard gadgets that serve as functional indicators and control buttons.
  • Page 32 (bearing, heading, distance) to a marked waypoint. 3G Data Modem: (Geo model with cell modem): Shows the on/off state of the optional cellular modem. Texting (Geo model with cell modem): Shows the current number of unread text messages.   Mesa Rugged Notepad Owner’s Manual...
  • Page 33 Gadget Color Indicators Wi-Fi, Bluetooth, GPS and 3G data modem gadgets indicate status using these colors: Gray: Off or inactive Yellow: Partial state (getting satellite fix, etc.) Green: Active and available Blue: Notification state (on or connected) Red: Error state, powering up or down, no GPS fix, or unavailable (3G data modem is red when power is changing from on/off.
  • Page 34 Windows Mobile and the active application. Tap on tiles to perform actions or open associated menus or set up screens. You can also press the left soft key (button) on the Mesa’s bottom navigation keypad to select the   Mesa Rugged Notepad Owner’s Manual...

  • Page 35: Suspend, Reset, Power Off, And Restore The Mesa

    Start Close Navigate back Menu Lock Edit Delete Suspend, Reset, Power Off, and Restore the Mesa Use the power button and the power menu to suspend, reset, power off or restore the Mesa. To access the power button menu, press and hold the power button. Ch 3  Programs and Settings ...
  • Page 36 Suspending the Mesa is different from powering it off. When the device is suspended it goes into a very low power mode. When it is resumed, the Mesa resumes where it was before it was suspended. To suspend your Mesa, press and release the power button. To resume the device from suspend mode, press and release the power button again.

  • Page 37: Communicating With A Desktop Computer

    + return buttons simultaneously. The first tick mark lights up and the Mesa looks to see if these keys are being pressed. If so, the backlight dims and the boot process stalls until all these keys are released. The backlight returns to normal brightness and the boot process continues.

  • Page 38: Getting Started Screen And Online Help

    4. Once a partnership is established, the synchronization software automatically opens. Follow the steps on the screen. Note: For more information about connecting the Mesa to a desktop computer using either ActiveSync® or Windows Mobile® Device Center visit Microsoft’s Windows Mobile® website.
  • Page 39 Online Help Online help is available from Getting Started. Tap on Online help & how-to from the list: Ch 3  Programs and Settings ...

  • Page 40: Information For Software Developers

    You must be connected to the internet to access online help. Select from the help topics. Information for Software Developers For Mesa SDK information, go to our website: http://www. junipersys.com/index.php/Juniper-Systems/support/ Developers/Mesa-Rugged-Notepad.   Mesa Rugged Notepad Owner’s Manual...

  • Page 41: Bluetooth Wireless Communication

    Bluetooth Wireless Communication 42  Creating a Partnership 44  Microsoft Bluetooth Control Panel 46  Serial Device (COM) Control Panel...

  • Page 42: Creating A Partnership

    Creating a Partnership To create a partnership between the Mesa and another device with Bluetooth technology: 1.  Turn both devices on. 2.  Place them within at least 100 feet (30 meters) of one another.
  • Page 43 4.  Tap and hold the Bluetooth icon to bring up the dialog box shown below. If the Bluetooth gadget is not on your Home screen, you can get to the desired control panel by selecting Getting Started and Ch 4  Bluetooth Wireless Communication ...

  • Page 44: Microsoft Bluetooth Control Panel

    Set up a Bluetooth device or Set up a Bluetooth COM Port. You can also go to Start > Settings > Connections. Note: If the Bluetooth radio is turned on and then the Mesa is suspended, wireless Bluetooth turns off to save battery power. When the Mesa resumes (turns on), the radio turns on automatically.
  • Page 45 a. If the device has an assigned passcode, enter the number and press Next. b. If a passcode is required but has not been assigned, enter an alphanumeric passcode between 1 and 16 characters in length. Press Next. c. If a passcode is not required, leave the box blank and press Next.

  • Page 46: Serial Device (Com) Control Panel

    2. A list of discovered devices is shown. Select the device you want to connect to from the list and tap Connect. A COM port is automatically assigned for the device. You can change it to another COM port.   Mesa Rugged Notepad Owner’s Manual...
  • Page 47 3. The Mesa automatically tries to discover the PIN. You might be required to enter a PIN. 4.  You should now be connected to the COM device. Ch 4  Bluetooth Wireless Communication ...
  • Page 48   Mesa Rugged Notepad Owner’s Manual...

  • Page 49: Wi-Fi Wireless Communication

    Wi-Fi Wireless Communication 50  Connecting to a Wi-Fi Network...

  • Page 50: Connecting To A Wi-Fi Network

    Start > Settings > Connections > Wireless Manager.). 2. Tap-hold the Wi-Fi Icon to go to the Wi-Fi control panel. When the Mesa completes the scan, a list of available networks and their strengths appears on the Wireless screen.
  • Page 51 6.  If you selected The Internet, you can open Internet Explorer and begin using the internet. Once a Wi-Fi network is set up, the icon on the Home Page turns blue and the name of the network is shown. The Mesa remembers the Wi-Fi network connections you create. Ch 5  Wi-Fi Wireless Communication ...
  • Page 52 Wi-Fi Dialog Box Note: Whenever Wi-Fi is turned on, the following dialog box might pop up indicating the Wi-Fi networks the Mesa has located. You can select a new network and set it up without going to the Wi-Fi control panel. Through the menu button, you can disable this dialog box from popping up in the future.

  • Page 53: Geo Models

    Geo Models 54  59  Camera...

  • Page 54: Gps

    Mesa Geo Model The Mesa Geo model has GPS with 2 to 5 meter accuracy and a 3.2MP camera. Juniper Geotagging™ gives the Mesa the ability to embed and emboss photos with the date, time and GPS position. A 3G Data Modem is an optional feature.
  • Page 55 A measure of accuracy. The lower the number, the more accurate the fix is. Note: When you suspend the Mesa, the receiver is in a low power mode to retain its almanac. When you resume the Mesa, it takes a few seconds to get a fix. GPS Settings Internal GPS uses COM7 at 38400 baud.
  • Page 56 The compass is a navigation tool. You can set a waypoint and navigate back to that location. To use the compass, tap on the compass gadget. This activates the GPS function if it is not already on. Wait until you have a fix.   Mesa Rugged Notepad Owner’s Manual...
  • Page 57 Compass Gadget Functions Compass gadget is turned off. Waypoint tool. Tap it to mark a waypoint. No GPS fix. Arrow keys show your current heading or bearing. This flag indicates that you are close to the waypoint. Information about how many feet away you are, the elevation, and degrees is also shown.
  • Page 58 This is a GPS Compass and movement is needed to obtain direction information. If movement is too slow, this data cannot be determined and the stationary icon is displayed.   Mesa Rugged Notepad Owner’s Manual...

  • Page 59: Camera

    Breadcrumb: This is an independent function from  everything else in this gadget. Setting this logs points at specific time intervals into the GPSTrack.gpx file. There are three files created, 2 for waypoints and 1 for the breadcrumbing. Waypoint information is saved in both the GPSLoc.gpx and GPSLOC.csv.
  • Page 60 When pictures are geotagged, the date, time, latitude, and longitude are included with and/or on the image. To use this feature, follow these steps: 1.  Turn on GPS by tapping the GPS gadget on the Home screen and wait for a fix.   Mesa Rugged Notepad Owner’s Manual...
  • Page 61 2. Select Geotag from the menu. The following Geotag Options screen is shown: Select the options you want. Embed: select this option to build the GPS information into a jpg file. This allows you to put the image into programs like Google Earth, sort images by location, etc.
  • Page 62   Mesa Rugged Notepad Owner’s Manual...

  • Page 63: 3G Data Modem

    3G Data Modem 64  Set up an Account with a Wireless Provider 64  Install the SIM Card 66  Set up the Cell Modem 67  Wireless Safety 68  Maintenance of Your Modem...

  • Page 64: Set Up A Data Account With A Wireless Provider

    When you set up your wireless account, you are given a SIM card. To insert or remove a card follow these steps: 1.  Suspend or power off the Mesa if there is no battery in compartment 2. 2.  The SIM card slot is located in battery compartment 1.
  • Page 65 5.  Replace the battery pack and attach the battery door. 6.  Resume or power on the Mesa. Note: If the modem was on before shutting the Mesa down to insert the SIM card, you are prompted to configure the data connection when you reboot.

  • Page 66: Set Up The Cell Modem

    Tap on the 3G modem gadget . After about 30 seconds it turns green, indicating that the modem is available. Once it is available, configure it to make a connection. Tap and hold the modem gadget to open the Connections control panel.   Mesa Rugged Notepad Owner’s Manual...

  • Page 67: Wireless Safety

    Select “Automatically configure connection.” The name of your carrier appears. Tap Next. A progress is shown: on the next screen while your internet settings are configured. You can now access the internet. Open Internet Explorer to test your setup. Connection Problems If the connection fails to automatically configure, there might not be a signal where you are located.

  • Page 68: Maintenance Of Your Modem

    Do not attempt to disassemble the cell modem. There are no  user serviceable parts inside. Do not place the cell modem alongside computer discs,  credit or travel cards, or other magnetic media. The modem may affect the information contained on discs or cards.   Mesa Rugged Notepad Owner’s Manual...

  • Page 69: Storage, Maintenance And Recycling

    Storage, Maintenance and Recycling 70  Storing the Mesa and Battery Packs 71  Protecting the Touchscreen 71  Cleaning the Mesa 72  Recycling the Mesa and Batteries...

  • Page 70: Storing The Mesa And Battery Pack(S)

    When the Mesa is not being charged and is suspended, it draws a small amount of power. This power draw is used to maintain the memory (RAM) of the Mesa in the same state it was when it was suspended. We recommend charging the Mesa each night or weekend when it is in suspend mode.

  • Page 71: Protecting The Touchscreen

    To further protect the touchscreen, apply one of the screen protectors that came with the Mesa. To apply a screen protector, follow the directions that come with it in the package. CAUTION: Be sure to replace the screen protector as often as the screen protector instructions recommend.

  • Page 72: Recycling The Mesa And Batteries

    Recycling the Mesa and Batteries When the Mesa reaches the end of its life, it must not be disposed of with municipal waste. It is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
  • Page 73 To find the nearest battery recycling center in the USA, visit the Rechargeable Battery Recycling Corporation’s website at www. rbrc.org/call2recycle/index.html or call 1-800-8-battery. Ch 8  Storage, Maintenance and Recycling ...
  • Page 74   Mesa Rugged Notepad Owner’s Manual...

  • Page 75: Warranty And Repair Information

    Warranty and Repair Information 76  Limited Product Warranty 78  Extended Warranties 79  Repairing the Mesa  ...

  • Page 76: Limited Product Warranty

    Limited Product Warranty  Juniper Systems, Inc. (“JS”) warrants that the Mesa Rugged Notepad shall be free from defects in materials and workmanship, under normal intended use, for a period of 12 months from the date of shipment. JS warrants that the following items shall be free from defects...
  • Page 77 This warranty is exclusive and JS will not assume and hereby expressly disclaims any further warranties, whether express or implied, including, without limitation, any warranty as to merchantability, fitness for a particular purpose, non- infringement or any warranties arising from the course of performance, dealing, or usage of trade.

  • Page 78: Extended Warranties

    Warranty Repairs To obtain warranty repair or service on the Mesa, submit a repair order on our website at www.junipersys.com > Support > Repairs or contact an authorized repair center within the applicable warranty period.

  • Page 79: Repairing The Mesa

    Extended warranties apply only to the Mesa, not battery packs, media containing the Mesa programs, desktop computer programs, user documentation, and accessories. Parts that are excessively worn are not covered under all warranty plans. These may include, but are not limited to, the keyboard elastomer and switch matrix, hand straps, touchscreens, and connector modules.
  • Page 80 System Information for your Mesa When you contact a repair center you need some unique system ID information for your Mesa (serial number, model number, etc.). Tap Start > Settings > System > System Information to view the following menu. Select System ID.

  • Page 81: A Specifications

    Specifications...

  • Page 82: Mesa Rugged Notepad Specifications

    2” (136 mm x 220 mm x 51 mm) Weight, Mesa standard with one  battery: 1.9 lbs (862 g), Mesa Geo with two batteries: 2.34 lbs (1061g), Mesa Geo 3G with two batteries and cell modem: 2.36 lbs (1070 g) Magnesium alloy case front, plastic ...
  • Page 83 FEATURE SPECIFICATION Touchscreen Resistive technology for use with  finger or stylus Touchscreen disable function  Keyboard 15 control buttons (6 reassignable)  Function keys  Five-way directional button  Backlight  On-screen keyboard  Batteries Rechargeable Li-Ion battery pack ...
  • Page 84 Environmental MIL-STD810G standard for water,  humidity, sand and dust, vibration, altitude, shock, low temperature, high temperature, temperature shock Warranties 12 months for Mesa unit and  optional cell modem 90 days for accessories  Extended warranty options   ...
  • Page 85  E-Mail  File Explorer  Getting Started  Help  Internet Explorer  Internet Sharing  Juniper Home Screen,  customizable with selectable dashboard gadgets and program shortcuts Marketplace  Messaging  Microsoft MyPhone  Microsoft Office Excel Mobile ®...
  • Page 86 WAAS, MSAS, EGNOS File format NMEA-0183 v2.3,  default strings: GGA, GSA, GLL, GSV, TXT, RMC, VTG Track 12 or more satellites  simultaneously Juniper Home Screen GPS signal  quality indicator Juniper Home Screen GPS compass    Mesa Rugged Notepad Owner’s Manual...
  • Page 87 Anti-Glare Connector protector  Documentation CD  Optional Accessories Shoulder strap  Serial cable  Cigarette Lighter Charging  Adaptor Travel charger (for 1 or 2 batteries)  Mesa Mobile Dock with desktop  base or vehicle mount Appendix A  Specifications ...
  • Page 88   Mesa Rugged Notepad Owner’s Manual...

  • Page 89: B Warnings And Regulatory Information

    Warnings and Regulatory Information 90  Product Warnings 91  Mesa Certifications and Standards...

  • Page 90: Product Warnings

    Product Warnings Follow the warnings listed below to use the Mesa and accessories safely. Battery Warnings WARNING! This device comes with a lithium ion rechargeable battery pack. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short external contacts, or expose the battery pack to fire.

  • Page 91: Mesa Certifications And Standards

    Do not pull on a cord or cable. When unplugging the wall charger from the electrical outlet, pull on the plug, not the cord. Use only wall chargers intended for the Mesa. Using any other external power source can damage your product and void your warranty.
  • Page 92 Wall chargers approved for this product employ special provisions to avoid radio interference and should not be altered or substituted. This device must not be co-located or operating in conjunction with any other antenna or transmitter.   Mesa Rugged Notepad Owner’s Manual...
  • Page 93 USB host port must use a ferrite core/bead on the cable. The ferrite core must be placed on the cable near the end that connects to the Mesa. Compliance with these directives implies conformity to the following standards: EN 55022 (CISPR 22) Electromagnetic Interference ...
  • Page 94 This equipment may be used indoors on channels 1 to 13. Outdoor operation is permitted on channels 1 to 8, as transmit power in the band 2454 to 2483.5 MHz is limited to 10 mW. The latest requirements may be found at: http://www. art-telecom.fr   Mesa Rugged Notepad Owner’s Manual...

  • Page 95: Charging And Docking Accessories

    Charging and Docking Accessories 96  Mesa Mobile Dock 1 03  Mesa Travel Charger...

  • Page 96: Mesa Mobile Dock

    Mesa Rugged Notepad and additional communication options. Note: The Mesa Mobile Dock is not functional as a stand alone device. It requires the Mesa to be functional. For example, it is not a stand alone powered USB hub. Communication Options...
  • Page 97 Mesa, 100mA is available on each USB host ports. In this scenario it is recommended that no more than 300mA total be drawn from the USB host ports. 5. The audio jack of the Mesa is accessible when the Mesa is in the mobile dock. Mounting Options...
  • Page 98 The kit includes two RAM mount bases, a RAM mount double socket arm, four screws, and four 8-32 nuts. Note: Additional attachments are available for the vehicle kit from National Products Inc. at www.ram-mount.com.   Mesa Rugged Notepad Owner’s Manual...
  • Page 99 Installing the vehicle kit: 1. From the front of the dock you see four hex holes. Press a nut into each hole. Use a screwdriver or similar object to press them firmly into place. 2. From the back of the dock, align the ram mount with the screw holes.
  • Page 100 In this configuration, the Mesa is powered and charging its batteries whenever vehicle power is applied. When the vehicle is turned off, the Mesa does not receive external power and suspends after the time set in the power management settings (default is 3 minutes).
  • Page 101 2. Align the Mesa with the lower mounting points on the mobile dock. Press the Mesa back to secure it to mobile dock. The top latch snaps into place. Note: Tighten the security bolt when the mobile dock is used in a vehicle.
  • Page 102 Releasing the Mesa from the Mobile Dock To release the Mesa from the mobile dock, lift up on the top latch. Pull the Mesa forward and remove it. Note: Loosen the security bolt if the mobile dock is being used in a vehicle. Maintenance  Environmental Issues The mobile dock sheds water when used in its normal configuration, but is not sealed against water.

  • Page 103: Mesa Travel Charger

    Mesa Travel Charger The Mesa Travel Charger is an optional accessory that allows you to charge Mesa battery packs on the go. One or two battery packs can be charged at once. How to Use the Travel Charger 1. Battery pack(s) should be charged at room temperature (68°...
  • Page 104 If the problem persists, the battery pack might be faulty, requiring replacement. Charge cycle time out: The battery pack does not reach full  charge within eight hours. The battery pack might be at the end of its life or faulty, requiring replacement.   Mesa Rugged Notepad Owner’s Manual...
