Juniper Allegro 3 Series Owner's Manual

Juniper Allegro 3 Series Owner's Manual

Rugged handheld powered by android
Hide thumbs
Table of Contents

Advertisement

Quick Links

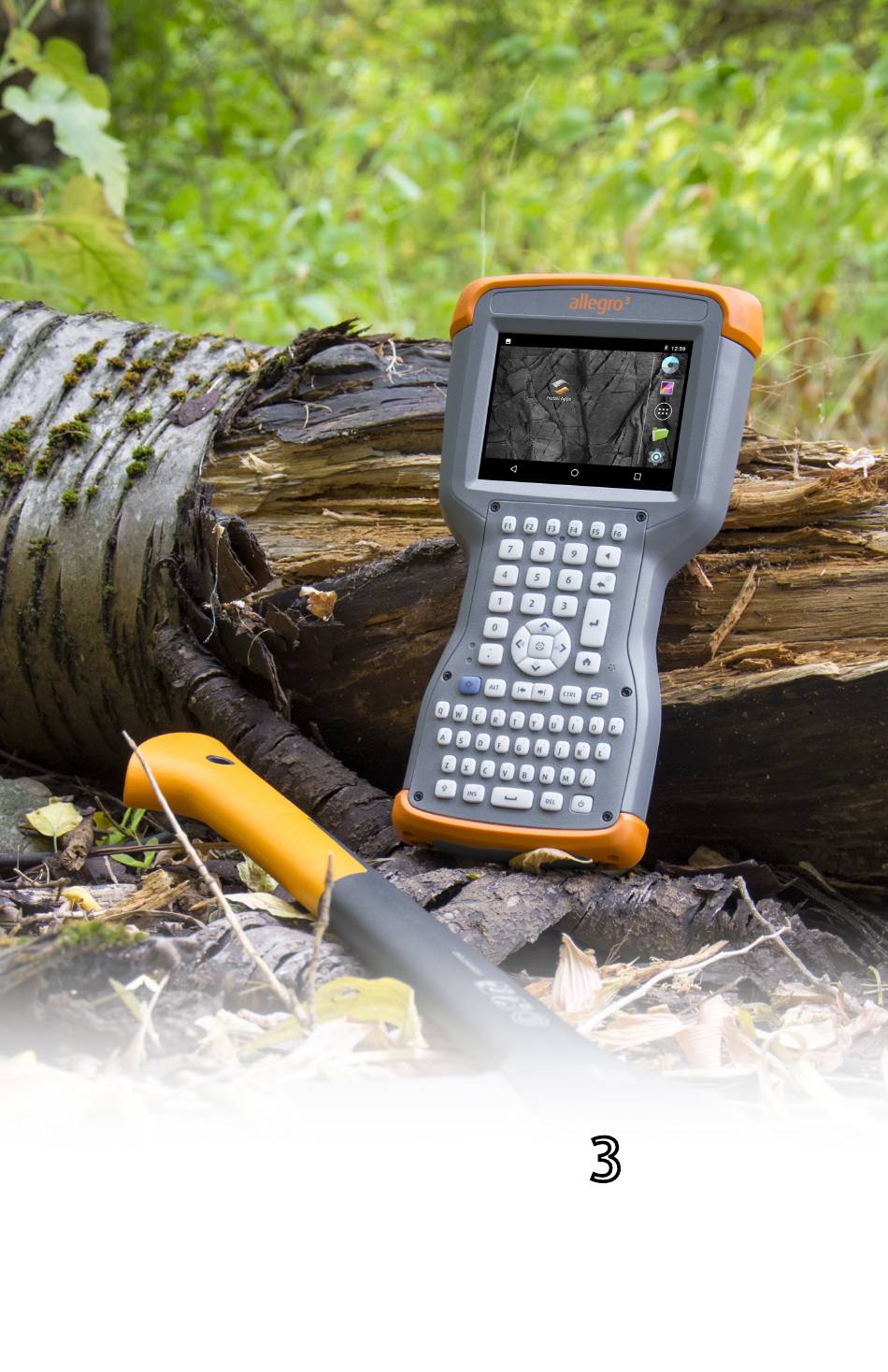

allegro
3
™
O W N E R ' S M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Allegro 3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Juniper Allegro 3 Series

Summary of Contents for Juniper Allegro 3 Series

  • Page 1 allegro ™ O W N E R ’ S M A N U A L...
  • Page 2 Bluetooth word mark is owned by the Bluetooth SIG, ® Inc. and any use of such marks by Juniper Systems, Inc. is under license. The names of other companies and products mentioned herein may be the trademarks of their respective owners.

  • Page 3: Table Of Contents

    Contents Getting Started The Anatomy of the Allegro 3 Perform Initial Tasks Standard Features Turn On, Power Off or Restart Installing Apps Display and Touchscreen Keyboard Features Power Management LED Activity Indicators Data Storage Options Bluetooth Wireless Communication ® Wi-Fi Wireless Networking Optional Features 4G Data Modem GPS/GNSS...
  • Page 4 Warnings and Regulatory Information Product Warnings Certifications and Standards Specifications Allegro 3 Rugged Handheld Specifications Index Allegro 3 Rugged Handheld Powered by Android Owner’s Manual...

  • Page 5: Getting Started

    Getting Started...

  • Page 6: The Anatomy Of The Allegro 3

    Getting Started The Allegro 3 Rugged Handheld™ powered by Android™ features Bluetooth, Wi-Fi and an alphanumeric keyboard. Standard accessories include an AC wall charger, USB micro client sync cable, hand strap, and capacitive blunt tip stylus and tether. A camera, GPS/GNSS, 4G data modem, and barcode scanner are options.

  • Page 7: Perform Initial Tasks

    Battery Compartment and Card Slots 1 Battery Door, Screws 2 Battery Pack 3 Mini SIM Card Slot 4 Micro SD/SDXC Card Slot 5 Battery Compartment 6 Connector Module Protector 3 4 5 Connector I/O Module 1 USB Client, Micro B 2 Audio Jack, for Microphone, Speaker, or Stereo Output, 3.5mm 3 USB Host, Full Size A...
  • Page 8 CAUTION: The Allegro 3 is not sealed against water and dust when the battery door is not installed. 2. If you are using a micro SD card for additional memory or a mini SIM card with the 4G LTE (optional), you can install them now before you install the battery pack, or at another time.

  • Page 9: Standard Features

    Standard Features...

  • Page 10: Turn On, Power Off Or Restart

    Standard Features This chapter discusses the standard features found on all Allegro 3 models and optional features. Turn On, Power Off or Restart To turn the Allegro 3 on, press and release the power key. Press and briefly hold the power button to select Power off or Restart.
  • Page 11 APK Pure App Store The APK Pure app store which has many of the same apps available through the Google Play store. On the home screen of your Allegro 3 is a widget that takes you to our website where a link to APK Pure is located. You can download the app store and browse available apps.

  • Page 12: Display And Touchscreen

    2. Download the desired .apk app file to the device from a trusted source using one of these options: a. Do this directly using the browser on the device to go to the website where the app is located and downloading it.

  • Page 13: Keyboard Features

    Note: When using the Allegro 3 in wet conditions, you must use your finger or the blunt tipped stylus that is included. A hard-tipped stylus will not work. Other third party styli might work with the Allegro 3 touch profiles. Keyboard Features The Allegro 3 has a numeric keypad, function keys, and a QWERTY keyboard.

  • Page 14: Power Management

    Shift command Shift, one key press „ CAPS lock, two key presses „ Release CAPS lock, three key presses „ Shift + numeric key press to get special characters: 1=!, „ 2=@, 3=#, 4=$, 5=%, 6=^, 7=&, 8=*,9=(, 0=) Power Suspend or resume, one key press „...

  • Page 15: Led Activity Indicators

    How to Handle a Locked Up Unit If the Allegro 3 is completely stuck and won’t respond, hold the power key down for 2 to 3 seconds to see if the menu with the “Power off” option appears, and select that operation.

  • Page 16: Bluetooth ® Wireless Communication

    CAUTION: Always power off the handheld before removing the battery. Failure to do so may cause loss of data or damage to the handheld. 1. Power off the handheld by holding the power button until the Power Button menu appears and selecting Power Off.

  • Page 17: Wi-Fi Wireless Networking

    4. In the Bluetooth settings screen, a list of all Bluetooth devices within range is shown. Tap on the name of the device in the list you would like to pair with. A Bluetooth pairing request box is shown. If prompted, enter the PIN or pass code of the device you want to pair with.
  • Page 18 Allegro 3 Rugged Handheld Powered by Android Owner’s Manual...

  • Page 19: Optional Features

    Optional Features...

  • Page 20: 4G Data Modem

    Optional Features This chapter discusses the optional features for that can be included with the Allegro 3 Rugged Handheld (base and Geo models). 4G Data Modem The 4G data modem is an option for Allegro 3 Geo models, adding Wide Area Network data modem capability. Install the SIM Card To insert or remove a card, follow these steps: CAUTION: Always power off the handheld before removing...

  • Page 21: Gps/Gnss

    To remove the SIM card, pull the tray open and remove the card. Push the empty tray in until it catches. 5. Replace the battery pack, and attach the battery door. 6. Power on the Allegro 3. You can now access the Internet. Open Internet Explorer to test your setup.

  • Page 22: Barcode Scanner

    Barcode Scanner Allegro 3 models with a barcode scanner allow you to read 1D and 2D barcodes and easily import barcode data into apps running on the Allegro 3. Quick Start – Easily Scan a Barcode Now You can scan a barcode as a test using the Barcode Connector app.

  • Page 23: A Storage, Maintenance And Recycling

    Storage, Maintenance and Recycling...

  • Page 24: Storing The Allegro 3 And Battery Pack

    Storage, Maintenance, and Recycling Follow the instructions in this chapter to properly maintain and recycle the Allegro 3. Storing the Allegro 3 and Battery Pack Storing the Allegro 3 for More than Two Weeks To store the handheld for two weeks or more, complete the following steps: 1.

  • Page 25: Recycling The Allegro 3 And Batteries

    If you cannot find a location, contact Juniper Systems for information about disposal. The Li-Ion battery packs for your Allegro 3 are recyclable.
  • Page 26 Allegro 3 Rugged Handheld Powered by Android Owner’s Manual...

  • Page 27: Warranty And Repair Information

    Warranty and Repair Information...

  • Page 28: Limited Product Warranty

    Limited Product Warranty Juniper Systems, Inc. (“JS”) warrants that the Allegro 3 Rugged Handheld shall be free from defects in materials and workmanship, under normal intended use, for a period of 24 months from the date of shipment. JS warrants that the following items shall be free from...
  • Page 29 This warranty is exclusive and JS will not assume and hereby expressly disclaims any further warranties, whether express or implied, including, without limitation, any warranty as to merchantability, fitness for a particular purpose, non- infringement or any warranties arising from the course of performance, dealing, or usage of trade.

  • Page 30: Extended Warranties

    Warranty Repairs To obtain warranty repair or service on the Allegro 3, submit a repair order on our website at http://www.junipersys.com/ Juniper-Systems/support/Repairs or contact an authorized repair center within the applicable warranty period. Products returned for repair or service without proper authorization may acquire an additional handling fee and/ or delay in the repair.

  • Page 31: Repairing The Allegro 3

    This action voids the warranty. Information about repairs, upgrades, and evaluations is located on our website at http://www.junipersys.com/ Juniper-Systems/support/Repairs. You can locate a repair center, submit a repair order, check repair status, view terms and conditions, get shipping instructions, and view lead times.
  • Page 32 System Information for your Allegro 3 When you contact a repair center, you need some unique system ID information for your Allegro 3 (serial number, model number, etc.). Go to Settings > About this device. Information about software, hardware, the battery, the network and radio, regulatory information, and legal information can be viewed.
  • Page 33 Warnings and Regulatory Information...

  • Page 34: Product Warnings

    Product Warnings Follow the warnings listed below to use the AG3 (Allegro 3) and accessories safely. Battery Warnings WARNING! This device is for professional use only. This device comes with a lithium ion rechargeable battery pack. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short external contacts, or expose the battery pack to fire.

  • Page 35: Certifications And Standards

    Wall Charger Warnings WARNING! To reduce the risk of personal injury, electrical shock, fire or damage to the equipment: Plug the wall charger into an electrical outlet that is easily accessible at all times. Do not place anything on the wall charger cord or any of the other cables.
  • Page 36 equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. „...
  • Page 37 Canadian ICES-003. Radio Frequency Safety This device has been evaluated for use in close proximity to the body. Use only accessories approved by Juniper Systems. The use of third party accessories may not comply with FCC and international RF exposure requirements.
  • Page 38 Allegro 3 Rugged Handheld Powered by Android Owner’s Manual...
  • Page 39 Specifications...
  • Page 40 Allegro 3 Rugged Handheld Specifications FEATURE SPECIFICATION Operating Android™ 7.1 AOSP by Google „ System English, French, German, Spanish, „ Brazilian Portuguese, (see complete list) Processor 1.2GHz Quad Core ARM Cortex A9 „ i.MX6 Memory 2 GB RAM „ Primary Data 16 GB flash storage „...
  • Page 41 FEATURE SPECIFICATION Touchscreen Capacitive touch interface „ Chemically-strengthened glass „ Scratch-resistant „ Touch control options (finger, stylus, „ wet) Keyboard Alphanumeric QWERTY keyboard „ Modifier keys „ Programmable keys and LEDs „ Backlight „ On-screen keyboard option „ Batteries Rechargeable Li-Ion battery pack, „...
  • Page 42 FEATURE SPECIFICATION Audio Speaker „ Microphone, low noise „ 3.5mm audio jack, supports stereo „ headset and microphone at the same time (speaker disable) LED Activity Red: power applied/charging status „ Indicators Green: notification, application „ programmable Blue: application programmable „...
  • Page 43 FEATURE SPECIFICATION Software Calculator „ Included Calendar „ Camera „ Clock „ Contacts „ Downloads „ Email „ Files „ Gallery „ Music „ Opera Web Browser „ Search „ Settings „ Sound Recorder „ Note: Software on individual units may vary from this list.
  • Page 44 FEATURE SPECIFICATION GPS/GNSS (Geo High-sensitivity GPS, GLONASS, „ models) Galileo, BeiDou, QZSS, SBAS receiver Accuracy: SBAS 2 meters, „ autonomous 5 meters User settings for enhanced „ performance under canopy Integrated real-time SBAS capability, „ support for WAAS, MSAS, EGNOS File format NMEA-0183 version 4.0 „...
  • Page 45 FEATURE SPECIFICATION Certifications FCC Class B „ and Standards CE Marking (applicable EMC, R&TTE, „ and LVD directives) Industry Canada „ EN60950/EN62368 Safety „ Bluetooth SIG qualification „ USB client „ IP68 waterproof and dustproof „ Designed to MIL-STD 810G „...
  • Page 46 Allegro 3 Rugged Handheld Powered by Android Owner’s Manual...
  • Page 47 Index...
  • Page 48 Index Symbols 4G Data Modem Data Account, Set up With Wireless Provider 16 SIM Card Installation 16 Anatomy of the Rugged Handheld 2 Android 2 APK Pure 7 Apps 6 , 40 Barcode Scanner 17 Battery Pack Battery Life 10 Specifications 37 Warnings 30 Bluetooth Wireless Communication 12...
  • Page 49 Geo Model 17 GPS/GNSS 40 ide Loading Android Applications 7 Limitation of Liability 25 Microphone 38 Operating System 36 Product Warnings 30 Recycling the Rugged Handheld and Batteries 21 Repairing 27 RS-232C Port 37 Scan Button Set-up 18 SD Cards 11 SIM Card 3 Speaker 38 Specifications 36–43...
  • Page 50 USB Client 41 , 31 Warnings 30 Warranty 24–27 Exclusions 24 Extended Warranties 26 Limitation of Liability 25 Remedy 25 Repairs 26 Services 26 Warranty Exclusions 24 Warranty Repairs 26 Wi-Fi Wireless Communication 13 Allegro 3 Rugged Handheld Powered by Android Owner’s Manual...

This manual is also suitable for:

Allegro 3 baseAllegro 3 geo
