Mesa with Barcode Scanner

Advertisement

Table of Contents
loading

Related Manuals for Juniper MESA

Summary of Contents for Juniper MESA

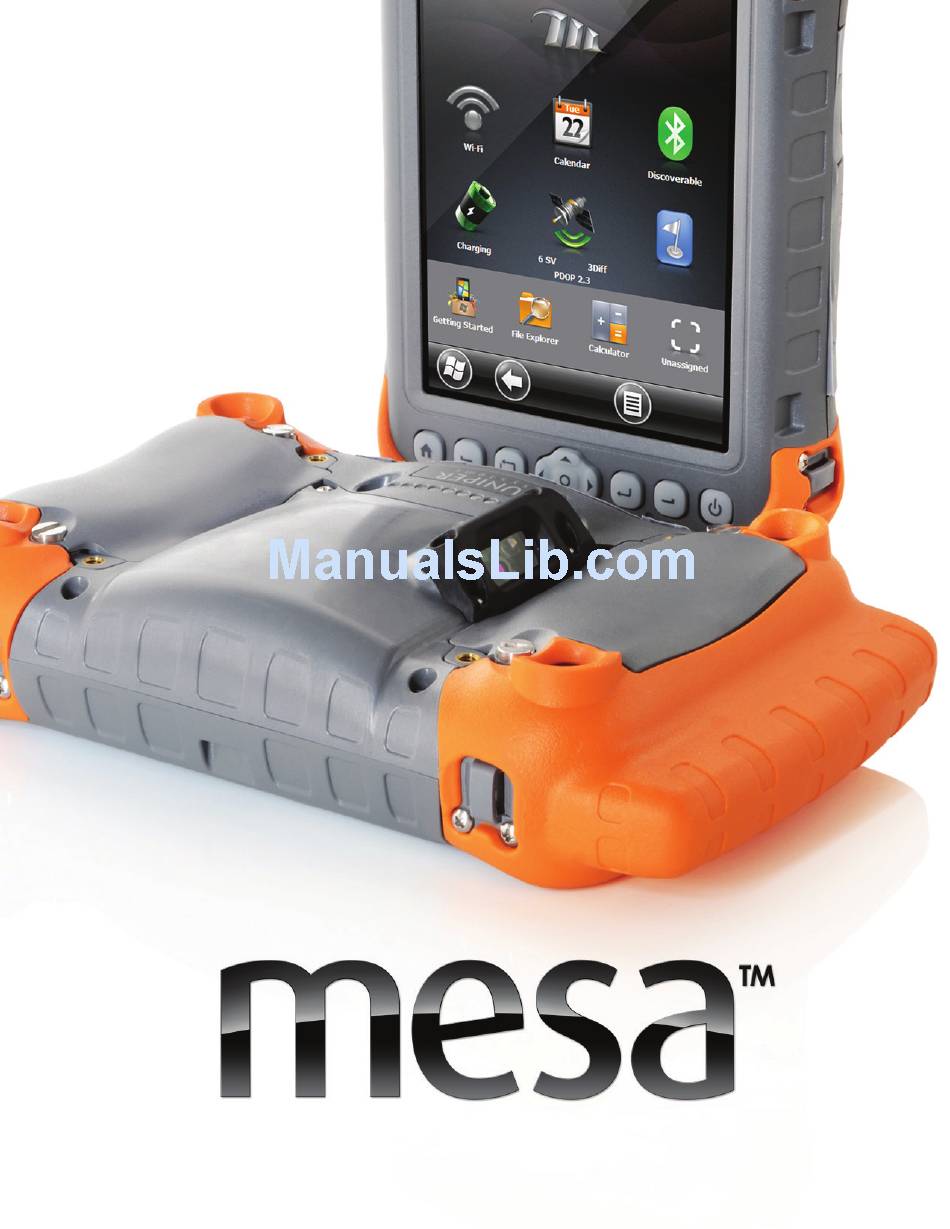

  • Page 1 Mesa with Barcode Scanner...
  • Page 2 © Copyright June 2015 Juniper Systems, Inc. All rights reserved. Information is subject to change without notice. Juniper Systems is a registered trademark of Juniper Systems, Inc. Mesa Rugged Notepad and Barcode Connector are recognized trademarks of Juniper Systems, Inc.

  • Page 3: Table Of Contents

    Contents Quick Start – Easily Scan a Barcode Now ....5 What You Receive ............7 Third-party Software ........... 8 Using the Mesa with the Barcode Scanner ....8 Barcode Connector Utility ..........9 Barcode Setup ............11 User Tab ..............12 Test Tab ..............13...

  • Page 5: Quick Start - Easily Scan A Barcode Now

    Follow these steps: 1. Find a barcode to scan (or use this one): 2. Plug the Mesa AC wall power charger into a wall socket. Plug the other end into the DC power jack on the Mesa.
  • Page 6 (shown below), Microsoft Word Mobile, and ® Notes are provided on the Mesa. Note: If the application you want isn’t shown on the Home screen, tap the Windows soft key to view and select an application. 6. Put the cursor where you want the barcode data to be placed.

  • Page 7: What You Receive

    (With Excel, press enter to see data in the selected column). What You Receive If the barcode scanner is a retrofit to an existing Mesa performed at a service center, you receive the following items: Your Mesa with the barcode scanner attached „ Barcode Connector utility, pre-installed ™...

  • Page 8: Third-Party Software

    2. Apply a screen protector to the Mesa. 3. Charge the battery pack(s). 4. Perform the Mesa set up (date and time, etc.). 5. Adjust the Mesa hand strap. When you are scanning, you might want to tighten the strap on your hand to make it easier to use.

  • Page 9: Barcode Connector Utility

    Mesa it either loads automatically when the Mesa is turned on or you can open it from the Mesa Home screen. Note: If the program does not appear in the favorites bar as shown below (lower right-hand...
  • Page 10 Barcode Connector utility. 2. Power Down Barcode and Exit – This function completely shuts down the barcode scanner. You may want to do this to prevent accidental triggering of a scan sequence. Otherwise, we Mesa Barcode Scanner Owner’s Manual...

  • Page 11: Barcode Setup

    X in the bottom right corner of the display. Barcode Setup When you select Barcode Setup, a window is displayed with several tabs along the top. Select these tabs to view or edit the configuration of the Barcode Connector utility and the barcode hardware. A description of these tabs follows. Mesa Barcode Scanner Owner’s Manual...

  • Page 12: User Tab

    User Tab The User tab has the following functions: Select Scan Button – Configure which of the „ four top function buttons on the Mesa will be the scan button (notes is the default). Trigger Mode While Holding Scan Button – „ Select Scan to start scanning the moment the button is pressed.

  • Page 13: Test Tab

    (The assigned hardware button can also be used.) Code Type and Scan Data – After a successful „ scan, the code type of the barcode and the scan data are displayed. Mesa Barcode Scanner Owner’s Manual...

  • Page 14: General Tab

    Enable/Disable Aiming Crosshairs. „ Enable/Disable Decoding Illumination (red „ light). Illumination Brightness – You can adjust the „ illumination brightness, but for performance reasons, it is recommended you leave this at the maximum value of 10. Mesa Barcode Scanner Owner’s Manual...
  • Page 15 Read the Help on this topic for more information. Consecutive Read Level – Select how many „ successful consecutive reads the barcode must get before being decoded. Read the Help on this topic for more information. Mesa Barcode Scanner Owner’s Manual...

  • Page 16: Data Format Tab

    The Data Format tab has the following function: Select optional prefix and suffixes from the „ Format pull-down list to add to the scan data. (If you use a program like Excel, we recommend that you Select <Data><Suffix1> with Suffix1 set to a carriage return (<CR>). This puts each scan on a new line.) Mesa Barcode Scanner Owner’s Manual...

  • Page 17: 1D Code Types Tab

    1D Code Types Tab The 1D Code Types tab has the following functions: Inverse 1D – Enable/disable inverse 1D bar „ codes or select Auto Detect. Enable/disable the 1D code types listed. „ Mesa Barcode Scanner Owner’s Manual...

  • Page 18: Options To Configure 1D Codes

    Interleaved GS1 DataBar, MSI Plessey, Codabar/Code 11, and Matrix 2 of 5. Depending on which 1D barcodes you are going to read, you should review the options and configure them for your needs. For example, below is the tab for Code 39: Mesa Barcode Scanner Owner’s Manual...
  • Page 19 B are decoded. 3) Length Within Range – Set A less than B (both non-zero). Barcodes between and including A and B are decoded. 4) Any length – Set A to 0. Any barcode length is decoded. Mesa Barcode Scanner Owner’s Manual...

  • Page 20: Composite/Postal Code Types Tab

    Composite/Postal Code Types Tab The Composite/Postal Code Types tab has the following functions: Composite Codes - Enable or disable „ composite code types. Postal Codes - Enable or disable postal code „ types. Mesa Barcode Scanner Owner’s Manual...

  • Page 21: 2D Code Types Tab

    2D Code Types Tab The 2D Code Types tab has the following function: 2D Code Types - Enable or disable 2D code „ types. Mesa Barcode Scanner Owner’s Manual...

  • Page 22: Profiles Tab

    The Profiles tab has the following functions: Select a Profile to Save or Load - A profile is a „ saved set of settings. To load a profile, select the profile from the drop-down list and select Load. Note: When a setting is changed a hidden profile (called “last user”) is updated. When this utility is launched, it loads the settings from the last user profile. Mesa Barcode Scanner Owner’s Manual...
  • Page 23 Save. Note: Any changes to settings after a profile is loaded will not automatically get saved out to the profile, but will get saved out to “last user.” Mesa Barcode Scanner Owner’s Manual...

  • Page 24: Troubleshooting

    1) Set the camera/pictures or brightness up button as the scan button since they are closer to the edge of the Mesa (see User Tab instructions). 2) Disable the touchscreen by pressing and holding the screen orientation button.
  • Page 25 PC and download it from there to the other Mesas using synchronization software. See the Mesa manual for details). If you want to be able to restore to this point, after you set up the first Mesa, go to the Profiles tab, and save these settings as Profile 1. Copy the “Profile1.cfg” file...
  • Page 26 Autodiscriminate from the drop down list. Also go to the 1D Code Types tab, select Options, then the tabs for UPC/EAN-1 and UPC/ EAN-2. Make sure the settings are correct for your application. Mesa Barcode Scanner Owner’s Manual...
  • Page 27 They are also called USPS 4CB (located on the Composite/ Postal Code Types tab). 12 – CLSI editing has no effect. Reason/Solution: CLSI editing is only supported for 14 character Codabar barcodes. Mesa Barcode Scanner Owner’s Manual...

  • Page 28: Certifications And Standards

    This laser product is designated as Class 1 during all procedures of operation. For instructions on activating/deactivating the laser aimer and LEDs, please read the section on software operation. Mesa Barcode Scanner Owner’s Manual...
  • Page 29 Classification Class 1 FCC and Industry Canada United States and Canada Please refer to the Mesa Owner’s Manual for information. This Class B digital apparatus complies with Canadian ICES-003. This device also complies with Part 15 of the FCC Rules. Operation of this equipment is subject to the following conditions: 1.
  • Page 30 Increase the separation between the „ equipment and receiver. Connect the equipment into an outlet on a „ circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV „ technician for help. Mesa Barcode Scanner Owner’s Manual...
  • Page 31 USB host port must use a ferrite core/bead on the cable. The ferrite core must be placed on the cable near the end that connects to the Mesa. Compliance with these directives implies conformity to the following standards: EN 55022 (CISPR 22) Electromagnetic „...
  • Page 32 Data matrix, QR code, Micro QR code, Aztec, MaxiCode, Postal codes) Trigger Buttons Programmable Aiming Crosshair Pattern Visible with low light illumination Barcode Connector™ Wedge and Utility configuration Operating Temperature -22°F to 131°F / -30°C to 55°C Mesa Barcode Scanner Owner’s Manual...

  • Page 33: Mesa Barcode Scanner Specifications

    8mW sleep; by default device returns to sleep after 1 second of inactivity Support Available For the most current information on the Mesa Barcode Scanner software, hardware, Owner’s Manual and FAQs go to our website: www.junipersys.com, Support. Mesa Barcode Scanner Owner’s Manual...
  • Page 34 Sample 1D Barcodes Code 39 Code 128 Mesa Barcode Scanner Owner’s Manual...

  • Page 35: Sample 1D Barcodes

    UPC-A Sample 2D Barcodes Aztec Maxicode Mesa Barcode Scanner Owner’s Manual...
  • Page 36 MicroPDF417 QR Code Mesa Barcode Scanner Owner’s Manual...
