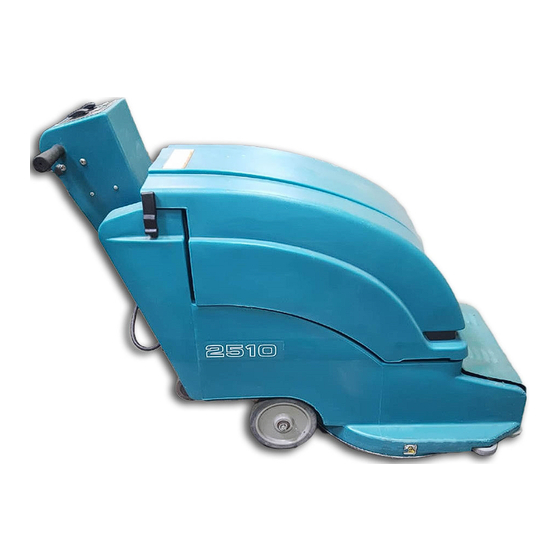

Tennant 2510 Operator And Parts Manual

Tennant 2510 Operator And Parts Manual

Dust control burnisher
Hide thumbs Also See for 2510:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual , Operator and Parts Manual
Model No.:
607598 – 2510
607599 – 2510 Pac
610688 – 2510 Can. Pac
607595 – 2550
607596 – 2550 Pac
610687 – 2550 Can. Pac
TENNANT COMPANY
Commercial Products
12875 RANSOM STREET
HOLLAND MI 49424 U.S.A.
FAX: 1–800–678–4240
CUSTOMER SERVICE: 1–800-982–7658
Home
Find... Go To..
2510/2550
Dust Control Burnisher
Operator and Parts Manual
607597
Rev. 02 (01-02)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant 2510

Summary of Contents for Tennant 2510

  • Page 1 2510/2550 Dust Control Burnisher Model No.: Operator and Parts Manual 607598 – 2510 607599 – 2510 Pac 610688 – 2510 Can. Pac 607595 – 2550 607596 – 2550 Pac 610687 – 2550 Can. Pac TENNANT COMPANY Commercial Products 12875 RANSOM STREET HOLLAND MI 49424 U.S.A.
  • Page 2 Parts and supplies may be Serial No.- ordered by phone or mail from any authorized parts and service center, distributor or from any of the 2002 Tennant Company Printed in U.S.A manufacturer’s subsidiaries. This machine will provide excellent service. However, the best results will be obtained at minimum costs if: The machine is operated with reasonable care.

  • Page 3: Table Of Contents

    ......WHEEL GROUP, 2510 MODEL ...

  • Page 4: Safety Precautions

    Always follow safety and traffic rules. – Report machine damage or faulty operation immediately. 4. Before leaving or servicing machine: – Stop on level surface. – Turn off machine. – Set parking brake, if equipped. 2510/2550 (12–00) Home Find... Go To..

  • Page 5: Machine Components

    CONTROL PANEL SYMBOLS Fast Main Power Pad Pressure Main Power Read Manual Speed Meter Circuit Breaker Before Operating Slow Less Pad Speed Pressure Parking Pad Motor Brake Circuit Breaker More Pad Battery Charge Meter Pressure Reverse 2510/2550 (12–00) Home Find... Go To..

  • Page 6: Machine Installation

    Part Number #600394. Maximum battery dimensions are 178 mm (7 in)W x 394 mm (15.5 in)L x 362 mm FIG. 3 (14.25 in) H. ATTENTION: Do not drop batteries into compartment. Battery and machine housing damage may result. 2510/2550 (01–02) Home Find... Go To..

  • Page 7: Machine Setup

    NOTE: When machine is tilted back completely, power to pad motor automatically shuts off. FIG. 7 3. Empty or replace bag daily. Do not allow bag to fill beyond half full. FIG. 5 2510/2550 (12–00) Home Find... Go To..

  • Page 8: Adjusting Control Grip Height

    OPERATION ADJUSTING CONTROL GRIP HEIGHT BURNISHING WITH 2510 MODEL The machine has three control grip height settings. 1. Turn on key, if equipped then turn on main power switch. 1. Locate two spring loaded levers below console. 2. Twist control grips forward to lower pad to floor 2.

  • Page 9: Burnishing With 2550 Model

    4. Change or turn pads over when soiled. FIG. 13 5. Check battery meter’s discharge level periodically. ATTENTION: Do not operate machine in red zone, Recharge when needle drops into red zone. floor damage and brush motor overload may result. 2510/2550 (12–00) Home Find... Go To..

  • Page 10: Emergency Stop Switch (Option)

    2. Turn off all switches and key. Set parking brake, if located under battery hood at front of machine equipped. (Figure 17). FOR SAFETY: Before leaving or servicing machine, stop on level surface, turn off machine, and set parking brake, if equipped. 2510/2550 (12–00) Home Find... Go To..

  • Page 11: Machine Maintenance

    FOR SAFETY: When servicing machine, disconnect battery connections before working on machine. FOR SAFETY: When transporting machine, do not lift machine if batteries are installed. FIG. 20 NOTE: Once the charger is connected, machine becomes inoperable. 2510/2550 (01–02) Home Find... Go To..

  • Page 12: Daily Maintenance

    (Every 80 Hours of Use) 1. Lubricate caster with a water resistant grease. 2. Lubricate wheel grease fittings with a water resistant grease (2510 Model). 3. Check machine for loose nuts and bolts. 4. Check condition of dust skirt, replace if worn (Figure 26).

  • Page 13: Battery Maintenance

    Use wire brush to clean terminals and cable connections. d. After cleaning, apply a coating of clear battery post protectant to terminals and cable connections. 4. Check for loose or worn cables. Replace if worn. 2510/2550 (12–00) Home Find... Go To..

  • Page 14: Trouble Shooting

    Contact Service Center. board. Loose wire connection. Contact Service Center. Short run time. Low battery charge. Charge batteries. Defective battery cell(s). Replace battery. Batteries need maintenance. See Battery Maintenance. Faulty battery charger. Replace charger. 2510/2550 (12–00) Home Find... Go To..

  • Page 15: Specifications

    Cloth Bag – 98% @ 1.0 micron BATTERIES 3–215amp/hour, 12v deep cycle 3–215amp/hour, 12v deep cycle RUN TIME, CONTINUOUS Up to 2.4 hours Up to 2.2 hours DECIBEL RATING AT OPERATOR’S 70dB(A) 70dB(A) EAR, INDOORS ON TILE 2510/2550 (12–00) Home Find... Go To..

  • Page 16: Electrical Diagrams

    STANDOFF CUTOFF LOW VOLTAGE SWITCH CUT-OFF MOTOR PAD MOTOR CONTACTOR PAD MOTOR SAFETY SWITCH AMMETER 80 AMP SHUNT PAD MOTOR CIRCUIT BREAKER WARNING LIGHTS (OPTIONAL) CHARGER PLUG (3) 12 VOLT BATTERIES 36 VDC Tennant 2510/2550 (01–02) Home Find... Go To..
  • Page 17 -BLK- -BLK- -BLK- -BLK- AMMETER SHUNT CIRCUIT BREAKER MOTOR -RED- -BLK- HOUR METER -36- -BLU- -36- -BLU- -RED- -BLK- -YEL- -BLK- -GRN- -WHT- USED -RED- -ORG- -GRN- LOW VOLTAGE PAD INTERRUPT OPTIONAL FUNTIONS Tennant 2510/2550 (01–02) Home Find... Go To..
  • Page 18 SWITCH LOW VOLTAGE NEGATIVE CUT-OFF STANDOFF MOTOR PAD MOTOR CONTACTOR PAD MOTOR SAFETY SWITCH AMMETER 80 AMP SHUNT PAD MOTOR CIRCUIT BREAKER WARNING LIGHTS (OPTIONAL) CHARGER PLUG (3) 12 VOLT BATTERIES 36 VDC Tennant 2510/2550 (01–02) Home Find... Go To..
  • Page 19 -BLK- -BLK- -BLK- -BLK- AMMETER CIRCUIT SHUNT BREAKER MOTOR -BLK- -RED- HOUR -36- -BLU- METER -36- -BLU- -RED- -BLK- -YEL- -BLK- -GRN- USED -WHT- -ORG- -RED- -GRN- OPTIONAL LOW VOLTAGE PAD INTERRUPT FUNTIONS Tennant 2510/2550 (01–02) Home Find... Go To..

  • Page 20: Parts List

    PARTS LIST MAIN HOUSING GROUP 2510/2550 (01–02) Home Find... Go To..
  • Page 21 PART # DESCRIPTION QTY. 607602 COVER, BATTERY COMPART- 608575 COVER, DUST BAG, TEAL MENT, TEAL 140706 RIVET, POP 1/8 120192 DECAL, TENNANT LOGO 140962 LATCH, SPRING KNURLED 604297 DECAL, RECESS BLACK 603269 HINGE, DUST COVER 578187000 SCREW, M6X1.0X12 578187000 SCREW, M6X1.0X12...

  • Page 22: Pad Driver Group

    PARTS LIST PAD DRIVER GROUP 11 12 2510/2550 (01–02) Home Find... Go To..
  • Page 23 WASHER, FLAT 1.25X.359X.093 DPAD, BURNISH 20” HAIRBLEND 140028 WASHER, 3/8 FLAT 611788 1 CARTON = 5 PADS 140017 WASHER, 3/8 SPLIT LOCK 140201 SCREW, 3/8–16X3/4 HXHDCP ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS 2510/2550 (01–02) Home Find... Go To..

  • Page 24: Drive Group, 2550 Model

    PARTS LIST DRIVE GROUP (2550 Model) 2510/2550 (01–02) Home Find... Go To..
  • Page 25 NUT, 6–32 KEP 31249 BOLT, SHOULDER .25X1.25 140000 WASHER, 1/4 FLAT 32982 WASHER, INT. LOCK 140501 NUT, 1/4–20 HXLOCK 01681 SCREW, SCKT 1/4–20X3/4 577031000 SCREW, 8X1/2 PANPHL ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS 2510/2550 (01–02) Home Find... Go To..

  • Page 26: Wheel Group, 2510 Model

    PARTS LIST WHEEL GROUP (2510 Model) 2510/2550 (12–00) Home Find... Go To..
  • Page 27 PARTS LIST WHEEL GROUP (2510 Model) PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 603277 FRAME WELDMENT 130133 TERMINAL, MALE .25 605970 WHEEL, 8X1–5/8 603267 PLATE, PIVOT ARM 103071 BEARING, WHEEL REPLACEMENT 069762098 SCREW, M6X1.0X16 FLTPHL 604293 SPACER, 3/4X4X1/16 103066 WHEEL, 4”DIA X 1.5HUB X .50...

  • Page 28: Control Console Group, 2550 Model

    PARTS LIST CONTROL CONSOLE GROUP (2550 Model) 2510/2550 (01–02) Home Find... Go To..
  • Page 29 TUBE, HANDLE ADJUSTMENT 605094 COLLAR, HANDLE 230649 PIN, HANDLE ADJUSTMENT 140859 SET SCREW 230710 PIN, HANDLE LOCK 606549 DECAL, SPEED CONTROL 140415 SPRING, LOCK PIN ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS 2510/2550 (01–02) Home Find... Go To..

  • Page 30: Control Console Group, 2510 Model

    PARTS LIST CONTROL CONSOLE GROUP (2510 Model) 2510/2550 (01–02) Home Find... Go To..
  • Page 31 PARTS LIST CONTROL CONSOLE GROUP (2510 Model) PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 200823 GRIP, HANDLE TUBE 140024 WASHER, LOCK 1/2 605351 BUSHING 602886 PIN, SPRING RETURN 604402 HANDLE, TUBE 605812 SPRING, EXTENSION 603848 GAUGE, PAD PRESSURE 140829 SCREW, 6–32X1...

  • Page 32: Electrical Group

    PARTS LIST ELECTRICAL GROUP 2510/2550 (01–02) Home Find... Go To..
  • Page 33 NUT, M5X.8 NYLOCK 601127000 WASHER, FLAT (2550 MODEL) 605292 SHUNT 579211 NUT, M3 HEXLOCK (2550 MODEL) 604290 ASM, WIRE #4 BLK X 27” 140539 NUT, 6–32 KEP 140016 WASHER, LOCK 1/4 D RECOMMENDED STOCK ITEMS 2510/2550 (01–02) Home Find... Go To..

  • Page 34: Battery And Charger Group

    BATTERY, 12V 215A (OPTIONAL) 611022 GASKET, BATTERY TRAY DCABLE, BATTERY #6 BLACKX15” 611116000 604298 TRAY, BATTERY DBOOT, BATTERY, BLACK 611221 469760868 CHARGER, 36DC 25 AMP (OPTIONAL) DBOOT, BATTERY, RED 611222 D RECOMMENDED STOCK ITEMS 2510/2550 (01–02) Home Find... Go To..

  • Page 35: Options

    ASM, WIRE #16X5” RED 1/4FX1/4F 603080 ASM., WIRE #18X8” BLACK 602997 ASM, WIRE #16X5” RED 1/4MX1/4F W/ TERM. RING ∇ 602993 KIT, KEYSWITCH 604643 ASM., WIRE #18X9” BLACK 607475 KEYSWITCH ∇ ASSEMBLY 607821 KEY, REPLACEMENT INCLUDED IN ASSEMBLY 2510/2550 (12–00) Home Find... Go To..

  • Page 36: Parking Brake Kit

    ∇ 604500 KIT, FLASHING LIGHTS 603440 LIGHT, SAFETY 36VDC 603839 FLASHER, 36VDC 612765 SHIELD, LIGHT 606243 TAPE, ACRYLIC FOAM 578186000 WASHER, FLAT M4 606242 GASKET 200070340 SCREW, M4X.7X8 PANPHL ∇ ASSEMBLY INCLUDED IN ASSEMBLY 2510/2550 (01–02) Home Find... Go To..
