2370
Operator Manual
EN
Model Part No.:
M23702004 - 230V/50HZ
M23702094 - 230V/50HZ U.K.
1010330 - 230V/240V/50HZ
1010331 - 220V/60HZ
1010337
Rev. 01 (02-2006)
*1010337*
www.tennantco.com
Home Find... Go To..

Advertisement

Table of Contents
loading

Related Manuals for Tennant 2370

Summary of Contents for Tennant 2370

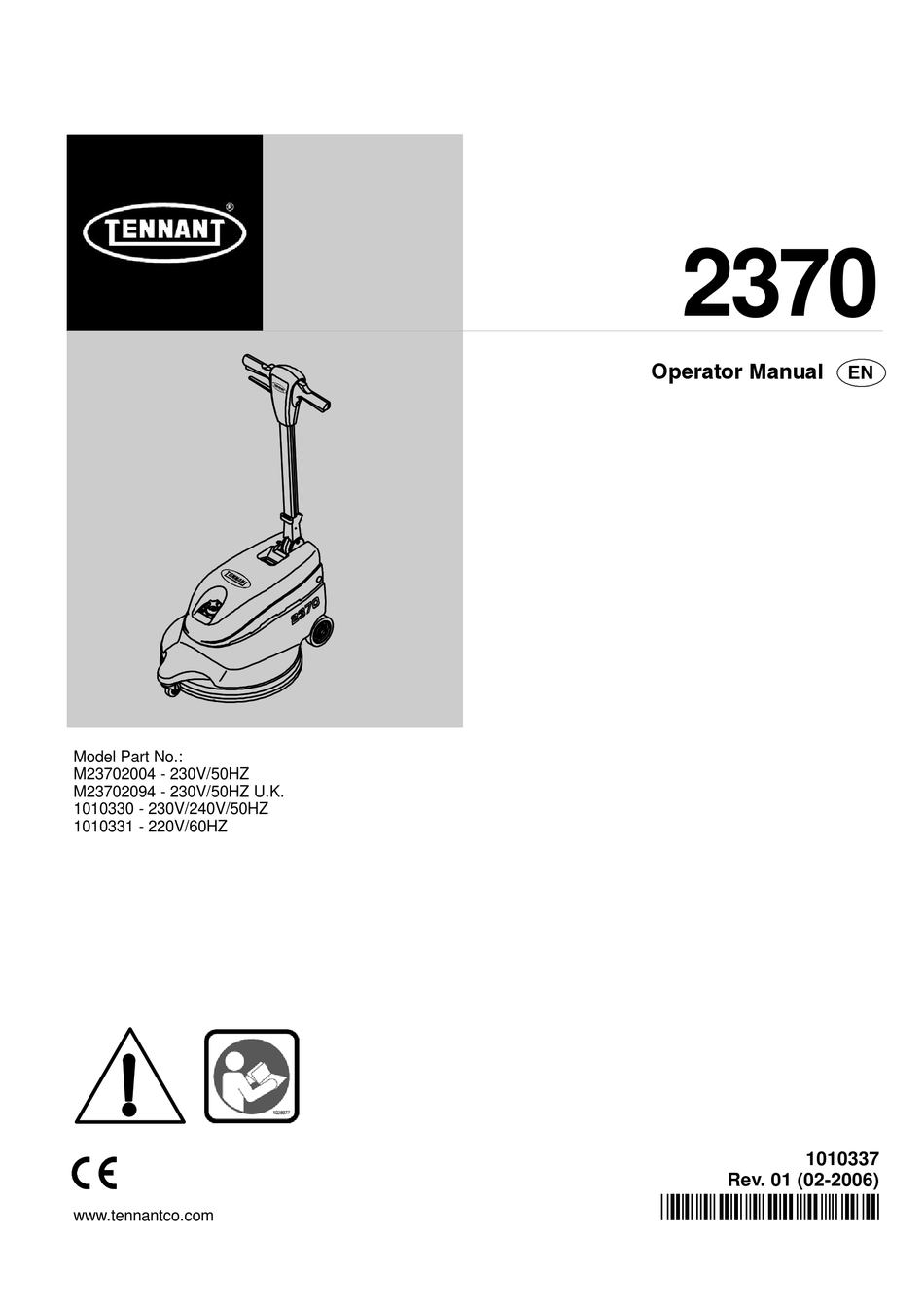

  • Page 1 2370 Operator Manual Model Part No.: M23702004 - 230V/50HZ M23702094 - 230V/50HZ U.K. 1010330 - 230V/240V/50HZ 1010331 - 220V/60HZ 1010337 Rev. 01 (02-2006) *1010337* www.tennantco.com Home Find... Go To..

  • Page 2: Machine Data

    P.O. Box 6 5400 AA Uden- -The Netherlands europe@tennantco.com www.tennantco.com Specifications and parts are subject to change without notice. Copyright E2003, 2006 Tennant Company. All rights reserved. EC DECLARATION OF CONFORMITY FOR MACHINERY (Directive 98//37/EEC, Annex II, sub A) Model: 2370 nr.: M23702004, M23702094, 1010330, 1010331 TENNANT N.V.

  • Page 3: Table Of Contents

    ....OPERATING MACHINE ....Tennant 2370 (02- -06) Home Find... Go To..

  • Page 4: Safety Precautions

    1. Do not operate machine: With flammable liquids or near flammable vapors as an explosion or flash fire may occur. Unless trained and authorized. Unless operator manual is read and understood. Unless cord is properly grounded. Tennant 2370 (05- -03) Home Find... Go To..

  • Page 5: Grounding Instructions

    Servicing Machine. If the supply cord is damaged or broken, it must be replaced by the manufacturer or it’s service agent or a similarly qualified person in order to avoid a hazard. Tennant 2370 (02- -06) Home Find... Go To..

  • Page 6: Machine Components

    8. Dust Bag Compartment 9. Pad Pressure Adjustment Knob 10. Pad Pressure Meter 11. Circuit Breaker Reset Button 12. Base FIG. 2 13. Dust Control Skirt 5. After installing the pad, stand the machine upright. Tennant 2370 (05- -03) Home Find... Go To..

  • Page 7: Installing Dust Control Bag

    The electric motor will spark upon start up and during operation which could cause a FIG. 6 flash fire or explosion if machine is used in an area where flammable vapors/liquids or combustible dusts are present. Tennant 2370 (05- -03) Home Find... Go To..

  • Page 8: Machine Maintenance

    6. Begin burnishing by working away from the cord and wall outlet. Use a forward and backward “W” motion or a straight path and return pattern. FOR SAFETY: When using machine, stay clear of spinning pad. FIG. 10 Tennant 2370 (05- -03) Home Find... Go To..

  • Page 9: Adjusting Or Replacing Belt

    To adjust or replace the belt, follow the instructions as 5. Retighten the motor mount screws and the jam nut described below: when properly adjusted. 6. Replace motor cover and pad driver. Tennant 2370 (05- -03) Home Find... Go To..

  • Page 10: Storing Machine

    FOR SAFETY: When transporting machine, get assistance when lifting machine. 3. Secure machine with tie--down straps when transporting by vehicle. WARNING: Do Not Use Outdoors. Do Not Expose to Rain. Store Indoors. Tennant 2370 (05- -03) Home Find... Go To..

  • Page 11: Trouble Shooting

    Faulty circuit breaker. Contact Service Center. Pad does not spin or spins slowly. Loose belt. Tighten belt tension (See ADJUST- ING OR REPLACING BELT). Broken belt. Replace belt (See ADJUSTING OR REPLACING BELT). Tennant 2370 (05- -03) Home Find... Go To..

  • Page 12: Specifications

    INDOORS ON TILE FLOOR POWER CORD LENGTH OPERATING VOLTAGE 220 60Hz, 230V 50Hz, 230V/240V 50 Hz Specifications are subject to change without notice. MACHINE DIMENSIONS 1232 mm 483 mm 826 mm 572 mm 864 mm Tennant 2370 (05- -03) Home Find... Go To..
