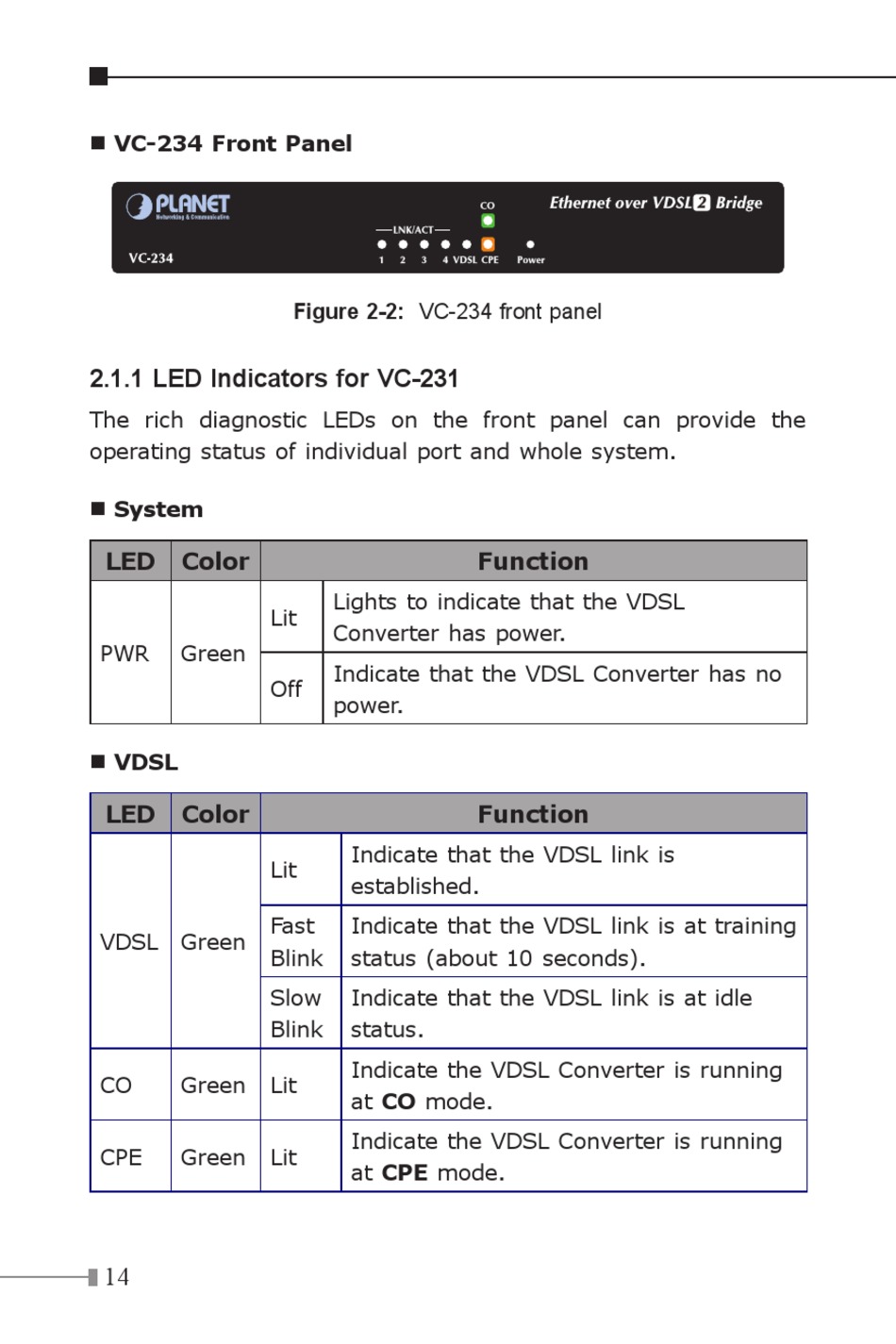

n VC-234 Front Panel

2.1.1 LED Indicators for VC-231

The rich diagnostic LEDs on the front panel can provide the
operating status of individual port and whole system.
n System
LED Color
PWR Green
n VDSL
LED Color
VDSL Green
CO Green
CPE Green
14
Figure 2-2: VC-234 front panel
Lights to indicate that the VDSL
Lit
Converter has power.
Indicate that the VDSL Converter has no
Off
power.
Indicate that the VDSL link is
Lit
established.
Fast Indicate that the VDSL link is at training
Blink status (about 10 seconds).
Slow Indicate that the VDSL link is at idle
Blink status.
Indicate the VDSL Converter is running
Lit
at CO mode.
Indicate the VDSL Converter is running
Lit
at CPE mode.
Function
Function
