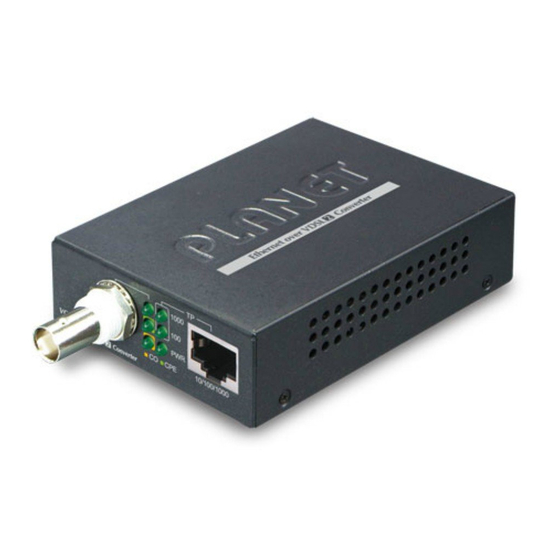

- Page 1 Gigabit Ethernet over Coaxial Converter VC-232G User’s Manual...
- Page 2 PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
- Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. „ Revision PLANET Gigabit Ethernet over Coaxial Converter User's Manual Model: VC-232G Revision: 1.0 (Sep. 2017) Part No.: 2350-AC0520-001...
-
Page 4: Table Of Contents
2.3 Rear View..............9 3. Product Specifications ............. 12 4. Applications ..............14 4.1 Point-to-Point Application -- LAN to LAN Connection ..14 4.2 VC-232G Point-to-Multi-point Application (IP surveillance) ............15 5. Installations ..............17 5.1 Wall-mount Installation ..........17 5.2 Chassis Installation and Rack Mounting ...... -
Page 5: Package Contents
1. Package Contents Thank you for purchasing PLANET VC-232G 1-Port Gigabit Ethernet over Coaxial Converter. In the following sections, the term “EoC Converter” means the VC-232G. Open the box of the EoC Converter and carefully unpack it. The box should contain the following items:... -
Page 6: Hardware Introduction
2. Hardware Introduction 2.1 Physical Dimensions „ Dimensions (W x D x H): 94 x 70.3 x 26mm Ethernet over VDSL Converter Dimensions ( unit = mm ) -
Page 7: Front View
2.2 Front View „ VC-232G Front Panel VDSL 1000 1000 VC-232G Ethernet over VDSL Converter ¾ 1000BASE-T RJ45 connector ¾ BNC female connector for VDSL2 ¾ LEDs for power, Ethernet and VDSL ¾ CO/CPE mode selectable via DIP switch „ VC-232G LED Indicators The rich diagnostic LEDs on the front panel can provide the operating status of individual port and whole system. - Page 8 VDSL Color Function Indicates that the VDSL connection is established. Fast Indicates that the VDSL connection is at VDSL Green Blink training status (about 10 seconds). Slow Indicates that the VDSL connection is at Blink idle status. Indicates the EoC Converter is running in Green Lit CO mode.
-
Page 9: Rear View
2.3 Rear View „ VC-232G Front Panel 5V DC Mode Tran. Band Asym. 12dB G.INP Interleave Sym. ¾ DIP switch ¾ DC jack (DC input) for power adapter „ DIP Switch The EoC Converter provides a selectable 4-position DIP switch. - Page 10 DIP-1: Mode (CO/CPE) The Master device mode, usually the CO (Central device, is located at the data center of ISP or Office) enterprise to link to the backbone. The Slave device mode, usually the CPE device, is located at branch office, home or remote site (Customer as the long reach data receiver.
- Page 11 Note DC Power Jack The VC-232G requires 5V DC, 2A power input, which conforms to the bundled AC adapter. Should you have the issue of power connection, please contact your local sales representative. 2.5mm DC Receptacle 2.5mm...
-
Page 12: Product Specifications
3. P roduct Specifications Product VC-232G Hardware Specifications TP interface 1 Gigabit RJ45 port** 1 BNC female Ethernet over Coaxial Coaxial cable: 75 ohm Cabling RG-6/U cable, less than12Ω/1000 ft VDSL RG-59/U cable, less than 30Ω/1000 ft. Interface Maximum Max. 1400m with data transmission Distance (4,593ft.) - Page 13 System Specifications VDSL-DMT ITU-T G.993.1 VDSL ITU-T G.997.1 VDSL ITU-T G.993.2 VDSL2 (Profile 17a/30a Support) Compliance ITU-T G.993.5 G. Vectoring ITU-T G.998 G.INP Standards Conformance IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-duplex flow control IEEE 802.1p Class of Service Standards ITU-T G.993.1 VDSL Compliance ITU-T G.997.1...
-
Page 14: Applications
Refer to the following procedures to set up the VC-232G LAN to LAN connection. 1. [LAN1] Set the VC-232G at LAN 1 to be CO mode from the DIP switch 2. [LAN2] Set the VC-232G at LAN 2 to be CPE mode from the... -
Page 15: Vc-232G Point-To-Multi-Point Application (Ip Surveillance)
3. Power on the VC-232G CO and CPE at both sides by connecting its power source. 4. Power, CO and CPE LED will illuminate correspondingly. 5. Connect coaxial cable from LAN1 VC-232G to VDSL BNC port of the LAN2 VC-232G. - Page 16 Refer to the following procedure to set up an IP surveillance system with many pairs of the VC-232G: 1. Set the VC-232G to be CO and CPE mode from the DIP switch on the rear panel. 2. Power on the VC-232G by connecting its power source.
-
Page 17: Installations
5. Installations 5.1 Wall-mount Installation Step 1: Please find the wall that can mount the VC-232G Step 2: Screw two screws on the wall. Step 3: Hang the VC-232G on the screws from the wall. Step 4: Repeat Step 5 of Desktop Installation for power supply... -
Page 18: Chassis Installation And Rack Mounting
Chassis with standard rack, follow the instructions described below. Step 1: Place your VC-232G on a hard flat surface, with the front panel positioned towards your front side. Step 2: Carefully slide in the module until it is fully and firmly fitted into the slot of the converter chassis. -
Page 19: Performance Table
6. Performance Table „ VC-232G Upstream /Downstream Performance CO DIP Interleave Switch (Upstream/Downstream) Asymmetric Symmetric Distance (meter) 12dB 12dB 88/168 78/145 129/131 117/123 75/160 69/137 117/122 102/102 59/129 48/118 101/92 88/82 32/110 26/94 62/73 47/56 1000 13/82 12/67 20/52 11/44 CO DIP G.INP... -
Page 20: Troubleshooting
1. Verify the length of the coaxial cable (not more than 1.4km) connected between the two VC-232G units. Please also try to adjust the DIP switch of the VC-232G to the other SNR mode. 2. Please note you must use one VC-232G in CO mode and the other VC-232G in CPE mode to make connection to each other work. -
Page 21: Faqs
Generally speaking, the higher SNR value gets, the better the line quality gets, but performance is lower. Q3: What is the best distance for VC-232G? A3: In order to guarantee the stability and better quality of network, we suggest the distance should not exceed 1.4... -
Page 22: Customer Support
9. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team. -
Page 23: Ec Declaration Of Conformity
*Type of Product: 1-Port Gigabit Ethernet to VDSL2 Converter *Model Number: VC-232G * Produced by: Planet Technology Corp. Manufacturer‘s Name : Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan, R.O.C. is herewith confirmed to comply with the requirements set out in the Council Directive on t he Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (2014/30/EU).
