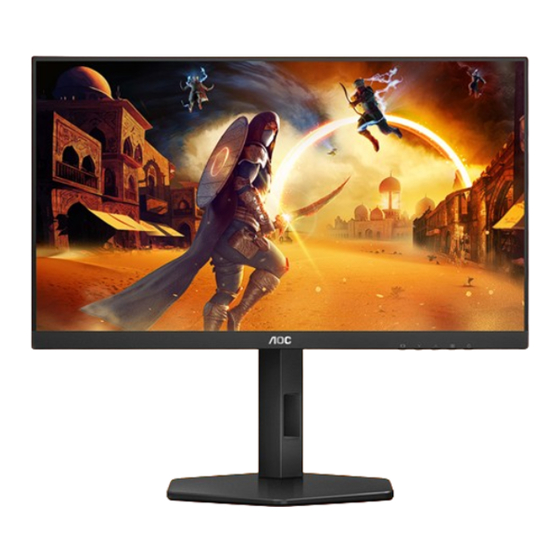

Summary of Contents for AOC 24G4X
-
Page 2: Table Of Contents
Safety ................................................1 National Conventions ......................................1 Power ............................................2 Installation ..........................................3 Cleaning .............................................4 Other ............................................5 Setup................................................6 Contents in Box ........................................6 Set-up Stand & Base......................................7 Adjusting Viewing Angle ....................................8 Connecting the Monitor ....................................9 Wall Mounting ........................................ -
Page 3: Safety
Safety National Conventions The following subsections describe national conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with a water-dampened, soft cloth. When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case. Please disconnect the power cord before cleaning the product. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Contents in Box Monitor Quick Start Guide Warranty Card Stand Base Power Cable HDMI Cable DP Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Set-Up Stand & Base
Set-up Stand & Base Please setup or remove the base following the steps as below. Setup: Remove: NOTE: Display design may differ from those illustrated. -
Page 10: Adjusting Viewing Angle
Adjusting Viewing Angle To achieve the best viewing experience, it is recommended that the user can make sure they are able to look at their whole face on the screen, then adjust the monitor’s angle based on personal preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 130mm NOTE:... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 1. HDMI 1 2. HDMI 2 1. DisplayPort 2. Earphone 3. Power Connect to PC 1. Connect the power cord to the back of the display firmly. 2. Turn off your computer and unplug its power cable. 3. -
Page 12: Wall Mounting
H=2.0 L=10+X Note: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. Always contact manufacturer for wall-mount installation. * Display design may differ from those illustrated. WARNING: 1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees. -
Page 13: Adaptive-Sync Function
Adaptive-Sync function 1. Adaptive-Sync function works with DP/HDMI 2. Compatible Graphics Card: Recommended list is as below, also could be checked by visiting www.AMD. Graphics Cards • Radeon™ RX Vega series • Radeon™ RX 500 series • Radeon™ RX 400 series •... -
Page 14: Hdr
It is compatible with input signals in HDR10 format. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. -
Page 15: Adjusting
Adjusting Hotkeys Source/Exit Game Setting Dial Point Menu/Enter Power Menu/Enter Press to display the OSD or confirm the selection. Power Press the Power button to turn on the monitor. Dial Point When there is no OSD, press Dial Point button to show / hide Dial Point. Game Setting When there is no OSD, press “... -
Page 16: Osd Setting
OSD Setting Basic and simple instruction on the control keys. RESOLUTION REFRESH RATE GAMING MODE BRIGHTNESS INPUT SOURCE 1920x1080 60 HZ Standard Game Setting Gaming Mode Picture Shadow Control Settings Game Color Audio Adaptive-Sync OSD Setup Dial Point Information Shadow Boost MBR Sync MENU-button to activate the OSD window. -
Page 17: Game Setting
Game Setting RESOLUTION REFRESH RATE GAMING MODE BRIGHTNESS INPUT SOURCE 1920x1080 60 HZ Standard Game Setting Gaming Mode Picture Shadow Control Settings Game Color Audio Adaptive-Sync OSD Setup Dial Point Information Shadow Boost MBR Sync Standard Enhance readability for suitable web and mobile games. For playing FPS (first Person Shooters) games. - Page 18 Disable or Enable MBR Sync (Motion Blur Remove). Note: MBR Sync Off / On The MBR Sync function can be adjusted when Adaptive-Sync is turned On, and the refresh rate ≥75Hz. Adjust the response time. Note: If the user adjusts OverDrive to “Strong” the displayed image may be blurred.
-
Page 19: Picture
Picture RESOLUTION REFRESH RATE GAMING MODE BRIGHTNESS INPUT SOURCE 1920x1080 60 HZ Standard Game Setting Brightness Picture Contrast Settings Gamma Audio Eco Adjustment OSD Setup Color Temp. Information Green Blue Brightness 0-100 Backlight Adjustment. Contrast 0-100 Contrast from Digital-register. Gamma 1.8 / 2.0 / 2.2 / 2.4 / 2.6 Adjust Gamma. - Page 20 DisplayHDR Set the HDR profile according to your usage requirements. Note: HDR Picture When HDR is detected, the HDR option is displayed for adjustment. HDR Movie HDR Game Optimized for the color and contrast of the picture, which will HDR Picture simulate showing the HDR effect.
-
Page 21: Settings
Settings RESOLUTION REFRESH RATE GAMING MODE BRIGHTNESS INPUT SOURCE 60 HZ Standard 1920x1080 Game Setting Language Picture Input Select Settings Break Reminder Audio Off Timer OSD Setup DDC/CI Information Reset Language Select the OSD language. Input Select Auto / HDMI1 / HDMI2 / DP Select Input Signal Source. -
Page 22: Audio
Audio RESOLUTION REFRESH RATE GAMING MODE BRIGHTNESS INPUT SOURCE 60 HZ Standard 1920x1080 Game Setting Volume Picture Mute Settings Audio OSD Setup Information Volume 0-100 Volume Adjustment. Mute Off / On Mute the volume. -
Page 23: Osd Setup
OSD Setup RESOLUTION REFRESH RATE GAMING MODE BRIGHTNESS INPUT SOURCE 1920x1080 60 HZ Standard Game Setting Transparence Picture H. Position V. Position Settings Time out Audio OSD Setup Information Transparence 0-100 Adjust the transparence of OSD. H. Position 0-100 Adjust the horizontal position of OSD. V. -
Page 24: Information
Information RESOLUTION REFRESH RATE GAMING MODE BRIGHTNESS INPUT SOURCE 1920x1080 60 HZ Standard Game Setting Model Name AOC 24G4X Picture Resolution 1920(H)x1080(V) Refresh Rate 60HZ Settings Audio Sync Adaptive-Sync OSD Setup Firmware Version Information Firmware Date xxxxxxxx Serial Number xxxxxxxxxxxxx... -
Page 25: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange... -
Page 26: Troubleshoot
Press hot-key (AUTO) to auto-adjust. Please refer to Regulation & Service Information which is in the CD Regulation & Service manual or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 27: Specification
Specification General Specification 24G4X Model name 24G4X Driving system TFT Color LCD Viewable Image Size 60.5 cm diagonal Panel Pixel pitch 0.2745mm(H) x 0.2745mm(V) Video HDMI lnterface & DP Interface Display Color 16.7M Colors Horizontal scan range 30k~200kHz Horizontal scan 527.04mm... - Page 28 27G4X Model name 27G4X Driving system TFT Color LCD Viewable Image Size 68.6 cm diagonal Panel Pixel pitch 0.31125mm(H) x 0.31125mm(V) Video HDMI lnterface & DP Interface Display Color 16.7M Colors Horizontal scan range 30k~200kHz Horizontal scan 597.6mm Size(Maximum) Vertical scan range 48~180Hz Vertical Scan Size(Maximum) 336.15mm Optimal preset resolution...
-
Page 29: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION(±1Hz) FREQUENCY(KHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@67Hz 66.667 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 640x480@100Hz 51.08 99.769 640x480@120Hz 61.91 119.518 720x576@50Hz 31.25 800x600@56Hz 35.156 56.25 800x600@60Hz 37.879 60.317 800x600@72Hz 48.077 72.188 SVGA 800x600@75Hz 46.875 800x600@100Hz 62.76 99.778 800x600@120Hz... -
Page 30: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 31: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
