Summary of Contents for Midas XL42

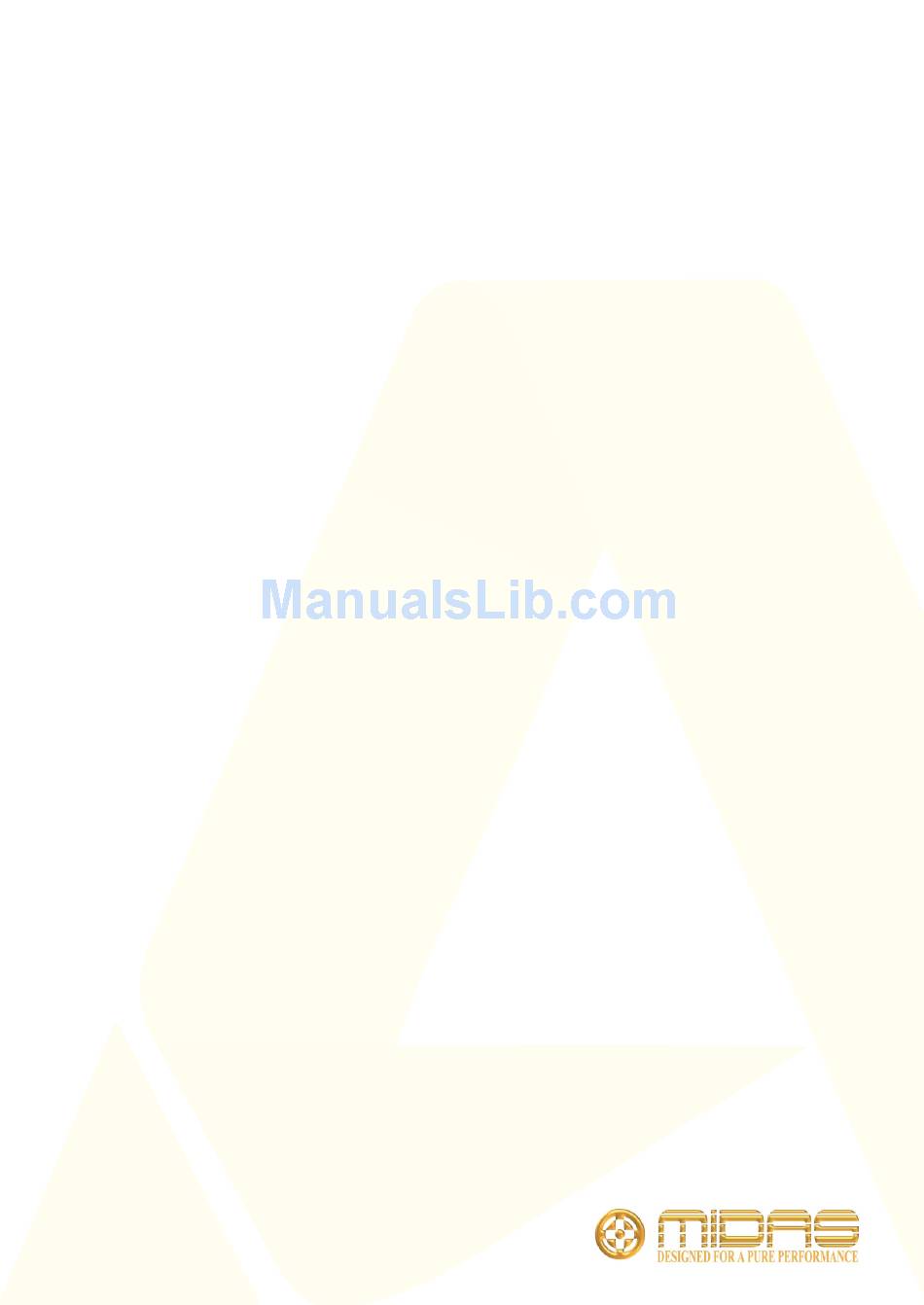

- Page 1 XL42 OPERATORS MANUAL Klark Teknik Group, Klark Teknik Building, Walter Nash Road, Kidderminster. Worcestershire. DY11 7HJ. England. Tel:+44 1562 741515 Fax:+44 1562 745371 Email: sales@ktgplc.com Website: www.midasconsoles.com...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR These symbols are internationally accepted symbols that warn of potential hazards with electrical products. -
Page 5: Declaration Of Conformity
Declare that a sample of the following product:- Product Type Number Product Description Nominal Voltage (s) Current Freq XL42 Dual Channel Strip 230V/115V 70mA / 50/60Hz 140mA to which this declaration refers, is in conformity with the following directives and/or standards:-... -
Page 7: Table Of Contents
Please take the time to complete and return the registration card. In view of this flexibility, we hope that you will spend a little time reading through this operator's manual, as this will allow you to obtain the best results from your XL42 with a minimum of effort. -
Page 9: Introduction
XL42's insert points, thus creating a custom 10 into 2 mixer via the output daisy chain feature. The resulting L&R outputs may then be routed to the master console via any convenient point i.e. a pair of aux returns, group inputs, matrix inputs etc. -
Page 10: Before You Start
Voltage Selection and Power Connection Mains power to the XL42 is supplied by means of a standard fused IEC power socket. The XL42 is designed to operate at nominal mains voltages of 115V and 230V V a.c. at either 50 or 60 Hz, however upon first use (and whenever the mains supply is changed) the input voltage selector on the rear of the unit must be set to reflect the local power supply. -
Page 11: After You Unpack
After You Have Unpacked the Unit Before unpacking the XL42 check packaging for signs of damage, as this could be a sign of damage to the unit inside. After unpacking the XL42 check the unit for signs of damage to the casing. Damage to consignments must usually be reported to the courier within 24 hours in order for a claim to be made. -
Page 13: Front Panel
Front Panel Front Panel The XL42 is a highly featured 1U 19” rackmount dual channel strip.The unit is split into two identical channel strips, each with identical function but having independent inputs and outputs. Mains switch T h e m a i n s... -
Page 14: Input Section
(i.e. Condenser Microphones, level signals. If the using the XL42's optional D.I. Boxes etc.). transformer-coupled input, the pad greatly reduces the risk of saturation at very low frequencies. -
Page 15: Eq Section
MIDAS shelving response f u l l p a r a m e t r i c m o d e , otherwise the equaliser band will act like a traditional MIDAS shelving response XL42 Operators Manual - Page 7... -
Page 16: Output Section
3dB. The Pan control is enabled by the PAN switch (19). With the PAN switch disabled, the XL42 is essentially two independent channel strips. With Pan enabled, output signal from each input strip is distributed between the two outputs. -
Page 17: Rear Panel
Supply Voltage IEC Power Inlet Your XL42 should come complete with the correct IEC mains lead for the country in which it was intended for sale. If replacing the mains lead, replace with a recommended part and ensure that the fuse is of the correct type. - Page 18 The Output signal will be a combination of the LINK input plus the output from the XL42's input channels. If PAN is selected on either of the inputs, the outputs will be a stereo combination of the input channels PLUS the LINK input.
- Page 19 The 9-pin plug for the Automute system allows up to 8 Automute channels. The input channels of the Note: The supply voltage selector must be set XL42 can be set to mute on one of these 8 before plugging the unit into the mains. Under NO Automute...
-
Page 21: System Connection
As a replacement to an inferior mic preamp Plug the microphone or D.I. Box into the XL42 and the output into the line input of your console. You can also use the XL42 EQ and bypass your consoles EQ. Set PAN off for mono operation or enabled for stereo operation. -
Page 22: Auto-Mute Operation
To assign an Automute address for each channel, the REMOTE CONTROL AUTOMUTE ASSIGNS should be turned on for the desired Automute address. i.e. LEFT ASSIGN 2 would make the left hand channel of the XL42 mute on channel 2 of the Automute system. AUTOMUTE INPUT... -
Page 23: Daisy Chain Operation
“Master” outputs - to mixer, amplifer or recording device As shown in the diagram, each channel has it's own input plus the output from the previous XL42 so that at the last point of the chain, the output is a combination of each input. -
Page 25: Technical Specification
Mic (+ 60dB gain, 0dBu output) <0.03% Link (0dBu) <0.03% Output Impedance All Outputs 50 Ohm Balanced Source to drive >600 Ohm Maximum Output Level All Outputs 50 Ohm Balanced Source to drive >600 Ohm XL42 Operators Manual - Page 17... - Page 26 Phantom Voltage Supply +48V ± 5% Maximum Phantom Current <10mA Dimensions Width 482mm (19 inches) Depth 250mm (10 inches) Height 44mm (1.75 inches) Weight Nett Shipping Options Mic Transformer Factory-Fit Only Output Transformer Factory-Fit or Retrofit XL42 Operators Manual - Page 18...
- Page 27 Notes Notes XL42 Operators Manual - Page 19...
- Page 28 Midas XL42 Operators Manual Issue 1 - May 2004 DOC02-XL42 (c) Klark Teknik Group (UK) PLC In line with the company’s policy of continual improvement, specifications and function may be subject to change without notice. The contents of this Operators Manual was correct at the time of writing. E&OE.
