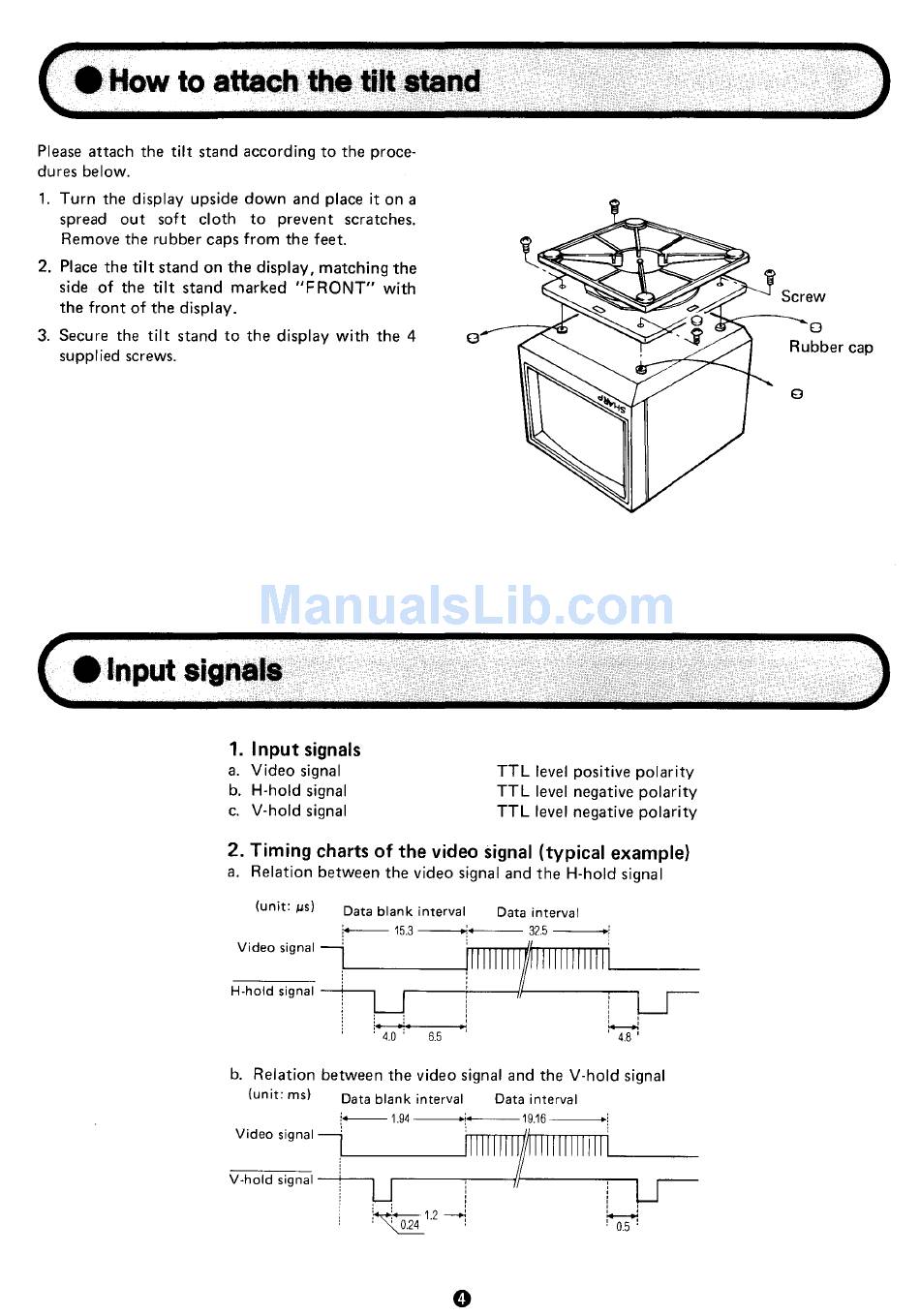

( • How
to
attach the
tilt stand
Please attach the tilt stand according to the proce-
dures below.
1. Turn the display upside down and place it on a
spread out soft cloth to prevent scratches.
Remove the rubber caps from the feet.
2. Place the tilt stand on the display, matching the
side of the tilt stand marked "F RONT" with
the front of the display.
3. Secure the tilt stand to the display with the 4
supplied screws.
( .'nput slgna18
1. Input signals
a. Video signal
b. H-hold signal
c. V-hold signal
e
TTL level positive polarity
TTL level negative polarity
TTL level negative polarity
2. Timing charts of the video signal (typical example)
a. Relation between the video signal and the H-hold signa I
(unit:
/ls)
Data blank interval
Data interval
I+--
15.3 - - - - . j - 32.5
- - I
V'd,,,,,,,,
=-Fu
illlllll111111111111111
H-hold signal .
, i F ,
I
r -
j
i
!
L-J
i • • : . : : :
. 4.0' 6.5 "
7
b. Relation between the video signal and the V-hold signal
(unit: ms)
Data blank interval Data interval
)
Screw
o
Rubber cap
)
