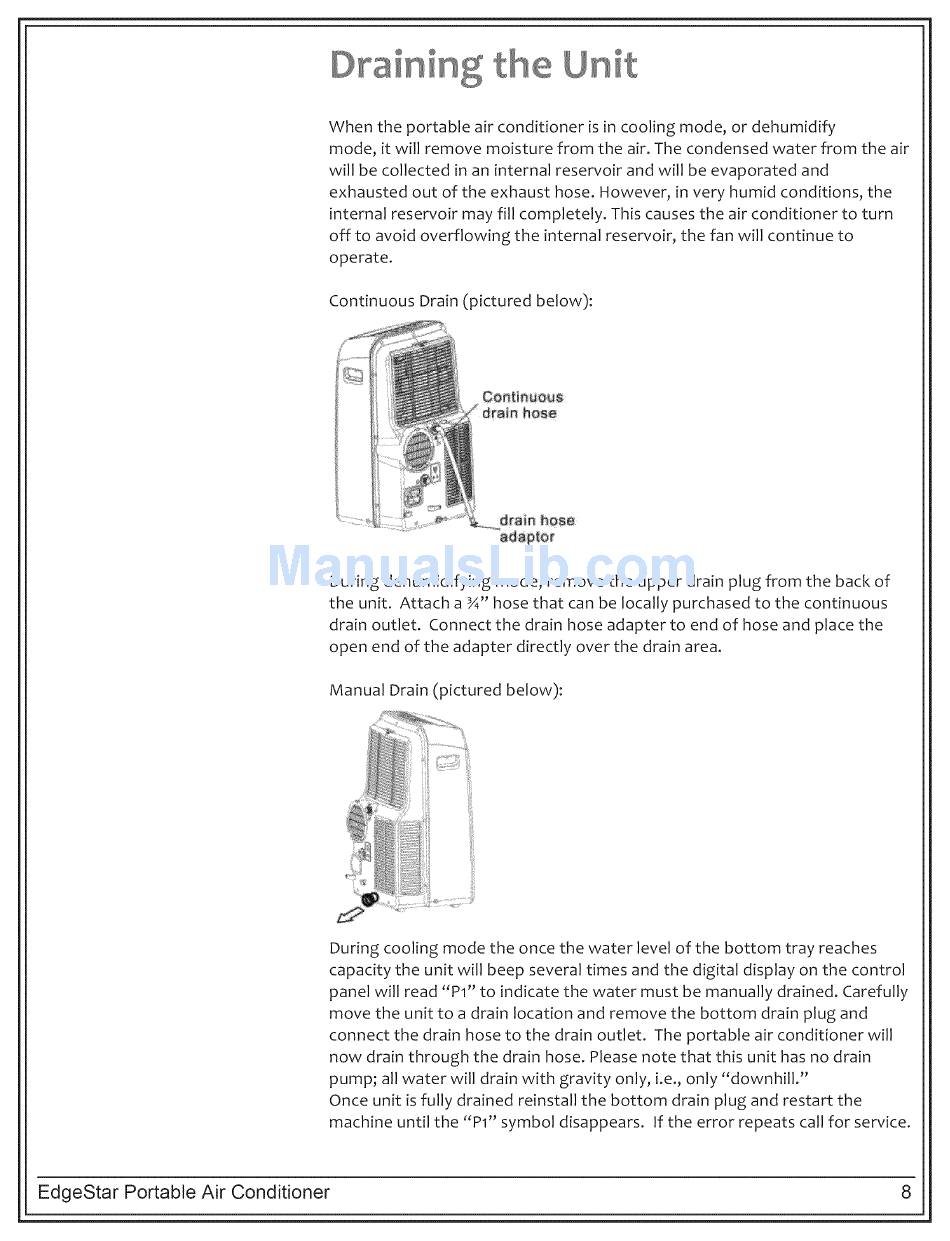

D isis 8 the Unit
When the portable air conditioner is in cooling mode, or dehumidify
mode, it will remove moisture from the air. The condensed water from the air
will be collected in an internal reservoir and will be evaporated and
exhausted out of the exhaust hose. However, in very humid conditions, the
internal reservoir may fill completely. This causes the air conditioner to turn
off to avoid overflowing the internal reservoir, the fan will continue to
operate.
Continuous Drain (pictured below):
During dehumidifying mode, remove the upper drain plugfrom the back of
the unit. Attach a N" hose that can be locally purchased to the continuous
drain outlet. Connect the drain hose adapter to end of hose and place the
open end of the adapter directly over the drain area.
Manual Drain (pictured below):
During cooling mode the once the water level of the bottom tray reaches
capacity the unit will beep several times and the digital display on the control
panel will read "PI" to indicate the water must be manually drained. Carefully
move the unit to a drain location and remove the bottom drain plug and
connect the drain hose to the drain outlet. The portable air conditioner will
now drain through the drain hose. Please note that this unit has no drain
pump; all water will drain with gravity only, i.e., only "downhill."
Once unit is fully drained reinstall the bottom drain plug and restart the
machine until the "PI" symbol disappears. If the error repeats call for service.
EdgeStar Portable Air Conditioner 8
