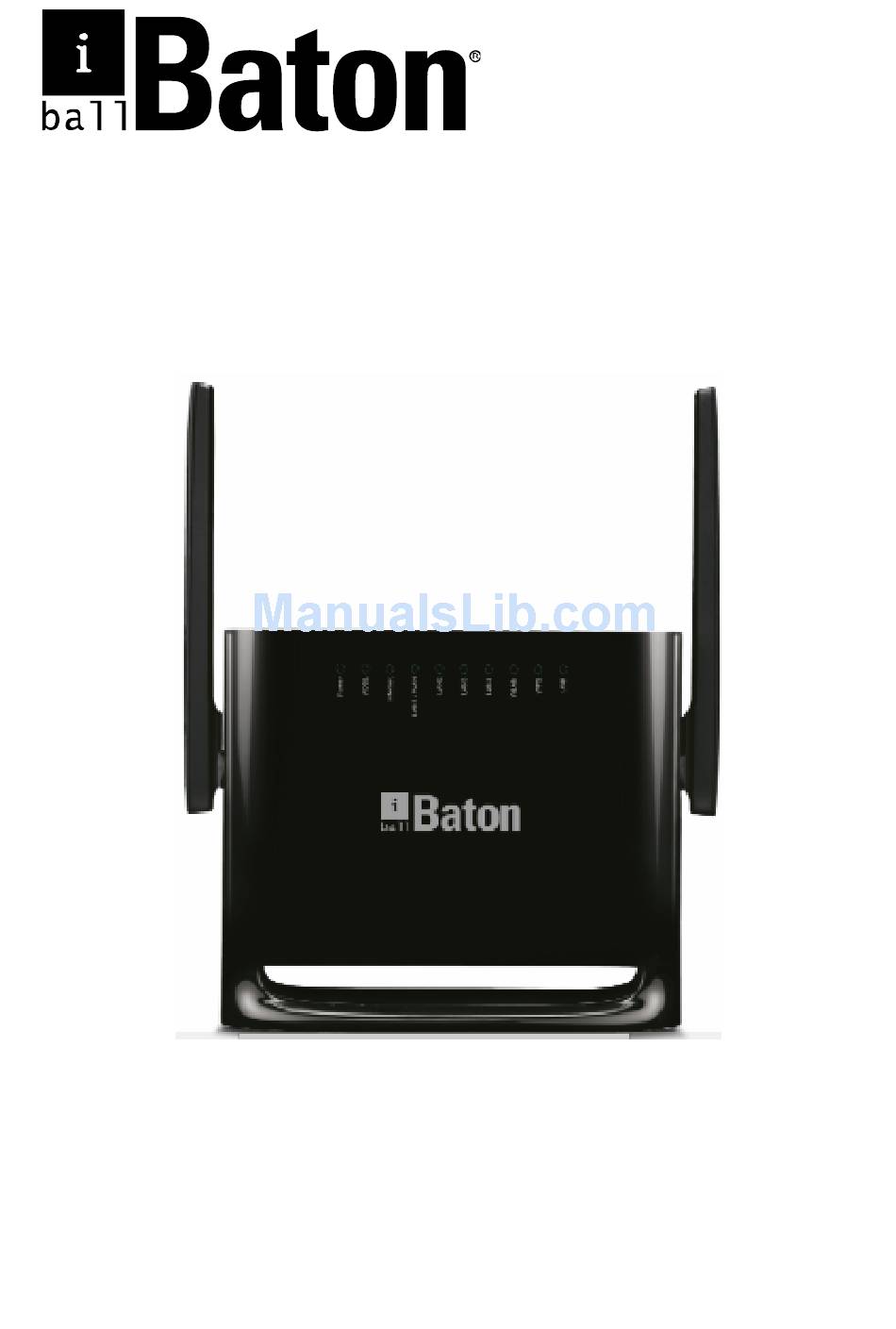

300M Wireless-N ADSL2+ 3G & Broadband Router
Model No.: iB-WRA300N3GT
Ver.: 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the baton iB-WRA300N3GT and is the answer not in the manual?

Questions and answers

Related Manuals for iBall baton iB-WRA300N3GT

Summary of Contents for iBall baton iB-WRA300N3GT

  • Page 1 300M Wireless-N ADSL2+ 3G & Broadband Router Model No.: iB-WRA300N3GT Ver.: 1.0.0...
  • Page 2 FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3 CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

  • Page 4: Table Of Contents

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Contents Introduction ........................1 Safety Precautions ....................... 2 Features ......................5 Hardware Connection ....................7 ADSL Connection .................... 7 Broadband Connection..................8 3G WAN Connection ..................9 Router Configuration ....................10 TCP/IP Network Configuration ..............10 Installation Guide ...................
  • Page 5 Security Settings.................... 71 4.9.1 MAC Filter ..................71 4.9.2 IP/Port Filter .................. 72 4.9.3 URL Filter ..................74 4.9.4 ACL ....................75 4.9.5 DoS ....................79 4.10 Maintenance..................... 80 4.10.1 Update................... 80 4.10.2 Password..................81 4.10.3 Restart ................... 82 4.10.4 Time....................

  • Page 6: Introduction

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Introduction 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT) is a router for high performance. MIMO Technology-Enhanced Wireless transmission up to 300Mbps Complies with IEEE 802.11 b/g/n wireless standards Triple WAN Router ADSL Internet (xDSL): 1 - 10/100M (RJ11) WAN port Broaband Internet (Cable / DSL): 1 –...

  • Page 7: Package List

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Package List The following contents should be found in the product packaging: 300M Wireless-N ADSL2+ 3G & Broadband Router 2 x 5dBi Antenna (Fixed), Power Adapter Cd & Quick Installation Guide RJ45 Patch Cord ADSL Splitter &...
  • Page 8 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT LEDs Color Status Description Power The device is initializing. The DSL line is established. Green Blinking The DSL Line is training. No DSL signal. The Internet connection is normal in the routing mode (for example: PPP dial-up is successful), and no Internet data is being transmitted.

  • Page 9: Rear Panel

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Rear Panel The following table describes the interfaces and buttons of the device: Interface Description ON/OFF Power switch, power on or power off the device. Power interface, for connecting to the power adapter. Power Press the button and hold it for 1 second to 5 seconds, Wireless /...

  • Page 10: Features

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Features Complies with IEE802.3 & IEEE802.3u standards Complies with IEEE 802.11b/g/n standards 3-in-1:, 4-10/100M Auto-Negotiation (RJ45) Ethernet ports & 1-RJ11 (Internet) LINE port supporting Auto MDI/MDIX and Wireless-N Access Point Latest standards with downstream data rates up to 24Mbps, upstream data rates up to 3.5Mbps (With Annex M enabled).
  • Page 11 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Reset Factory Default： There are two ways to reset to the Router's factory defaults: 1) Use the Factory Defaults function on “System Tools → Factory Defaults” page in the Router's Web-based Utility. 2) With the Router powered on, hold the WPS/Reset button (more than 3-5 seconds) And then release the button, All LED will restart and wait the Router to restart to its factory...

  • Page 12: Hardware Connection

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Hardware Connection ADSL Connection Method-I : Plug one end of the twisted-pair ADSL cable into the LINE port on the rear panel of iB-WRA300N3GT, and insert the other end into the wall socket. Method-II: You can use a ADSL splitter.

  • Page 13: Broadband Connection

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Broadband Connection Connect the LAN Port of the Router to your PC with RJ45 Ethernet cable. Connect the ISP RJ45 LAN Cable (Internet Link) to LAN1/WAN Port of the Router Connect the power adapter to Power interface of the device.

  • Page 14: Wan Connection

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 3G WAN Connection Plug the 2G/3G USB Modem (Data Card) into the router USB slot 2) Configure the 3G connection in the router as per your ISP settings connection available. Note: SIM card is properly inserted & ISP Service is activated before inserting USB mobem into the router...

  • Page 15: Router Configuration

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Router Configuration This chapter describes how to configure the router by using the Web-based configuration utility. TCP/IP Network Configuration Take Windows 7 as an example. Step 1 Choose Start > Control Panel > Network and Internet > Network and Sharing Center.

  • Page 16: Installation Guide

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Installation Guide You can configure the router either with Web GUI menu or Easy Setup Wizard Utility Method – I Configuring the Router via Easy Setup Wizard (Resource CD) Step 1.Insert the Resource CD into your CD-ROM device. Easy Setup Wizard...
  • Page 17 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Select Internet connection type ADSL / Broadband / 3G as your ISP, Provide proper user name and passwd for connection configuring Method-II Web Based GUI Configuring The following is the detailed description of accessing the router for the first time. Step 1 Open the Internet Explorer (IE) browser and enter http://192.168.1.1...

  • Page 18: Status

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Status 4.4.1 Device Information If you log in as a super user, the ADSL Router Status page shown in the following figure appears. In this page, you can view the following information: system, ADSL Status, TR-069 status, LAN configuration, DNS status, ADSL WAN Interfaces, ADSL WAN IPv6 configuration, Broadband WAN Interfaces, and Broadband WAN IPV6 Status.
  • Page 19 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Figure 2 Status - 2 Figure 3 Status – 3...

  • Page 20: Adsl Info

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.4.2 ADSL Info. Choose Status > Status info > ADSL Info and the following page appears. In this page, you can view information of ADSL configuration.

  • Page 21: Statistics

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.4.3 Statistics Choose Status > Statistics > Statistics and the following page appears. In this page, you can view statistics information. Figure 4...

  • Page 22: Quick Start

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Quick Start The Quick start page guides fast and accurate configuration of the Internet connection and other important parameters. In the navigation bar, click Quick Start. The page as shown in the following figure appears. Step 1 WAN connection setting In following page, enter VPI and VCI provided by your Internet service provider (ISP).
  • Page 23 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters in this page: Field Description Virtual path identifier (VPI) is the virtual path between two points in an ATM network. Its valid value is in the range of 0 to 255. Enter the correct VPI provided by your ISP.
  • Page 24 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Step 3 Save settings If you want to finish setting, click Save. Otherwise click Cancel.

  • Page 25: Network Setup

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Network Setup 4.6.1 Choose Network Setup > WAN. The WAN page that is displays ADSL & Broadband connection. Default : ADSL is the default connection type setting. 3G – You have separate menu to configure 3G setting Choose Network Setup >...
  • Page 26 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT...
  • Page 27 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters of this page: Field Description You can select ADSL WAN or Ethernet WAN Physical Type WAN. Default Route Selection You can select Auto or Specified. The virtual path between two points in an ATM network, ranging from 0 to 255.
  • Page 28 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description When Fixed IP is selected, you should enter the local IP address, remote IP address and subnet mask. When DHCP is selected, the router is a DHCP client and the WAN IP address is assigned by the remote DHCP server.
  • Page 29 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters and buttons of this page: Field Description Protocol It displays the protocol type used for this WAN connection. ATM VCC The ATM virtual circuit connection assigned for this PPP interface (VPI/VCI).
  • Page 30 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description Login Name The user name provided by your ISP. Password The password provided by your ISP. Authentication You can choose AUTO, CHAP, or PAP. Method Connection You can choose Continuous, Connect on Demand, or Type Manual.
  • Page 31 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT In this page, you are allowed to configure the settings of the 3G USB modem. 3G WAN: If you want to access the Internet through the 3G network card, you must enable it. PIN Code: If the SIM card has PIN code, enter it.
  • Page 32 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Dial Number: The number to be dialed to connect to 3G network. Enter dial number provided by your 3G ISP. Authentication Method: Select a proper authentication method in the drop- down list. User Name: your 3G ISP provideds to you, enter it.

  • Page 33: Atm Settings

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT ATM Settings Choose Network Setup > WAN > ATM, the page shown in the following figure appears. In this page, you can configure the parameters of the ATM, including QoS, PCR, CDVT, SCR, and MBS.

  • Page 34: Lan

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT ADSL Settings Choose Network Setup > WAN > ADSL, the page shown in the following figure appears. In this page, you can select the DSL modulation. Mostly, you need to remain this factory default settings.
  • Page 35 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters of this page: Field Description Enter the IP address of LAN interface. It is IP Address recommended to enter an address ranged from 192.168.1.1 - 192.168.255.254. Enter the subnet mask of LAN interface.
  • Page 36 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT DHCP Dynamic Host Configuration Protocol (DHCP) allows the individual PC to obtain the TCP/IP configuration from the centralized DHCP server. You can configure this router as a DHCP server or disable it. The DHCP server can assign IP address, IP default gateway, and DNS server to DHCP clients.
  • Page 37 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters of this page: Field Description If set to DHCP Server, the router can assign IP addresses, IP default gateway and DNS Servers to DHCP Mode the host in Windows95, Windows NT and other operation systems that support the DHCP client.
  • Page 38 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters and buttons in this page: Description Field It displays the IP address assigned to the DHCP IP Address client from the router. It displays the MAC address of the DHCP client. Each Ethernet device has a unique MAC address.
  • Page 39 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT In the DHCP Mode field, choose None. The page shown in the following figure appears. In the DHCP Mode field, choose DHCP Relay. The page shown in the following figure appears.

  • Page 40: Dhcp Static

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters and buttons of this page: Field Description If set to DHCP Relay, the router acts a surrogate DHCP Mode DHCP Server and relays the DHCP requests and responses between the remote server and the client.

  • Page 41: Lan Ipv6

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters and buttons of this page: Field Description IP Address Enter the specified IP address in the IP pool range, which is assigned to the host. Mac Address Enter the MAC address of a host on the LAN.
  • Page 42 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT...

  • Page 43: Wireless

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters of this page. Field Description Specify the LAN global ipv6 address. It can be assigned by Global Address ISP. Enable Enable or disable the Router Advertisement feature. Enable or disable the “Managed address configuration”...
  • Page 44 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters of this page: Field Description Choose the adapted band of the modem from the drop-down list. Band Set the working mode of the device. The mode Mode may vary from software to software.
  • Page 45 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description modem must have the same SSID. Channel Width You can select 20MHZ, 40MHZ or 20/40MHZ. Only when choose 40MHZ for Channel Width, you Control Sideband can set this parameter. You can choose Upper or Lower from the drop-down list.

  • Page 46: Wireless Security

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Wireless Security Choose Network Setup > Wireless> Wireless Security and the following page appears. The following table describes the parameters of this page: Field Description Configure the wireless encryption mode. You can choose None, WEP, WPA (TKIP), WPA (AES), WPA2 (AES), WPA2 (TKIP), or WPA2 Mixed.
  • Page 47 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description Select Enterprise (RADIUS), enter the port, IP address, and password of the Radius server. You need to enter the username and password provided by the Radius server when the wireless client connects the modem. If the encryption is set to WEP, the modem uses 802.1 X authentication, which is Radius authentication.
  • Page 48 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following describes the parameters of this page: Field Description Choose the WEP key length. You can Choose Key Length 64-bit or 128-bit. If you choose 64-bit, you can choose ASCII (5 Key Format characters) or Hex (10 characters).
  • Page 49 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description (13 characters) or Hex (26 characters). Choose the index of WEP Key. You can choose Key Default Tx Key 1, Key 2, Key 3, or Key 4. The Encryption keys are used to encrypt the data. Both the modem and wireless stations must use the same encryption key for data transmission.

  • Page 50: Mac Filtering

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT MAC Filtering Choose Network Setup > Wireless > MAC Filtering and the following page appears. If you choose Allow Listed, only those clients whose wireless MAC addresses are in the...
  • Page 51 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT access control list will be able to connect to your Access Point. When Deny Listed is selected, these wireless clients on the list will not be able to connect the Access Point. Advanced Choose Network Setup >...
  • Page 52 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description dropdown list. Long Preamble: It means this card always use long preamble. PreambleType Short Preamble: It means this card can support short preamble capability. Select whether the modem broadcasts SSID or not. You can select Enable or Disable.
  • Page 53 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description throughput. It is suitable for well defined applications that require QoS, such as Voice over IP (VoIP) on Wi-Fi phones. After setting, click Apply Changes to save the settings. Choose Network Setup > Wireless > WPS and the following page appears. There are two ways for the wireless client to establish the connection with the device through WPS.

  • Page 54: Universal Repeater

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Wireless distribution system (WDS) enables interconnection between APs in an IEEE 802.11 wireless network. It extends the wireless network through several APs, without connection of wired backbone network. This function is also called wireless repeating or bridging.

  • Page 55: Advanced Setting

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Advanced Setting In the navigation bar, click Advanced. The Advanced Settings page that is displayed contains Route, NAT, QoS, TR-069, Virtual Port Group, and Management. 4.7.1 Routing Static Route Choose Advanced Settings > Routing > Static Route, and the page shown in the following figure appears.

  • Page 56: Ipv6 Static Route

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description Interface The interface for the specified route. Add Route Click it to add the new static route to the Static Route Table. Update Select a row in the Static Route Table and modify the parameters.
  • Page 57 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Choose Advanced Settings > Routing > RIP, the page shown in the following figure appears. If you are using this device as a RIP-enabled router to communicate with others using Routing Information Protocol (RIP), enable RIP. This page is used to select the interfaces on your devices that use RIP, and the version of the protocol used.

  • Page 58: Nat

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description Select Enable, the router communicates with other RIP-enabled devices. Apply Click it to save the settings of this page. Interface Choose the router interface that uses RIP. Recv Version Choose the interface version that receives RIP messages. You can choose RIP1, RIP2, or Both.
  • Page 59 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Step 3 Click Apply Changes to save the settings of this page temporarily.

  • Page 60: Virtual Server

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Virtual Server Choose Advanced Settings > NAT > Virtual Service, and the page shown in the following figure appears. The following table describes the parameters of this page. Field Description You can select the common service type, for example, AUTH, DNS or FTP.
  • Page 61 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description WAN Port Choose the access port on the WAN. LAN Port Enter the port number of the specified service type. Enter the IP address of the virtual server. It is in the same LAN IP Address network segment with LAN IP address of the router.

  • Page 62: Port Trigger

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Port Trigger Choose Advanced Settings > NAT > Port Trigger and the page shown in the following figure appears.
  • Page 63 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Click the Usual Application Name drop-down menu to choose the application you want to Setup for port triggering. When you have chosen an application the default Trigger settings will populate the table below. If the application you want to Setup isn’t listed, click the User-defined Application Name radio button and type in a name for the trigger in the Custom application field.

  • Page 64: Qos

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Nat IP Mapping NAT is short for Network Address Translation. The Network Address Translation Settings window allows you to share one WAN IP address for multiple computers on your LAN. Choose Advanced Settings > NAT > Nat IP Mapping, the page shown in the following figure appears Entries in this table allow you to configure one IP pool for specified source IP address from LAN, so one packet whose source IP is in range of the specified address will select...

  • Page 65: Tr-069

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.7.4 TR-069 Choose Advanced Settings > TR-069, and the page shown in the following page appears. In this page, you can configure the TR-069 CPE.
  • Page 66 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters of this page: Field Description The URL of the auto-configuration server to connect to. User Name The user name for logging in to the ACS. Password The password for logging in to the ACS.

  • Page 67: Virtual Port Group

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.7.5 Virtual Port Group Choose Advanced Settings > Virtual Port Group, and the page shown in the following figure appears. In this page, you can bind the WAN and the LAN interface to the same group.

  • Page 68: Management

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.7.6 Management Choose Advanced Settings > Management to display the submenus. You can select Bridge Setting, Client Limit, Tunnel, or Half Bridge to set relevant parameters.

  • Page 69: Access Management

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Access Management 4.8.1 IGMP IGMP Proxy Choose Access Management > IGMP > IGMP Proxy, and the page shown in the following figure appears. IGMP proxy enables the system to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces.

  • Page 70: Upnp

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.8.2 UPnP UPnP Choose Access Management > UPnP > UPnP, and the page shown in the following figure appears. This page is used to configure UPnP. The system acts as a daemon after you enable it.

  • Page 71: Snmp

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT DLNA Choose Access Management > UPnP > DLNA, and the page shown in the following figure appears. In this page, you can enable DMS. Figure 6 4.8.3 SNMP Choose Access Management > SNMP, and the page shown in the following figure appears.

  • Page 72: Dns

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Description Field Select it to enable SNMP function. You need to Enable SNMP enable SNMP, then you can configure the parameters of this page. Enter the trap IP address. The trap information is Trap IP Address sent to the corresponding host.

  • Page 73: Dyndns

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description Set DNS Select it, enter the IP addresses of the primary and secondary Manually DNS server. Apply Changes Click it to save the settings of this page. Reset Selected Click it to start configuring the parameters in this page. IPv6 DNS Choose Access Management >...
  • Page 74 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters of this page: Field Description DDNS provider Choose the DDNS provider name. Host Name The DDNS identifier. Interface The WAN interface of the router. Enable Enable or disable DDNS function. Username The name provided by DDNS provider.

  • Page 75: Ftp Server

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.8.6 FTP Server Choose Access Management > FTP Server, and the page shown in the following figure appears. In this page, you can start FTP server. Figure 8 4.8.7 USB Storage Choose Access Management > USB Storage, and the page shown in the following figure appears.

  • Page 76: Security Settings

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Security Settings 4.9.1 MAC Filter Choose Security Settings > MAC Filter, and the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets from your local network to Internet through the gateway.

  • Page 77: Ip/Port Filter

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.9.2 IP/Port Filter IP/Port Filter Choose Security Settings > IP/Port Filter > IP/Port Filter, and the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets through the gateway.
  • Page 78 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT IPv6/ Port Filter Choose Security Settings > IP/Port Filter > IPv6/Port Filter, and the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets through the gateway.

  • Page 79: Url Filter

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.9.3 URL Filter Choose Security Settings > URL Filter, and the page shown in the following figure appears. This page is used to block a fully qualified domain name, such as tw.yahoo.com and filtered keyword.

  • Page 80: Acl

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.9.4 Choose Security Settings > ACL, the page shown in the following figure appears. In this page, you can permit the data packets from LAN or WAN to access the router. You can configure the IP address for Access Control List (ACL).
  • Page 81 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description choose all the services. After setting the parameters, click it to add an entry to the Current ACL Table. Set direction of the data packets to WAN, the page shown in the following figure appears.
  • Page 82 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters and buttons of this page: Field Description Select the router interface. You can select LAN or WAN. In Direction Select this example, WAN is selected. WAN Setting You can choose Interface or IP Address.
  • Page 83 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.9.4.1 IPv6 ACL Choose Security Settings > ACL > IPv6 ACL, the page shown in the following figure appears. Figure 11...

  • Page 84: Dos

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.9.5 Denial-of-Service Attack (DoS attack) is a type of attack on a network that is designed to bring the network to its knees by flooding it with useless traffic. Choose Security Settings > DoS, and the page shown in the following figure appears. In this page, you can prevent DoS attacks.

  • Page 85: Maintenance

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.10 Maintenance 4.10.1 Update Firmware Update Choose Maintenance > Update > Firmware Update, the page shown in the following figure appears. In this page, you can upgrade the firmware of the router. The following table describes the parameters and button of this page: Field Description...

  • Page 86: Password

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters and button of this page: Field Description Click it, and select the path. Then you can save the Save Settings to File configuration file of the router. Load Settings from File Click Browse…...

  • Page 87: Restart

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Field Description For adding a user, you can enter a user name. For changing the privilege and password of an User Name exist user, you can select one to be modified from User Account Table.
  • Page 88 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters of this page: Field Description System Time Set the system time manually. NTP Configuration Select enable or disable NTP function. You need to State enable NTP if you want to configure the parameters of NTP.

  • Page 89: System Log

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.10.5 System Log Choose Maintenance > Log, and the page shown in the following figure appears. In this page, you can enable or disable system log function and view the system log. 4.10.6 Diagnostics Tools 4.10.6.1 Ping...
  • Page 90 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.10.6.2 Ping6 Choose Diagnostics Tools > Ping6, and the page shown in the following figure appears. The following table describes the parameter and button of this page: Field Description Host Enter the valid IP address or domain name. Interface Select interface from drop-down list.
  • Page 91 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT The following table describes the parameters and buttons of this page. Field Description Host Enter the destination host address for diagnosis. NumberOfTries Number of repetitions. Timeout Put in the timeout value. Datasize Packet size.

  • Page 92: Oam Loopback

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT 4.10.6.5 OAM Loopback Choose Diagnostics Tools > OAM Loopback. The page shown in the following figure appears. In this page, you can use VCC loopback function to check the connectivity of the VCC.
  • Page 93 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Click Start to start ADSL tone diagnostics. 4.10.6.7 Diag-Test Choose Diagnostics > Diag-Test, the page shown in the following figure appears. In this page, you can test the DSL connection. You can also view the LAN status connection and ADSL connection.

  • Page 94: Appendix A: Specifications

    300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Appendix A: Specifications General Complies with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Standards & IEEE 802.3, IEEE 802.3u standards ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU Protocols G.992.5, Protocols TCP/IP, PPPoA, PPPoE, SNTP, HTTP, DHCP, ICMP, NAT 4- 10/100M Auto-Negotiation RJ45 LAN Ports (Auto MDI/MDIX) , Ports 1- RJ11 (WAN) Port , USB 2.0 x 1...
  • Page 95 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Wireless Frequency Band 2.4~2.4835GHz 11n: up to 300Mbps（Automatic） Radio Data Rate 11g: 54/48/36/24/18/12/9/6Mbps（Automatic） 11b: 11/5.5/2/1Mbps（Automatic） Frequency DSSS(Direct Sequence Spread Spectrum) Expansion Modulation DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM Antenna 5dBi x 2 Omni Directional MAX RF Power 20dBm 300M: -68dBm@10% PER...
  • Page 96 300M Wireless-N ADSL2+ 3G & Broadband Router iB-WRA300N3GT Appendix B: Contact Information Note: For any technical help on iBall Baton products please contact support.baton@iball.co.in www.iBallBaton.com www.iBall.co.in COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. iBall Baton is a registered trademark of Best IT World (India) Pvt.
