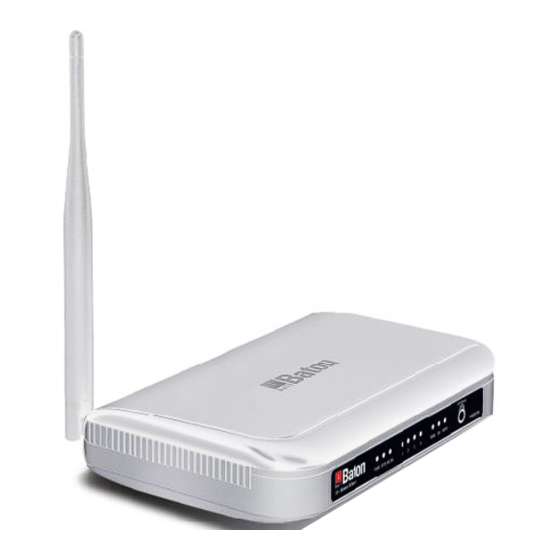

4G Wireless-N Router
Model No. iB-W4GX150N
User Guide
Ver.: 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Baton iB-W4GX150N and is the answer not in the manual?

Questions and answers

Related Manuals for iBall Baton iB-W4GX150N

Summary of Contents for iBall Baton iB-W4GX150N

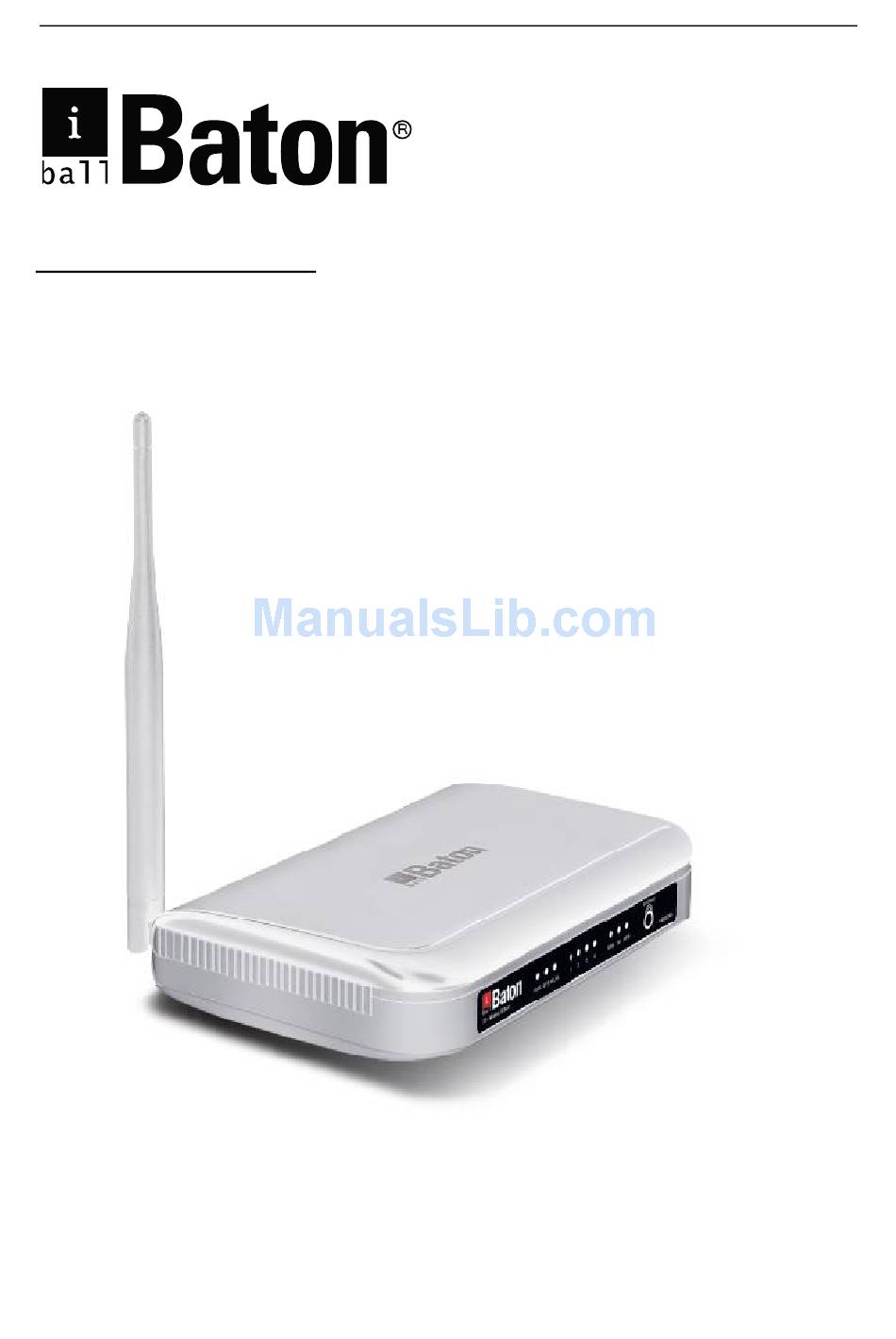

  • Page 1 4G Wireless-N Router Model No. iB-W4GX150N User Guide Ver.: 1.0.0...

  • Page 2: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Ce Mark Warning

    CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures...

  • Page 4: Table Of Contents

    CONTENTS Package Contents ..........................1 Chapter 1. Introduction ........................2 Overview of the Router ....................2 Conventions ........................2 Main Features ......................... 3 Panel Layout ........................4 1.4.1 The Front Panel ....................4 1.4.2 The Rear Panel ....................5 Chapter 2. Connecting the Router ....................6 System Requirements ....................
  • Page 5 DHCP ..........................54 4.7.1 DHCP Settings ....................54 4.7.2 DHCP Clients List ..................... 55 4.7.3 Address Reservation..................56 Forwarding ........................57 4.8.1 Virtual Servers....................57 4.8.2 Port Triggering ....................59 4.8.3 DMZ ........................61 4.8.4 UPnP ......................... 62 Security ......................... 63 4.9.1 Basic Security ....................
  • Page 6 4.16.4 Factory Defaults ....................94 4.16.5 Backup & Restore ..................... 95 4.16.6 Restart ....................... 96 4.16.7 Password ......................96 4.16.8 System Log ....................... 97 4.16.9 Statistics ......................99 Appendix A: FAQ ........................... 101 Appendix B: Configuring the PCs ....................107 Appendix C: Specifications ......................

  • Page 7: Package Contents

    This Guide  Other Helpful Information Conventions The Router or iB-W4GX150N mentioned in this guide stands for iBallBaton 4G Wirelesses-N Router without any explanation.  Note: Make sure that the package contains the above items. If any of the listed items is damaged or...

  • Page 8: Chapter 1. Introduction

    Thank you for choosing iBall Baton 4G Wireless-N Router. Overview of the Router iB-W4GX150N 4G Wirelesses-N Router complies with IEEE 802.11 b/g/n wireless standards Enhanced Wireless data transmission speed up to 150Mbps With 4-10/100M LAN Ports, 1 - 10/100M WAN Port for Broadband Internet (Cable/DSL) & USB slot for 4G/3G Internet.

  • Page 9: Main Features

    4G Wireless-N Router iB-W4GX150N Main Features  Complies with IEEE802.3, IEEE 802.3u standards  Complies with IEEE 802.11b/g/n wireless standards  1- 10/100M WAN Port, 4- 10/100M LAN Ports & Wireless-N AP  Dual WAN Router with different Operation Modes: ...

  • Page 10: Panel Layout

    4G Wireless-N Router iB-W4GX150N Panel Layout 1.4.1 The Front Panel Figure 1-1 Front Panel sketch The Router’s LEDs and the WPS/Reset Button are located on the front panel (View from left to right). Name Status Indication Power is on. Power is off.

  • Page 11: The Rear Panel

    The following parts are located on the rear panel (View from left to right).  POWER: The Power socket is where you will connect the power adapter. Please use the power adapter provided with this IB-W4GX150N 4G Wireless-N Router.  ON/OFF: The switch for the power.

  • Page 12: Chapter 2. Connecting The Router

    4G Wireless-N Router iB-W4GX150N Chapter 2. Connecting the Router System Requirements Before installing the device, please make sure your Broadband service or 4G/3G service provided by your ISP is available. (For 4G/3G verify the SIM service is activated) kindly contact your ISP related to service problem.
  • Page 13 Connect the 4G/3G USB Modem or DSL/Cable Modem/Ethernet to the WAN port of the Router, shown in the figure (2-1) (Figure 2.1) Figure 2-1 Hardware Installation of the IB-W4GX150N 4G Wireless-N Router e. Connect the power adapter to the power socket on the Router, and the other end into an electrical outlet.

  • Page 14: Installation Environment Requirements

    4G Wireless-N Router iB-W4GX150N Installation Environment Requirements Place the Router in a well ventilated place far from any heater or heating vent   Avoid direct irradiation of any strong light (such as sunlight)  Keep at least 2 inches (5 cm) of clear space around the Router Operating Temperature: 0°C~40°C (32°C ~104°C)

  • Page 15: Chapter 3. Quick Installation Guide

    IB-W4GX150N using Quick Setup Wizard within minutes. TCP/IP Configuration The default IP address of the 4G Wireless-N Router IB-W4GX150N is 192.168.1.1. And the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we use all the default values for description.
  • Page 16 4G Wireless-N Router iB-W4GX150N Figure 3-1 Success result of Ping command  If the result displayed is similar to Figure 3-2 it means the connection between your PC and the Router has failed. Figure 3-2 Failure result of Ping command...

  • Page 17: Quick Installation Guide

    Quick Installation Guide With a Web-based (Internet Explorer or Firefox) utility, it is easy to configure and manage the 4G Wireless-N Router, IB-W4GX150N. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser.
  • Page 18 4G Wireless-N Router iB-W4GX150N Figure 3-5 Quick Setup Click Next, and then Internet Access page will appear, shown in Figure 3-6. Select a desired Internet access mode and then click Next. The configuration for each mode is similar. Here we take 3G Preferred mode for example.
  • Page 19 4G Wireless-N Router iB-W4GX150N Broadband Connection  In this mode, the router will try WAN access only. 3G access is disabled. The next screen will appear as shown in Figure 3-7. After finishing the configuration on this page, click Next to continue, Figure 3-7 3G Location - Select the location where you're enjoying the 3G card.
  • Page 20 4G Wireless-N Router iB-W4GX150N Figure 3-8 WAN Connection Type If the connection type detected is PPPoE, the next screen will appear as shown in Figure 3-9.  Enter the User Name and Password provided by your ISP. These fields are case-sensitive. If you have difficulty with this process, please contact your ISP.
  • Page 21 4G Wireless-N Router iB-W4GX150N If you are visiting the Router from another computer, rather than the main  computer, please select No, and then enter the main computer’s MAC in the field WAN MAC Address. Figure 3-11 Quick Setup – MAC Clone If the connection type detected is Static IP, the next screen will appear as shown in Figure ...
  • Page 22 4G Wireless-N Router iB-W4GX150N Wireless Radio - Enable or disable the wireless radio choosing from the pull-down list.  SSID - Enter a value of up to 32 characters. The same name of SSID (Service Set  Identification) must be assigned to all wireless devices in your network. Considering your wireless network security, the default SSID is set to be Wireless_XXXXXX (XXXXXX indicates the last unique six numbers of each Router’s MAC address).
  • Page 23 4G Wireless-N Router iB-W4GX150N Click the Next button. You will then see the Finish page. If you don’t make any change on the Wireless page, you will see the Finish page as shown in Figure 3-14. Click the Finish button to finish the Quick Setup.

  • Page 24: Chapter 4. Configuring The Router

    4G Wireless-N Router iB-W4GX150N Chapter 4. Configuring the Router This chapter will show each Web page's key functions and the configuration way. Login After your successful login, you will see the fifteen main menus on the left of the Web-based utility.

  • Page 25: Quick Setup

    4G Wireless-N Router iB-W4GX150N Figure 4-1 Router Status Quick Setup Please refer to Section 3.2: "Quick Installation Guide." -19-...

  • Page 26: Wps

    4G Wireless-N Router iB-W4GX150N This section will guide you to add a new wireless device to an existing network quickly by WPS (Wi-Fi Protected Setup) function. Choose menu “WPS”, you will see the next screen (shown in Figure 4-2 ).
  • Page 27 4G Wireless-N Router iB-W4GX150N  Note: When pressing and holding the WPS/Reset Button for more than 5 seconds, you will reset the router. Step 1: Press and hold the WPS Button of the adapter directly for 2 or 3 seconds.
  • Page 28 4G Wireless-N Router iB-W4GX150N The WPS Configuration Screen of Wireless Adapter Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration. The WPS Configuration Screen of Wireless Adapter -22-...
  • Page 29 4G Wireless-N Router iB-W4GX150N Method Three: Step 1: Keep the default WPS Status as Enabled and click the Add device button in Figure , then the following screen will appear. Figure 4-3 Add A New Device Step 2: Choose Press the button of the new device in two minutes and click Connect.
  • Page 30 4G Wireless-N Router iB-W4GX150N The WPS Configuration Screen of Wireless Adapter II. By PIN If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN with the following two methods.
  • Page 31 4G Wireless-N Router iB-W4GX150N The WPS Configuration Screen of Wireless Adapter  Note: In this example, the default PIN code of this adapter is 16952898 as the above figure shows. Method Two: Enter the PIN from my Router Step 1: Get the Current PIN code of the Router in...
  • Page 32 4G Wireless-N Router iB-W4GX150N  Note: The default PIN code of the Router can be found in its label or the WPS configuration screen as Figure 4-2. You will see the following screen when the new device has successfully connected to the network.

  • Page 33: Operation Mode

    4G Wireless-N Router iB-W4GX150N 4.5.1 Operation Mode Choose menu “Network Setting→Operation Mode”, you can configure the access mode on the screen below. Figure 4-5 Internet Access Mode 3G/4G Connection with Broadband Failover  In this mode, the router will try 3G access first;...

  • Page 34: G/4G

    4G Wireless-N Router iB-W4GX150N 4.5.2 3G/4G Choose menu “Network Setting→3G/4G”, you can configure parameters for 3G function on the screen below. To use the 3G function, you should first insert your USB modem on the USB port of the Router. If the USB modem is unplugged, corresponding information will be shown as in Figure 4-6.
  • Page 35 4G Wireless-N Router iB-W4GX150N the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field.
  • Page 36 4G Wireless-N Router iB-W4GX150N Figure 4-7 3G Advanced Settings Set the Dial Number and APN manually - Check the box and fill the Dial Number and  APN blanks below if your ISP is not listed in the Mobile ISP list or the default values are not the latest ones.

  • Page 37: Wan

    4G Wireless-N Router iB-W4GX150N To add 3G USB Modem entries, follow the steps below. 1. Download a most recent 3G USB modem configuration file from our website. 2. Click the Add New... button in Figure 4-8, and then you will see Figure 4-9.
  • Page 38 4G Wireless-N Router iB-W4GX150N Figure 4-10 WAN - Dynamic IP This page displays the WAN IP parameters assigned dynamically by your ISP, including IP address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP parameters from your ISP. Click the Release button to release the IP parameters.
  • Page 39 4G Wireless-N Router iB-W4GX150N Figure 4-11 WAN - Static IP  IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.  Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP, usually is 255.255.255.0.
  • Page 40 4G Wireless-N Router iB-W4GX150N Figure 4-12 WAN – PPPoE User Name/Password - Enter the User Name and Password provided by your ISP. These  fields are case-sensitive.  Secondary Connection - It’s available only for PPPoE Connection. If your ISP provides an extra Connection type such as Dynamic/Static IP to connect to a local area network, then you can check the radio button of Dynamic/Static IP to activate this secondary connection.
  • Page 41 4G Wireless-N Router iB-W4GX150N Time-based Connecting - The connection will only be established in the period from the  start time to the end time (both are in HH:MM format).  Note: Only when you have configured the system time on System Tools -> Time page can the Time-based Connecting function take effect.
  • Page 42 4G Wireless-N Router iB-W4GX150N  ISP Specified IP Address - If your ISP does not automatically assign IP addresses to the Router during login, please click “Use IP address specified by ISP” check box and enter the IP address provided by your ISP in dotted-decimal notation.
  • Page 43 4G Wireless-N Router iB-W4GX150N Auth Domain - Type in the domain suffix server name based on your location.  e.g. NSW / ACT - nsw.bigpond.net.au VIC / TAS / WA / SA / NT - vic.bigpond.net.au QLD - qld.bigpond.net.au MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet ...
  • Page 44 4G Wireless-N Router iB-W4GX150N Figure 4-15 L2TP  User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. Dynamic IP/ Static IP - Choose either as you are given by your ISP. Click the Connect ...
  • Page 45 4G Wireless-N Router iB-W4GX150N automatically as soon as you attempt to access the Internet again. To use this option, click the radio button. If you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time field. Otherwise, enter the number in minutes that you wish to have the Internet connecting last unless a new link is requested.
  • Page 46 4G Wireless-N Router iB-W4GX150N Click the Connect button to connect immediately. Click the Disconnect button to disconnect immediately. Connect on Demand - You can configure the Router to disconnect from your Internet  connection after a specified period of inactivity (Max Idle Time). If your Internet connection...

  • Page 47: Mac Clone

    4G Wireless-N Router iB-W4GX150N 4.5.4 MAC Clone Choose menu “Network Settings→MAC Clone”, you can configure the MAC address of the WAN on the screen below, Figure 4-17: Figure 4-17 MAC Address Clone Some ISPs require that you register the MAC Address of your adapter. Changes are rarely needed here.

  • Page 48: Wireless

    4G Wireless-N Router iB-W4GX150N Figure 4-18 LAN  MAC Address - The physical address of the Router, as seen from the LAN. The value can't be changed. IP Address - Enter the IP address of your Router or reset it in dotted-decimal notation ...
  • Page 49 4G Wireless-N Router iB-W4GX150N Figure 4-20 Wireless Settings  SSID - Enter a value of up to 32 characters. The same name of SSID (Service Set Identification) must be assigned to all wireless devices in your network. Considering your wireless network security, the default SSID is set to be (XXXXXX indicates the last unique six numbers of each Router’s MAC address).
  • Page 50 4G Wireless-N Router iB-W4GX150N Channel - This field determines which operating frequency will be used. The default  channel is set to Auto, so the AP will choose the best channel automatically. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point.

  • Page 51: Wireless Security

    4G Wireless-N Router iB-W4GX150N  SSID(to be bridged) - The SSID of the AP your Router is going to connect to as a client. You can also use the search function to select the SSID to join. BSSID(to be bridged) - The BSSID of the AP your Router is going to connect to as a ...
  • Page 52 4G Wireless-N Router iB-W4GX150N Figure 4-21 Wireless Security  Disable Security - If you do not want to use wireless security, select this check box, but it’s strongly recommended to choose one of the following modes to enable security. ...
  • Page 53 4G Wireless-N Router iB-W4GX150N Figure 4-22 WPA/WPA2-Personal  Password - You can enter ASCII characters between 8 and 63 characters or 8 to 64 Hexadecimal characters.  Group Key Update Period - Specify the group key update interval in seconds. The value should be 30 or above.
  • Page 54 4G Wireless-N Router iB-W4GX150N WEP - It is based on the IEEE 802.11 standard. If you select this check box, you will find a notice in red as show in Figure 4-24. Figure 4-24 WEP  Type - you can choose the type for the WEP security on the pull-down list. The default setting is Automatic, which can select Open System or Shared Key authentication type automatically based on the wireless station's capability and request.

  • Page 55: Wireless Mac Filtering

    4G Wireless-N Router iB-W4GX150N 4.6.3 Wireless MAC Filtering Choose menu “Wireless→MAC Filtering”, you can control the wireless access by configuring the Wireless MAC Address Filtering function, shown in Figure 4-25. Figure 4-25 Wireless MAC address Filtering To filter wireless users by MAC Address, click Enable. The default setting is Disable.
  • Page 56 4G Wireless-N Router iB-W4GX150N Enter a simple description of the wireless station in the Description field. For example: Wireless station A. Status - Select Enabled or Disabled for this entry on the Status pull-down list. Click the Save button to save this entry.

  • Page 57: Wireless Advanced

    4G Wireless-N Router iB-W4GX150N 4.6.4 Wireless Advanced Choose menu “Wireless→Wireless Advanced”, you can configure the advanced settings of your wireless network. Figure 4-27 Wireless Advanced Beacon Interval - Enter a value between 20-1000 milliseconds for Beacon Interval here.  The beacons are the packets sent by the router to synchronize a wireless network. Beacon Interval value determines the time interval of the beacons.

  • Page 58: Wireless Statistics

    4G Wireless-N Router iB-W4GX150N network performance since excessive packets. 2346 is the default setting and is recommended. DTIM Interval - This value determines the interval of the Delivery Traffic Indication  Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages.

  • Page 59: Dhcp

    4G Wireless-N Router iB-W4GX150N You cannot change any of the values on this page. To update this page and to show the current connected wireless stations, click on the Refresh button. If the numbers of connected wireless stations go beyond one page, click the Next button to go to the next page and click the Previous button to return the previous page.

  • Page 60: Dhcp Clients List

    4G Wireless-N Router iB-W4GX150N manually. Start IP Address - Specify an IP address for the DHCP Server to start with when  assigning IP addresses. 192.168.1.100 is the default start address. End IP Address - Specify an IP address for the DHCP Server to end with when assigning ...

  • Page 61: Address Reservation

    4G Wireless-N Router iB-W4GX150N Lease Time - The time of the DHCP client leased. After the dynamic IP address has  expired, a new dynamic IP address will be automatically assigned to the user. You cannot change any of the values on this page. To update this page and to show the current attached devices, click the Refresh button.

  • Page 62: Forwarding

    4G Wireless-N Router iB-W4GX150N Figure 4-33 Add or Modify an Address Reservation Entry To modify or delete an existing entry: Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete.
  • Page 63 4G Wireless-N Router iB-W4GX150N the server IP. Any PC that was used for a virtual server must have a static or reserved IP Address because its IP Address may be changed when using the DHCP function. Figure 4-35 Virtual Servers Service Port - The numbers of External Ports.

  • Page 64: Port Triggering

    4G Wireless-N Router iB-W4GX150N Figure 4-36 Add or Modify a Virtual Server Entry  Note If your computer or server has more than one type of available service, please select another service, and enter the same IP Address for that computer or server.
  • Page 65 4G Wireless-N Router iB-W4GX150N Figure 4-37 Port Triggering Once the Router is configured, the operation is as follows: 1. A local host makes an outgoing connection using a destination port number defined in the Trigger Port field. 2. The Router records this connection, opens the incoming port or ports associated with this entry in the Port Triggering table, and associates them with the local host.

  • Page 66: Dmz

    4G Wireless-N Router iB-W4GX150N Select Enable in Status field. Click the Save button to save the new rule. Figure 4-38 Add or Modify a Triggering Entry To modify or delete an existing entry: Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete.

  • Page 67: Upnp

    4G Wireless-N Router iB-W4GX150N Figure 4-39 DMZ To assign a computer or server to be a DMZ server: Click the Enable radio button Enter the local host IP Address in the DMZ Host IP Address field Click the Save button.

  • Page 68: Security

    4G Wireless-N Router iB-W4GX150N App Description -The description provided by the application in the UPnP request  External Port - External port, which the router opened for the application.   Protocol - Shows which type of protocol is opened.
  • Page 69 4G Wireless-N Router iB-W4GX150N Figure 4-42 Basic Security Firewall - A firewall protects your network from the outside world. Here you can enable or  disable the Router’s firewall. SPI Firewall - SPI (Stateful Packet Inspection, also known as dynamic packet filtering) ...

  • Page 70: Advanced Security

    4G Wireless-N Router iB-W4GX150N gateway to support address and port translation for certain application layer "control/data" protocols such as FTP, TFTP, H323, RTSP etc. FTP ALG - To allow FTP clients and servers to transfer data across NAT, keep the ...

  • Page 71: Local Management

    4G Wireless-N Router iB-W4GX150N and 60 seconds from the drop-down list. The Packets Statistics Interval value indicates the time section of the packets statistics. The result of the statistics is used for analysis by SYN Flood, UDP Flood and ICMP-Flood.

  • Page 72: Remote Management

    4G Wireless-N Router iB-W4GX150N Figure 4-44 Local Management By default, the radio button “All the PCs on the LAN are allowed to access the Router's Web-Based Utility” is checked. If you want to allow PCs with specific MAC Addresses to access the Setup page of the Router's Web-Based Utility locally from inside the network, check the radio button “Only the PCs listed can browse the built-in web pages to perform...

  • Page 73: Parental Control

    4G Wireless-N Router iB-W4GX150N Figure 4-45 Remote Management  Web Management Port - Web browser access normally uses the standard HTTP service port 80. This Router's default remote management web port number is 80. For greater security, you can change the remote management web port to a custom port by entering that number in the box provided.
  • Page 74 4G Wireless-N Router iB-W4GX150N Figure 4-46 Parental Control Settings  Parental Control - Check Enable if you want this function to take effect, otherwise check Disable.  MAC Address of Parental PC - In this field, enter the MAC address of the controlling PC, or you can make use of the Copy To Above button below.

  • Page 75: Parental Control

    4G Wireless-N Router iB-W4GX150N Click the Save button. Click the Enable All button to enable all the rules in the list. Click the Disable All button to disable all the rules in the list. Click the Delete All button to delete all the entries in the table.

  • Page 76: Access Restriction

    4G Wireless-N Router iB-W4GX150N Enter “Allow Google” in the Website Description field.  Enter “www.google.com” in the Allowed Domain Name field.  Select “Schedule_1” you create just now from the Effective Time drop-down list.  In Status field, select Enable.
  • Page 77 4G Wireless-N Router iB-W4GX150N the screen as shown in Figure 4-50. Figure 4-50 Access Restriction Rule Management  Enable Internet Access Restriction - Select the check box to enable the Internet Access Control function, so the Default Filter Policy can take effect.

  • Page 78: Access Restriction

    4G Wireless-N Router iB-W4GX150N 7. In the Status field, select Enabled or Disabled to enable or disable your entry. Click the Save button. Click the Enable All button to enable all the rules in the list. Click the Disable All button to disable all the rules in the list.
  • Page 79 4G Wireless-N Router iB-W4GX150N  In Rule Name field, create a name for the rule. Note that this name should be unique, for example Rule_1.  In Host (LAN) field, select Host_1.  In Target (WAN) field, select Target_1.  In Schedule field, select Schedule_1.
  • Page 80 4G Wireless-N Router iB-W4GX150N  Modify - To modify or delete an existing entry. To add a new entry, please follow the steps below. Click the Add New… button. In the Mode field, select IP Address or MAC Address. ...

  • Page 81: Target Wan)

    4G Wireless-N Router iB-W4GX150N 4. In MAC Address field, enter 00-11-22-33-44-AA. 5. Click Save to complete the settings. Then you will go back to the Host Settings page and see the following list. 4.11.3 Target (WAN) Choose menu “Access Restriction → Target (WAN)”, you can view and set a Target list in the screen as shown in Figure 4-55.
  • Page 82 4G Wireless-N Router iB-W4GX150N  If you select Domain Name, the screen shown is Figure 4-57. 1) In Target Description field, create a unique description for the target (e.g. Target_1). 2) In Domain Name field, enter the domain name, either the full name or the keywords (for example google) in the blank.

  • Page 83: Schedule

    4G Wireless-N Router iB-W4GX150N For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA in the LAN to access www.google.com only, you should first follow the settings below: 1. Click Add New… button in Figure 4-55 to enter the Add or Modify an Access Target Entry page.
  • Page 84 4G Wireless-N Router iB-W4GX150N 1. Click Add New... button shown in Figure 4-58 and the next screen will pop-up as shown in Figure 4-59. 2. In Schedule Description field, create a unique description for the schedule (e.g. Schedule_1). 3. In Day field, select the day or days you need.

  • Page 85: Static Routing

    4G Wireless-N Router iB-W4GX150N Then you will go back to the Schedule Settings page and see the following list. 4.12 Static Routing Figure 4-60 Static Routing There are three submenus under the Static Routing menu: Advanced Routing, Static Routing List and System Routing List. Click any of them, and you will be able to configure the corresponding function.

  • Page 86: System Routing Table

    4G Wireless-N Router iB-W4GX150N Figure 4-62 Add or Modify a Static Route Entry Enter the following data:  Destination IP Address - The Destination IP Address is the address of the network or host that you want to assign to a static route.

  • Page 87: Bandwidth Control

    4G Wireless-N Router iB-W4GX150N Figure 4-63 System Routing Table 4.13 Bandwidth Control Figure 4-64 Bandwidth Control There are two submenus under the Bandwidth Control menu. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.

  • Page 88: Rules List

    4G Wireless-N Router iB-W4GX150N Line Type - Select the right type for you network connection. If you don’t know how to  choose, please ask your ISP for the information. Egress Bandwidth - The upload speed through the WAN port ...

  • Page 89: Ip & Mac Binding Setting

    4G Wireless-N Router iB-W4GX150N Figure 4-67 Bandwidth Control Rule Settings Step 3: Click the Save button. 4.14 IP & MAC Binding Setting Figure 4-68 IP & MAC Binding menu There are two submenus under the IP &MAC Binding menu (shown in Figure 4-68): Binding Setting and ARP List.
  • Page 90 4G Wireless-N Router iB-W4GX150N  MAC Address - The MAC address of the controlled computer in the LAN.  IP Address - The assigned IP address of the controlled computer in the LAN.  Bind - Check this option to enable ARP binding for a specific device.

  • Page 91: Arp List

    4G Wireless-N Router iB-W4GX150N Figure 4-71 MAC Binding Entry Click the Enable All button to make all entries enabled. Click the Delete All button to delete all entries. 4.14.2 ARP List To manage the computer, you could observe the computers in the LAN by checking the relationship of MAC address and IP address on the ARP list, and you could configure the items on the ARP list also.

  • Page 92: Dynamic Dns

    4G Wireless-N Router iB-W4GX150N Click the Load All button to load all items to the IP & MAC Binding list. Click the Refresh button to refresh all items.  Note: An item could not be loaded to the IP & MAC Binding list if the IP address of the item has been loaded before.

  • Page 93: Dyndns.org Ddns

    4G Wireless-N Router iB-W4GX150N Type the User Name for your DDNS account. Type the Password for your DDNS account. Click the Login button to log in to the DDNS service. Connection Status -The status of the DDNS service connection is displayed here.

  • Page 94: System Tools

    4G Wireless-N Router iB-W4GX150N Figure 4-75 No-ip.com DDNS Settings To set up for DDNS, follow these instructions: Type the User Name for your DDNS account. Type the Password for your DDNS account. Type the Domain Name you received from dynamic DNS service provider.

  • Page 95: Time Setting

    4G Wireless-N Router iB-W4GX150N Settings, Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Reboot, Password, System Log and Statistics. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.

  • Page 96: Diagnostic

    4G Wireless-N Router iB-W4GX150N Click the Get GMT button to get system time from Internet if you have connected to the Internet.  Note: This setting will be used for some time-based functions such as firewall. You must specify your time zone once you login to the router successfully, otherwise, these functions will not take effect.

  • Page 97: Firmware Upgrade

    4G Wireless-N Router iB-W4GX150N to a given host or gateway. Traceroute - This diagnostic tool tests the performance of a connection.   Note: You can use ping/traceroute to test both numeric IP address or domain name. If pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is not, you might have a name resolution problem.

  • Page 98: Factory Defaults

    4G Wireless-N Router iB-W4GX150N Figure 4-80 Firmware Upgrade  Firmware Version - This displays the current firmware version.  Hardware Version - This displays the current hardware version. The hardware version of the upgrade file must accord with the Router’s current hardware version.

  • Page 99: Backup & Restore

    4G Wireless-N Router iB-W4GX150N Figure 4-81 Restore Factory Default Click the Restore button to reset all configuration settings to their default values.  The default User Name: admin  The default Password: admin  The default IP Address: 192.168.1.1 ...

  • Page 100: Password

    4G Wireless-N Router iB-W4GX150N The current configuration will be covered by the uploading configuration file. The upgrade process lasts for 20 seconds and the Router will restart automatically. Keep the Router on during the upgrading process to prevent any damage.

  • Page 101: System Log

    4G Wireless-N Router iB-W4GX150N Figure 4-84 Password It is strongly recommended that you should change the factory default user name and password of the Router, because all users who try to access the Router's Web-based utility or Quick Setup will be prompted for the Router's default user name and password.
  • Page 102 4G Wireless-N Router iB-W4GX150N Figure 4-85 System Log  Auto Mail Feature - Indicates whether auto mail feature is enabled or not.  Mail Settings - Set the receiving and sending mailbox address, server address, validation information as well as the timetable for Auto Mail Feature, as shown in Figure 4-86.

  • Page 103: Statistics

    4G Wireless-N Router iB-W4GX150N To - Recipient’s address. The destination mailbox where the logs would be  received. SMTP Server - Your smtp server. It corresponds with the mailbox filled in the From  field. You can log on the relevant website for Help if you are not clear with the address.
  • Page 104 4G Wireless-N Router iB-W4GX150N Figure 4-87 Statistics Current Statistics Status - Enable or Disable. The default value is disabled. To enable,  click the Enable button. If disabled, the function of DoS protection in Security settings will disabled. Packets Statistics Interval （5-60） - The default value is 10. Select a value between 5 ...
  • Page 105 4G Wireless-N Router iB-W4GX150N Statistics Table: IP/MAC Address The IP and MAC address are displayed with related statistics. The total number of packets received and transmitted by the Packets Router. Total The total number of bytes received and transmitted by the Bytes Router.

  • Page 106: Appendix A: Faq

    4G Wireless-N Router iB-W4GX150N Appendix A: FAQ How do I configure the Router to access Internet by ADSL users? First, configure the ADSL Modem configured in RFC1483 bridge model. Connect the Ethernet cable from your ADSL Modem to the WAN port on the Router.
  • Page 107 4G Wireless-N Router iB-W4GX150N Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some applications is visiting the Internet continually in the background. If you are a Cable user, please configure the Router following the above steps.
  • Page 108 4G Wireless-N Router iB-W4GX150N Figure A-4 Virtual Servers Figure A-5 Add or Modify a Virtual server Entry  Note: Your opposite side should call your WAN IP, which is displayed on the “Status” page. How to enable DMZ Host: Log in to the Router, click the “Forwarding” menu on the left of your browser, and click "DMZ"...
  • Page 109 4G Wireless-N Router iB-W4GX150N Figure A-6 DMZ How to enable H323 ALG: Log in to the Router, click the “Security” menu on the left of your browser, and click “Basic Security” submenu. On the “Basic Security” page, check the Enable radio button next to H323 ALG. Remember to click the Save button.
  • Page 110 4G Wireless-N Router iB-W4GX150N “Security” menu on the left of your browser, and click "Remote Management" submenu. On the "Remote Management" page, type a port number except 80, such as 88, into the "Web Management Port" field. Click Save and reboot the Router.
  • Page 111 4G Wireless-N Router iB-W4GX150N Figure A-10 Add or Modify a Virtual server Entry The wireless stations cannot connect to the Router. Make sure the "Wireless Router Radio" is enabled. Make sure that the wireless stations' SSID accord with the Router's SSID.

  • Page 112: Appendix B: Configuring The Pcs

    4G Wireless-N Router iB-W4GX150N Appendix B: Configuring the PCs In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed.
  • Page 113 4G Wireless-N Router iB-W4GX150N Figure B-0-2 The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below:  Setting IP address automatically...
  • Page 114 4G Wireless-N Router iB-W4GX150N Figure B-0-3  Setting IP address manually Select Use the following IP address radio button. If the Router's LAN IP address is 192.168.1.1, type in IP address 192.168.1.x (x is from 2 to 254), and Subnet mask 255.255.255.0.
  • Page 115 4G Wireless-N Router iB-W4GX150N Figure B-0-4 Now click OK to keep your settings. -109-...

  • Page 116: Appendix C: Specifications

    4G Wireless-N Router iB-W4GX150N Appendix C: Specifications General Standards IEEE 802.3, 802.3u, 802.11b, 802.11g and 802.11n Protocols TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP 1-10/100M Auto-Negotiation WAN RJ45 port, LAN Ports 4- 10/100M Auto-Negotiation LAN RJ45 ports supporting Auto MDI/MDIX USB Port 1 x USB 2.0 port...

  • Page 117: Appendix D: Glossary

    4G Wireless-N Router iB-W4GX150N Appendix D: Glossary 802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO  (multiple-input multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased data throughput via spatial multiplexing and increased range by exploiting the spatial diversity, perhaps through coding schemes like Alamouti coding.
  • Page 118 4G Wireless-N Router iB-W4GX150N connection. SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key  identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card.

  • Page 119: Appendix E: Compatible 3G Usb Modem

    4G Wireless-N Router iB-W4GX150N Appendix E: Compatible 3G USB Modem Service Provider Model Vendor Aircel E1750C HUAWEI Vodafone AC2746 Vodafone K3800 Vodafone K4505-Z Vodafone NETCRUISE AC 2746 Reliance Netconnect EC121 HUAWEI Reliance Netconnect EC1260 HUAWEI Reliance Netconnect EC1262 HUAWEI Reliance Netconnect...

  • Page 120: Contact Information

    Contact Information COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. iBall Baton is a registered trademark of Best IT World (India) Pvt. Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.
