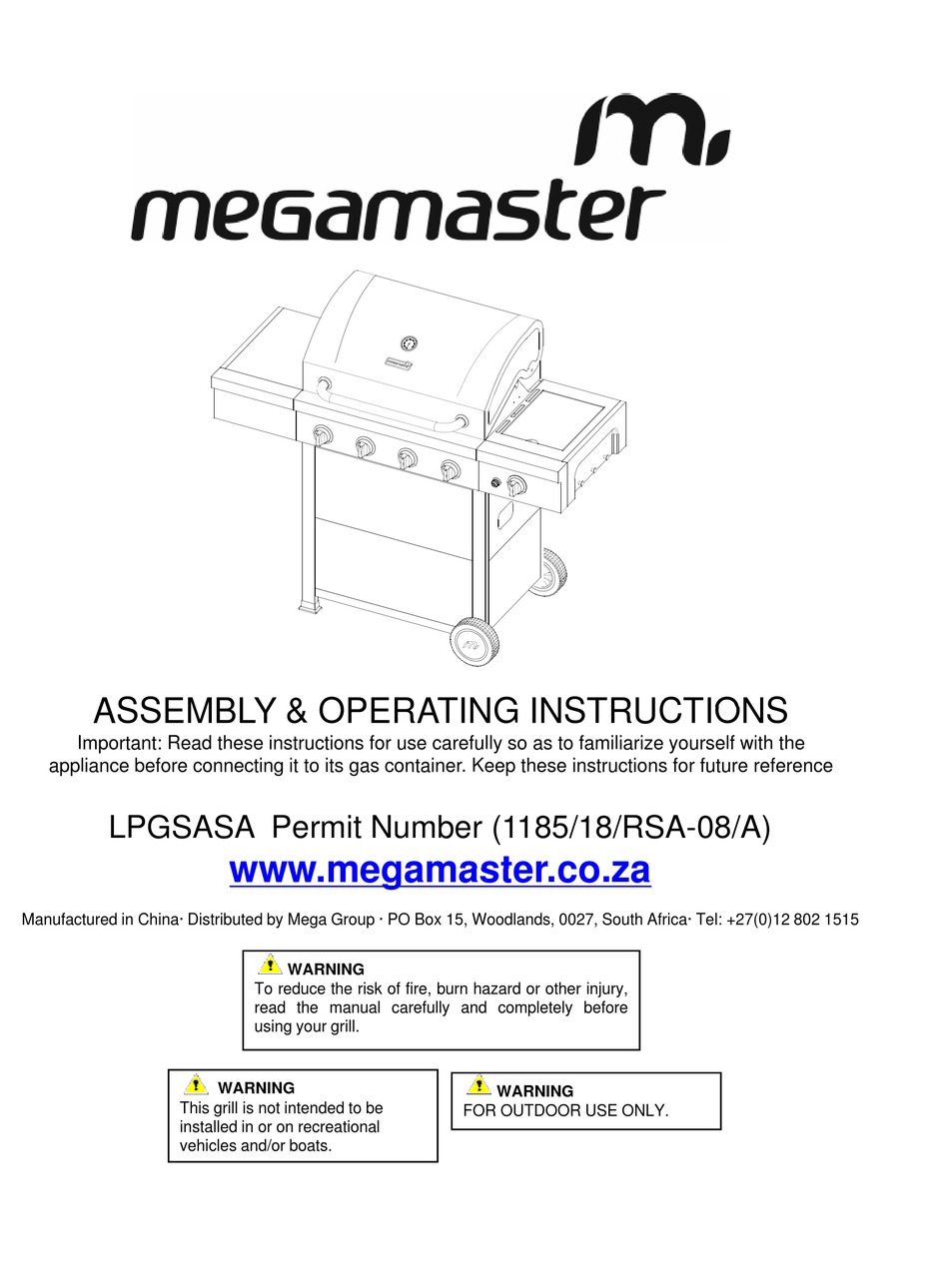

ASSEMBLY & OPERATING INSTRUCTIONS
ASSEMBLY & OPERATING INSTRUCTIONS
Important: Read these instructions for use carefully so as to familiarize yourself with the
appliance before connecting it to its gas container. Keep these instructions for future reference
LPGSASA Permit Number (1185/18/RSA-08/A)
Manufactured in China· Distributed by Mega Group · PO Box 15, Woodlands, 0027, South Africa· Tel: +27(0)12 802 1515
This grill is not intended to be
installed in or on recreational
vehicles and/or boats.
www.megamaster.co.za
www megamaster co za
d
WARNING
To reduce the risk of fire, burn hazard or other injury,
read the manual carefully and completely before
using your grill.
using your grill
dfg
WARNING
dfg
WARNING
FOR OUTDOOR USE ONLY.
Advertisement
Table of Contents
Related Manuals for Megamaster Blaze400
Summary of Contents for Megamaster Blaze400
- Page 1 Keep these instructions for future reference LPGSASA Permit Number (1185/18/RSA-08/A) www megamaster co za www.megamaster.co.za Manufactured in China· Distributed by Mega Group · PO Box 15, Woodlands, 0027, South Africa· Tel: +27(0)12 802 1515...
-
Page 2: Table Of Contents
Table of Contents Safety Instruction ..... Lighting Instruction....Package Contents List . -
Page 3: Safety Instruction
Safety Instruction DANGER Never operate this appliance unattended. Never operate this appliance within 10 ft (3 m) of any structure, combustible material or other gas cylinder. Never operate this appliance within 25 ft (7.5 m) of any flammable liquid. Do not fill cooking vessel beyond maximum fill line. Heated liquids remain at scalding temperatures long after the cooking process. - Page 4 Safety Instruction WARNING CAUTION: Beware of Flashback Do not try lighting this appliance without reading the CAUTION: Spiders and small insects occasionally CAUTION: Spiders and small insects occasionally “LIGHTING INSTRUCTIONS” section of this manual LIGHTING INSTRUCTIONS section of this manual spin webs or make nest in the grill burner tubes during transit and It must be used with a 2, 8 kPa regulator that...
- Page 5 Safety Instruction • Storage of an outdoor cooking gas appliance LP-Gas Supply System indoors is permissible only if the cylinder is disconnected and removed from the outdoor cooking gas appliance. • When your gas grill is not in use the gas must be turned off at LP gas cylinder.
- Page 6 Safety Instruction WARNING PROPER PLACEMENT AND CLEARANCE OF Your grill will get very hot. Never lean over the cooking GRILL area while using your grill. Do not touch cooking • Never use your gas grill in a garage, porch, surfaces, grill housing, lid or any other grill parts while shed, breezeway or any other enclosed area.
- Page 7 Safety Instruction Keep the area surrounding the grill free from Do not heat unopened food containers. A build-up of combustible materials including, fluids, trash, and pressure may cause the containers to burst. vapors such as gasoline or charcoal lighter fluid. Do not obstruct the flow of combustion and Use a covered hand when opening the grill lid Use a covered hand when opening the grill lid.
-
Page 8: Package Contents List
Package Contents List A. Firebox Assembly----1pc B. Bottom panel----1pc C. Side panel----3pcs D. Side panel right, top ----1pc E. Front panels----2pcs F. Cart leg front, left----1pc G. Cart leg rear, left----1pc H. Cart leg front, right ----1pc I. Cart leg rear, right----1pc J. - Page 9 Y. Cart caster insert----2pcs Z. Side tube burner----1pc AB. Pulse igniter module AA. Control knob----1pc ----1pc AF. Temperature gauge AC. 1.5 Volt “AA” Size AD. Temperature gauge AE. Grease tray latch seat ----1pc Alkaline Battery----1pc ----1pc ----1pc AG. Side burner igniter wire ----1pc...
-
Page 10: Hardware Contents
Hardware Contents REF# Description Specification Truss Head Screw 5/32’’ x 10mm 10pcs. Truss Head Screw 1/4’’ x 12mm 14pcs. 1/4‘’ 2pcs. Flat Washer (Aluminum) 4pcs. Flat Washer 2pcs. Flat Washer (Aluminum) 6pcs. Fl t W Flat Washer (Black) 2pcs. Before beginning assembly, make sure all parts are present. Compare parts with package contents list and diagram. -
Page 11: Exploded View
Explode View... -
Page 12: Part List
Warranty Warranty Part (Description) coverage Part (Description) coverage (year) (year) Main lid Cart leg front, right Main lid screw Wheel Temperature gauge Temperature gauge Wheel cap Wheel cap Temperature gauge seat Cylinder support bracket Logo Front panel Main lid handle Pulse igniter module Side burner control panel, Hood buffer A... -
Page 13: Assembly Instruction
Assembly Instructions 1. Cart Assembly Fig. 1 a) Place the Cart Caster Inset (Y) into the Cart Leg Front Left (F) and Cart Leg Rear Left (G). As shown in Fig. 1. b) Loosen but do not remove the eight screws that were Fig. - Page 14 2. Bottom Panel Assembly Fig. 4 a) Loosen but do not remove the screws that were pre- assembled on the side of the Bottom Panel (B), align the holes on the Cart Leg Front Left (F) and Cart Leg Rear Left (G), then place the cart legs onto the screws that were loosened in the Bottom Panel (B).
- Page 15 4. Triangle Bracket Assembly Fig. 6 a) Loosen but do not remove four screws on Bottom Panel (B), two screws on Cart Leg Rear Left (G) and two screws on Cart Leg Rear Right (I). Align the holes of the Triangle brackets with the screws in the Bottom Panel (B) and Cart Leg Rear Left (G) and Cart Leg Rear Right (I) to connect Triangle Bracket Left (Q) and Triangle Bracket Right (R) to Cart Leg Rear Left (G) and...
- Page 16 7. Firebox Assembly Fig. 9 4xH2 NOTE: The firebox assembly is heavy and will require two or more people to lift and position onto grill cart. Failure to do so may result in injury. Be sure to remove all packaging material during assembly. Remove the Firebox Assembly (A) from the carton and carefully place onto the grill cart.
- Page 17 9. Side Shelf Left Assembly Fig. 11 3xH2 3xH6 Loosen but do not remove two screws which were pre- assembled on left side of Firebox (A). Align the holes and secure the Side Shelf Left (J) from inside firebox by using 3pcs Truss Head Screws (H2) and 3pcs Flat Washers (H6) to attach the Side Shelf Left (J) to the Firebox (A).
- Page 18 10. Side Burner Right Assembly Fig. 13 3xH2 3xH6 Loosen but do not remove two screws which are pre- assembled on right side of Firebox (A). Align the holes and secure the Side Burner Right (K) from inside firebox by using 3pcs Truss Head Screws (H2) and 3pcs Flat Washers (H6) to attach the Side Burner Right (K) to the Firebox (A).
- Page 19 Insert the ignition wires to the Pulse Ignition Module Fig. 16 (AB) located on the right side burner control panel. As shown in Fig.16. 12. Side Burner Installation a) Loosen the screws which from underneath the side burner to remove two screws which are pre-assembled on the bottom of the Side Burner Right (K).
- Page 20 Loosen the screws which pre-assembled on the Fig. 19 side burner gas valve then align the screws to the valve with the large side of the holes on the bezel, fix with vertical gourd holes, then tighten the screws. As shown in Fig.
- Page 21 Then attached Grease Cup Support Bracket A (U) to Fig. 23 2xH1 Grease Box Support Bracket B (V) by using 2pcs Truss Head Screws (H1). As shown in Fig.23. Note: Make sure the Grease Cup Support Bracket A (U) is attached in the right position, as show in Fig.23. Install the Grease Tray (L) from the rear of the grill by Fig.
- Page 22 b） Insert legs of Warming Rack (O) into the holes on the Fig. 26 top of firebox side panels. Place Side Burner Cooking Grid (P) into the side burner. As shown in Fig.26. 15. Liquid Propane Tank Installation From rear of grill place the Liquid Propane gas cylinder into Fig.
-
Page 23: Gas Hook -Up
Gas Hook - Up NEVER CONNECT AN UNREGULATED GAS Regulator Connection SUPPLY LINE TO THE APPLIANCE. USE THE REGULATOR/HOSE ASSEMBLY SUPPLIED. This is a LP gas configured grill. Do not attempt to use a natural gas supply, the grill has not been pp y approved for natural gas use. -
Page 24: Installer Final Check List
Installer Final Check List Minimum clearance from sides and back of unit to USER, PLEASE RETAIN THIS MANUAL FOR combustible construction, 24 inches (61cm) from FUTURE REFERENCE. sides and 24 inches (61cm) from back LP GAS CYLINDER CAUTIONS All internal packaging removed. a) Do Not store a spare LP gas cylinder under or Knobs turn freely. -
Page 25: Leak Testing
Leak Testing continued CAUTIONS Place dust cap on cylinder valve outlet when the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of LP gas . -
Page 26: Operating Instruction
Operating Instructions GENERAL USE OF THE GRILL NOTE: The hot grill sears the food, sealing in the juices. The more thoroughly the grill is preheated, the faster Each main burner is rated at 13,500 Btu/hr. The main the meat browns and the darker the grill marks. grill burners encompass the entire cooking area and are side ported to minimize blockage from falling DO NOT LEAVE THE GRILL UNATTENDED WHILE... -
Page 27: Lighting Instruction
Grill Lighting Instructions continued FLAME CHARACTERISTICS Visually check the burner flames prior to each use, The flames should look like this picture, if Check for proper burner flame characteristics. they do not, refer to the burner maintenance part Burner flames should be blue and stable with no yellow of this manual. -
Page 28: Care And Maintenance
Care and Maintenance STAINLESS STEEL Warning: If you wish to replace main burner, we There are many different stainless steel cleaners available. strongly recommend that you hire a Always use the mildest cleaning procedure first, scrubbing in professionally trained technician to replace it. the direction of the grain. -
Page 29: Trouble Shooting
Trouble Shooting SPIDER AND INSECT WARNING Checking and cleaning burner/ venture tubes for insects and insect nests. A clogged tube can lead to a fire beneath the grill. Spiders and small insects occasionally spin webs or make nests in the grill burner tubes during transit and warehousing. These webs can lead to gas flow obstruction which could result in a fire in and around burner tubes. - Page 30 Trouble Shooting continued PROBLEM SOLUTION When attempting to light my grill, it will Make sure you have a spark while you are trying to light the burner (if no spark) not light immediately. Ensure that the wire is connected to the electrode assembly. Clean wire (s) and / or electrode with rubbing alcohol and a clean swab.
-
Page 31: Grill Cooking Chart
Grill Cooking Chart WARNING: To ensure that it is safe to eat, food must be cooked to the minimum internal listed in the table below. USDA* Safe Minimum Internal Temperatures 0 Fish Fish 65 C 0 Pork 70 0 Egg Dishes 70 0 Steaks and Roasts of Beef, Veal or Lamb 65 0 Ground Beef, Veal or Lamb 70 0 Whole Poultry (Turkey, Chicken, Duck, etc.) 75 0 Ground or Pieces Poultry (Chicken Breast etc ) Ground or Pieces Poultry (Chicken Breast, etc.) 75 C *United States Department of Agriculture FOOD Weight or thickness Temperature Time... -
Page 32: Limited Warranty
Limited Warranty This grill has a one (1) year limited warranty. The warranty period is valid from the date of purchase. Thi i This is subject to correct assembly, use, storage and regular maintenance of the product. f th Please refer to page 12 of this manual for list of replacement parts. Please Note: the main burner has a warranty of three (3) years. - Page 33 This appliance complies with the requirements of SANS 1539 www megamaster co za www.megamaster.co.za Manufactured in China· Distributed by Mega Group · PO Box 15, Woodlands, 0027, South Africa· Tel: +27(0)12 802 1515...
