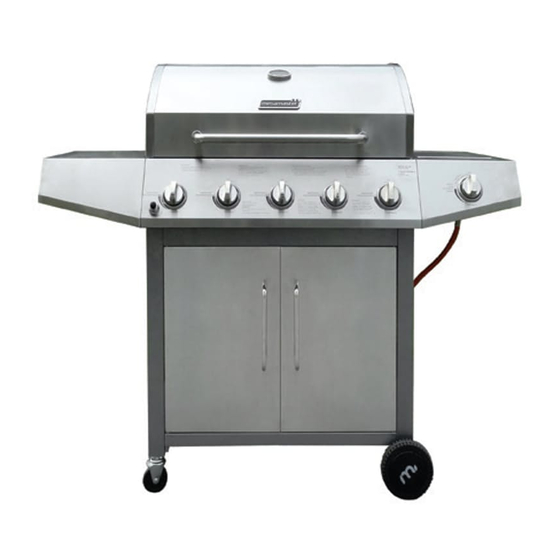

ASSEMBLY & OPERATING INSTRUCTIONS
Important: Read these instructions for use carefully so as to familiarize yourself with the
appliance before connecting it to its gas container. Keep these instructions for future
LPGSASA Permit Number (1185-33/1-RSA-12-A)
Manufactured in China· Distributed by Mega Group · PO Box 15, Woodlands, 0027, South Africa· Tel: +27(0)12 802 1515
This grill is not intended to be
installed in or on recreational
vehicles and/or boats.
www.megamaster.co.za
d
WARNING
To reduce the risk of fire, burn hazard or other injury,
read the manual carefully and completely before
using your grill.
dfg
WARNING
reference
dfg
WARNING
FOR OUTDOOR USE ONLY.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blaze 500 Maxim and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Megamaster Blaze 500 Maxim

Summary of Contents for Megamaster Blaze 500 Maxim

  • Page 1 Keep these instructions for future reference LPGSASA Permit Number (1185-33/1-RSA-12-A) www.megamaster.co.za Manufactured in China· Distributed by Mega Group · PO Box 15, Woodlands, 0027, South Africa· Tel: +27(0)12 802 1515 WARNING To reduce the risk of fire, burn hazard or other injury, read the manual carefully and completely before using your grill.

  • Page 2: Table Of Contents

    Table of Contents Safety Instruction ..... Lighting Instruction....Package Contents Care and Maintenance .

  • Page 3: Safety Instruction

    Safety Instruction DANGER 1.  Never operate this appliance unattended. 2.  Never operate this appliance within 10 ft (3 m) of any structure, combustible material or other gas cylinder. 3.  Never operate this appliance within 25 ft (7.5 m) of any flammable liquid. 4. ...
  • Page 4 Safety Instruction WARNING CAUTION: Beware of Flashback Do not try lighting this appliance without reading the CAUTION: Spiders and small insects occasionally “LIGHTING INSTRUCTIONS” section of this manual spin webs or make nest in the grill burner tubes during transit and It must be used with a 2, 8 kPa regulator that warehousing.
  • Page 5 Safety Instruction •  Storage of an outdoor cooking gas appliance LP-Gas Supply System indoors is permissible only if the cylinder is disconnected and removed from the outdoor cooking gas appliance. •  When your gas grill is not in use the gas must be turned off at LP gas cylinder.
  • Page 6 Safety Instruction WARNING PROPER PLACEMENT AND CLEARANCE OF Your grill will get very hot. Never lean over the cooking GRILL area while using your grill. Do not touch cooking •  Never use your gas grill in a garage, porch, surfaces, grill housing, lid or any other grill parts while shed, breezeway or any other enclosed area.
  • Page 7 Safety Instruction Keep the area surrounding the grill free from Do not heat unopened food containers. A build-up of combustible materials including, fluids, trash, and pressure may cause the containers to burst. vapors such as gasoline or charcoal lighter fluid. Do not obstruct the flow of combustion and Use a covered hand when opening the grill lid.

  • Page 8: Package Contents

    Package Contents List A . Firebox assembly-1pc B. Left door -1pc C. Right door -1pc D. Left side panel -1pc E. Right side panel -1pc F. Bottom panel -1pc I. Cooking grid with hole G. Left side shelf -1pc H. Side burner -1pc -2pcs J.
  • Page 9 R. Side burner cooking Q. Door handle -2pcs grid -1pc P. Cart leg, rear right -1pc S. Side burner -1pc T. Wheels -2pcs U. Wheel caps -2pcs X. Grease pan support V. Grease cup-1pc Y. Flame tamer -5pcs bracket, left -1pc Y.

  • Page 10: Contents

    Hardware Contents Description Item Quantity Specification Screw 1/4"x 15mm Screw 5/32"x 10mm...

  • Page 11: View

    Explode View...

  • Page 12: Part List

    Warranty Warranty Part (Description) coverage Part (Description) coverage (year) (year) Main lid Side shelf, left Main lid screw Side shelf hooks Main lid screw cover Grease cup Temperature gauge Grease tray Grease tray support Main lid handle bracket, left Grease tray support Hood buffer A bracket, right Logo...
  • Page 13 Warranty Warranty Part (Description) coverage Part (Description) coverage (year) (year) Door pivot, upper Door pivot, bottom Door handle assembly Door, left...

  • Page 14: Assembly Instruction

    Assembly Instructions 1. Caster Assembly Mount the swivel caster onto the cart leg, front left (M), mount the swivel caster with brake onto the cart leg, rear left (N), then tighten it by wrench. Show in Fig. 1. Fig. 1 2.
  • Page 15 3. Bottom panel Assembly a). Loosen, but do not remove the screws that are pre-assembled on the side of the bottom panel (F), align the holes on the cart leg, front left (M) and cart leg, rear left (N), then place the cart legs onto the screws that were loosened in the bottom panel (F) as shown in Fig.
  • Page 16 6. Wheel Assembly a). Remove the nuts and washers which are pre- assembled on the short axle, place the wheels (T) on the Axle attached to the Cart leg, Front Right (O) and Cart Leg, Back Right (P),.As shown in Fig.7. b) Place washers and nuts to the axle and tighten the nuts.
  • Page 17 9.Grease pan support bracket Assembly a)  Attached Grease support bracket, left (X) to the Cart leg, front left (M ) and Cart leg, rear left (N )using two screws and tightened it , as how in fig 10. b)  Repeat step a) to attach Grease support bracket, right (Y) to the Cart leg, front right (O) and Cart leg, rear right (P)
  • Page 18 11. Firebox Assembly a). Remove the firebox assembly (A) from the carton and carefully place onto the grill cart. As shown in Fig. 13. CAUTION The firebox assembly is heavy and will require two or more people to lift and position onto grill cart. Failure to do so may result in injury.
  • Page 19 13. Side Burner Valve Installation a) Loosen the screws which pre-assemble on the side burner gas valve then attach to the bezel which pre-assembled on the control panel, fix with vertical gourd holes, then tighten the screws. As shown in Fig. 16. Fig.16 b) ...
  • Page 20 b). Then with two screws secure the side burner from underneath to the Side Burner Shelf (). As shown in Fig.19. C). Connect ignition wire from Firebox Assembly (H) control panel to the side burner igniter pin from underneath the Side Burner Shelf & Control Panel As Shown in Fig.19.
  • Page 21 16. Battery Assembly Unscrew the electronic igniter button and place the battery (AE) into the housing with the positive terminal (+) facing outward. Replace the ignition button after the battery has been installed as shown in Fig. 22. Fig.22 17. Flame Tamers, Cooking Grids Installation Place the flame tamers (Y), main cooking grids (I), and warming rack (K)&...
  • Page 22 18. Grease tray and Grease cup Assembly a)  Install the Grease Pan (J) from the rear of the grill by sliding the tray on the glides at the rear of the grill until centered under the cooking area. As shown in fig.26. b) ...

  • Page 23: Gas Hook -Up

    Gas Hook - Up NEVER CONNECT AN UNREGULATED GAS Regulator Connection SUPPLY LINE TO THE APPLIANCE. USE THE REGULATOR/HOSE ASSEMBLY SUPPLIED. This is a LP gas configured grill. Do not attempt to use a natural gas supply, the grill has not been approved for natural gas use.
  • Page 24 Installer Final Check List ü  Minimum clearance from sides and back of unit USER, PLEASE RETAIN THIS MANUAL FOR to combustible construction, 24 inches (61cm) FUTURE REFERENCE. from sides and 24 inches (61cm) from back LP GAS CYLINDER CAUTIONS ü  All internal packaging removed. a) Do Not store a spare LP gas cylinder under or ü ...

  • Page 25: Leak Testing

    Leak Testing continued CAUTIONS Place dust cap on cylinder valve outlet when the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of LP gas .

  • Page 26: Operating Instructions

    Operating Instructions GENERAL USE OF THE GRILL NOTE: The hot grill sears the food, sealing in the juices. The more thoroughly the grill is preheated, the faster Each main burner is rated at 12,000 Btu/hr. The main the meat browns and the darker the grill marks. grill burners encompass the entire cooking area and are side ported to minimize blockage from falling DO NOT LEAVE THE GRILL UNATTENDED WHILE...

  • Page 27: Lighting Instruction

    Grill Lighting Instructions continued FLAME CHARACTERISTICS Visually check the burner flames prior to each use, The flames should look like this picture, if Check for proper burner flame characteristics. they do not, refer to the burner maintenance Burner flames should be blue and stable with no yellow part of this manual.
  • Page 28 Lighting Instructions continued Match light 1.  If the burner will not light after several attempts then the burner can be match lit, before using the match allow 5 minutes for any accumulated gas to dissipate. 2.  Clip a paper match on one end of the lighting rod. 3. ...

  • Page 29: Care And Maintenance

    Care and Maintenance STAINLESS STEEL Warning: If you wish to replace main burner, we There are many different stainless steel cleaners available. strongly recommend that you hire a Always use the mildest cleaning procedure first, scrubbing in professionally trained technician to replace it. the direction of the grain.

  • Page 30: Trouble Shooting

    Trouble Shooting SPIDER AND INSECT WARNING Checking and cleaning burner/ venture tubes for insects and insect nests. A clogged tube can lead to a fire beneath the grill. Spiders and small insects occasionally spin webs or make nests in the grill burner tubes during transit and warehousing. These webs can lead to gas flow obstruction which could result in a fire in and around burner tubes.
  • Page 31 Trouble Shooting continued PROBLEM SOLUTION When attempting to light my grill, it will Make sure you have a spark while you are trying to light the burner (if no spark) not light immediately. Ensure that the wire is connected to the electrode assembly. Clean wire (s) and / or electrode with rubbing alcohol and a clean swab.

  • Page 32: Grill Cooking Chart

    Grill Cooking Chart WARNING:   T o   e nsure   t hat   i t   i s   s afe   t o   e at,   f ood   m ust   b e   cooked   t o   t he   m inimum   i nternal   l isted   i n   t he   t able   b elow.   USDA*  ...

  • Page 33: Limited Warranty

    Limited Warranty This grill has a one (1) year limited warranty. The warranty period is valid from the date of purchase. This is subject to correct assembly, use, storage and regular maintenance of the product. Please refer to page 10 of this manual for list of replacement parts. Please Note: the main burner has a warranty of three (3) years.
  • Page 34 Blaze 500 Maxim PATIO GAS BRAAI FOR OUTDOOR USE ONLY WARNING Read and follow all Safety, Assembly, and Use & Care Instructions in this guide before assembling and cooking with this grill. Failure to follow all instructions in this Use & Care Guide may lead to fire or explosion, which could result in property damage, personal injury or death.
