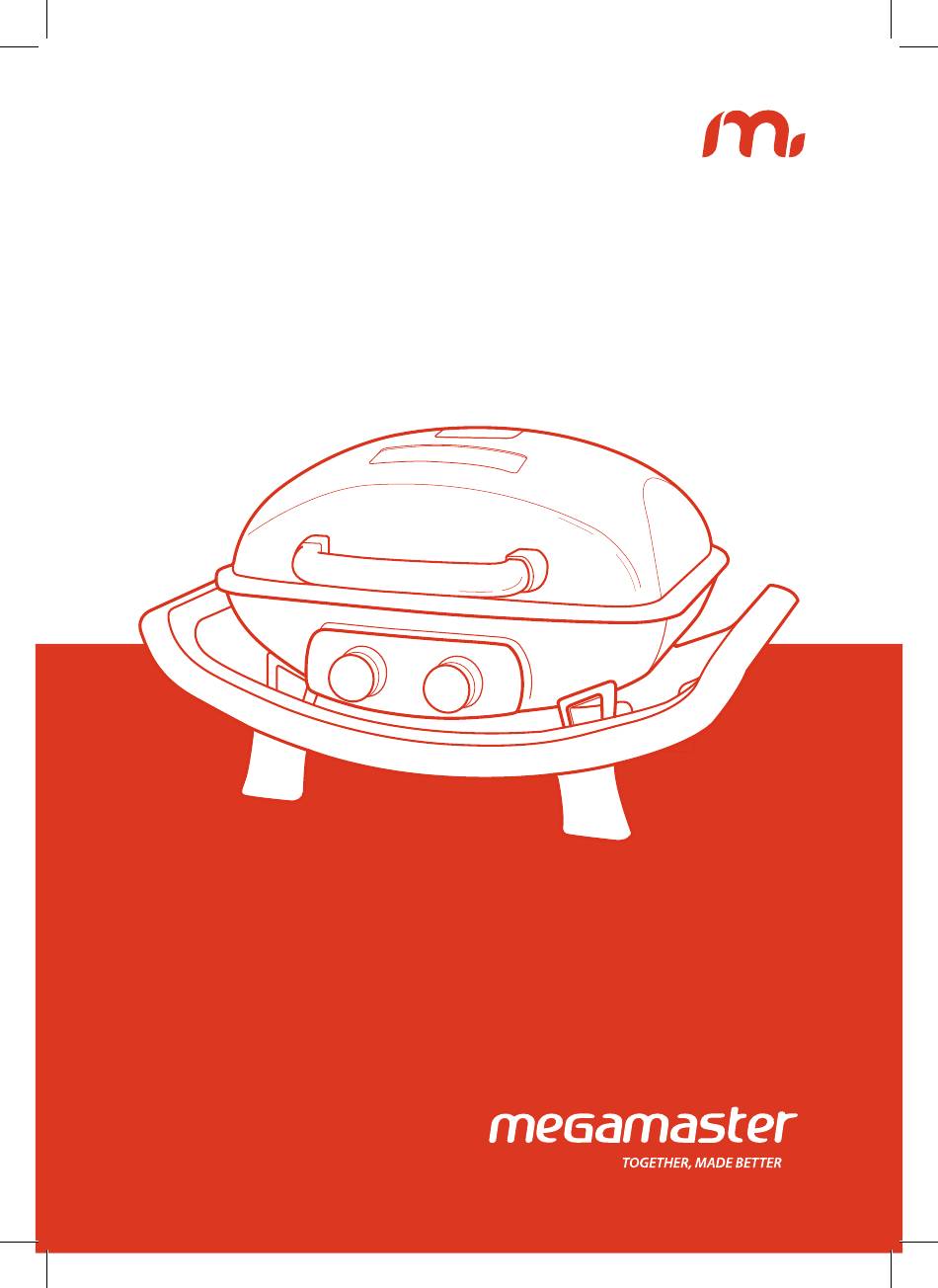

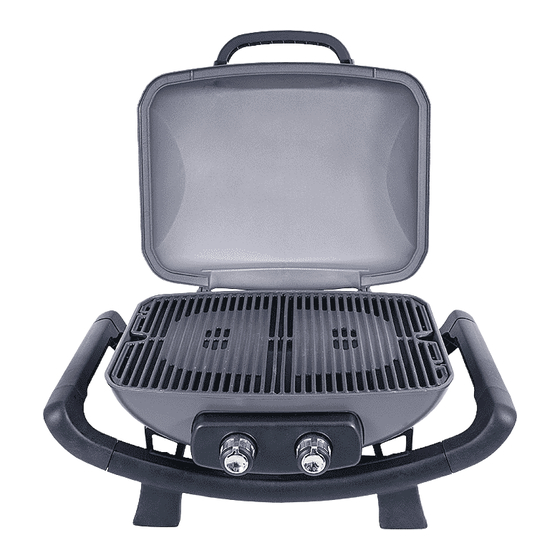

- Page 1 200 FUSION TABLE TOP BRAAI ASSEMBLY & OPERATING INSTRUCTIONS...
- Page 2 THE BOTTOM DRAWER, BUT THAT’S NOT WHERE IT BELONGS We get it. You’ve just unboxed your Megamaster 200 Fusion Table Top Braai and you can’t wait to fire it up. Those steaks, fish, vegetables and everything else you could possibly imagine certainly aren’t going to braai themselves.
-
Page 3: Table Of Contents
TOGETHER, MADE BETTER At Megamaster, we understand that the warmth of the flames is really the warmth of human connection. And that the more we kindle it, the brighter it burns. Times may change. Technology may come or go. But there will always be one real and meaningful place for us to gather. For hugs. For smiles. - Page 4 SAFETY FIRST, LAST & EVERYWHERE IN BETWEEN IF YOU SMELL GAS Shut o gas to the appliance Extinguish any open flame Open lid If odour continues, keep away from the appliance and immediately call your gas supplier or your fire department. •...
-
Page 5: Safety Instructions
SAFETY FIRST, LAST & EVERYWHERE IN BETWEEN WARNING Please read the following instructions carefully before attempting to assemble, operate or install the product. Failure to follow these instructions may result in serious bodily injury and/or property damage. If you have questions regarding the product please call customer service at (+27) 12 802 1515. - Page 6 SAFETY FIRST, LAST & EVERYWHERE IN BETWEEN WARNING Keep any electrical supply cord and the fuel supply hose away from any heated surfaces PLEASE NOTE The normal flow of gas through the regulator and hose assembly can create a humming noise. A low volume of noise is perfectly normal and will not interfere with operation of the grill.
- Page 7 SAFETY FIRST, LAST & EVERYWHERE IN BETWEEN LP Gas Supply System • If the information is not followed exactly, a fire resulting • LP gas cylinder must be stored outdoors in a in death or serious injury could occur. well-ventilated area and out of reach of children. Disconnected LP gas cylinders must not be stored in a A 9kg cylinder of approximately 30cm in diameter by building, garage or any other enclosed area.
- Page 8 SAFETY FIRST, LAST & EVERYWHERE IN BETWEEN PROPER PLACEMENT & CLEARANCE OF GRILL • Never use your gas grill in a garage, porch, shed, breezeway or any other enclosed area. Your gas grill is to be used outdoors only. Do Not install this unit into combustible enclosures. Minimum clearance from sides and back of unit to combustible construction, 24 inches (61cm) from sides and 24 inches (61cm) from back.
- Page 9 SAFETY FIRST, LAST & EVERYWHERE IN BETWEEN Use a covered hand when opening the grill lid. Never lean over an open grill. When lighting a burner, pay close attention to what you are doing. Make certain you are aware of which burner you are lighting, so your body and clothing remain clear of open flames.
- Page 10 The LP gas cylinder shall be used only outdoors in a well-ventilated space and not in a building, garage, or any other enclosed area. The Megamaster Table Top Grill may be stored indoors if the LP gas cylinder is removed and stored outdoors. The LP gas cylinder (not included) is threaded for connection directly to the gas regulator supplied with this appliance.
- Page 11 Contact customer service for replacement parts. • Your Megamaster Table Top Grill is pre-assembled. The only assembly required is to connect the foldable legs and place the flame tamers, cooking grid and control knobs into the grill.
- Page 12 We feel much better knowing you’re safer for having taken the time to go through that first section thoroughly. Now, let’s get on with putting your megamaster grill together so you can unleash your inner kebab / pesto mushrooms / gourmet boerie roll rockstar!
- Page 13 Don’t try to put your 200 Fusion Table Top Braai together if there is anything missing. The smallest things can be really important.
-
Page 14: Package Contents List
HARDWARE CONTENTS REF # Description Specification Truss Head Skrew 1/4-20x 2-5” 4pcs Wing nut 3/16” -24 2pcs Flat washer 3/16” 2pcs Before beginning assembly, make sure all parts are present. Compare parts with package contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product. Please contact customer service for replacement parts. -
Page 15: Component View
COMPONENT VIEW... - Page 16 COMPONENT LIST & WARRANTIES Warrenty Part (Description) (Year) Temperature gauge Main Lid Main Lid Screw Main Lid Handle Cooking Grid Main Burner Left Main Burner Left Main Burner Ignitor wire Firebox replaceable Firebox bracket, right Firebox bracket, left Heat insulator A Heat insulator B Front ba e Main Gas valve...
-
Page 17: Part List
Grab a truss screwdriver (not included) Blast your favourite album in the background Pour yourself something cold to sip on Invite some friends over. It won’t be long before your Megamaster is ready to start making your good times even better! -
Page 18: Assembly Instructions
PUTTING IT ALL TOGETHER... - Page 19 PUTTING IT ALL TOGETHER...
- Page 20 PUTTING IT ALL TOGETHER...
- Page 21 GREAT JOB! You nailed it, and got a light workout in the process. Almost time to do the happy dance. All that remains is to connect the gas and before you know it you’ll be cooking with, well, gas!
-
Page 22: Gas Hook-Up
GAS HOOK-UP NEVER CONNECT AN UNREGULATED GAS SUPPLY LINE TO THE APPLIANCE. USE THE REGULATOR/HOSE ASSEMBLY SUPPLIED. This is a LP gas configured grill. Do not attempt to use a natural gas supply, the grill has not been approved for natural gas use. Total gas consumption (per hour) with all burners set on “HIGH”: Main Burner: 13000 BTU/Hr. -
Page 23: Leak Testing
LEAK TESTING GENERAL Although all gas connections on the grill are leak tested at the factory prior to shipment, a complete gas tightness check must be performed at the installation site due to possible mishandling in shipment, or excessive pressure unknowingly being applied to the unit. Periodically check the whole system for leaks following the procedures listed below. -
Page 24: Installer Final Check List
INSTALLER FINAL CHECK LIST Minimum clearance from sides and back of unit to combustible construction, 24 inches (61cm) from sides and 24 inches (61cm) from back. All internal packaging removed. Knobs turn freely. Burners are tight and sitting properly on orifices. Pressure regulator connected and set. -
Page 25: Operating Instructions
OPERATING INSTRUCTIONS WARNING Do not store spare LP Gas cylinders under or near this appliance. Never fill the cylinder beyond 80 percent capacity. If the information in item 1&2 is not followed exactly, a fire causing death or serious injury may occur. OPERATING INSTRUCTIONS LIGHTING THE GRILL Place the legs in up position. -
Page 26: Grill & Lighting Instructions
GRILL & LIGHTING INSTRUCTIONS WARNING: IMPORTANT BEFORE LIGHTING! Inspect the gas supply hose prior to turning the gas “ON”. If there is evidence of cuts, wear, or abrasion, it must be replaced prior to use. Do not use the grill if the odor of gas is present. Do not use any other hose connection other than the regulator hose assembly that came with the unit. -
Page 27: Grill Cooking Chart
GRILL COOKING CHART WARNING: To ensure that it is safe to eat, food must be cooked to the minimum internal listed on the table below: USDA* Safe Minimum Internal Temperatures Fish 65˚C Pork 70˚C Egg Dishes 70˚C Steak & Roasts of Beef, Veal or Lamb 65˚C Ground Beef, Veal or Lamb 70˚C... -
Page 28: Trouble Shooting
TROUBLE SHOOTING SPIDER AND INSECT WARNING Checking and cleaning burner/ venture tubes for insects and insect nests. A clogged tube can lead to a fire beneath the grill. Spiders and small insects occasionally spin webs or make nests in the grill burner tubes during transit and warehousing. - Page 29 TROUBLE SHOOTING CAUTION: Should a grease fire occur, close gas supply at source, turn o all burners and leave lid closed until fire is out. CAUTION: DO NOT attempt to disconnect any gas fitting while your grill is in operation. As with all appliances, proper care and maintenance will keep appliances in top operating condition and will prolong the life of the appliance.
- Page 30 LOOK AFTER YOUR MEGAMASTER GRILL AND IT WILL LOOK AFTER YOU. The best friendships are made better when you spend quality time together. Make it a lasting friendship by making the e ort to follow our Care and Maintenance guide.
-
Page 31: Care And Maintenance
CARE & MAINTENANCE STAINLESS STEEL There are many di erent stainless steel cleaners available. Always use the mildest cleaning procedure first, scrubbing in the direction of the grain. Specks of grease can gather on the surfaces of the stainless steel and bake on to the surface and give the appearance of rust. For removal use a mild abrasive pad in conjunction with a stainless steel cleaner. - Page 32 CARE & MAINTENANCE GREASE TRAY CLEANING The grease tray should be emptied and wiped down periodically and washed with a mild detergent and warm water solution. A small amount of sand may be placed in bottom of grease tray to absorb the grease.
-
Page 33: Limited Warranty
Failure to follow all instructions in this Use & Care Guide may lead to fire or explosion, which could result in property damage, personal injury or death. 200 Fusion Table Top Braai FOR OUTDOOR USE ONLY... - Page 34 THANK YOU. YOU ARE NOW A MEGAMASTER MANUAL PRO. Get out there and enjoy making your braaing experience even better. For great inspiration and recipes to use on your grill, check out the recipe pages on our website www.megamaster.com Finally, don’t forget to keep this manual in a safe place for future reference.
- Page 35 MAKE YOUR EXPERIENCE To register your product, simply visit www.megamaster.co.za Once done, you’ll enjoy access to benefits that will make your experience with Megamaster and its incredible range of products even better.
- Page 36 200 FUSION TABLE TOP BRAAI ASSEMBLY & OPERATING INSTRUCTIONS...
