3.3.1 Configuration
The interface marking is indicated in bold and between brackets.
All the connectors are located on the rear panel:
•
1 SHDSL access port (RJ45) (SHDSL),
•
1 Configuration port and debug (RJ45) (CONSOLE),
•
1 LAN access port 100Base-T (RJ45) (ETHERNET 1/0),
•
4 FastEthernet switch ports (RJ45) (SWITCH E3-0/3 to E0-0/0),
•
Input for the external power supply connector (DC input jack, 12V-1.7A),
•
2 connectors for WLAN antenna.

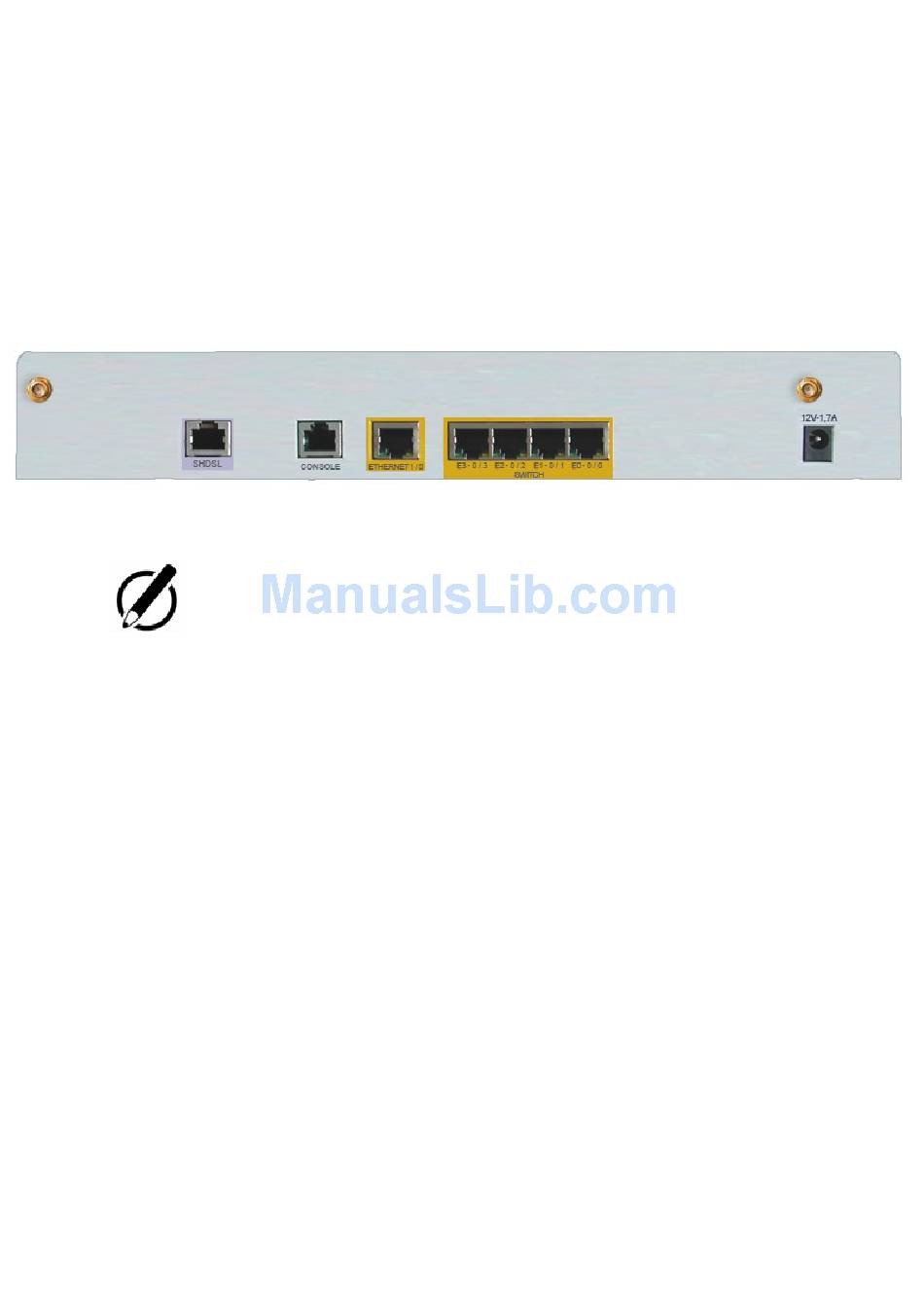

Figure 2. Rear panel
Depending of the ordered configuration of the system, the rear panel may
change.
