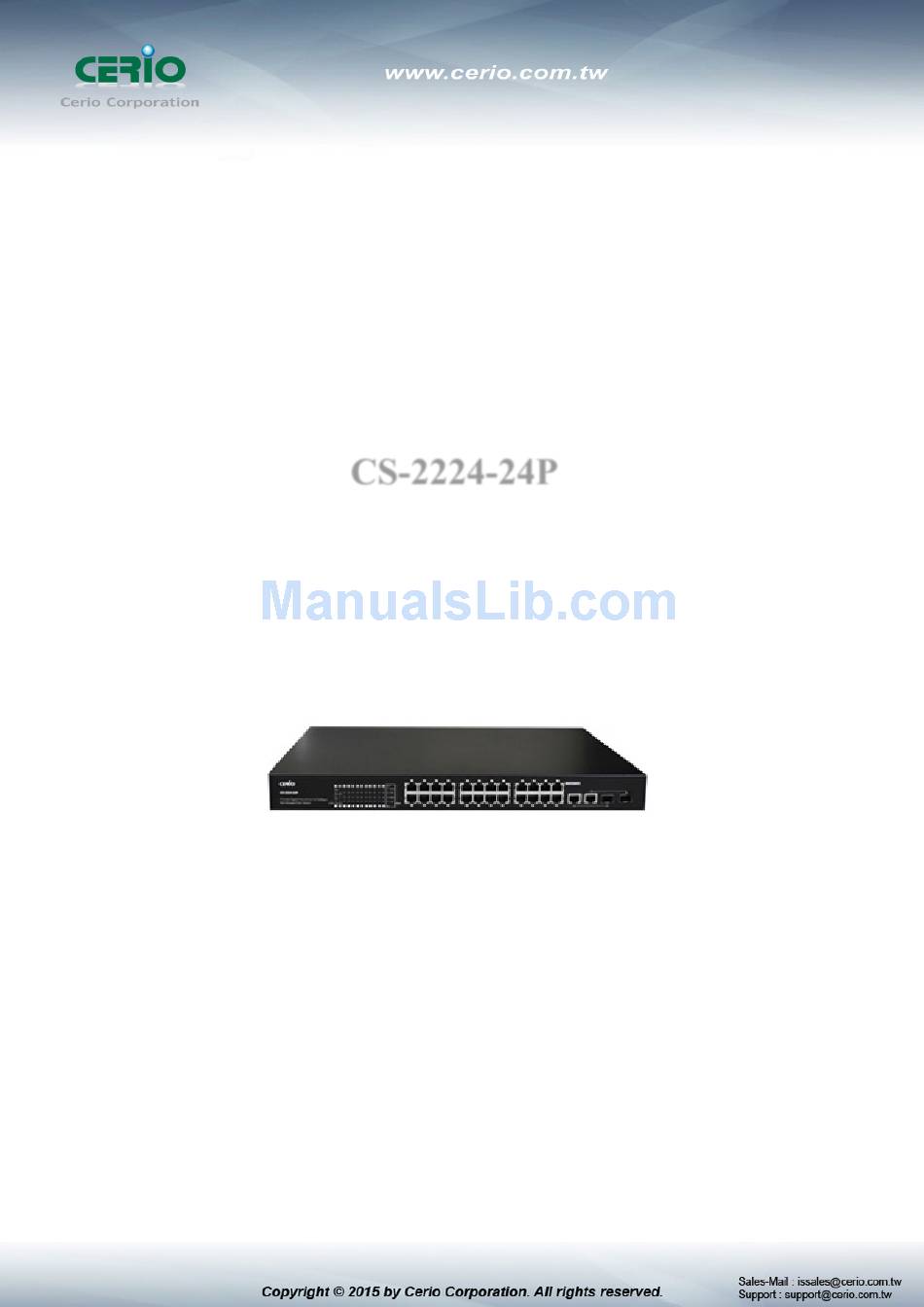

- Page 1 CERIO Corporation CS-2224-24P PoE CS-2000 Series 2 Combo Gigabit + 24 port 10/100Mbps Web Managed PoE+ Switch User’s Manual...
- Page 2 FCC Warning This device has been tested and found to comply with limits for a Class A digital device, pursuant to Part 2 and 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiates radio frequency energy and, if not installed and used in accordance with the user’s manual, may cause interference in which case user will be required to correct the interference at his own expense.
-
Page 3: Table Of Contents
Introduction ............................5 Feature ............................5 Package Contents ........................6 Front Panel ..........................7 Rear Panel Layout ........................8 Connections ..........................8 Software Configuration ........................9 Example of Segment: (Windows 7) ....................9 System login username and password information ............. 13 Management ............................ - Page 4 11. DHCP Relay Agent ........................... 45 11.1 DHCP Relay Agent ......................... 45 11.2 Relay Server ..........................46 11.3 VLAN MAP Relay Agent ......................47 12. Backup/Recovery ..........................48 13. Other Setting ............................. 49 14. Logout ..............................51 Specifications ............................. 52...
-
Page 5: Introduction
1. Introduction The CERIO CS-2224-24P Web Managed is a powerful high-performance 24 port POE Fast Ethernet switch and support 2 combo Gigabit UTP/SFP uplink ports. The models compliant to POE IEEE 802.3af, it defines new green power saving idea on PSE Port. That can solve the limitation of the power outlet location and offer the system relocation easily. -
Page 6: Package Contents
Automatic Source MAC Address Learning and Aging Supports up to 4K MAC addresses Up to 3.5M bits buffer VLAN and IEEE802.1Q tag-base VLAN based on ports & VIDs; add/remove/modify tag IEEE802.3ad Link Aggregation Port trunking(up to 3 groups and Max. 4 ports in each group) ... -
Page 7: Front Panel
1.3 Front Panel LED Indicators of 24 Port 10/100Mps + 2 giga Switch 1) Power LED the color is Yellow 2) 24 Port PoE and Ethernet Link/ACT LED, Port is linked to Power Device the PoE Lights up LED, Port is data linked the Link/ACT Lights up LED, The Link / ACT Flashing represent 10/100Mbps for data activating 3) 2 Port Giga linked LED, Port is linked to Giga Device the Speed Lights up LED. -
Page 8: Rear Panel Layout
1.4 Rear Panel Layout 1) AC input (100-240V/AC, 50-60Hz) UL Safety) 2) Two radiator fan 1.5 Connections Switch/Hub to this 8 Port with 8 Port Fast Ethernet PoE Switch This switch provides automatic crossover detection functionality for any port. It is simple and friendly to up-link to another switch without crossover cable. -
Page 9: Software Configuration
Fast Ethernet PC/Other devices to this 24 Port PoE Switch Via a twisted pair cable straight through, this switch can be connected to PCs, servers and other network devices. Power Device to this 24 Port with 24 Port Fast Ethernet PoE Switch and getting 48V power source through Cat. - Page 10 Step 2 : In the Network and Sharing Center page, Please click on the left side of “Change adapter setting” button Step 3 : In “Change adapter setting” Page. Please find Local LAN and Click the right button on the mouse and Click “Properties”...
- Page 11 Step 4 : In “Properties” page, please Click “Properties” button to TCP/IP setting Step 5 : In Properties page to setting IP address, please find “Internet Protocol Version 4 (TCP/IPv4)” and double click or click “Install” button. Double click...
- Page 12 Step 6 : Select “Use the following IP address”, and fix in IP Address : 192.168.2.X ex. The X is any number by 1 to 253 Subnet mask : 255.255.255.0 And Click "OK" to complete the fixed computer IP setting Step 7 : Open Web Browser Without a valid certificate, users may encounter the following problem in IE7 when they try to...
-
Page 13: System Login Username And Password Information
2.1 System login username and password information The CS-2224-24P web switch default IP is 192.168.2.200 Into the management page as follows, please enter Username and password Default IP Address: 192.168.2.200 Default Username and Password Management Account Root Account Username root Password... -
Page 14: Management
3. Management Authentication Configuration This page allows the user to change the user name and the password. Please click Management setup Authentication Configuration Login as administrator user is root and the password is allowed to change its own password. Username : Management account is “root”... -
Page 15: System Ip Configuration
Check New Password Enter the same new password again to check. Click “Save” button to save your changes. Click Reboot button to activate your changes 3.2 System IP Configuration Here are the instructions for how to setup the local IP Address and Netmask. Please click Management setup ... -
Page 16: System Status
IP Netmask : The Subnet mask of the system; default Netmask is 255.255.255.0 Gateway : Configure the network gateway address IP Configure : The administrator can manually setup the system IP address when static IP is available/ preferred. Dynamic IP: This configuration type is applicable when the CS-2224-24P is ... -
Page 17: Reset To Default
MAC Address: MAC address of the display system Number of Ports: Display CS-2224-24P the Ethernet posts information Description: Provide description of the system. Firmware version: Show currently the CS-2224-24P of system software version and software date Set login Time out: set Idle Time(1~30 Minutes) ... - Page 18 Click Default button to reset back to the factory default settings and expect Successful loading message. Then, click Reboot button to activate. Recover switch default setting excluding the IP address, User name and Password.
-
Page 19: Firmware Update
3.5 Firmware Update Firmware is the main software image that system needs to respond to requests and to manage real time operations. Firmware upgrades are sometimes required to include new features or bugs fix. It takes around 2 minutes to upgrade due to complexity of firmware. To upgrade system firmware, click Browse button to locate the new firmware, and then click Upgrade button to upgrade. -
Page 20: Reboot Device
3.6 Reboot Device This function allows user to restart system with existing or most current settings when changes are made. Click Reboot button to proceed and take around one minute to complete. Please click Management setup Reboot Device... -
Page 21: Port Management
4. Port Management 4.1 Port Configuration Please click Port Management Port Configuration Function: Tx Cap Ability: enable/disable for the selected port. Auto-Negotiation: enable/disable Auto-Negotiation. Speed: 10M, 100M or 1000M mode for the selected port. Duplex: Full or Half-Duplex mode for the selected port. ... -
Page 22: Port Mirroring
4.2 Port Mirroring Port Mirroring is used to mirror traffic, RX, TX or TX&RX, from Source port to Destination port for analysis. Please click Port Management Port Mirroring Destination port: you can choose port 1 to port 26. ... -
Page 23: Bandwidth Control
4.3 Bandwidth Control If the link speed of selected port is lower than the rate that you setting, this system will use the value of link speed as your setting rate. Please click Port Management Bandwidth Control Port No.: you can choose port 1 to port 26. ... -
Page 24: Broadcast Storm Control
(Actual Tx/Rx bandwidth=Rate value x 256 Kbps, The rate value is 1~255.) 2) The bandwidth resolution is 2048Kbps for port 25, port 26. (Actual Tx/Rx bandwidth=Rate value x 2048 Kbps, The rate value is 1~255.) Click “Save” to save the setting. 4.4 Broadcast Storm Control This value indicates the number of broadcast packet which is allowed to enter each port in one time unit. -
Page 25: Poe
4.5 PoE Remote access and monitor the attached PD (Powered Device) status by using Enable/Disable function. Please click Port Management PoE Configuration Enable: POE of the port is able to supply power to the attached PD (Powered Device) ... -
Page 26: Vlan Setting
5. VLAN Setting 5.1 VLAN Mode There are two VLAN modes: Port Based VLAN and Tag Based VLAN. Please click VLAN Setting VLAN mode Click “Change VLAN mode” button to select the mode. Click “Next” Enter the settings page. - Page 27 It supports three types of insertion/removal of tags in packet on assigned VLAN Group. Tag: Insert port's tag for egress packets. No Change: Don’t change for egress packets. UnTag: Remove port's tag for egress packets. 1. Link partner is a network interface card; it probably cannot recognize the VLAN tag.
-
Page 28: Vlan Member Setting (Tag Based)
5.2 VLAN Member Setting (Tag Based) You can select a port group. Please click VLAN Setting VLAN Member... - Page 29 VID: Enter a VID, select the VLAN member for this entry and then press this button to add a VLAN entry to the table. Delete: Select a VID in the table and then press this button to remove a VID entry from the ...
-
Page 30: Multi To 1 Setting
5.3 Multi to 1 Setting This is a special design for easily setting the switch VLAN into “VLAN per Port“. Please click VLAN Setting Multi to 1 setting Destination Port No.: Choose a port of “Destination Port No”. Current Setting: Display currently set of Destination port No. -
Page 31: Per Port Counter
6. Per Port Counter You can read the transmitting and receiving packet of the connecting port. Please click Per Port Port Counter... -
Page 32: Qos Setting
Counter Mode Selection Transmit Packet & Receive Packet: Display 1 to 26 ports of Transmit Packet and Receive Packet information. Collision Count & Transmit Packet: Display 1 to 26 ports of Collision Count and Transmit Packet information. Drop Packet & Receive Packet: Display 1 to 26 ports of Drop Packet and Receive Packet ... - Page 33 There are three Priority Modes to select. First-in-First-Out: The first receiving packet will be firstly transmitted. All-High-before-Low: All packets will be assigned to either Q2 (high) piority queue or Q1 (low) priority queue. Weight-Round-Robin: set the ratio of the transmitting packet for the low priority to high ...
-
Page 34: Class Of Service
7.2 Class of Service You can set QoS mode of per port by different bases. Please click QoS Setting Port, 802.1p, IP/DS based As long as any of three COS schemes(802.1p,IP TOS/DS or Port Base) is mapped to "high", the data packet will be treated as the high priority. Enable is High Priority... -
Page 35: Class Of Service Configuration
7.3 Class of Service Configuration Please click QoS Setting TCP/UDP Port Based Base on different protocol, you can choose four different types of Class of Service for each TCP/UDP port number -First-in-First-out, Discard, High Priority or Law Priority to control the incoming packet. -
Page 36: Security
High: The incoming packet will be forwareded with the high priority. Low: The incoming packet will be forwareded with the Low priority. The mask defines which bit is ignored within the IP address bit 0 ~ bit 7. ... - Page 37 If you setting and enable the binding MAC address in access control list, The port only allow MAC address on the access control list. The single port you can setting three MAC address. MAC Address: Enter MAC address Select: Select Port to binding MAC address(you can select 1~26 port) ...
-
Page 38: Service Protocol Filter
8.2 Service Protocol Filter You can enable or disable this function of per port. Please click Security Service Protocol Filter Function: setting Disable / Enable the function. Port Filtering Rule: The outgoing packet with selected protocol will be either forwarded or ... - Page 39 "negative" means the selected protocol will be dropped and other protocols will be forwarded. "positive" means the selected protocol will be forwarded and other protocol will be dropped. Protocol: choose protocols which you want. Secure WAN Port: choose secure ports which you want. ...
-
Page 40: Spanning Tree
9. Spanning Tree Spanning Tree Protocol(STP) allows only one active path at a time between any two network devices (this prevents the loops) but establishes the redundant links as a backup if the initial link should fail. If STP costs change, or if one network segment in the STP becomes unreachable, the spanning tree algorithm reconfigures the spanning tree topology and reestablishes the link by activating the standby path. -
Page 41: Stp Port Setting
STP Mode: choose “Disable”, “STP” or “RSTP” Bridge Priority: Set the priority of the Bridge. Hello Time: Provides the time period between root bridge configuration messages. Max Age: Indicates when the current configuration message should be deleted. ... -
Page 42: Trunk
Priority: Setting 0~ 240 RPC: The RPC= Root Path Cost: 0 = AUTO. When the loop is found, the STP/RSTP will calculate the cost of its path. STP Port Status 10. Trunking (Link aggregation) Link aggregation can aggregate multiple Ethernet ports together to form a logical aggregation group. - Page 43 Please click Trunking Link Aggregation Setting There are two groups to choose and each group is 4 ports and the third group is for 2 ports. This standard describes the Link Aggregation Control Protocol (LACP), a mechanism for allowing ports on both sides of a redundant link to configure themselves into a trunk link (aggregate link), without the need for manual configuration of the ports into trunk groups.
- Page 44 Member: Choose link group port. State: Choose Enable / Disable the link group function. Type: The IEEE 802.3ad Link Aggregation Control Protocol (LACP) enables the dynamic aggregation of physical links and The Link Aggregation Control Protocol (LACP) is defined in IEEE 802.3ad.
-
Page 45: Dhcp Relay Agent
11. DHCP Relay Agent 11.1 DHCP Relay Agent Since DHCP clients request IP addresses via broadcast messages, the DHCP server and clients must be on the same subnet. Therefore, a DHCP server must be available on each subnet. It is not practical. DHCP relay agent solves the problem. -
Page 46: Relay Server
DHCP Relay Option 82 State: The DHCP Information option (Option 82) is commonly used in metro or large enterprise deployments to provide additional information on “physical attachment” of the client. Option 82 is supposed to be used in distributed DHCP server/relay environment, where relays insert additional information to identify the client’s point of attachment. -
Page 47: Vlan Map Relay Agent
Click “Save” to confirm and finish the setting. 11.3 VLAN MAP Relay Agent Please click DHCP Relay Agent VLAN MAP Relay Agent... -
Page 48: Backup/Recovery
VLAN ID: Please Enter VLAN 10 number. Map Server IP: If setting the completed of Relay Server function, The Map server IP you can select IP address. Click “Save” to confirm and finish the setting. 12. Backup/Recovery Please click Trunking Link Aggregation Setting... -
Page 49: Other Setting
Backup: Click “Download” to confirm the setting. Recovery: Selects a file and key in the password Click “Update” to confirm the setting. The Update password is by login password, the login default password is by “default” 13. Other Setting... - Page 50 The function you can setting Aging time / VLAN Striding / and IGMP Snooping etc. Please click Other Setting Output Queue Aging Time: Choose Aging time is 200/400/600/800ms or disable etc. The output queue aging function allows the administrator to select the aging time of a packet...
-
Page 51: Logout
stored in the output queue. A packet stored in the output queue for a long time will lower the free packet buffer, resulting in the poor utilization of the buffer and the poor switch performance. VLAN Striding: You can choose VLAN Striding disable or enable function. When this ... -
Page 52: Specifications
Specifications Standards & Hardware Specifications IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX Standards Conformance IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet ( 15.4 Watt PoE+ ) IEEE 802.3at Power over Ethernet Plus ( 30 Watt PoE+ ) 24 ports RJ-45 connectors for 10/100 BASE-TX and PSE/ PoE Port Configuration function... - Page 53 DHCP Relay Agent Supported VLAN IEEE802.1Q Tagging VLAN , Port-Based ,Tag based VLAN SNMP V1 / v2c supported Environmental & Mechanical Characteristics 380Watt share per Port PoE Device connected) for all ports . Power Consumption 15 Watt (max. with no PoE Device connected) AC 90~260VAC, 50-60Hz Auto-sensing Power Requirement Power Requirement...
