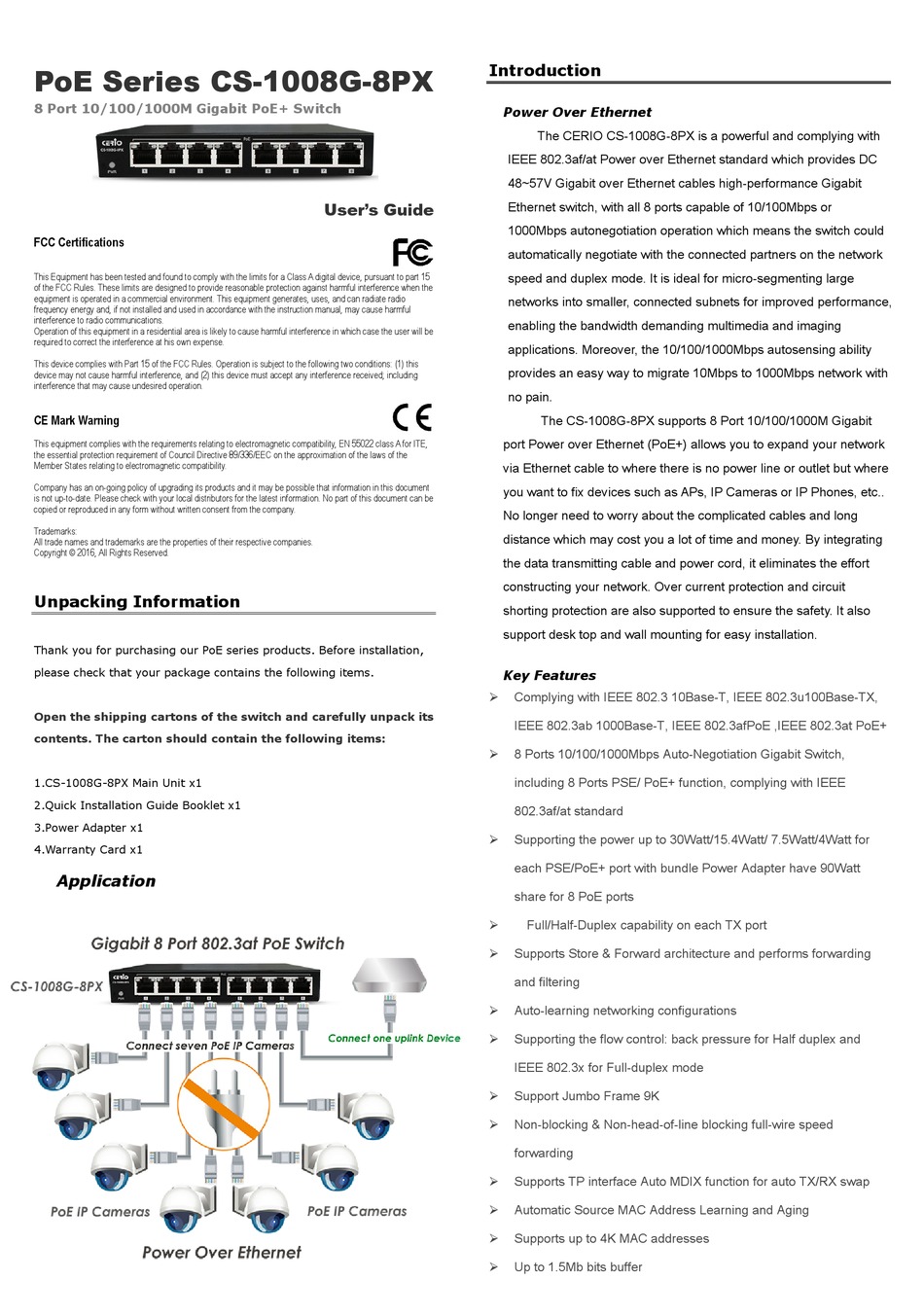

Cerio CS-1008G-8PX User Manual

PoE Series CS-1008G-8PX
8 Port 10/100/1000M Gigabit PoE+ Switch
FCC Certifications
This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received; including
interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class A for ITE,
the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the
Member States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be possible that information in this document
is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be
copied or reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2016, All Rights Reserved.
Unpacking Information
Thank you for purchasing our PoE series products. Before installation,
please check that your package contains the following items.
Open the shipping cartons of the switch and carefully unpack its
contents. The carton should contain the following items:
1.CS-1008G-8PX Main Unit x1
2.Quick Installation Guide Booklet x1
3.Power Adapter x1
4.Warranty Card x1
Application
Introduction
User's Guide













Power Over Ethernet
The CERIO CS-1008G-8PX is a powerful and complying with
IEEE 802.3af/at Power over Ethernet standard which provides DC
48~57V Gigabit over Ethernet cables high-performance Gigabit
Ethernet switch, with all 8 ports capable of 10/100Mbps or
1000Mbps autonegotiation operation which means the switch could
automatically negotiate with the connected partners on the network
speed and duplex mode. It is ideal for micro-segmenting large
networks into smaller, connected subnets for improved performance,
enabling the bandwidth demanding multimedia and imaging
applications. Moreover, the 10/100/1000Mbps autosensing ability
provides an easy way to migrate 10Mbps to 1000Mbps network with
no pain.
The CS-1008G-8PX supports 8 Port 10/100/1000M Gigabit
port Power over Ethernet (PoE+) allows you to expand your network
via Ethernet cable to where there is no power line or outlet but where
you want to fix devices such as APs, IP Cameras or IP Phones, etc..
No longer need to worry about the complicated cables and long
distance which may cost you a lot of time and money. By integrating
the data transmitting cable and power cord, it eliminates the effort
constructing your network. Over current protection and circuit
shorting protection are also supported to ensure the safety. It also
support desk top and wall mounting for easy installation.
Key Features
Complying with IEEE 802.3 10Base-T, IEEE 802.3u100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3afPoE ,IEEE 802.3at PoE+
8 Ports 10/100/1000Mbps Auto-Negotiation Gigabit Switch,
including 8 Ports PSE/ PoE+ function, complying with IEEE
802.3af/at standard
Supporting the power up to 30Watt/15.4Watt/ 7.5Watt/4Watt for
each PSE/PoE+ port with bundle Power Adapter have 90Watt
share for 8 PoE ports
Full/Half-Duplex capability on each TX port
Supports Store & Forward architecture and performs forwarding
and filtering
Auto-learning networking configurations
Supporting the flow control: back pressure for Half duplex and
IEEE 802.3x for Full-duplex mode
Support Jumbo Frame 9K
Non-blocking & Non-head-of-line blocking full-wire speed
forwarding
Supports TP interface Auto MDIX function for auto TX/RX swap
Automatic Source MAC Address Learning and Aging
Supports up to 4K MAC addresses
Up to 1.5Mb bits buffer
