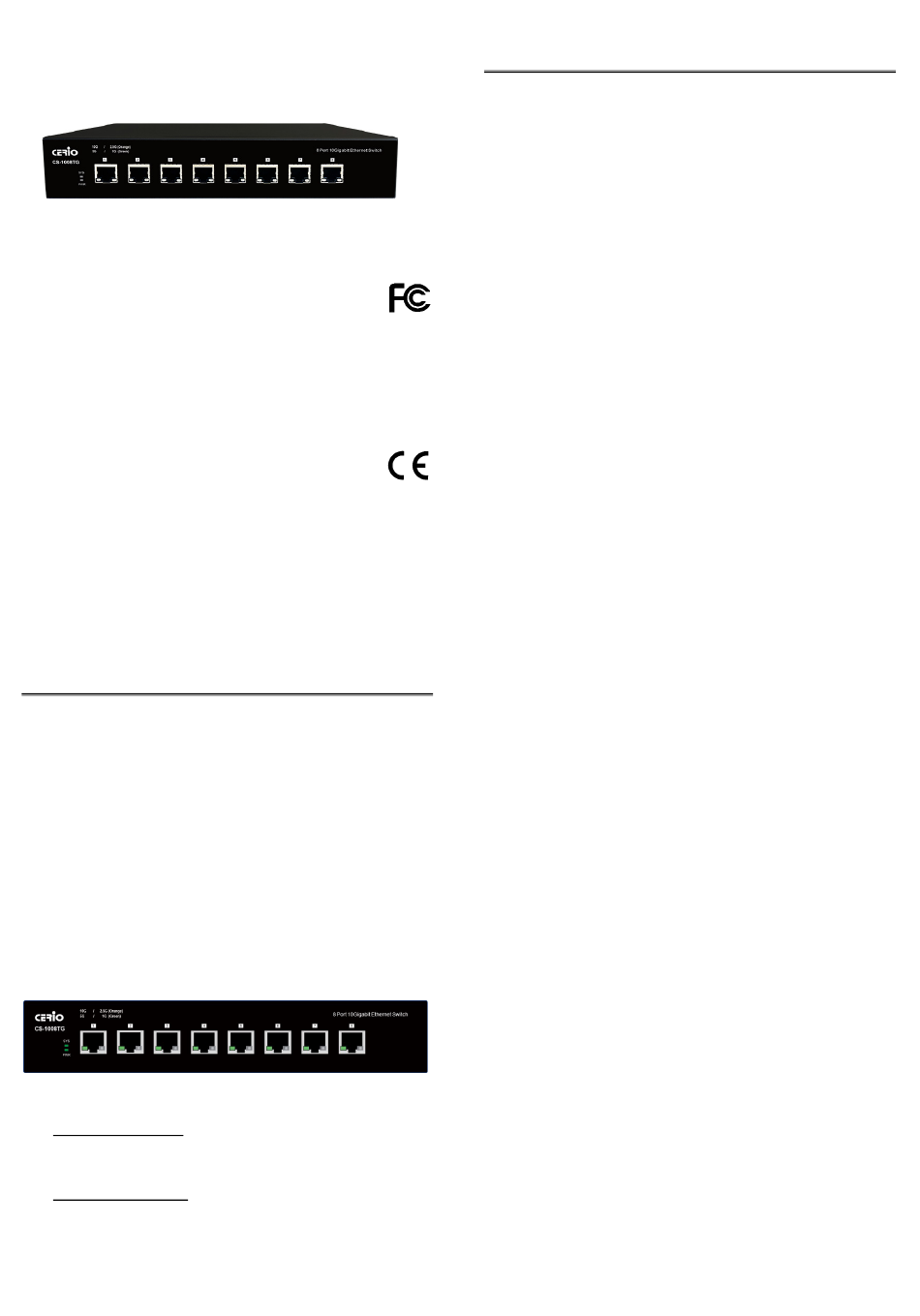

Cerio CS-1000 Series User Manual

CS-1000 Series CS-1008TG
8 Port 10Gigabit Ethernet Switch
FCC Certifications
This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received; including
interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class A for ITE,
the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the
Member States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be possible that information in this document
is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be
copied or reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2016, All Rights Reserved.
Unpacking Information
Thank you for purchasing our Switch products. Before installation,
please check that your package contains the following items.
Open the shipping cartons of the switch and carefully unpack its
contents. The carton should contain the following items:
1. CS-1008TG Main Unit x 1
2. Power Code x 1
3. User's Guide x 1
4. 19" Rack Mount Brackets x 1
5. Warranty Card x 1
Power Consumption
CS-1008TG
≤35 Watts
Dimension & Weight :
CS-1008TG 250 x181 x 44 mm /1.3Kg
Introduction
User's Guide
















CERIO CS-1008TG is a 10G high-performance Ethernet switch
that supports 8 Ethernet ports and is designed for high-bandwidth,
low-latency applications such as enterprises, small and medium
offices, workstations, local area networks and home entertainment.
CS-1008TG provides high-speed internal network connection for
small businesses or office environments to improve data
transmission efficiency and ensure smooth file access and sharing
between servers, NAS, and workstations. In addition, it can be
deployed in the distributed terminal area of a large network
architecture. CS-1008TG adopts plug-and-play design and supports
various network protocols, which makes installation of device easier
and faster. Each port has Auto MDI/MDIX function, can
automatically identify parallel lines and jumper connections to
ensure compatibility. The built-in Auto-Negotiation traffic modulation
technology can automatically detect connected devices and
intelligently adjust to 100M / 1G / 2.5G / 5G / 10Gbps operation
mode according to device specifications, ensuring optimal
performance.
The CS-1008TG adopts non-blocking and non-head-of-line
blocking full-line speed transmission technology to ensure smoother
and more efficient data packet transmission. CS-1008TG provides
maximum Internal Bus Speed of up to 160Gbps, greatly improving
network performance and transmission efficiency, making it an ideal
choice for optimizing enterprise network environments and
high-performance application.
Key Features
Complying with IEEE 802.3u100Base-TX, IEEE 802.3z
1000Base-X, IEEE 802.3bz 2.5G/5G BASE-T, IEEE 802.3an 10G
BASE-T standards.
8 Ports 100M/1G/2.5G/10G Auto-Negotiation
Supports 100M/1G/2.5G/5G/10G Ethernet connection ability.
Supports Surge Protection 6Kv and ESD Protection design.
Half/Full-duplex capability on each TX port Auto learning
networking configurations.
Provides 10K Jumbo frames to improve network utilization of a
large file transfers.
Supports Store & Forward architecture and performs forwarding
and filtering.
IEEE802.3x flow control for Full-duplex, Back Pressure function for
Half-duplex operation.
Non-blocking & Non-head-of-line blocking full-wire speed
forwarding.
Supports TP interface Auto MDIX function for auto TX/RX swap.
Automatic Source MAC Address Learning and Aging.
Supports hardware loop detector (LED Loop Detectors)
functionality. The system can quickly display LED differences for
any port that generates a loop, making the troubleshooting process
simple and easy to manage.
Hardware supports Loop Automatic Protection functionality, which
prevents broadcast storms and network paralysis caused by loops.
This feature automatically detects and isolates the port generating
the loop, ensuring that it does not affect other normal ports. Once
the loop issue is resolved, the system will automatically restore the
isolated security mechanism within 30 to 60 seconds.
Supports up to 16K MAC addresses and up to 12Mb buffer
memory.
Supports maximum Internal Bus Speed to 160Gbps.
Comes with a 19-inch rackmount kit, making it easy to deploy in
various network environments and ensuring stable and efficient
network connections.
Ethernet Switch.
v1.0
