Cerio CS-Series User Manual

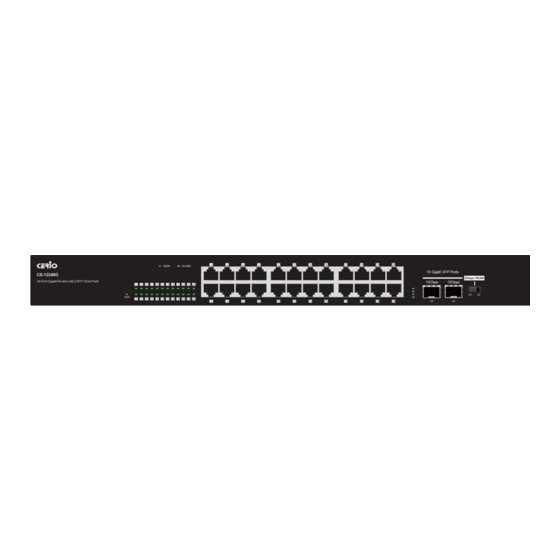

CS-Series CS-1224XG
24 Port 10/100/1000M Gigabit Switch with 2 SFP 10G
Ports
FCC Certifications
This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received; including
interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class A for ITE,
the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the
Member States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be possible that information in this
document is not up-to-date. Please check with your local distributors for the latest information. No part of this
document can be copied or reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2016, All Rights Reserved.

Unpacking Information

Thank you for purchasing our CS-Series products. Before installation,
please check that your package contains the following items.
Open the shipping cartons of the switch and carefully unpack its
contents. The carton should contain the following items:
1. CS-1224XG Main Unit x 1
2. Power Code x 1
3. User's Guide x 1
4. 19" Rack Mount Brackets x 1
5. Warranty Card x 1

Power Consumption

CS-1224XG
7.8 Watts
Dimension & Weight :
CS-1224XG 441 x190 x 44 mm (19 inch) /2.52Kg
User's Guide

Introduction

Gigabit with 10GbE Wired Switch
CERIO CS-1224XG is a high-performance 10/100/1000
Mbps 24 port Gigabit Ethernet Switch with 2 SFP 10G Ports. The
CS-1224XG connectivity is ideal for deployment in SME/SMB core
environments. Provide cost-effective powered solutions for modern
enterprise businesses.
The CS-1224XG Gigabit Switch equips with 2 SFP 10G ports
as uplink ports. This 10G uplink design provides an excellent
solution to expend your network. Also provides high flexibility and
enabling the bandwidth demanded for multimedia and imaging
applications. Users can use 10Gb ports Trunk Switch upgrade
bandwidth up to 20Gbps. Moreover, the 10/100/1000 Mbps
Auto-Sensing ability provides an easy way to migrate Gigabit
network without pain. By integrating both data transmitting cable
and power cord, the hassle of constructing your network can be
eliminated, allowing you to easily connect your wired LAN network.
The CS-1224XG defines new green power saving idea in all
Ports. Using the 802.3az Energy Efficient Ethernet standard, the
network will automatically decrease the power usage when traffic is
low with no setup required. It can solve the limitation of the network
local LAN and offer the system relocation easily Plug & play and all
kinds of network protocols compilation make the installation of the
device both simple and quick.

Key Features

 Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X , IEEE802.3az
specifications, IEEE802.3ae 10G Fiber
 24 Port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch
 Supports 2 SFP 10G Fiber uplink ports for IEEE 802.3ae 10G
SFP-SR,SFP-LR,SFP-ER
 Supports Energy-Efficient Ethernet (EEE) , IEEE 802.3az standard
 Supports Green Ethernet features, Link-On and Cable Length Power
Saving, Link-Down Power Saving, Power saving mode support to automatic
cable detection
 Half/Full-duplex capability on 10/100/1000M each TX port Auto-learning
networking configurations
 Supports Store & Forward architecture and performs forwarding and filtering
 IEEE802.3x flow control for Full-duplex, Back Pressure function for
Half-duplex operation
 Provides 10K Jumbo frames to improve network utilization of a large file
transfers
 Non-blocking & Non-head-of-line blocking full-wire speed forwarding
 Supports TP interface Auto MDIX function for auto TX/RX swap
 Automatic Source MAC Address Learning and Aging
 Supports up to 16K MAC addresses
 Up to 12M bits buffer
