Cerio CS-1216G-8P8T User Manual

PoE Series CS-1216G-8P8T
16Port 10/100/1000M Gigabit PoE++ ( 8 Port AT PoE +
8 Port BT PoE ) Switch with 2 SFP Ports
FCC Certifications
This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received; including
interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class A for ITE,
the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the
Member States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be possible that information in this document
is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be
copied or reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2016, All Rights Reserved.
Unpacking Information
Thank you for purchasing our PoE series products. Before installation,
please check that your package contains the following items.
Open the shipping cartons of the switch and carefully unpack its
contents. The carton should contain the following items:
1. CS-1216G-8P8T Main Unit x 1
2. Power Code x 1
3. User's Guide x 1
4. 19" Rack Mount Brackets x 1
5. Warranty Card x 1

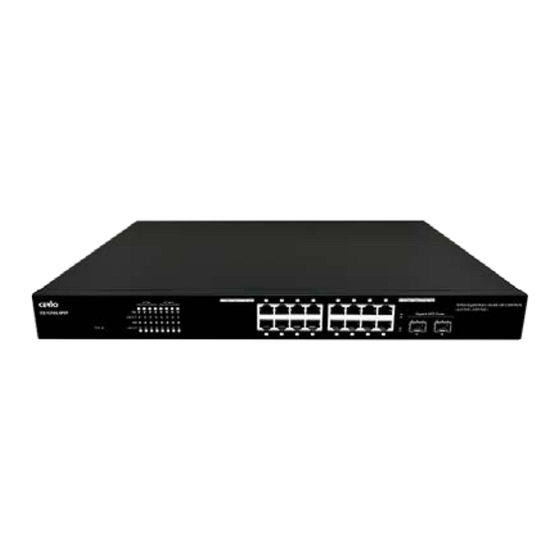

CS-1216G-8P8T
Power Consumption : 14.9 Watts
Dimension & Weight : 441 x 281 x 44 mm (19 inch) / 3.50kg
User's Guide
Introduction
The CERIO CS-1216G-8P8T
performance 16 port PoE Gigabit switch and supports 2 Gigabit SFP
uplink ports. It is including 8ports of AT PoE and 8ports of BT PoE and
compliant with IEEE 802.3bt, IEEE 802.3at and 802.3af PoE
standards. It defines new green power saving idea on the PoE/PSE
Port. It's built-in 450watt internal power supply. All 16 ports capable
of 10/100/1000Mbps auto-negotiation operation (NWay). This means
the switch could automatically negotiate with connected partners on
the network speed and duplex mode.
It is designed for SMB deployment and can also be upgraded to
1U" chassis for standard
micro-segmenting large network into smaller networks, connecting
subnets for improved performance, and enabling the bandwidth
demanded for multimedia and imaging applications.
The hardware utilizes a metal housing, making it a durable and
safety PoE solution for homes and businesses. By integrating the data
transmitting cable and power cord, it eliminates the hassle of
constructing your network. You could easily connect Wireless AP or
VoIP phone or IP Camera to this switch without looking for power
outlets. Over current protection and circuit shorting protection are
also supported to ensure product safety.
Key Features
Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

IEEE 802.3ab 1000Base-T, IEEE 802.3af PoE, IEEE 802.3at PoE+ and
IEEE 802.3bt PoE++ standards.
16port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch,

supports 16 Port Gigabit PSE / PoE function and compliant with IEEE
802.3af/at/bt PoE standards.
Supports 2 Gigabit SFP uplink ports and compliant with IEEE 802.3z

1000Base-SX/LX standards.
Supporting 8ports AT PoE power up to 30Watt and 8ports BT PoE

power up to 90Watt.
Built-in 450 Watt power supply, supports a maximum PoE output

budget of 400 Watt, shared for 16 ports of 10/100/1000M PoE ports.
Full/Half-Duplex capability

networking configurations.
Supports Store & Forward architecture and performs forwarding and

filtering.
Flow control: back pressure for Half-duplex and IEEE 802.3x for

Full-duplex mode.
Support Jumbo Frame 9K.

Non-blocking & Non-head-of-line

forwarding.
Supports TP interface Auto MDIX function for auto TX/RX swap.

Automatic Source MAC Address Learning and Aging. Supports up to

8K MAC addresses, Up to 4.1Mbits buffer.
Supports hardware LED Loop Detectors function, the system can

quickly display color differences of LED according to any connection
port where a loop occurs。
is the latest powerful
rack mounting. It is ideal
on each TX port, Auto
blocking full-wire
high
for
learning
speed
