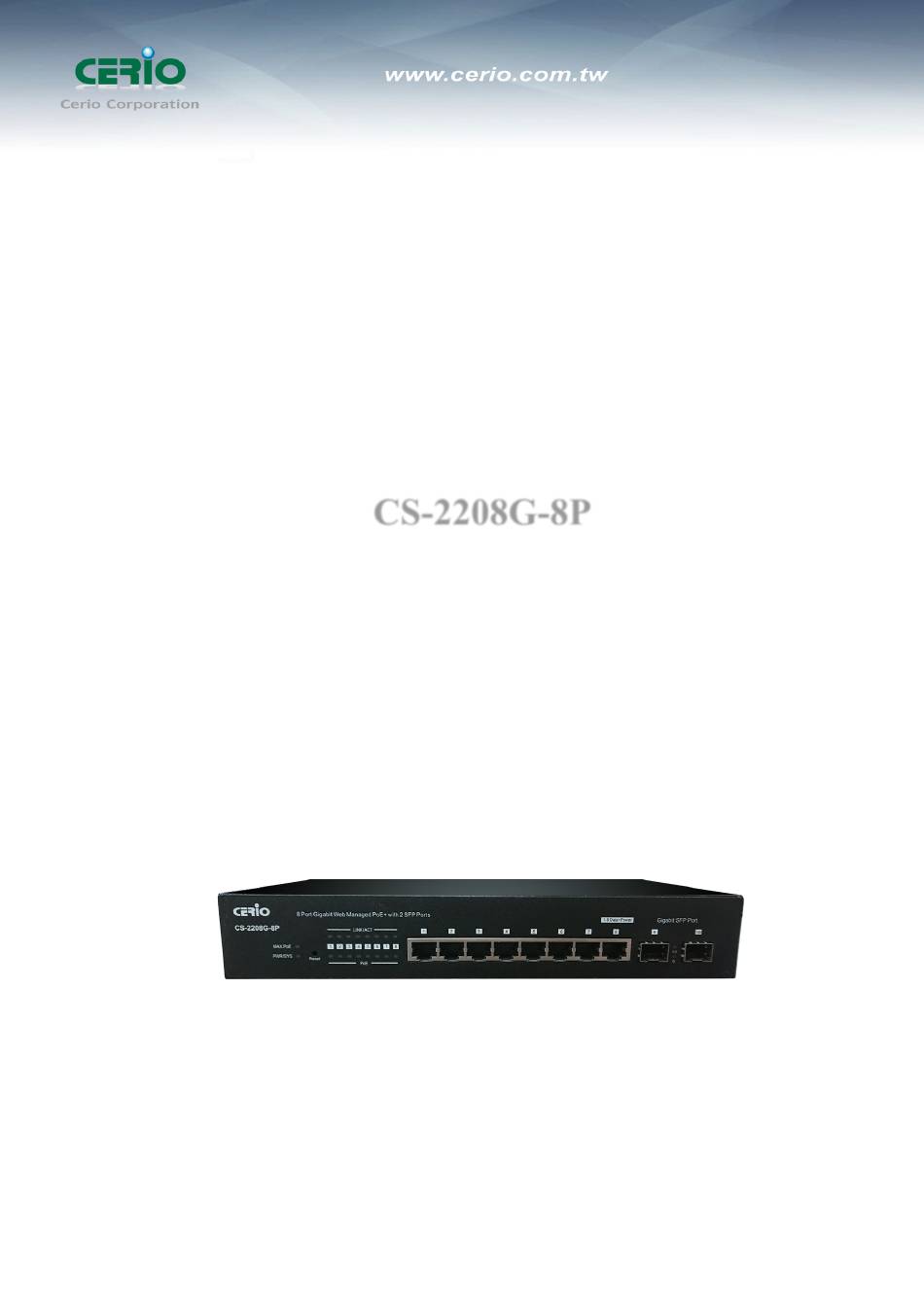

CERIO Corporation
CS-2208G-8P
PoE CS-2000 Series - 8 Port 10/100/1000M
Gigabit Web Managed PoE+ with 2 SFP Ports
( 160Watt Power )
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-2000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cerio CS-2000 Series

  • Page 1 CERIO Corporation CS-2208G-8P PoE CS-2000 Series - 8 Port 10/100/1000M Gigabit Web Managed PoE+ with 2 SFP Ports ( 160Watt Power ) User’s Manual...
  • Page 2 FCC Warning This device has been tested and found to comply with limits for a Class A digital device, pursuant to Part 2 and 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3: Table Of Contents

    Introduction ..........................4 Front Panel ........................4 Rear Panel Layout ......................4 Software Configuration ......................5 Example of Segment: (Windows 7) ................5 System login ........................9 Menu Function ..........................10 System ............................10 Management ..........................11 PoE .............................. 12 VLAN ............................
  • Page 4: Introduction

    1. Introduction 1.1 Front Panel 1) MAX PoE (budget expended) LED light. 2) Power and System status LED light. 3) Reset to default button. 4) 8 PoE Ports and Ethernet status LED light. 5) 8 Gigabit Ethernet Ports(RJ-45). 6) 2 Gigabit SFP Ports. 1.2 Rear Panel Layout ...
  • Page 5: Software Configuration

    2. Software Configuration CS-2208G-8P supports web-based configuration. Upon the completion of hardware installation, CS-2208G-8P can be configured through a PC/NB by using its web browser such as Internet Explorer 6.0 or later. Set the IP segment of the administrator's computer to be in the same range as CS-2208G-8P for accessing the system.
  • Page 6 Step 3 : In “Change adapter setting” Page, right click on Local LAN then select “Properties”...
  • Page 7 Step 4 : In the “Properties” page, click the “Properties” button to open TCP/IP setting Step 5 : In Properties page for setting IP addresses, find “Internet Protocol Version 4 (TCP/IPv4)” and double click to open TCP/IPv4 Properties window Double click...
  • Page 8 Step 6 : Select “Use the following IP address”, and fix in IP Address to: 192.168.2.X ex. The X is any number from 1 to 253 Subnet mask : 255.255.255.0 And Click "OK" to complete fixing the computer IP settings Step 7 : Open Web Browser Without a valid certificate, users may encounter the following problem in IE7 when they try...
  • Page 9: System Login

    2.2 System login The CS-2208G-8P web switch default IP is 192.168.2.200 Into the management page as follows, please enter Username and password Default IP Address: 192.168.2.200  Default Username and Password  Management Account Root Account User Name root Password default After Login page will display system information.
  • Page 10: Menu Function

    Menu Function 3. System The page administrator can monitor switch information and modify network IP / mask. Model Name: Display switch model name.  Device Name: Administrator can modify the system name.  Firmware Version: Display system firmware version.  Build Date: Display firmware release date.
  • Page 11: Management

    4. Management This page administrator can set system IP address and reboot the system or reset the system to default settings. Users can also backup or restore device settings, and also upgrade firmware from this page. System IP Setup Mode: ...
  • Page 12: Poe

    Backup system Profile: Administrator can click the button to backup system profile.  Firmware Upgrade Path: Display path for the firmware file.  Select firmware file: Administrator can click button to find the firmware file in the PC.  5. PoE PSE Status: The function can monitor PoE used power status / Module Temperature and PoE voltage status.
  • Page 13: Vlan

    6. VLAN The VLAN function administrator can set IEEE 802.1q Tag Based VLAN or Port Based VLAN. System default is tag based VLAN. PVID: Administrator can set Port tag VLAN ID  802.1Q VLAN: Administrator can set tag number for 802.1Q VLAN. ...
  • Page 14: Port Mirror

    MAC DA: Destination Address MAC SA: Source Address Layer2 Packet Frame : The following example Preamble Ether type Payload …….. Link Group Activity: Administrator can select active/passive of the Link Group  Activity. To properly use LACP, the two switches must have one switch enable “active”...
  • Page 15: Qos

    9. QoS Quality of Service (QoS) prioritizes network traffic and manages available bandwidth so that the most important traffic goes first. QoS is implemented as rules or policies that prioritize packets, optionally change information in the packet header, and assign them to outbound port queues based on their priority.
  • Page 16 Queue0 is Low Priority, Queue3 is High Priority. IEEE 802.1q QoS Administrator can set Queue (weight) QoS by Tag VLAN. Administrator can select WFQ or Strict Priority type. Queue0 is Low Priority, Queue3 is High Priority.
  • Page 17: Storm Control

    10. Storm Control Administrator can setup storm control of Broadcast / Multicast / Unicast. 11. Rate Limiting The rate limiting function can be configured to limit the rate of traffic received on a particular interface. Administrator can select Port: Display Port list. ...
  • Page 18: Loop Detection / Prevention

    12. Loop Detection / Prevention Loop detection / Prevention can be used in a network topology to prevent or detect Layer 2 loops that occur due to misconfigurations. When occur a loop, Administrator can go to user manual “System” (section 3.) to monitor loop status, and tick off Loop Unlock for desired ports.
  • Page 19: Igmp Snooping

    13. IGMP Snooping IGMP snooping is the process of listening to Internet Group Management Protocol (IGMP) network traffic. The feature allows a network switch to listen in on the IGMP conversation between hosts and routers. By listening to these conversations the switch maintains a map of which links need which IP multicast streams.
  • Page 20: Password

    14. Password Administrator can change the Switch login password on this page. The default login password is default 15. Logout Clicking the logout button will log the administrator out of the management page.
