Summary of Contents for RIKA corso

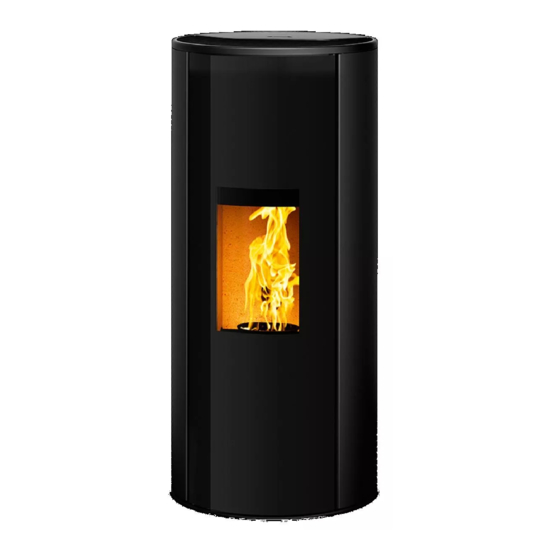

- Page 1 CORSO Operating Manual...
-
Page 2: Table Of Contents
Connecting to a steel chimney ................................12 Combustion air .......................................12 Feeding in external combustion air .................................12 6. COMFORT OPTIONS RIKA room sensor/RIKA radio room sensor ............................13 RIKA GSM Control ....................................13 RIKA interface for various options .................................13 External room thermostat ..................................13 External connection cable bridge ................................13... -
Page 3: Preface
7. CLEANING AND MAINTENANCE Basic information ....................................14 Open the combustion chamber door ..............................14 Empty the ash drawer .....................................14 Cleaning of the burn pot - daily ................................14 Cleaning the flame temperature sensor ..............................14 Cleaning the door glass ..................................14 Cleaning of painted surfaces ...................................14 Cleaning the convection air openings ..............................15 Combustion air - intake ..................................15 Cleaning the pellet container ..................................15... -
Page 4: Spare Part Overview Exploded Diagram
Spare part overview exploded diagram 1 1 6 1 1 7... - Page 5 1 1 5 1 1 4 1 1 3 1 1 1 1 1 2 1 00 1 01 1 03 1 02 1 04 1 05 1 07 1 1 0 1 09 1 08 1 06...
-
Page 6: Spare Part Overview Article Numbers
Holder for temperature sensor Z36140 Rear panel cpl. L02703 Hinge top N111730 Grommet L02704 Hinge bottom N111773 Levelling screw B17510 Cabletree Corso Z36132 Cover Z35018 Cable 2m for touch-display Z35691 Spring plug till serial number 1365050 N112136 Taptite from serial number 1365051 N112017... -
Page 7: Dimensions
Dimensions Technical Data Technical Data Heating power range [kW] 2,4 - 8 Room heating capacity (depending on house [m³] 50 - 210 insulation) Fuel consumption [kg/h] up to 1,8 Pellet container capacity [l/kg] 46/~30 Electric supply [V]/[Hz] 230/50 Average electrical input ~ 20 Fuse 2,5 AT... -
Page 8: Important Information
First heating RIKA stoves should only be installed in rooms with normal humidity (dry The stove body, just as various steel parts, cast iron parts and the flue pipes areas according to VDE 0100 Part 200). The furnaces are not splash water are painted with a heat resistant paint. -
Page 9: Prior To Set Up
Prior to set up Stoves type 1 (BA 1): Floor bearing capacity Suitable for multiple occupancy. (Note the different country regulations.) Ensure that the substructure is capable of bearing the weight of the stove prior to set-up. These may only be operated with the combustion chamber door closed. Note The combustion chamber door is to be kept closed when the stove is not No modifications may be made to the firing installation. -
Page 10: Brief Information On Fuel Pellets
3. BRIEF INFORMATION ON FUEL PELLETS Your pellet stove is only approved for the burning of pellets of tested quality. What are pellets? Please ask your pellet stove dealer for tested fuel and a list of monitored fuel manufacturers. Wood pellets are a standardised fuel. Every manufacturer must adhere to certain conditions in order to enable flawless, energy-efficient heating. -
Page 11: Technology And Safet Y Functions
4. TECHNOLOGY AND SAFET Y FUNCTIONS The technological advances in your new combi stove are the result of years of Automatic cleaning cycle testing and practical experience. The practical advantages of your pellet stove are convincing: The speed of the flue gas fan is increased every hour for a short period to blow ash from the burn pot, increasing the operational safety. -
Page 12: Installing The Stove
The stove can also be pushed on this cardboard or carpet. Feeding in external combustion air We recommend original flue pipes from RIKA for proper connection. only for devices which are able to run in room-air independent operation. Connection to the chimney Combustion air must be fed to the stove from outside via a sealed pipe for operation independent of the room air. -
Page 13: Comfort Options
6. COMFORT OPTIONS We would point out that auxiliary units may only be connected to the RIKA External room thermostat interface connection and external connection socket by authorised specialists. Your stove has an interface on the rear wall to which you can connect a customary room thermostat. -
Page 14: Cleaning And Maintenance
7. CLEANING AND MAINTENANCE Basic information Cleaning of the burn pot - daily Make sure that the air vents are not blocked with ash or clinker. Remove the Note clinker using the supplied brush and vacuum the burn pot. The burn pot can be Your stove must be switched off and cooled before any maintenance work is easily cleaned inside the stove. -
Page 15: Cleaning The Convection Air Openings
Cleaning the convection air openings Vacuum clean any dust deposits from the convection air openings at regular intervals. The stove should be cleaned thoroughly prior to the start of the heating season to prevent excess odour. Combustion air - intake If necessary, please also clean the air intake with a hoover. -
Page 16: Cleaning Flue Gas Paths
Cleaning flue gas paths Lift the baffle carefully and place it on a soft surface. The flue pipes should be cleaned at least 2 x a year or after approx. 700 kg pellets. The flues are situated under and aside the combustion chamber. Note Only work on the unit when the mains plug has been disconnected and the stove has cooled down completely. -
Page 17: Cleaning The Flue Gas Channels
Cleaning the flue gas channels Open the square nuts from the cleaning lid below and remove it. (annually) Remove the flue pipes. Inspect and clean chimney connection. Brush off any soot and dust deposits in the fire and in the flue pipes and vacuum. Note Accumulated fly ash in the flue gas channels may impair the performance of the stove and pose a safety risk. -
Page 18: Problems Possible Solutions
8. PROBLEMS POSSIBLE SOLUTIONS Problem 1 Problem 3 Fire burns with weak, orange flame. Pellets heap up in fire trough, window Flue gas discharge when wood is added and during heating phase. sooted up. Cause(s) Cause(s) Inspection openings leak Insufficient combustion air Chimney draught too low Poor chimney draught Flue pipe connection leaks... -
Page 19: Instructions For Commissioning Protocol
Note points, is a document. Please return 1 completed protocol for putting into service to RIKA Innovative Ofentechnik GmbH, Müllerviertel 20, 4563 Micheldorf, Austria. Warranty terms Difference between warranty (statutory) and guarantee (voluntary), terms of guarantee, determination of wearing parts, reference to pellet quality to be Electrical periphery used and the consequences of poor quality. - Page 20 Please contact your warranty partner for any warranty questions or claims. This is your dealer or installation company. No warranty claims can be accepted without proper putting into operation, proper operation according to the operating instructions and the supplements in this information sheet. Protocol for putting into operation for RIKA pellet and combi stoves Date:____________________...
-
Page 21: Guarantee
In case of doubt as well as missing or incorrect translations, the German version is the only valid one. For the purpose of timely damage limitation, the warranty claim on the part of the claimant is to be enforced at the RIKA dealer in writing using the invoice and stating the purchase date, model name, serial number and reason for complaint. - Page 24 Technical and design changes, as well as typesetting and printing errors reserved © 2015 | RIKA Innovative Ofentechnik GmbH RIKA Innovative Ofentechnik GmbH 4563 Micheldorf / Austria, Müllerviertel 20 Telefon: +43 7582 686 - 41, Fax-DW: 43 E-Mail: verkauf@rika.at RIKA.AT...
