Front Suspension - Team C TC02T Pro Instruction Manual

1

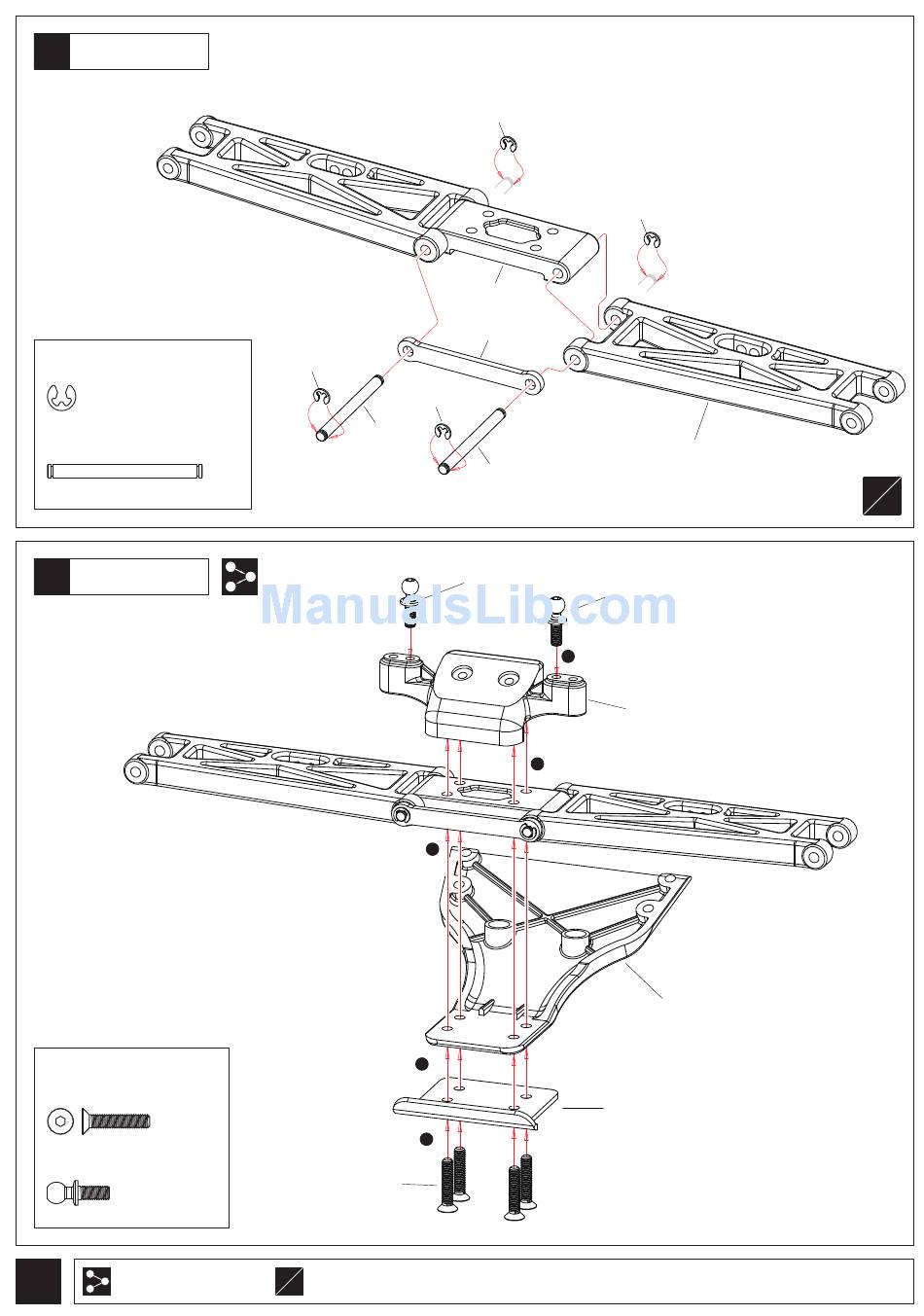

Front Suspension

前橋
T02056 2.3 E-ring
E 扣
....................................4
T02056 3x34.5 Hinge pin front inner
前擺臂軸
....................................2
2
Front Suspension
前橋
T02083 M3x15 Screw
螺絲
...............4
T02092 Ball stud - long
球頭-長
........................2
3
Assemble in the specified order
1
2
3 按順序組裝
T02056
T02056
1
2
3
T02083
Assemble left and right sides the same way
L
R
左右裝法相同
T02056
T02014
T02037
T02056
T02056
T02092
1
2
3
4
5
T02056
TG2003
T02092
T02015
T02008
T02026
L
R
