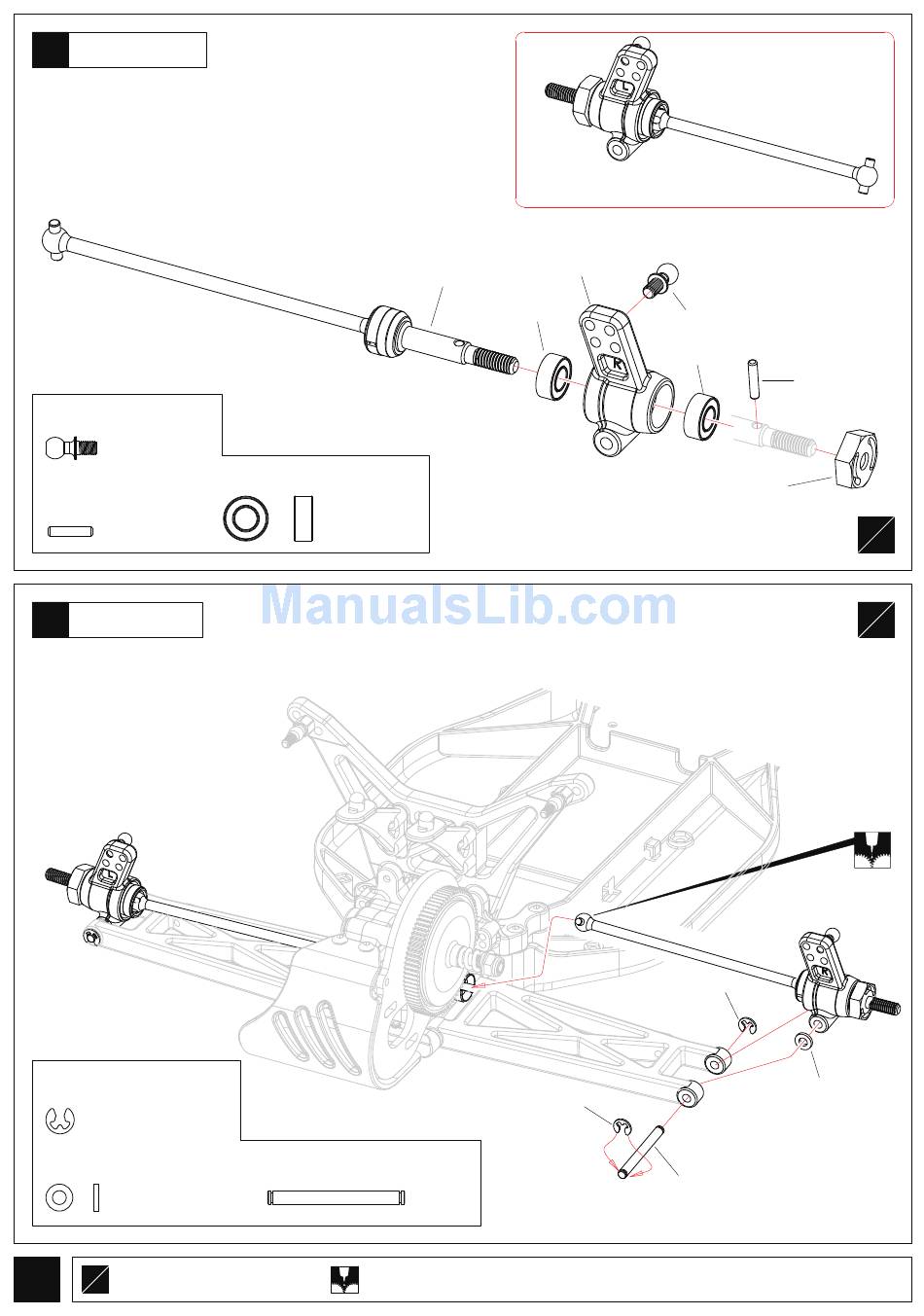

Rear Suspension
後橋
<Right>
<右>
T02093 Ball stud - short
球頭-短
.....................2
T02034 2x9.8 Shaft
軸
.....................2
22
Rear Suspension
後橋
T02057 2.3 E-ring
E扣
..............................4
T02013 3.1x6x1 Plastic Washer
塑膠墊片
...........................2
13
Assemble left and right sides the same way
L
R
左右裝法相同
T02100 5x10x4 Ball Bearing
軸承
...............4
T02057 3x30.5 Hinge pin Rear outer
後擺臂軸
Apply grease
塗油脂
T02013
TG2012
T02100
T02057
............2
<Left>
<左>
T02093
T02100
T02034
T02034
T02057
T02013
T02057
L
R
L
R
