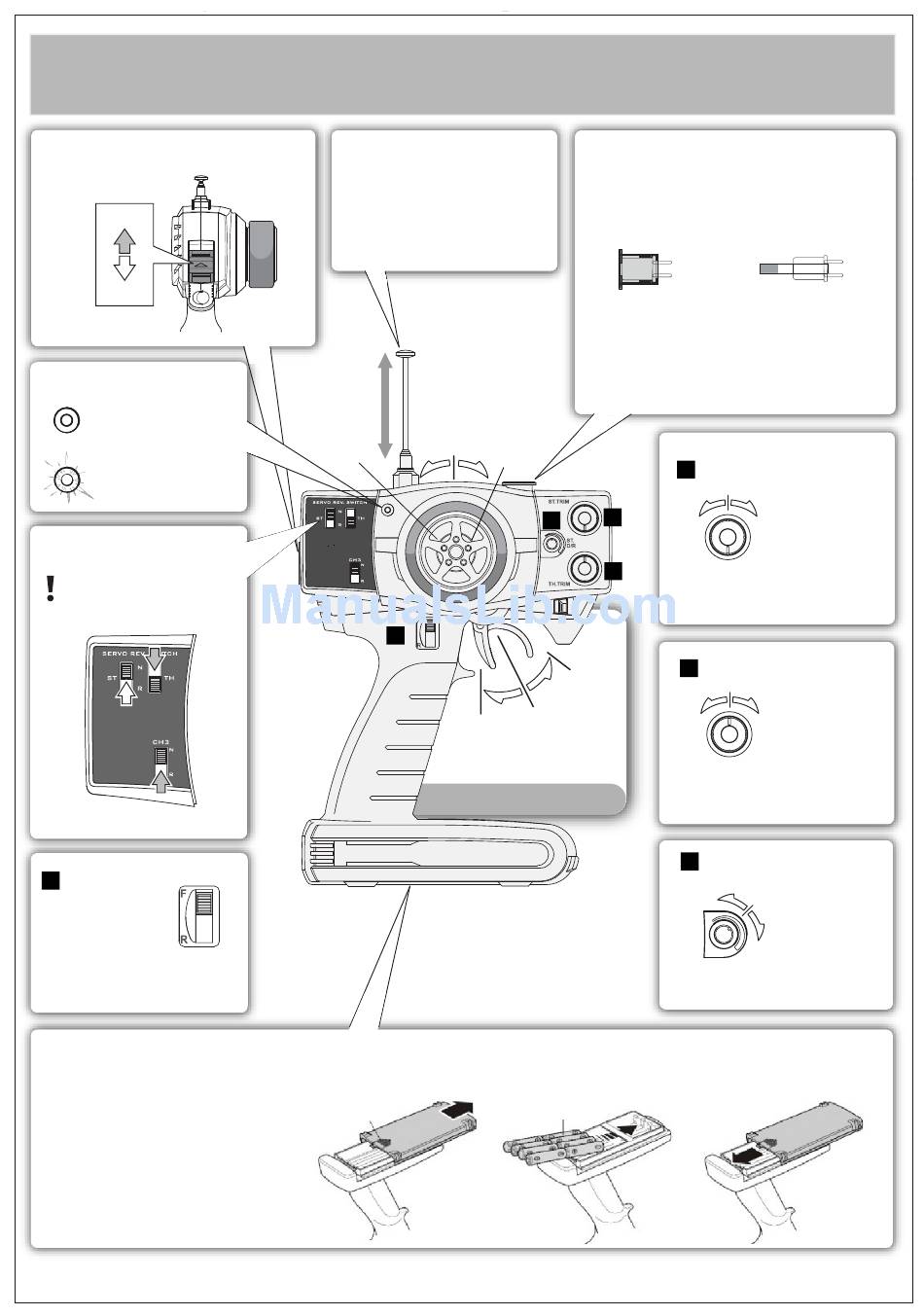

Transmitter Preparation

調整遙控器

Power Switch

電源開關
ON
OFF

Battery Level Indicator

電池標準指示燈
Good Batteries
標準的電池
Low Batteries(Light Blinks)
低電的電池(電燈閃爍)
Reverse Switch
反向開關
Servo Factory Settings
工廠安裝(当转向/油门反向时调整用)
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
3ch Switch
4
第三動作開關
This switch is used for optional parts.
這個開關用於選擇部分
Transmitter Battery Installation
遙控器電池安裝
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
在遙控器的底部打開電池蓋子，安裝電池。
跟隨電池的指示在電池盒裡面指定
1
Antenna
天線
Extend the antenna to the maximum
Length for best performance
天線拉的越長性能越好
Straight (neutral)
Left turn
豎直(中立)
向左旋轉
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
4
Forward
前进
To be used for throttle operation
用於操作油門
Throttle Trigger
油門啟動
Battery Cover
電池蓋
27MHzTransmitter Crystal （TX）
27MHz 發射機晶片(TX)
Transmitter crystal(TX)
發射機晶片
The crystal can be replaced to change frequencies.
Note : You must also change receiver crystals!
Do not use AM crystals
更換晶片可以改變頻率
注意︰ 你也必須改變接收機晶片﹗
Right turn
向右旋轉
1
3
2
Brake
剎車
Stop(Neutral)
停止位置
8X
AA Alkaling Batteries
AA 鹼性電池
Receiver crystal(RX)
接收機晶片
Steering Trim
1
方向調整
To be used for trimming the steering
operation
用於調整轉向中立點
Throttle Trim
2
油門前進/後退(剎車)調整
To be used for trimming the throttle
operation
用於調整油門中立點
Steering Dual Rate
3
轉向舵角量
To be used to adjust steering servo throw
用來調整转向伺服
