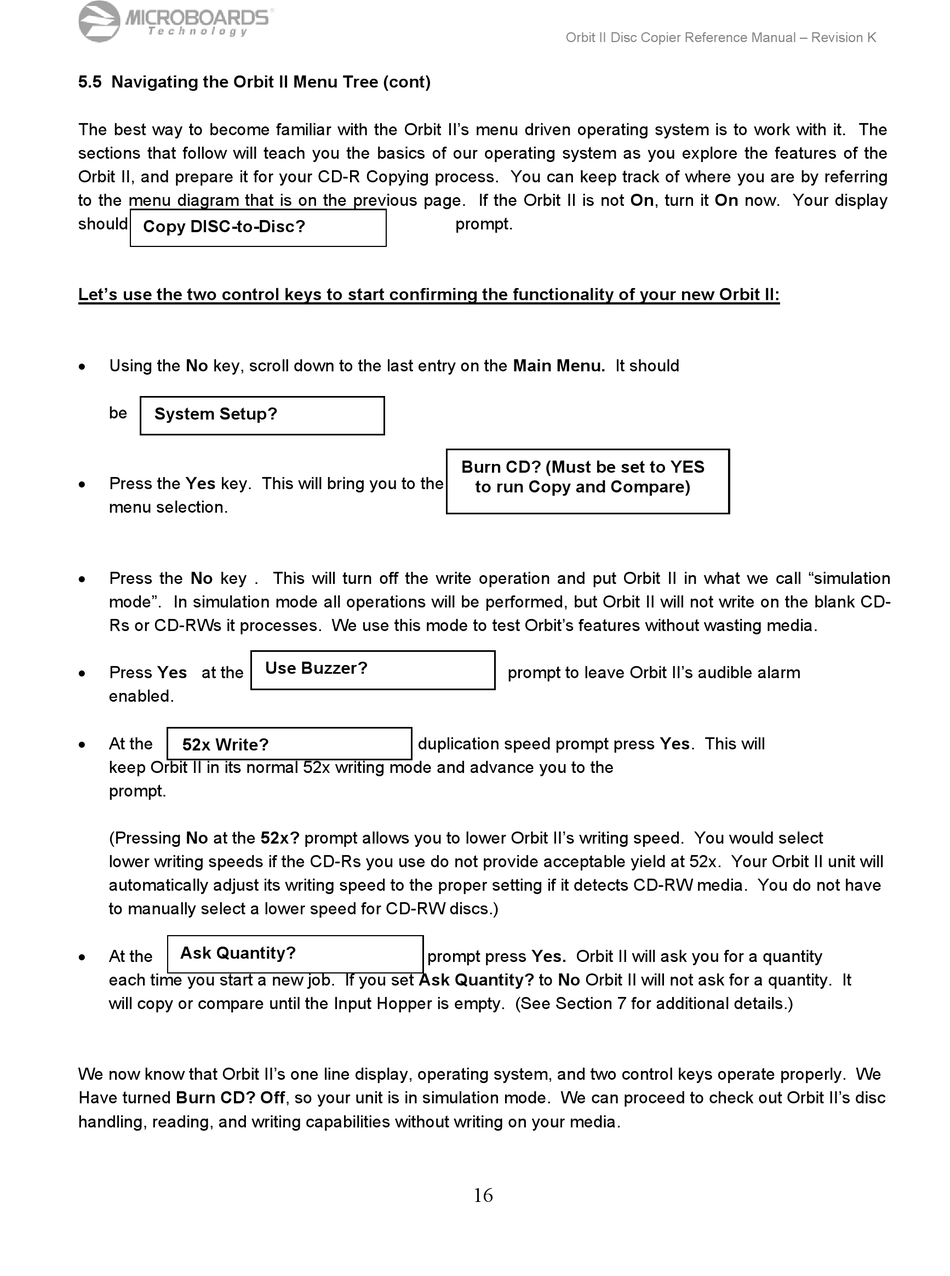

MicroBoards Technology Orbit II Reference Manual page 16

5.5 Navigating the Orbit II Menu Tree (cont)
The best way to become familiar with the Orbit II's menu driven operating system is to work with it. The
sections that follow will teach you the basics of our operating system as you explore the features of the
Orbit II, and prepare it for your CD-R Copying process. You can keep track of where you are by referring
to the menu diagram that is on the previous page. If the Orbit II is not On, turn it On now. Your display
should be at the
Copy DISC-to-Disc?
Let's use the two control keys to start confirming the functionality of your new Orbit II:
•
Using the No key, scroll down to the last entry on the Main Menu. It should
be
System Setup?
•
Press the Yes key. This will bring you to the
menu selection.
•
Press the No key . This will turn off the write operation and put Orbit II in what we call "simulation
mode". In simulation mode all operations will be performed, but Orbit II will not write on the blank CD-
Rs or CD-RWs it processes. We use this mode to test Orbit's features without wasting media.
•
Press Yes at the
enabled.
•
At the
52x Write?
keep Orbit II in its normal 52x writing mode and advance you to the
prompt.
(Pressing No at the 52x? prompt allows you to lower Orbit II's writing speed. You would select
lower writing speeds if the CD-Rs you use do not provide acceptable yield at 52x. Your Orbit II unit will
automatically adjust its writing speed to the proper setting if it detects CD-RW media. You do not have
to manually select a lower speed for CD-RW discs.)
Ask Quantity?
•
At the
each time you start a new job. If you set Ask Quantity? to No Orbit II will not ask for a quantity. It
will copy or compare until the Input Hopper is empty. (See Section 7 for additional details.)
We now know that Orbit II's one line display, operating system, and two control keys operate properly. We
Have turned Burn CD? Off, so your unit is in simulation mode. We can proceed to check out Orbit II's disc
handling, reading, and writing capabilities without writing on your media.
Use Buzzer?
duplication speed prompt press Yes. This will
prompt press Yes. Orbit II will ask you for a quantity
Orbit II Disc Copier Reference Manual – Revision K
prompt.
Burn CD? (Must be set to YES
to run Copy and Compare)
prompt to leave Orbit II's audible alarm
