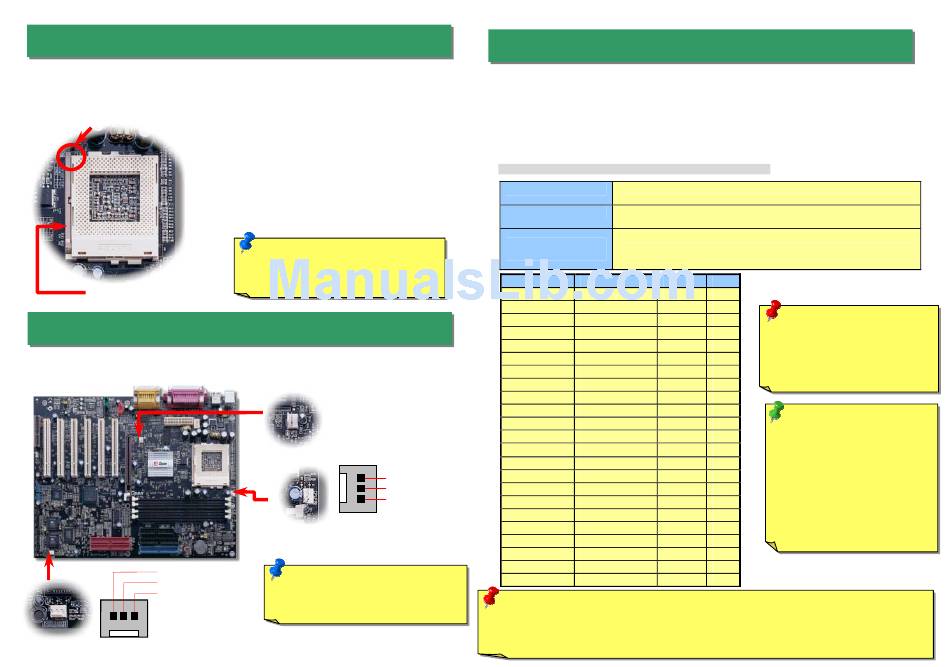

3. Installing Processor

This socket supports FC-PGA/FCPGA2 package CPU, which is the latest CPU package
developed by Intel, we strongly recommend you not to insert former PPGA-package CPU
onto it.
1.
CPU Pin 1 and cut edge
2.
3.
CPU socket lever
4. Installing CPU & Housing Fan
Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan,
you can also plug it on System FAN or AUX FAN (without H/W monitoring) connector.
GND
+12V
SENSOR
FAN2 Connector
Pull up the CPU socket lever and up to
90-degree angle.
Locate Pin 1 in the socket and look for a
(golden) cut edge on the CPU upper interface.
Match Pin 1 and cut edge. Then insert the
CPU into the socket.
Press down the CPU socket lever and finish
CPU installation.
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well, it
may damage the CPU.
FAN3 Connector
GND
+12V
SENSOR
CPU Fan Connector
Note: Some CPU fans do not have
sensor pin, so that cannot support fan
monitoring.
5. Setting CPU Voltage & Frequency
Setting CPU Core Voltage
This motherboard supports CPU VID function. The CPU core voltage will be automatically
detected and the range is from 1.05V to 1.825V. It is not necessary to set CPU Core
Voltage
Setting CPU Frequency
This motherboard is CPU jumper-less design, you can set CPU frequency through the
BIOS setup, and no jumpers or switches are needed.
BIOS Setup > Frequency / Voltage Control > CPU Speed Setup
CPU Ratio
3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 6x, 6.5x, 7x, 7.5x, 8x, 8.5x, 9x, 9.5x, 10x, 10.5x, 11x,
11.5x, and 12x
CPU FSB (By BIOS table)
66.6, 66.8, 68.3, 70, 75, 80, 83, 100, 100.2, 103, 105, 110, 115, 120, 124, 133.3,
133.6, 137, 140, 145, 150, 160, 166.5 and 200 MHz
FSB = 66, 66~83MHz
CPU FSB (By manual
FSB = 100, 75~124MHz
Adjustment)
FSB = 133, 100~248MHz
CPU
CPU Core Frequency
FSB Clock
Celeron 533
533MHz
66MHz
Celeron 566
566MHz
66MHz
Celeron 600
600MHz
66MHz
Celeron 766
766MHz
66MHz
Celeron 800
800MHz
100MHz
Celeron 850
850MHz
100MHz
Celeron 900
900MHz
100MHz
Celeron 1.2G
1.2GHz
100MHz
Pentium III 600E
600MHz
100MHz
Pentium III 650E
650MHz
100MHz
Pentium III 700E
700MHz
100MHz
Pentium III 750E
750MHz
100MHz
Pentium III 800E
800MHz
100MHz
Pentium III 850E
850MHz
100MHz
Pentium III 533EB
533MHz
133MHz
Pentium III 600EB
600MHz
133MHz
Pentium III 667EB
667MHz
133MHz
Pentium III 733EB
733MHz
133MHz
Pentium III 800EB
800MHz
133MHz
Pentium III 866EB
866MHz
133MHz
Pentium III 933EB
933MHz
133MHz
Pentium III 1G
1GHz
133MHz
Pentium III 1.13G
1.13GHz
133MHz
Warning: To avoid possible CPU damage caused by overheating, an automatic shutdown of
system had been especially designed on this motherboard. System would be automatically
power off when this motherboard with implementation of THERMTRIP circuit detected a
CPU temperature above 135 degree for 4 seconds.
Ratio
8x
8.5x
®
9x
Warning: Intel
815E B-Step
11.5x
chipset
supports
maximum
8x
133MHz FSB and 66MHz AGP
8.5x
clock, higher clock setting may
9x
cause serious system damage.
12x
6x
6.5x
Tip: If your system hangs or
7x
fails
to
boot
because
7.5
overclocking,
simply
8x
<Home> key to restore the
8.5x
default setting or you can wait
4x
4.5x
the
AOpen
"Watch
5x
Timer" reset the system in
5.5
five seconds and system will
6x
auto-detect hardware again.
6.5
7x
7.5x
8.5x
of
use
Dog
