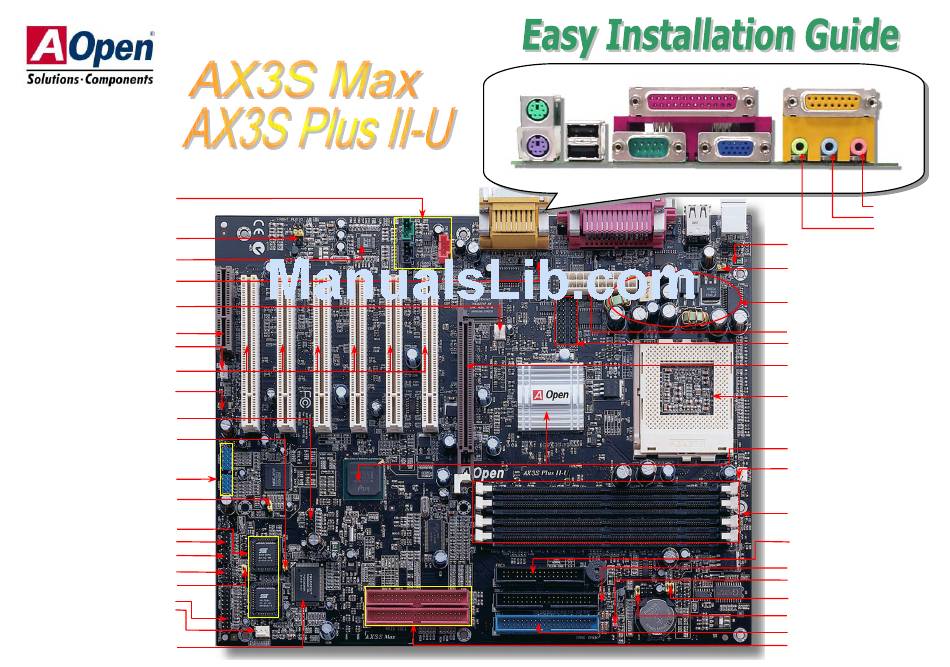

AOpen AX3S MAX Easy Installation Manual

Red: MODEM-CN
Green: AUX-IN
Black: CD-IN
Front Audio Connector
AC97 CODEC Chipset
COM2 Port Connector
FAN3 Connector
(w/o H/W Monitoring)
CNR Expansion Slot
WOL (Wake On LAN) Connector
32-bit PCI Expansion Slot x6
(PCI 5 & 6 support slave mode PCI
cards only, AX3S Plus II-U only)
WOM (Wake On Modem) Connector
nd
2 USB Port Connector
JP35 IDE RAID Controller
Enable/Disable Jumper
(AX3S Max only)
rd th
3 & 4 USB Port Connector
JP34 USB 3&4 Enable/Disable Jumper
Die Hard BIOS with 100% Virus
Protection (Optional)
GPO Connector
IrDA Connector
Dr. LED Connector
JP30 Die Hard BIOS
Select Jumper (Optional)
Front Panel Connector
Fan2 Connector
(with H/W Monitoring)
®
Promise FastTrak 100™ Lite
IDE RAID Controller
(AX3S Max only)
SPP/EPP/ECP
Parallel Port
PS/2 Mouse
Connector
USB Port
PS/2 Keyboard
COM 1 Port
Connector
MIDI/Game Port
VGA Port
MIC-In
Line-In
Speaker Out
Resettable Fuse
JP28 Keyboard/Mouse Wake-Up
Select Jumper
2200μF Low ESR Capacitors
ATX Power Connector
DVO Connector
A GP 4X Expansion Slot
370-pin CPU Socket with
Frequency/Voltage Auto-detection
®
that supports Intel Pentium III
(Both Tualatin & Coppermine are
supported) & Celeron
533MHz~1.2GHz+
®
Intel 815E B-Step Chipset with Pure
Aluminum Heatsink
CPU Fan Connector
(with H/W Monitoring)
PC-100/133 DIMM Slot x4 supports
maximum up to 512MB
FDD Connector
Chassis Intrusion Connector
JP14 CMOS Clear Jumper
Dr. Voice Language Select Jumper
JP23 FSB Select Jumper
ATA 33/66/100 IDE Connector x2
ATA/100 IDE RAID Connector x2
(AX3S Max only)
