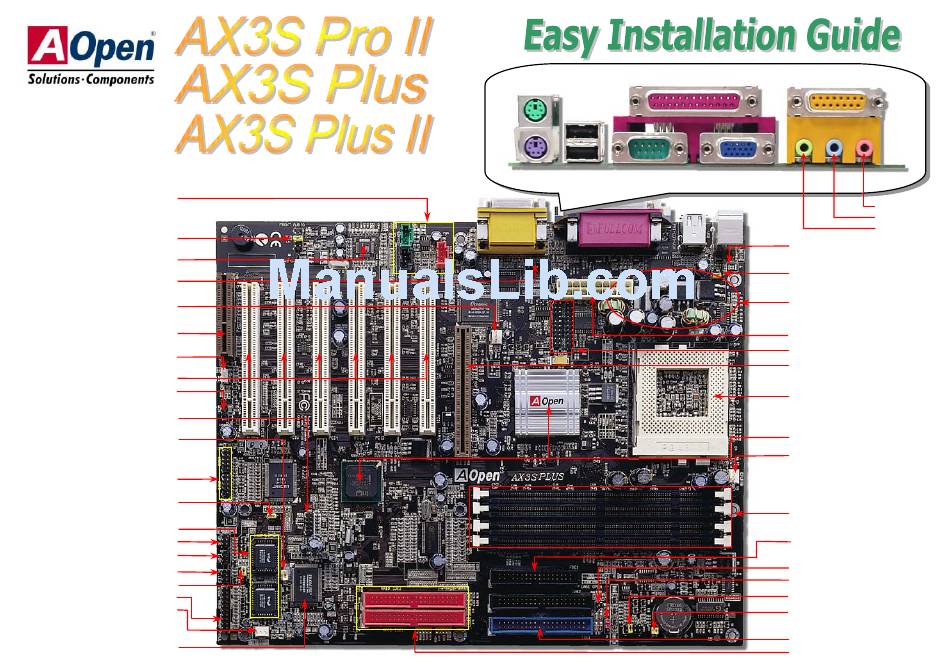

Red: MODEM-IN
Green: AUX-IN
Black: CD-IN
Front Panel Audio Connector
AC97 CODEC Chipset
COM2 Port Connector
AUX Fan Connector
(w/o H/W Monitoring)
CNR Expansion Slot
WOL (Wake On LAN) Connector
32-bit PCI Expansion Slot x6
WOM (Wake On Modem) Connector
nd
2
USB Port Connector
JP35 IDE RAID Controller
Enable/Disable Jumper
rd
th
3
& 4
USB Port Connector
(Applied to AX3S Plus II only)
JP34 USB 3&4 Enable/Disable Jumper
Die Hard BIOS with 100% Virus
Protection (Upgrade Optional)
GPO Connector
IrDA Connector
Dr. LED Connector
JP30 Die Hard BIOS Select Jumper
Front Panel Connector
System Fan Connector
(with H/W Monitoring)
®
Promise
FastTrak 100™ Lite
IDE RAID Controller
(Applied to AX3S Plus / AX3S Plus II)
SPP/EPP/ECP
Parallel Port
PS/2 Mouse
Connector
USB Port
PS/2 Keyboard
COM 1 Port
Connector
MIDI/Game Port
VGA Port
MIC-In
Line-In
Speaker Out
Resettable Fuse
Keyboard Wake-Up Select Jump
2200£ g f Low ESR Condensers
ATX Power Connector
DVO Connectors
A GP 4X Expansion Slot
370-pin CPU Socket with
Frequency/Voltage Auto-detection
®
that supports Intel
Pentium III &
Celeron 300MHz~1.2GHz+
®
Intel
i815E Chipset with Pure
Aluminum Heatsink
CPU Fan Connector
(with H/W Monitoring)
PC-100/133 DIMM Slot x4 supports
maximum up to 512MB
FDD Connector
Chassis Intrusion Sensor Connector
JP14 CMOS Clear Jumper
JP23 FSB Select Jumper
Dr. Voice Language Select Jumper
(Optional)
ATA 33/66/100 IDE Connector x2
ATA/100 IDE RAID Connector x2
(Applied to AX3S Plus / AX3S Plus II)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX3S Plus and is the answer not in the manual?

Questions and answers

Related Manuals for AOpen AX3S Plus

Summary of Contents for AOpen AX3S Plus

  • Page 1 System Fan Connector (Optional) (with H/W Monitoring) ® Promise FastTrak 100™ Lite ATA 33/66/100 IDE Connector x2 IDE RAID Controller ATA/100 IDE RAID Connector x2 (Applied to AX3S Plus / AX3S Plus II) (Applied to AX3S Plus / AX3S Plus II)

  • Page 2: Jp14 Clear Cmos

    2. Forget password… Clear CMOS Normal Operation 3. Troubleshooting… (default) JP35 Onboard IDE RAID Jumper (Applied to AX3S Plus / AX3S Plus II) Motherboard x1 Hard Disk Drive Cable x1 ® The JP35 is used to enable or disable onboard PROMISE FastTrak 100 Lite IDE RAID controller.

  • Page 3: Installing Cpu

    3. Installing CPU 5. Setting CPU Voltage & Frequency Setting CPU Core Voltage CPU Pin 1 and cut edge This motherboard supports CPU VID function. The CPU core voltage will be automatically detected and the range is from 1.3V to 3.5V. It is not necessary to set CPU Core Voltage Pull up the CPU socket level and up to 90-degree angle.

  • Page 4: Jp23 Fsb/Pci Clock Ratio

    By the way, this motherboard connector (Applied to AX3S Plus and AX3S Plus II only). Be careful of the pin1 also provides “1MHz Stepping Adjustment” feature for overclockers. You can adjust CPU FSB orientation.

  • Page 5: Front Panel Audio

    12. Connecting CD / Modem / Video_Audio_IN Connector 10. Connecting ATX Power Connector AUX-IN The CD-IN connector is used to connect CD Audio The ATX power supply uses 20-pin connector shown below. Make sure you plug in the (Green) cable from CDROM or DVD drive to onboard sound. right direction.

  • Page 6: Bios Upgrade

    15. AOpen Bonus Pack CD 17. BIOS Upgrade AOpen Easy Flash is more user-friendly than traditional flash method. The BIOS binary You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select file and flash routine are combined together and you simply run a single file to complete model name.

  • Page 7: Part Number And Serial Number

    IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AX3S Plus is model name of motherboard; R1.00 is BIOS version...
  • Page 8 Dear Customer, Test Report: We recommend to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://www.aopen.com.tw/tech/report/default.htm...
