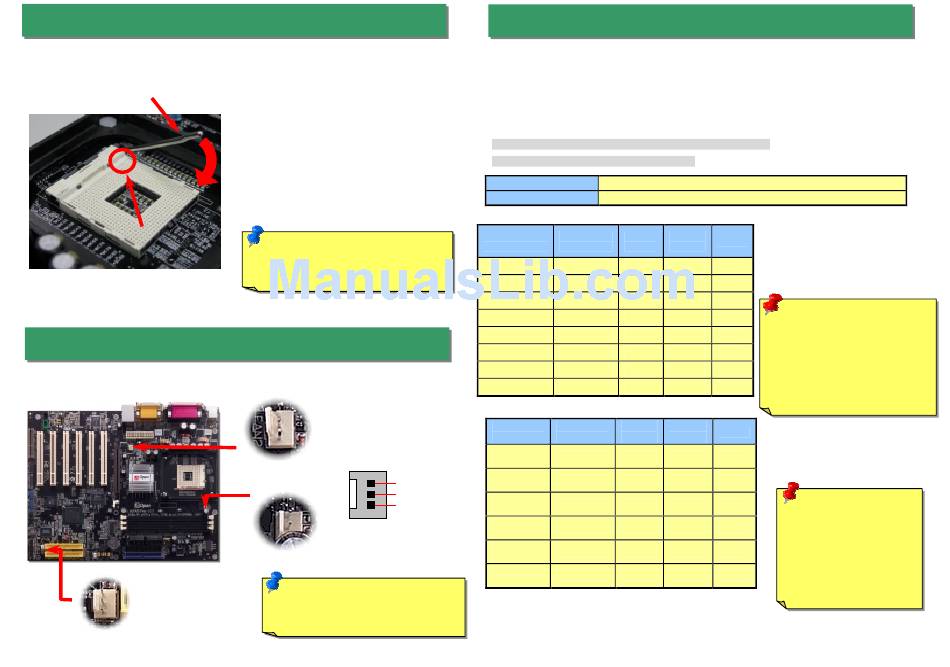

3. Installing Processor

This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package
developed by Intel. Other forms of CPU package are impossible to be fitted in.
CPU socket lever
CPU Pin 1 and cut edge
4. Installing CPU & System Fan
Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan, you
can also plug it in FAN2 or FAN3 connector.
FAN3 Connector
1.
Pull up the CPU socket lever and up to
90-degree angle.
2.
Locate Pin 1 in the socket and look for
a (golden) cut edge on the CPU upper
interface. Match Pin 1 and cut edge.
Then insert the CPU into the socket.
3.
Press down the CPU socket lever and
finish CPU installation.
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well,
you may damage the CPU.
FAN2 Connector
GND
+12V
SENSOR
CPU Fan Connector
Note: Some CPU fans do not have
sensor pin so they cannot support fan
monitoring.
5. Setting CPU Voltage & Frequency
Setting CPU Core Voltage
This motherboard supports CPU VID function. The CPU core voltage will be automatically
detected and the range is from 1.10V to 1.85V. It is not necessary to set CPU core
voltage.
Setting CPU Frequency
This motherboard is CPU jumper-less design, you can set CPU frequency through the
BIOS setup, and no jumpers or switches are needed.
BIOS Setup > Frequency / Voltage Control > CPU Speed Setting
Core Frequency = CPU FSB Clock * CPU Ratio
CPU Ratio 8x, 9x, 10x... 21x, 22x, 23x, 24x
CPU FSB 100~248MHz by 1MHz stepping
Northwood CPU Core FSB
CPU Frequency Clock
Pentium 4 1.6G 1600MHz 100MHz
Pentium 4 1.6G 1600MHz 133MHz
Pentium 4 1.7G 1700MHz 133MHz
Pentium 4 1.8G 1800MHz 100MHz
Pentium 4 2.0G 2000MHz 100MHz
Pentium 4 2.2G 2200MHz 100MHz
Pentium 4 2.4G 2400MHz 100MHz
Pentium 4 2.4G 2400MHz 133MHz
Willamette CPU Core FSB
CPU Frequency Clock
Pentium 4
1500MHz 100MHz
1.5G
Pentium 4
1600MHz 100MHz
1.6G
Pentium 4
1700MHz 100MHz
1.7G
Pentium 4
1800MHz 100MHz
1.8G
Pentium 4
1900MHz 100MHz
1.9G
Pentium 4
2000MHz 100MHz
2.0G
Syste
Ratio
m Bus
400MHz 16x
533MHz 12x
533MHz 13x
Warning: Intel
400MHz 18x
supports maximum 400MHz
400MHz 20x
(100MHz*4)
400MHz 22x
(133MHz*4) system bus and
400MHz 24x
66MHz AGP
clock setting
533MHz 18x
serious system damage.
System
Ratio
Bus
400MHz 15x
400MHz 16x
400MHz 17x Note: Since the latest
processor,
400MHz 18x
would detect the clock
ratio automatically, you
400MHz 19x
may not be able to
adjust the clock ratio in
400MHz 20x
BIOS manually.
®
845E chipset
/ 533MHz
clock; higher
may cause
Northwood,
