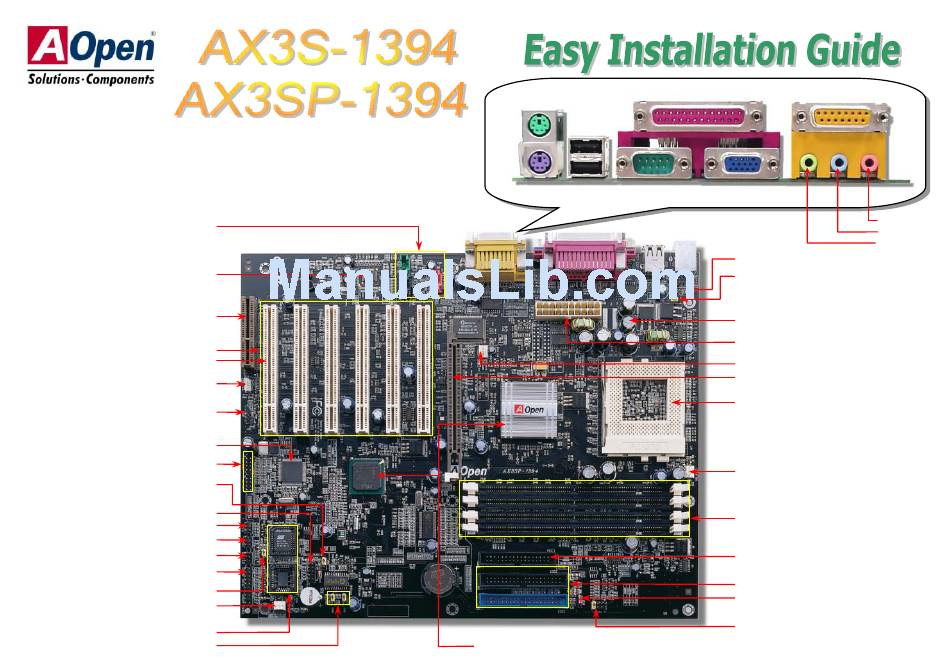

Red: MODEM-CN Connector
Green: AUX-IN Connector
Black: CD-IN Connector
Onboard AC'97 CODEC
CNR Expansion Slot
32-bit PCI Expansion Slot
(PCI 6 supports slave mode PCI card only)
WOL Connector
WOM Connector
Onboard IEEE 1394 Controller
IEEE 1394 Port Connector
JP36 Dr. Voice
Enable/Disable Jumper
Front Audio Connector
GPO Connector
IrDA Connector
Dr. LED Connector
Front Panel Connector
JP30 Die Hard BIOS Select Jumper
Chassis Fan Connector
with H/W Monitoring Function
Die Hard BIOS
JP15 & 16 Dr. Voice
Language Select Jumper
PS/2 Mouse
Connector
USB Port
PS/2 Keyboard
COM 1 Port
Connector
®
Intel
i815E (AX3S-1394) /i815EP (AX3SP-1394)
Chipset with Super Alloy Heatsink
SPP/EPP/ECP
Parallel Port
MIDI/Game Port
15-pin D-Sub VGA
Connector
Resettable Fuse
JP28 Keyboard/Mouse Wakeup
Enable/Disable Jumper
2200£ g FLow ESR Capacitors
ATX Power Connector
FAN3 Connector
AGP 4x Expansion Slot
370-pin CPU Socket
with Voltage & Frequency Auto-detection
®
that supports Intel
Pentium™ III & Celeron
300MHz~1Gz+ CPU
CPU Fan Connector with
H/W Monitoring Function
PC-100/133 DIMM Slot x4
supports maximum up to 512MB
FDD Connector
ATA/100 IDE Connector x2
JP14 CMOS Clear Jumper
JP23 CPU FSB Select Jumper
MIC-In
Line-In
Speaker Out
Advertisement
Table of Contents
Related Manuals for AOpen AX3S-1394
Summary of Contents for AOpen AX3S-1394
- Page 1 JP30 Die Hard BIOS Select Jumper JP14 CMOS Clear Jumper Chassis Fan Connector with H/W Monitoring Function JP23 CPU FSB Select Jumper Die Hard BIOS ® Intel i815E (AX3S-1394) /i815EP (AX3SP-1394) JP15 & 16 Dr. Voice Chipset with Super Alloy Heatsink Language Select Jumper...
-
Page 2: Jp14 Clear Cmos
1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this 3. -
Page 3: Installing Cpu
<Home> key to restore the Pentium III 750E 750MHz 100MHz default setting or you can wait +12V Pentium III 800E 800MHz 100MHz AOpen “Watch Sensor Pentium III 850E 850MHz 100MHz 8.5x Timer” reset the system in Pentium III 533EB 533MHz... -
Page 4: Jp23 Fsb/Pci Clock Ratio
(Default) 7. Install DIMM Modules 9. Connecting Front Panel Cable This motherboard has four 168-pin DIMM sockets that allow you to install PC100 or PC133 memory up to 512MB. The AX3S-1394/AX3SP-1394 supports non-ECC/ECC SDRAM. SPWR Keylock Note: Based on Intel i815E/i815EP IDE LED ACPI &... -
Page 5: Front Audio
12. Connecting CD / MODEM / AUX Connector 10. Connecting ATX Power Connector AUX-IN The CD-IN connector is used to connect CD Audio The ATX power supply uses 20-pin connector shown below. Make sure you plug in the (Green) cable from CDROM or DVD drive to onboard sound. right direction. -
Page 6: Bios Upgrade
15. AOpen Bonus Pack CD 17. BIOS Upgrade AOpen Easy Flash is more user-friendly than traditional flash method. The BIOS binary You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select file and flash routine are combined together and you simply run a single file to complete model name. -
Page 7: Part Number And Serial Number
It is very possible that your keyboard press Del to see if the is defective. system reboots. AX3SP-1394 R1.00 Dec. 04. 2000 AOpen Inc. Award Plug and Play BIOS Extension v1.0A During system rebooting, press Del to enter BIOS Setup. Choose “Load Setup Default". - Page 8 Dear Customer, Test Report: We recommend to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://www.aopen.com.tw/tech/report/default.htm...
