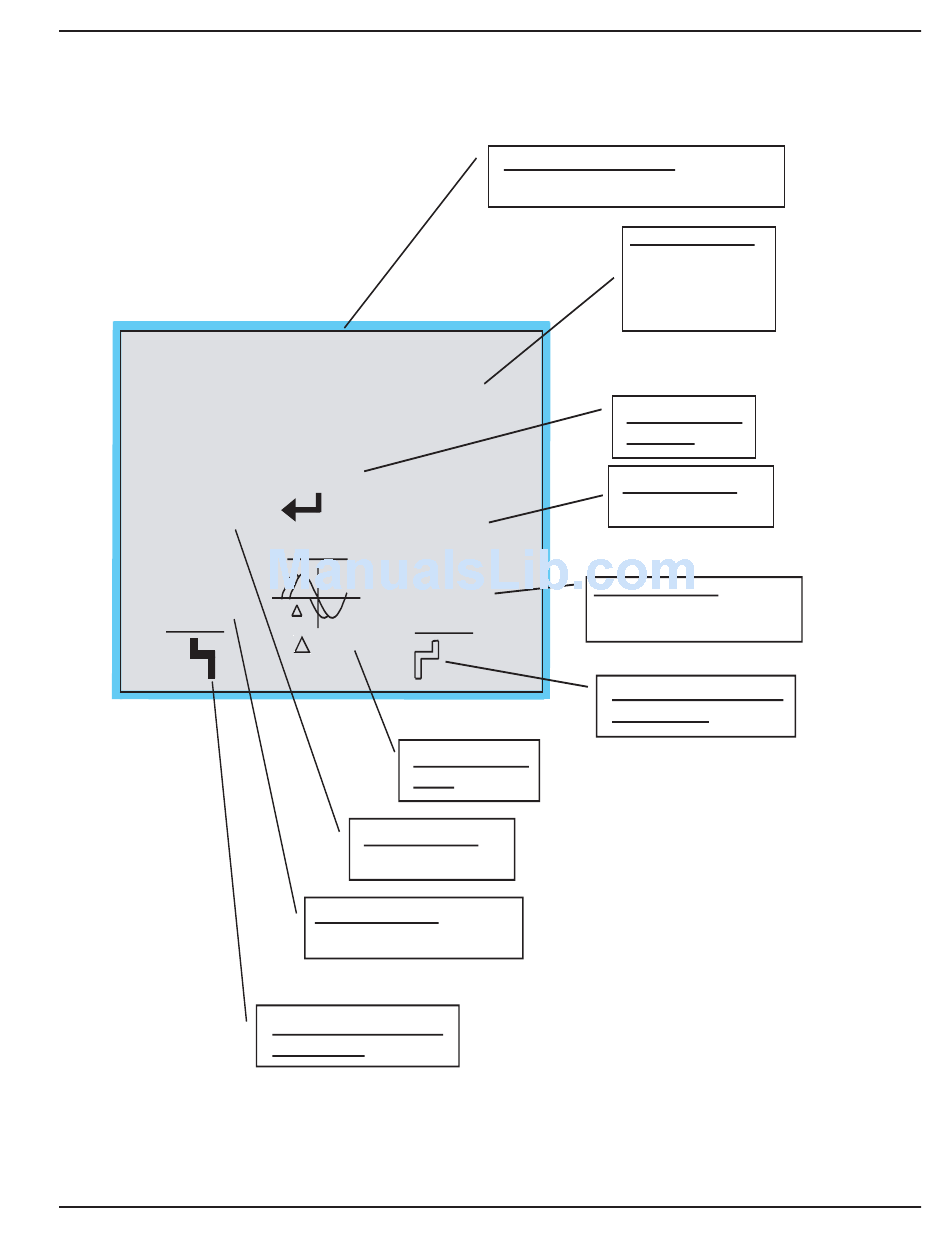

Figure 3-2: LCD Normal Operation Screen
NORMAL OPERATION
A 200A
133 KW
Source S1
V1 480V
V2 480V
V3 480V
60.0 HZ
86-504004-00 B03
B 200A C 200A
166 KVA
0.8 PF
Preferred
Source S2
Synchro
V1 480V
V2 480V
V3 480V
60.0 HZ
= 0°
Phase Difference
Meter
Source S1 Name
(field programmable)
Source S1 Meters
-Voltage (Ø's A-B, B-C, C-A)
Current Flow Indication
for Source S1
Visual/Audible Alarms
-access separate screen to view alarms.
Load Meters
-Current (ØA, B, C)
-KVA
-KW
-Power Factor (PF)
Preferred Source
Indication
Source S2 Name
(field programmable)
Source S2 Meters
-Voltage (Ø's A-B, B-C, C-A)
-Frequency (Hz)
Current Flow Indication
for Source S2
Operation
Installation and User Manual
3 —11
