Setting Operation Mode

Set DIP switch SA1 for one of the following configuration modes:
First Card
Standard Mode (default)
All switches OFF
SA1
8
1
ON OFF
First Card
Programmable Mode
SA1 switch 3 ON
SA1
8
1
ON OFF

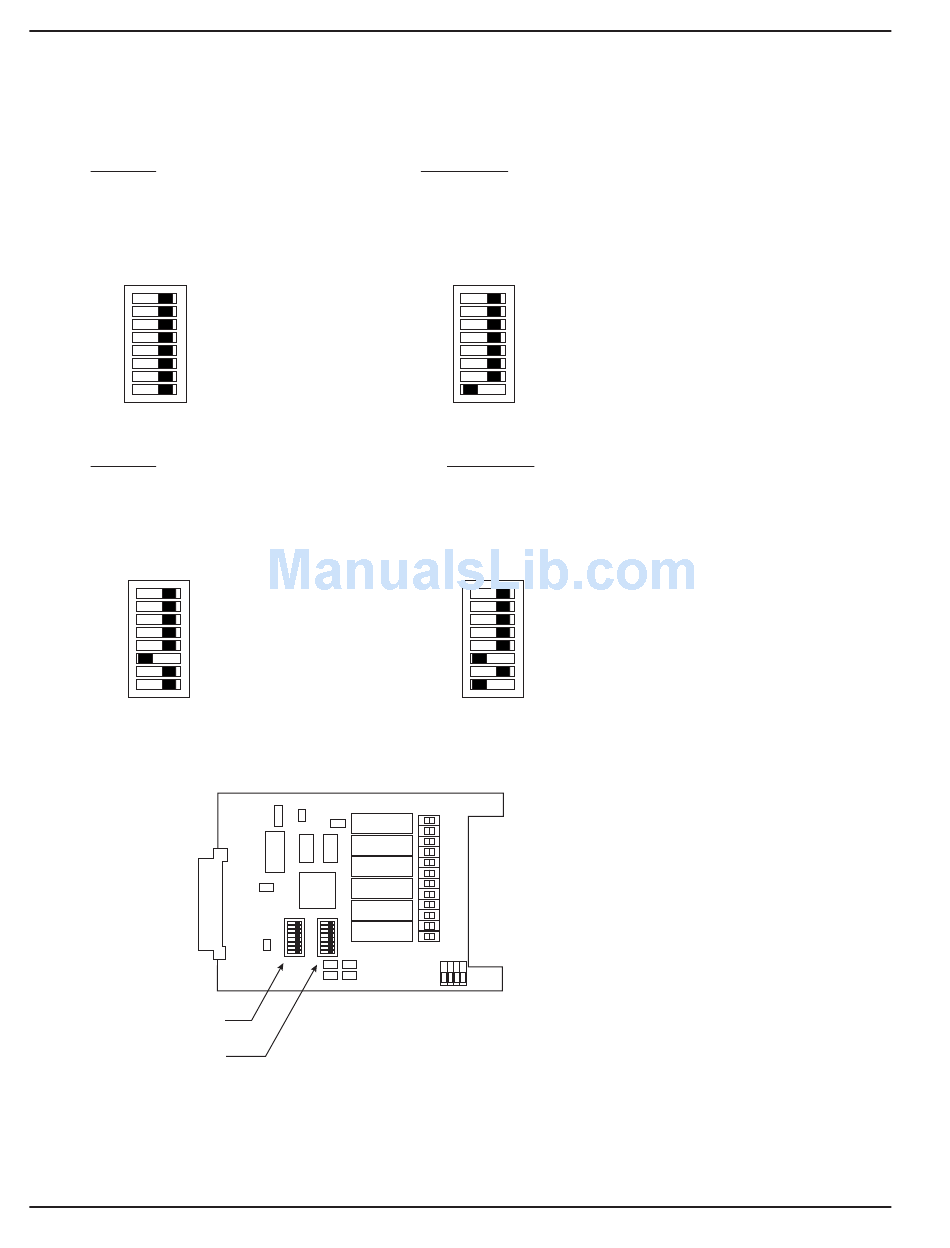

Figure 2-7: SA2 and Dip switch location on communication card.
SA1 DIP Switch
SA2 DIP Switch
2 — 8
Second Card (optional)
Standard Mode (default)
SA1 switch 1 ON
SA1
ON
Second Card (optional)
Programmable Mode
SA1 switches 1 & 3 ON
ON
SA1 SA2
Installation
