General Description - MGE UPS Systems Epsilon STS 200A Installation And User Manual

Epilson STS TM
1.3

General Description

The Epsilon STS™ system is available in two different cabinet sizes. Dimensions for the cabinets are:
200A cabinet: 72"H x 24"W x 30"D
400A/600A cabinet: 72"H x 38"W x 30"D
Both cabinets are designed to provide for top and/or bottom entry of input and output power feeds.
The Epsilon STS™ system can be purchased to accept 208 VAC, 220 VAC, 240 VAC, 440 VAC, 480 VAC, 575 VAC
or 600 VAC utility feed.

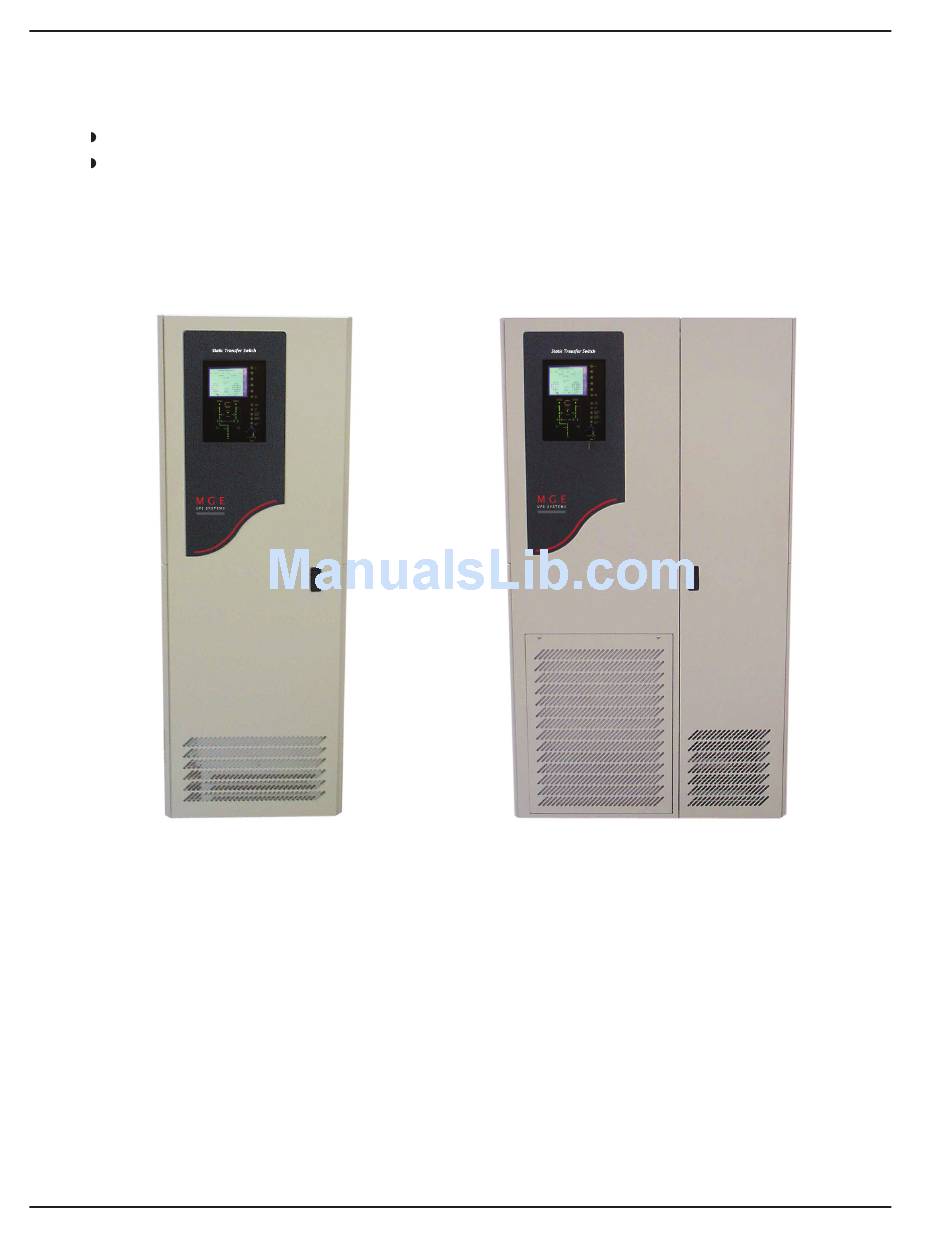

Figure 1-1a: Epsilon STS™ - 200A Cabinet.
Physical Characteristics
Enclosure Type
Enclosure Dimensions
Accessibility
Power Connections/
Busbars
Cable Entry
Mounting
1 — 2
NEMA 1, Free-standing, modular configured with hinged dead front construction
protecting high voltage areas.
Depth: 30" (System will pass through standard 36" wide door).
Height: 72".
Width: 24" for 200A STS; 38" for 400A and 600A STS.
Front access for operation and maintenance. Front or side access for customer power
connection points.
All power connections and terminations to be solid copper braced rated for
100KAIC.(400/600A models may be a combination of copper busbars and cables).
Top and Bottom.
360° Casters and Leveling Jacks with 1" minimum adjustment.
Introduction
Figure 1-1b: Epsilon STS™ - 400/600A Cabinet.
86-504004-00 B03
