IS-NAS Server Rear Panel–LEDs and Buttons
007-5621-001
As shown in Figure 1-3, the rear panel of an IS-NAS server contains three status LEDs that
indicate server status and two buttons that are used to power up and reset the server.
NVRAM status LED
Power status LED
Server status LED

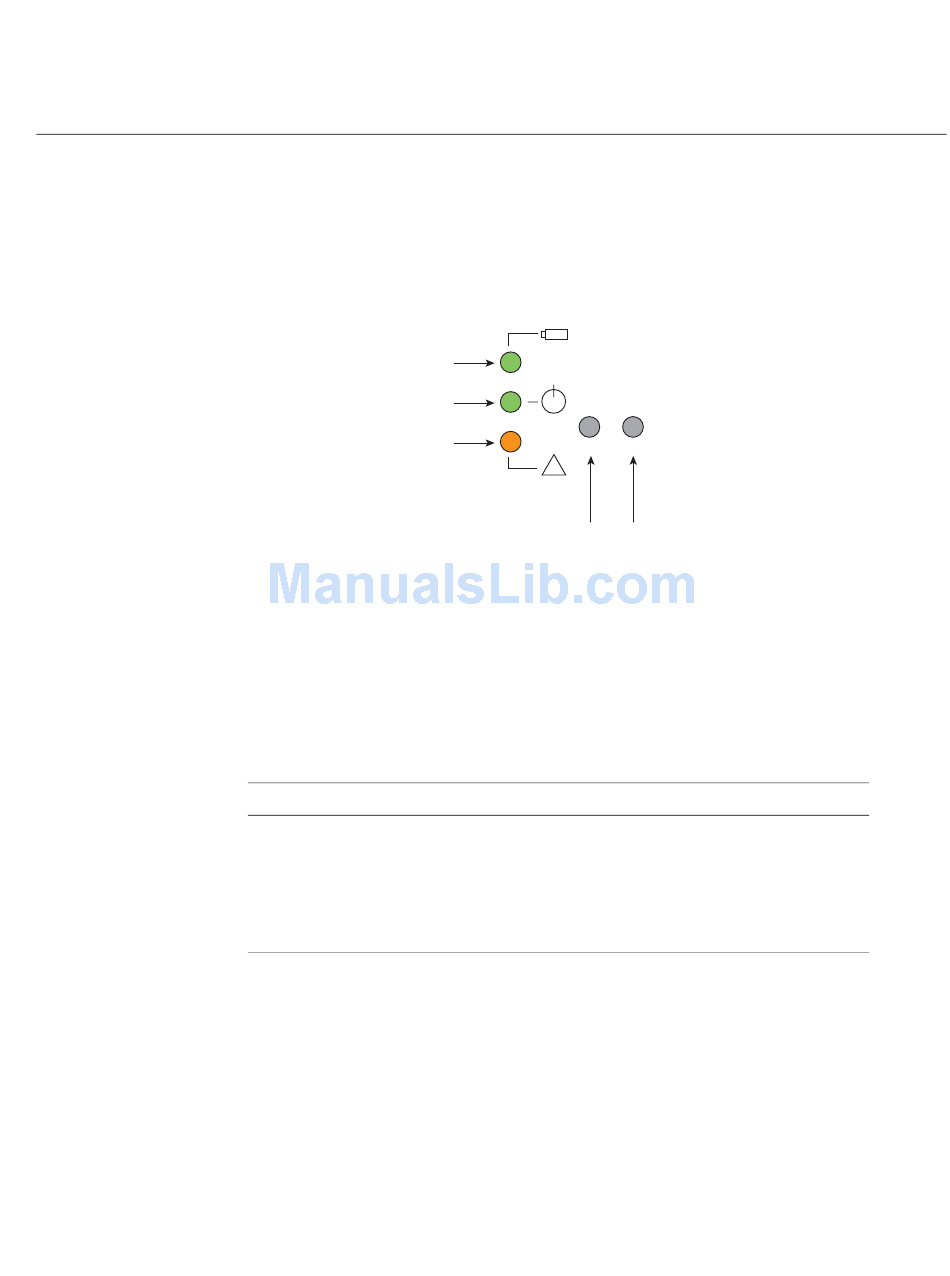

Figure 1-3 Rear Panel LEDs and Buttons
The NVRAM, Power, and Server LEDs indicate if the server is powered on, its operation state,
and if the NVRAM is currently being protected by battery backup power.
and Table 1-5 describe the various states of the LEDs.
Table 1-3
NVRAM Status LED (Green/Amber)
State Meaning
Solid Green Normal operation.
Flashing Green NVRAM contents are protected by battery power.
Solid Amber Battery pack is faulty or not fitted properly.
Off Disabled or NVRAM battery power has exhausted.
+ -
RST PWR
!
Reset Power
button button
:
