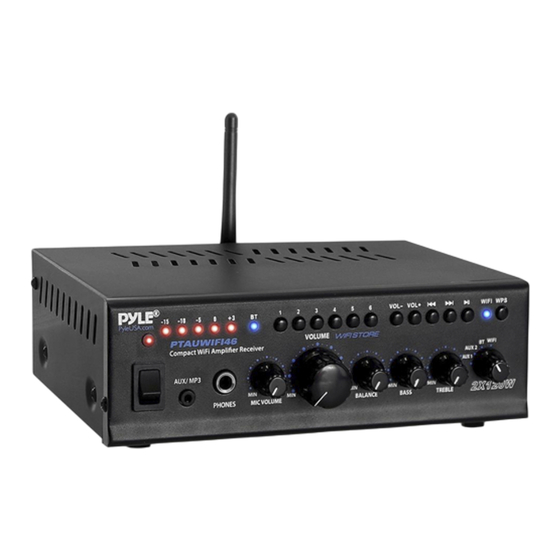

Pyle PTAUWIFI46 User Manual

Wireless audio steaming stereo amplifier
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
WIFI & Bluetooth Wireless Stereo Powered Amplifier
with AUX (3.5mm), and Micrphone/Headphone (1/4") Inputs
Specification
1.Output Power, 2 Channel Driven
4-Ohm,1Khz, 1% THD .............................. ..... .......................20 Wattsx2
4-Ohm,1Khz, 10% THD............................................................32 Wattsx2
Max Power............................................................................120WattsX2
2. THD, 1KHz Rated Power.............................................................. 0.3%
3.Rated Input Level/Impedance
Audio Input..............................................................................250mV
Microphone Input......................................................................2.5mV
4.Tone Control
Bass..........................................................................+/-12dB,100Hz
Treble........................................................................ +/-12dB, 10KHz
5.Separation
Master Channel ......................................................................≥45dB
6.Frequency Response
7 Master Channel .....................................................20Hz-40Khz,+1.5dB
8.Signal To Noise
Master Channel ......................................................................≥81dB
9.Speaker System
Master Channel .............................................................4Ohm/8Ohm
10.Input Power ................................................AC 110/60Hz; 230V/50Hz
11.Power Consumption................................................................ 240W
12.Power Fuse......................................... .1.5A,250V fast-acting,5x20mm
13. Unit Size(WxHxD) Inch....................................... ...8.27"x2.72"x5.39"
14. Unit Weight...................................................... ...................5.68lb
TEL: 718.535.1800
1600 63RD STREET, BROOKLYN NY 11204
FAX: 718.236.2400
PTAUWIFI46
with WIFI/Bluetooth
WIFI & Bluetooth Wireless Stereo Powered Amplifier
with AUX (3.5mm), and Micrphone/Headphone (1/4") Inputs

Advertisement

loading
Need help?

Need help?

Do you have a question about the PTAUWIFI46 and is the answer not in the manual?

Questions and answers

Related Manuals for Pyle PTAUWIFI46

Summary of Contents for Pyle PTAUWIFI46

  • Page 1 10.Input Power ………………………………….……..AC 110/60Hz; 230V/50Hz 11.Power Consumption…………………………………………………..….. 240W 12.Power Fuse......... .1.5A,250V fast-acting,5x20mm 13. Unit Size(WxHxD) Inch………………………………… …8.27"x2.72"x5.39" 14. Unit Weight……………………………………………… ……….……...5.68lb PTAUWIFI46 with WIFI/Bluetooth TEL: 718.535.1800 FAX: 718.236.2400 WIFI & Bluetooth Wireless Stereo Powered Amplifier 1600 63RD STREET, BROOKLYN NY 11204...

  • Page 2: Features And Controls

    ( like Smartphones, Tablets, Laptops, Computers, etc. ). Additional system features include 1/4" Microphone Input and 1/4" Head- phone Input, Push Type Speaker Terminal connectors, RCA Stereo Inputs, RCA Rec. Output. Take control of your sound with the PYLE PTAUWIFI46 Amp BACK PANEL Receiver.
  • Page 3 Control & Function Layout Control & Function Layout * VOL- /VOL+ :Buttons for Volume + or Volume - 14.WIFI/ BT Antenna Button Switches to Previous Song or Next Song 15. PAGER/MIXIG : Button Switches to Play or Pause Set to PAGER, the Signal from AUX1 and AUX2 will be Attenuated * WIFI: WIFI Signal Indicator By - 12dB and the Signal from MIC will Override to Page ( Auto * WPS: WIFI Protected Setup...
  • Page 4 (Please pay more attention: If the same Mobile Phone has finished the first wireless connection, then no need to press WPS button again.)
  • Page 7 Listen Songs in Different Ways to Enjoy Music 2.You can control the PTAUWIFI46 unit by two different mobile phones. 3.You can add several PTAUWIFI46 units in a mobile phone, which can control the unit to play music in mono, combined and stereo mode.

  • Page 8: Features & Function

    Features & Function Connecting Diagram Features: •Compact Tabletop Stereo Amplifier Receiver • Wi-Fi Wireless Connectivity Receiver Search, Stream & Control Your Music via the Downloadable App •LAN Interface Input by Router •Bluetooth Wireless Audio Streaming Stream Internet Radio Services • Full Range Audio &...
